AVERA PIVF2 Induction Cooktop User Manual

1. Introduction

Thank you for choosing the AVERA PIVF2 Induction Cooktop. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before installation and operation, and keep it for future reference.

2. Important Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the manufacturer.

• This appliance is designed for domestic use only.
• Ensure the electrical connection is 220V.
• Wiring must be performed by a qualified technician following the provided diagrams.
• Do not operate the cooktop if the ceramic glass surface is cracked or broken.
• Keep children away from the appliance during operation and cooling.
• The cooktop heats only the utensil, not the surface directly, but residual heat may be present.
• Features include automatic shut-off, no open flames, no toxic gases, and a child lock for enhanced safety.

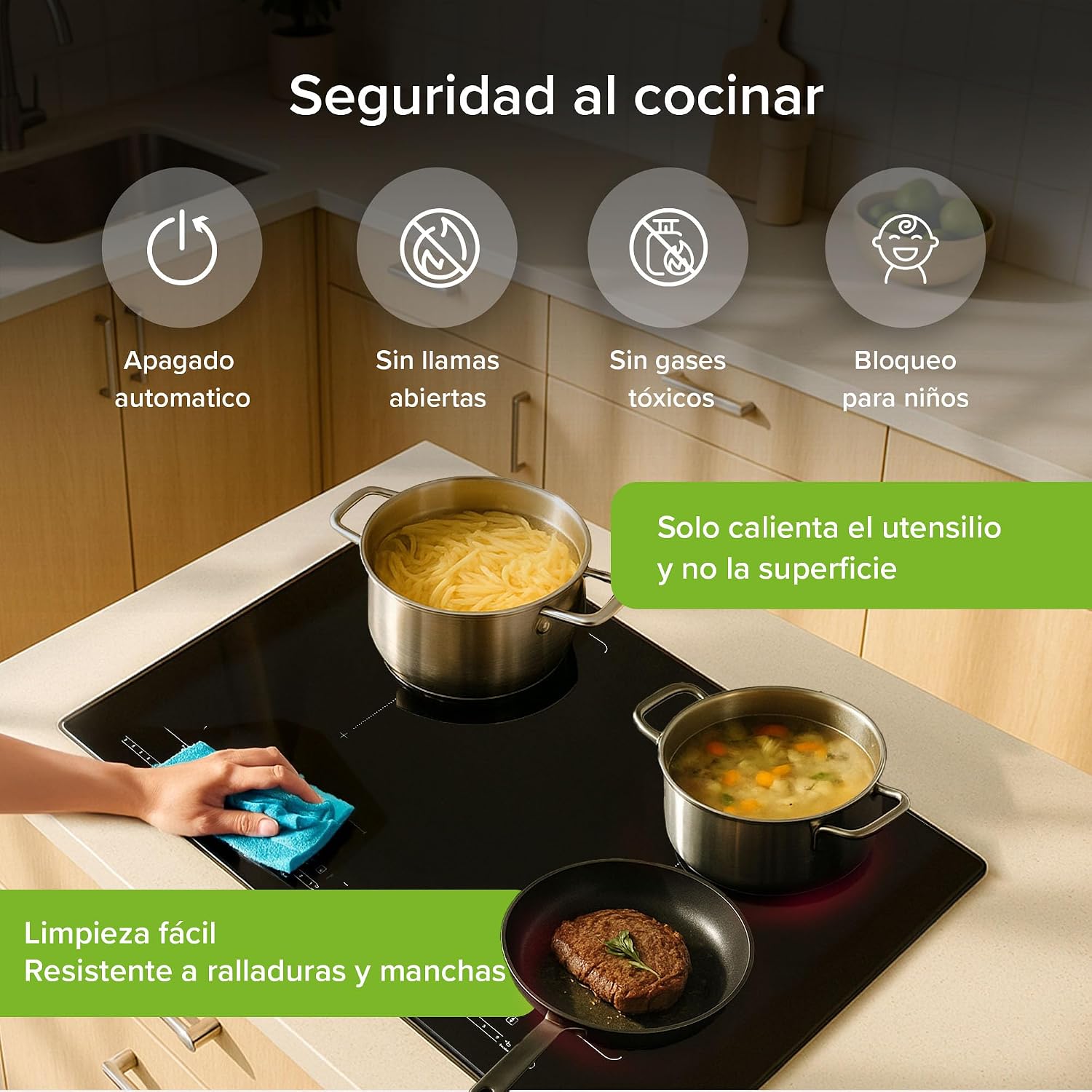

Figure 1: Safety Features and Easy Cleaning

This image illustrates the key safety features of the cooktop, including automatic shut-off, absence of open flames and toxic gases, and a child lock. It also highlights the cooktop's design to heat only the utensil, not the surface, and its easy-to-clean, scratch-resistant ceramic glass surface.

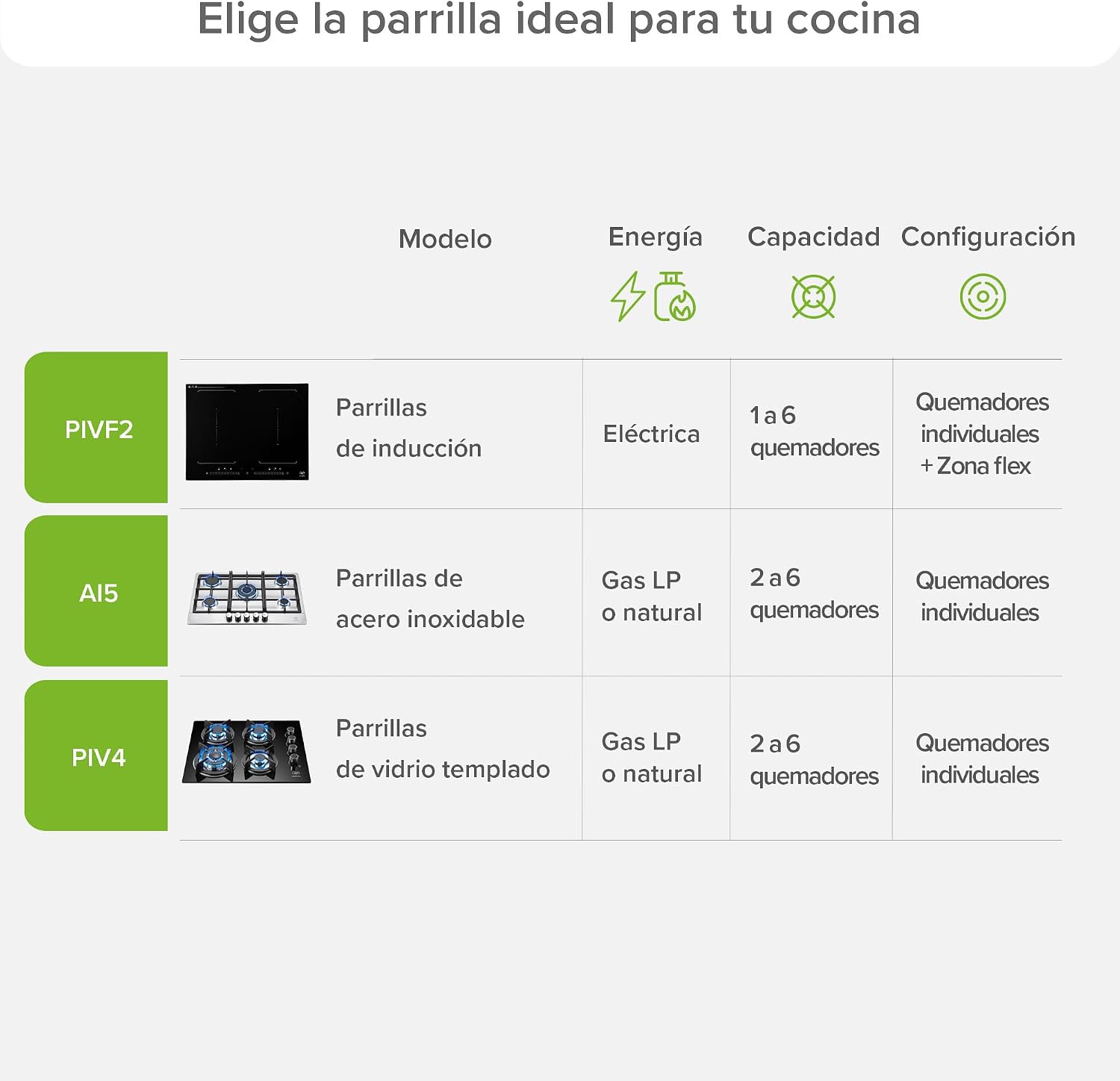

3. Product Overview

The AVERA PIVF2 is a 4-burner induction cooktop featuring dual flex zones, a booster function, and intuitive touch controls. Its ceramic glass surface is designed for durability and easy cleaning.

3.1 Key Features

• 4 Induction Burners: Efficient and fast heating.
• Dual Flex Zones: Combine two cooking zones to accommodate larger or irregularly shaped cookware.
• Booster Function: Provides an instant power boost for rapid heating (up to 8000W).
• 9 Temperature Levels: Precise heat control for various cooking needs.
• Touch Control Panel: Intuitive and easy to operate.
• Ceramic Glass Surface: Elegant, durable, and easy to clean.
• Automatic Shut-off: Enhances safety by turning off inactive zones.
• Child Lock: Prevents accidental operation.

Figure 2: Key Features of Model PIVF2

This image provides a visual summary of the PIVF2 model's main features, including its 220V power requirement, 9 temperature levels, total power output (7000W, 8000W with booster), touch control panel, 4 burners, dual flex zone capability, and the inclusion of a booster function.

4. Setup and Installation

IMPORTANT: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations.

4.1 Electrical Requirements

• The cooktop requires a 220V electrical connection.
• Ensure your home's electrical system can support the cooktop's wattage (7000W - 8000W).
• A qualified technician should validate the voltage drop and perform the wiring.

4.2 Wiring Diagram

The wiring must follow one of the first three diagrams provided. Do NOT use the fourth diagram (400V connection).

Figure 3: Electrical Connection Diagrams

This image displays the acceptable wiring configurations for the 220-240V connection. It is crucial to follow one of the first three diagrams and avoid the 400V connection shown as incorrect. Professional installation is strongly recommended.

4.3 Physical Dimensions and Cut-out

Refer to the following dimensions for proper installation and counter cut-out.

Figure 4: Product and Cut-out Dimensions

This image provides the physical measurements of the cooktop and the required cut-out dimensions for built-in installation. The cooktop measures 59 cm wide, 52 cm deep, and 6.1 cm high, with a weight of 13 kg. The recommended cut-out is 56 cm wide by 49 cm deep.

5. Operating Instructions

5.1 Control Panel Overview

The cooktop features a touch control panel for easy operation of all functions.

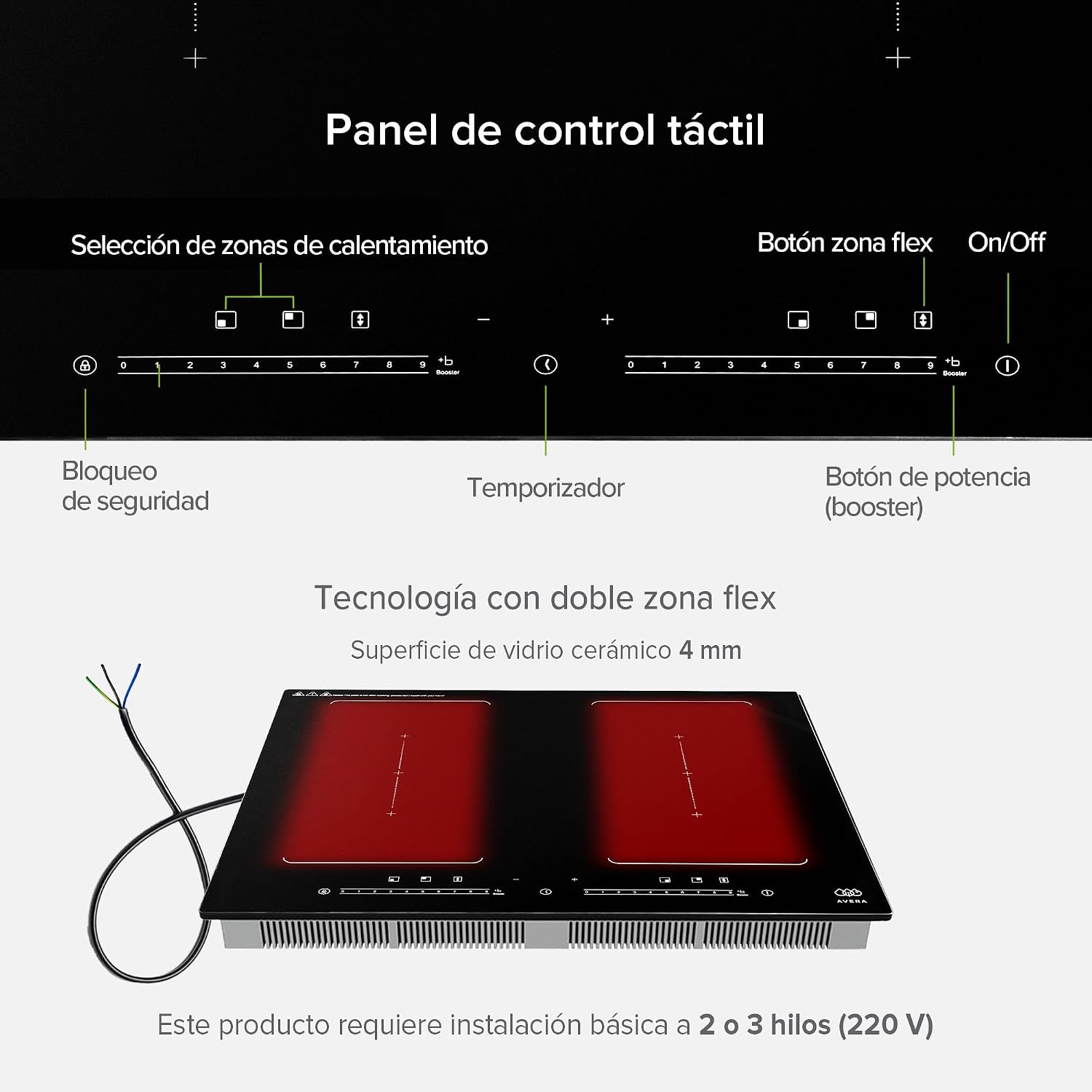

Figure 5: Touch Control Panel and Flex Zone Technology

This image details the touch control panel, indicating controls for selecting heating zones, activating the flex zone, engaging the safety lock, setting the timer, and using the booster function. It also visually represents the dual flex zone technology and the 4mm ceramic glass surface.

5.2 Basic Operation

1. Power On/Off: Touch the power button to turn the cooktop on or off.
2. Select a Cooking Zone: Touch the corresponding zone selection button.
3. Adjust Temperature: Use the '+' and '-' buttons to select one of the 9 temperature levels.
4. Booster Function: For rapid heating, select a zone and then touch the 'Booster' button. This will temporarily increase the power to up to 8000W.
5. Flex Zone: To combine two zones into a single large cooking area, select the flex zone button. This allows for larger cookware (18 cm to 39.5 cm).
6. Timer: Use the timer function to set a cooking duration up to 99 minutes.
7. Child Lock: Activate the child lock to prevent accidental changes to settings or activation.

Figure 6: 9 Temperature Levels and Booster Function

This image demonstrates the cooktop's 9 temperature levels and the Booster function in action. It also shows the 99-minute timer. The Booster function is used to accelerate heating for boiling or quick cooking tasks.

5.3 Compatible Cookware

Induction cooktops require cookware with a magnetic base. The cooktop features an automatic pan detector.

• Compatible Materials: Stainless steel, cast iron, iron, and enamel cookware.
• Incompatible Materials: Aluminum, copper, glass, ceramic, and non-magnetic stainless steel.
• Pot Sizes: Individual zones accommodate pots from 12 cm to 18 cm. Flex zones can accommodate larger cookware from 18 cm to 39.5 cm.

Figure 7: Compatible Cookware and Sizes

This image illustrates the types of cookware compatible with the induction cooktop, including stainless steel, cast iron, iron, and enamel. It also specifies the appropriate pot sizes for individual burners (12-18 cm) and the larger flex zones (18-39.5 cm).

5.4 Dual Flex Zone Operation

The dual flex zones allow you to combine two cooking areas for greater versatility, ideal for griddles or large pots.

Figure 8: Dual Flex Zone Power Distribution

This diagram demonstrates how the dual flex zones can be combined and the power distribution across them. It shows individual zone power levels (e.g., 2000W, 1500W, 3000W) and their increased output when the Booster function is activated (e.g., 2200W, 1800W, 3500W).

6. Maintenance and Cleaning

• Always ensure the cooktop is cool before cleaning.
• Wipe the ceramic glass surface with a soft cloth and mild detergent.
• For stubborn stains, use a specialized ceramic cooktop cleaner.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals that can damage the surface.
• Do not use steam cleaners.
• Regular cleaning helps maintain the cooktop's appearance and performance.

7. Troubleshooting

If you encounter issues with your cooktop, refer to the following common problems and solutions. For more complex issues, contact a qualified service technician.

8. Specifications

9. Warranty and Support

The AVERA PIVF2 Induction Cooktop comes with a 2-year warranty. For warranty claims, technical support, or service inquiries, please contact AVERA customer service. Refer to your purchase documentation for specific contact details.
