FTYHFEFH Carburetor Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your new FTYHFEFH carburetor, designed as a direct replacement for Briggs & Stratton Model 21R707-0039-G1 engines. Proper installation and maintenance are crucial for optimal engine performance and longevity.

2. Safety Information

• Always disconnect the spark plug wire or battery before performing any maintenance or installation to prevent accidental engine startup.
• Work in a well-ventilated area. Fuel vapors are flammable and hazardous.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Handle fuel with extreme care. Do not smoke or use open flames near fuel.
• Ensure the engine is cool before working on the carburetor to avoid burns.
• If you are unsure about any step, consult a qualified service technician.

3. Package Contents

The package includes one FTYHFEFH carburetor, identical to the product images. This is a complete single unit designed for straightforward replacement.

Image: Front-side view of the FTYHFEFH carburetor, showing the main body and various connections.

4. Compatibility

This FTYHFEFH carburetor is specifically designed as a direct replacement for the Briggs & Stratton Model 21R707-0039-G1 Engine. Verify your engine model number before installation to ensure proper fitment and function.

5. Setup and Installation

The following steps provide a general guide for carburetor replacement. Specific procedures may vary slightly depending on your engine model. Always refer to your engine's service manual for detailed instructions.

1. Preparation: Ensure the engine is cool. Disconnect the spark plug wire or battery. Turn off the fuel supply and drain any fuel from the tank if necessary.
2. Access: Remove any air filter housings, shrouds, or other components that obstruct access to the carburetor.
3. Disconnect: Carefully disconnect the fuel line, throttle linkage, choke linkage, and any other hoses or wires attached to the old carburetor. Be mindful of fuel spills.
4. Remove Old Carburetor: Unbolt the old carburetor from the engine manifold. Note the position of any gaskets or spacers.
5. Install New Carburetor: Place new gaskets (if supplied or required) and spacers in their correct positions. Mount the new FTYHFEFH carburetor, ensuring it is seated properly. Tighten mounting bolts securely but do not overtighten.
6. Reconnect: Reconnect the fuel line, throttle linkage, choke linkage, and any other hoses or wires. Ensure all connections are secure and free of leaks.
7. Final Checks: Reinstall any removed shrouds or air filter components. Reconnect the spark plug wire or battery. Refill the fuel tank with fresh, appropriate fuel.

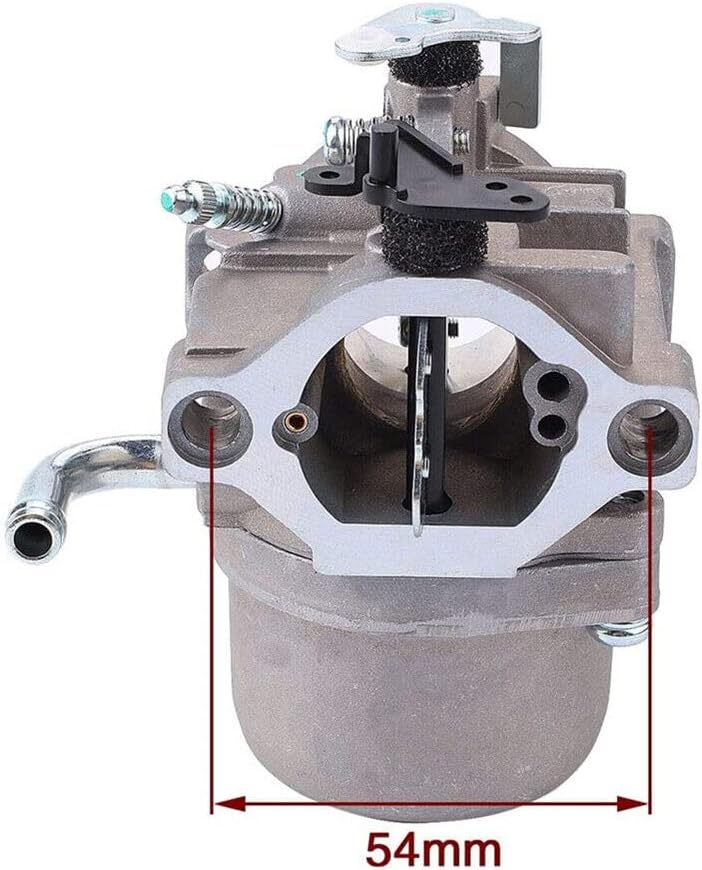

Image: Front view of the FTYHFEFH carburetor, highlighting a 54mm dimension, useful for verifying fitment.

Image: Rear-side view of the FTYHFEFH carburetor, showing additional components and mounting points.

6. Operation

After installation, ensure the engine starts and runs smoothly. The carburetor is pre-set for standard operation. If adjustments are needed, consult your engine's service manual. Always use fresh, clean fuel as recommended by your engine manufacturer. Ensure the air filter is clean to allow proper airflow to the carburetor.

7. Maintenance

Regular maintenance helps ensure the longevity and performance of your carburetor and engine.

• Fuel System: Use a fuel stabilizer if the engine will be stored for extended periods. Old or contaminated fuel can cause carburetor issues.
• Air Filter: Regularly inspect and clean or replace the air filter to prevent dirt and debris from entering the carburetor.
• External Cleaning: Keep the exterior of the carburetor clean from dirt, oil, and debris.
• Linkages: Ensure throttle and choke linkages move freely and are not obstructed.

8. Troubleshooting

If you encounter issues after carburetor replacement, consider the following common problems:

• Engine Not Starting:
  • Check fuel level and quality.
  • Ensure spark plug is connected and functional.
  • Verify choke operation.
  • Check for proper fuel flow to the carburetor.
• Engine Runs Rough/Stalls:
  • Inspect air filter for clogs.
  • Check for vacuum leaks around carburetor gaskets.
  • Ensure fuel is clean and fresh.
• Fuel Leaks:
  • Check all fuel line connections for tightness.
  • Inspect carburetor bowl gasket for proper seating.

For persistent issues, it is recommended to consult a professional engine technician.

9. Specifications

10. Warranty and Support

Specific warranty information for this product is not provided in the available data. For details regarding warranty coverage or technical support, please contact the seller or manufacturer directly.
