Introduction
This manual provides essential information for the installation, operation, and maintenance of your Vicue SP20075 SP20305A Pilot and Igniter Assembly. This assembly is designed as a replacement part for various Rheem, Protech, and GE natural gas water heaters. Proper installation and maintenance are crucial for the safe and efficient operation of your water heater.
Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Always turn off the gas supply and electrical power to the water heater before attempting any installation or maintenance.
- Installation and service must be performed by a qualified installer, service agency, or gas supplier.
- Ensure all gas connections are properly sealed and tested for leaks after installation.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Package Contents
Verify that all components listed below are included in your package:
Figure 1: Package Contents. This image displays the complete kit: 1x Pilot Assembly (total length 25.6in), 1x Silicone Burner Door Gasket (7.3in x 4.4in), 5x Screws, and 4x Clips.
- 1x Pilot Assembly (SP20075 SP20305A)
- 1x Silicone Burner Door Gasket
- 5x Screws
- 4x Clips
Product Overview and Components
The pilot and igniter assembly is a critical component for the safe and efficient operation of your natural gas water heater. It consists of several key parts working together to ignite the main burner.
Figure 2: Assembly Components. This image labels the main parts of the pilot and igniter assembly, including the Thermocouple, Electrode, Thermopile, Pilot, and Spark Ignitor.
- Pilot: Delivers a small flame to ignite the main burner.
- Spark Ignitor: Creates a spark to light the pilot flame.
- Thermocouple: A safety device that senses the pilot flame. If the pilot light goes out, the thermocouple cools down and shuts off the gas supply to prevent unburned gas from accumulating.
- Thermopile (or Powerpile): Generates a small electrical current to power the gas valve, ensuring the main burner can operate only when the pilot is lit.
- Electrode: Part of the spark ignitor system.
Compatibility
This pilot and igniter assembly is compatible with a wide range of natural gas water heaters from Rheem, Protech, and GE. Refer to your water heater's manual or existing part for verification.
Part Numbers: SP20075, SP20305A, GG50T06AVH00, AS39845, 22V40PF1 Pilot Assembly.
Compatible Rheem Models include:
- RHG PRO50-40F, 42V40F, 22V30F, 3WA62, 3WA63, 3WA64, 3WA59, 3WA61
- Fury Series: 20V30F, 22V40-36F1, 22V40F1, 22V30S-30F, 22V40SF, 42V40SF, 42V50SF, 42VR40-40F, 42VR50-40F, 42V40F, 22V50F1, 42V50-40F, 42V50-50F
- Professional Series: 22V40 PROF, 22V50 PROF, 42V40 PROF, RHG PRO40-40F, 42V50-40 PROF, RHG PRO50-40F, RHG50-50F, 42V40SPROF, 42V50SPROF
Figure 3: Product Features. This image highlights the key attributes of the assembly, including its compatibility, ease of installation, safety, and use of high-quality materials.
Setup and Installation
Installation of a pilot and igniter assembly for a gas water heater involves working with gas lines and electrical components. For your safety and to ensure proper operation, it is strongly recommended that installation be performed by a qualified and certified professional.
General steps for professional installation typically include:
- Shut off gas supply and electrical power to the water heater.
- Drain a small amount of water from the water heater tank to reduce pressure.
- Access the burner assembly compartment, usually by removing the outer and inner access panels.
- Carefully disconnect the old pilot and igniter assembly, noting the routing of all tubes and wires.
- Install the new Vicue pilot and igniter assembly, ensuring all connections (gas tube, thermocouple, thermopile, igniter wire) are secure and correctly routed.
- Replace the burner door gasket with the new silicone gasket provided, ensuring a proper seal.
- Reassemble the access panels.
- Restore gas supply and electrical power.
- Follow the water heater manufacturer's instructions for lighting the pilot and verifying proper operation.
- Check for gas leaks around all connections using a soap solution.

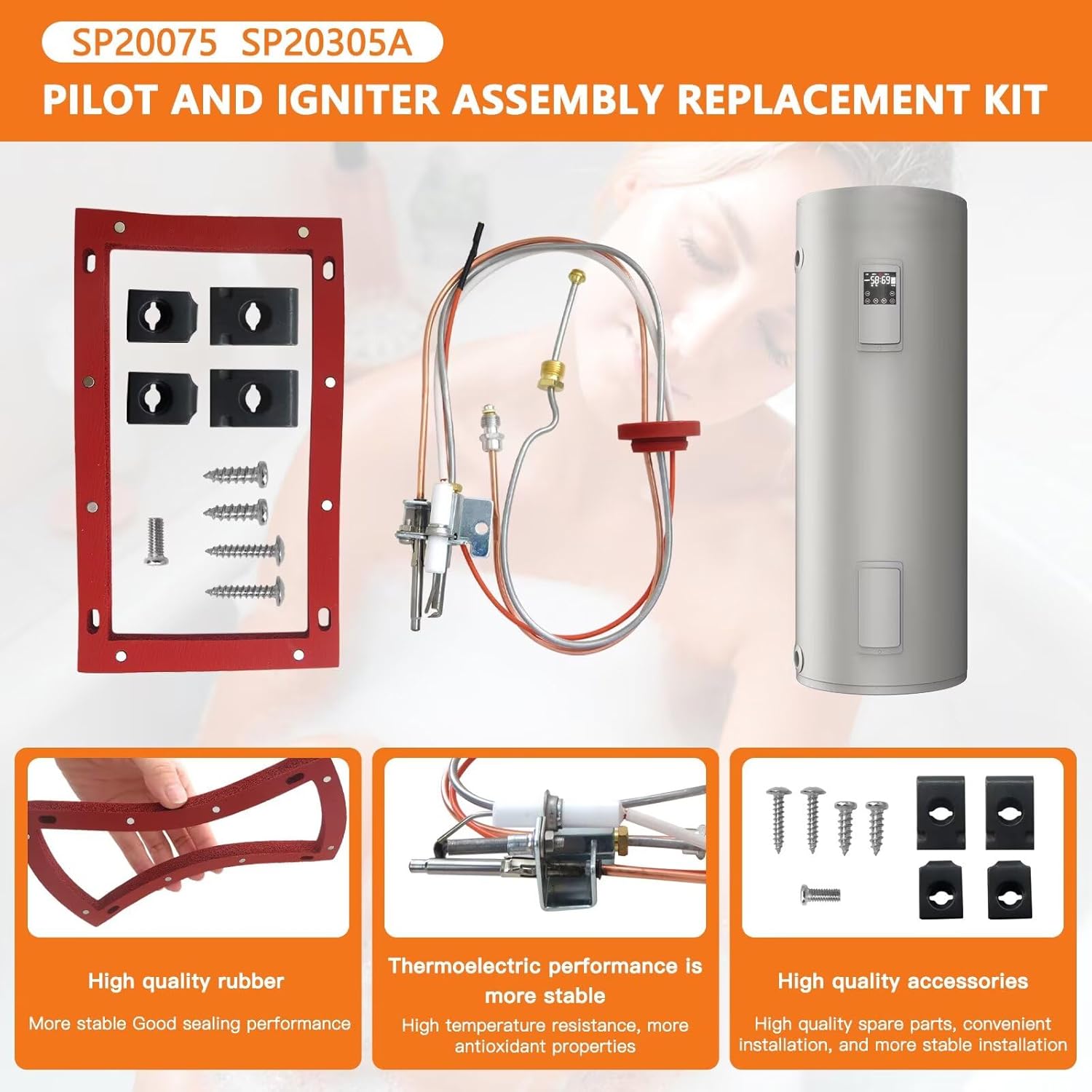

Figure 4: Installation Components. This image illustrates the high-quality components of the kit, including the durable silicone gasket, stable thermoelectric parts, and convenient installation accessories, all designed for a secure fit.
Operating Principles
The pilot and igniter assembly ensures the safe and efficient ignition of your water heater's main burner. When the water heater calls for heat, the spark ignitor creates a spark to light the pilot flame. Once the pilot flame is established, the thermocouple and thermopile sense its presence. The thermocouple generates a small voltage to keep the gas valve open to the pilot, while the thermopile generates enough electricity to power the main gas valve. This system prevents the main burner from igniting if the pilot flame is not present, thereby avoiding the release of unburned gas.
Maintenance
Regular maintenance of your water heater, including the pilot and igniter assembly, can extend its lifespan and ensure efficient operation. It is recommended to have your water heater inspected annually by a qualified professional.
- Visual Inspection: Periodically check the pilot flame for a strong, blue flame. A weak, yellow, or flickering flame may indicate a problem.
- Cleaning: Over time, dust and debris can accumulate around the pilot assembly, potentially obstructing the pilot flame or affecting the thermocouple/thermopile. A professional can carefully clean these components.
- Component Check: A technician can test the thermocouple and thermopile for proper voltage output to ensure they are functioning correctly.
Note: Do not attempt to clean or repair gas components yourself unless you are a qualified professional. Always consult your water heater's specific maintenance guidelines.
Troubleshooting
If your water heater is experiencing issues related to ignition or maintaining a flame, the pilot and igniter assembly may be a factor. Here are common symptoms and potential causes:
- Pilot light won't stay lit: This is often caused by a faulty thermocouple or thermopile that is not sensing the pilot flame or generating enough voltage to keep the gas valve open.
- No spark from igniter: Could indicate a problem with the igniter electrode or the igniter module itself.
- Main burner won't ignite: If the pilot is lit but the main burner doesn't come on, it could be an issue with the thermopile not generating enough power for the main gas valve, or a problem with the gas control valve itself.
- Weak or yellow pilot flame: May indicate a partially clogged pilot orifice or insufficient air supply.
IMPORTANT: Troubleshooting and repair of gas water heater components should only be performed by a qualified service technician. Attempting repairs without proper knowledge and tools can be dangerous.
Specifications
| Part Numbers | SP20075, SP20305A, GG50T06AVH00, AS39845 |
| Manufacturer | Goodicare (Aftermarket Replacement) |
| Item Weight | 1.76 ounces |
| Batteries Required | No |
| Pilot Assembly Length | Approximately 25.6 inches (total length) |
| Gasket Dimensions | Approximately 7.3 inches x 4.4 inches |
Warranty and Support
Specific warranty information for this aftermarket replacement part is not provided in the product details. Please refer to the seller's return policy or contact the seller directly for warranty inquiries.
For technical support or assistance with installation, it is recommended to contact a qualified HVAC or plumbing professional. For product-specific questions, you may reach out to the manufacturer, Vicue, or the seller, Goodicare, through the platform where the product was purchased.
