LVWIT 3-Inch Ultra-Thin LED Recessed Ceiling Lights

1. Important Safety Information

Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards that could cause personal injury or property damage.

• WARNING: Risk of electric shock. Turn off power at the circuit breaker or fuse box before installation.
• Consult a qualified electrician if you are unsure about the installation process.
• This product is IC Rated, meaning it is suitable for direct contact with insulation materials in the ceiling.
• Ensure all electrical connections comply with local codes and ordinances.
• Do not modify the fixture or its components.
• Suitable for damp locations.

2. What's in the Box

Each package of LVWIT 3-inch Ultra-Thin LED Recessed Ceiling Lights includes the following components:

• LED Recessed Light Fixtures (6 units)
• Junction Boxes (6 units)
• Quick Connectors / Wire Nuts
• Hole Template (1:1 ratio for cutting)
• Instruction Manual

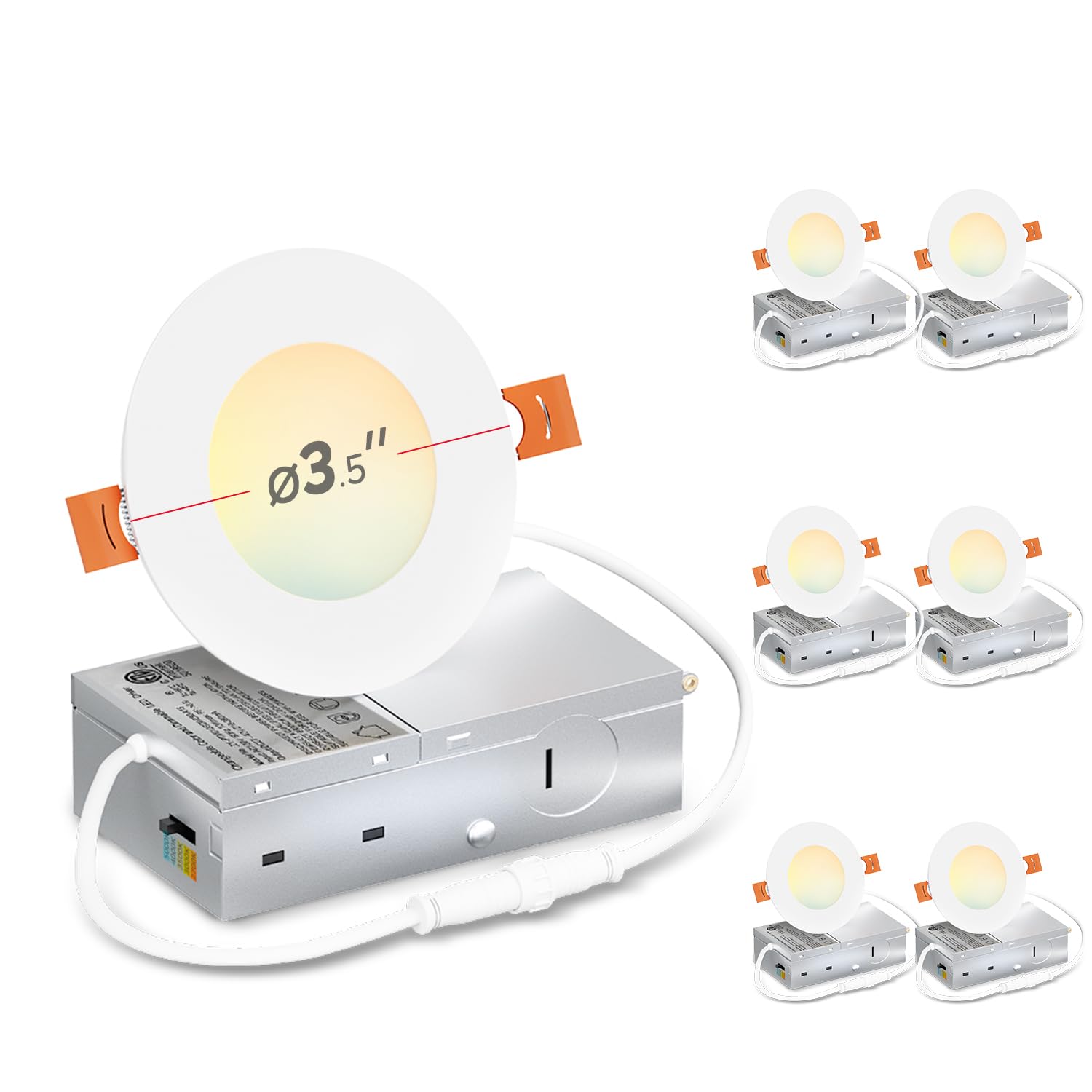

Image: Contents of the LVWIT 3-inch LED Recessed Light package, showing the lights and individual junction boxes.

3. Product Specifications

Image: Detailed dimensions of the 3-inch LED recessed light and its accompanying junction box.

4. Installation Guide

Follow these steps for a safe and efficient installation of your LVWIT recessed lights. Always ensure power is off before starting.

1. Prepare the Ceiling: Use the provided 1:1 hole template to mark the desired location for each light. Cut a hole in the ceiling with a diameter of approximately 2.95 inches (75mm).
2. Connect Wiring to Junction Box: Open the junction box. Connect the household electrical wires (hot, neutral, ground) to the corresponding wires inside the junction box using the quick connectors. Ensure all connections are secure.
3. Connect Light Fixture to Junction Box: Plug the cable from the LED light fixture into the corresponding port on the junction box. This is a simple plug-and-play connection.
4. Select Color Temperature (CCT): Before inserting the light into the ceiling, locate the CCT selection switch on the side of the junction box. Choose your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) by sliding the switch.
5. Insert Light into Ceiling: Gently push the spring clips on the sides of the LED light fixture upwards. Insert the light into the cut hole in the ceiling. The spring clips will hold the light securely in place against the ceiling surface.

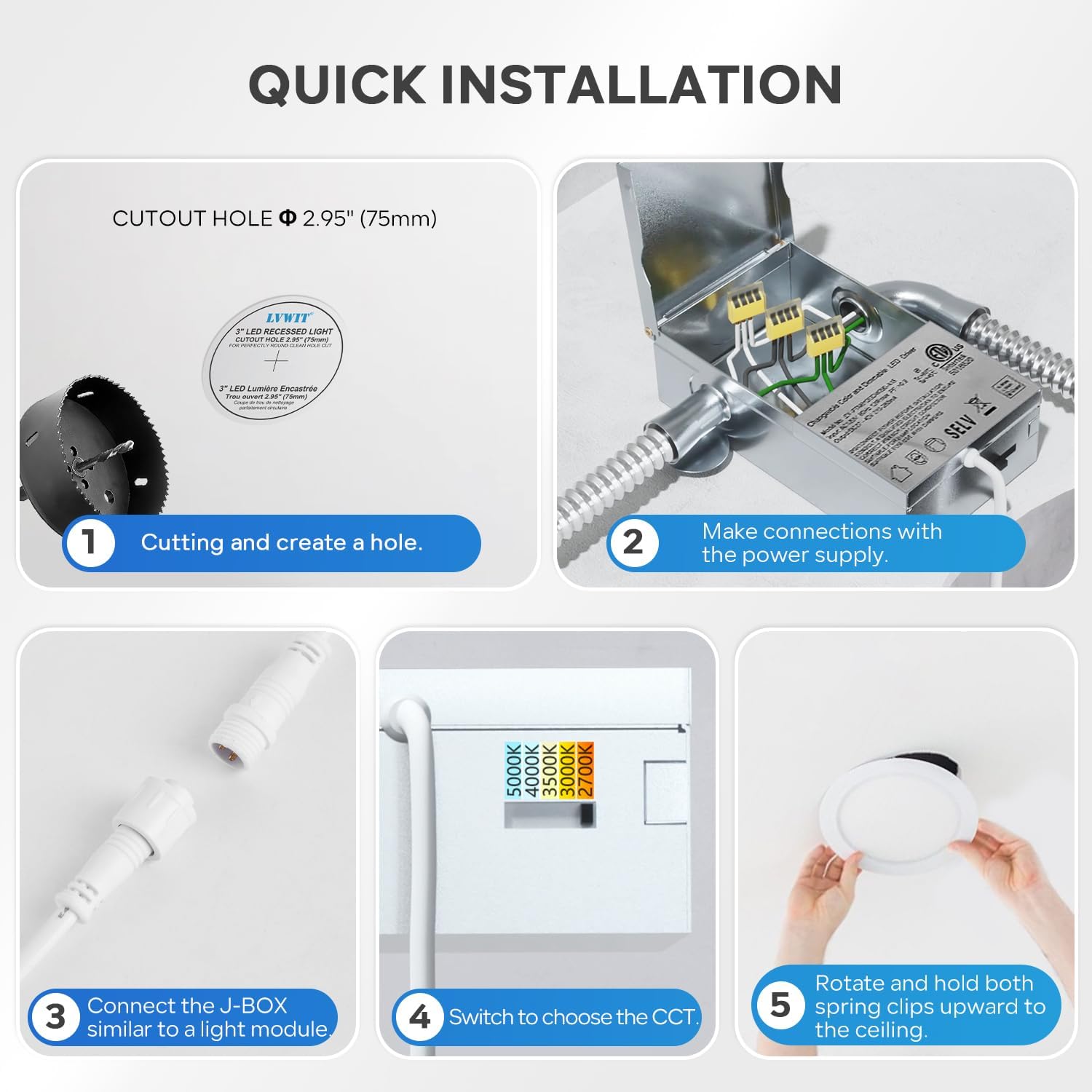

Image: Visual guide to the quick installation process, from cutting the hole to mounting the light.

5. Operating Instructions

5.1. Color Temperature Selection (5CCT)

Your LVWIT recessed lights offer five selectable color temperatures to suit various moods and environments. The CCT switch is located on the side of the junction box. Adjust this switch before final installation into the ceiling to set your preferred light color:

• 2700K: Warm White (Ideal for bedrooms, cozy spaces)
• 3000K: Soft White (Relaxing, slightly warmer than natural light)
• 3500K: Neutral White (Balanced, suitable for bathrooms or general areas)
• 4000K: Cool White (Brighter, often used in living rooms or offices)
• 5000K: Daylight (Very bright, crisp white light, excellent for kitchens or task lighting)

Image: Examples of different color temperatures (2700K to 5000K) in various room settings.

5.2. Dimming Functionality

These LED recessed lights are designed for smooth dimming from 5% to 100%. They are compatible with most standard LED dimmers. Ensure you use a compatible dimmer switch for optimal performance and to avoid flickering or damage.

Image: Illustration of the smooth dimming range from 5% to 100% and a list of compatible dimmer models.

6. Maintenance

LVWIT LED recessed lights are designed for long-term, low-maintenance operation. Follow these simple guidelines to ensure their longevity and performance:

• Cleaning: Ensure the power is off before cleaning. Wipe the light fixture with a soft, dry, or slightly damp cloth. Do not use harsh chemicals or abrasive cleaners, as these can damage the finish or electrical components.
• No Bulb Replacement: These integrated LED fixtures do not require bulb replacement. The LEDs are designed to last for the entire lifespan of the product.
• Inspection: Periodically check for any loose connections or visible damage. If any issues are found, consult a qualified electrician.

7. Troubleshooting

If you encounter any issues with your LVWIT recessed lights, please refer to the following common troubleshooting steps:

• Light Not Turning On:
  • Check the circuit breaker to ensure power is supplied to the fixture.
  • Verify all electrical connections in the junction box are secure.
  • Ensure the light fixture is properly connected to the junction box.
• Flickering or Inconsistent Light:
  • Confirm that the dimmer switch being used is compatible with LED lighting.
  • Check for loose wiring connections.
• Incorrect Color Temperature:
  • Ensure the CCT selection switch on the junction box is set to your desired temperature.

If these steps do not resolve the issue, please contact customer support.

8. Warranty and Support

LVWIT LED recessed lighting products are backed by a 3-YEAR warranty, ensuring high standards and reliability. All products are ETL certified.

If you have any questions, require technical assistance, or need to make a warranty claim, please do not hesitate to contact our customer service team. We are committed to providing prompt support and aim to respond within 24 hours.

For further information, please visit the LVWIT Store on Amazon.
