1. Introduction
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your FTYHFEFH Carburetor. This carburetor is designed as a direct replacement for Briggs & Stratton 6150 4-7 HP 650 Series Engines. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
2. Safety Information
Always observe safety precautions when working with engine components. Failure to do so may result in personal injury or damage to equipment.
- Ensure the engine is turned off and cooled down before beginning any work.
- Disconnect the spark plug wire to prevent accidental starting.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Work in a well-ventilated area.
- Handle fuel with extreme care; it is highly flammable.
- If unsure about any step, consult a qualified technician.
3. Package Contents
The package includes the FTYHFEFH Carburetor, exactly as pictured. Please verify all components are present and undamaged upon receipt.
- 1 x FTYHFEFH Carburetor (for Briggs & Stratton 6150 4-7 HP 650 Series Engine)
4. Product Overview and Components
The FTYHFEFH Carburetor is engineered for precision and durability, serving as a direct replacement for compatible Briggs & Stratton engines. Familiarize yourself with the carburetor's main components before installation.
Figure 1: Side view of the FTYHFEFH Carburetor, showing the fuel inlet and mounting points.

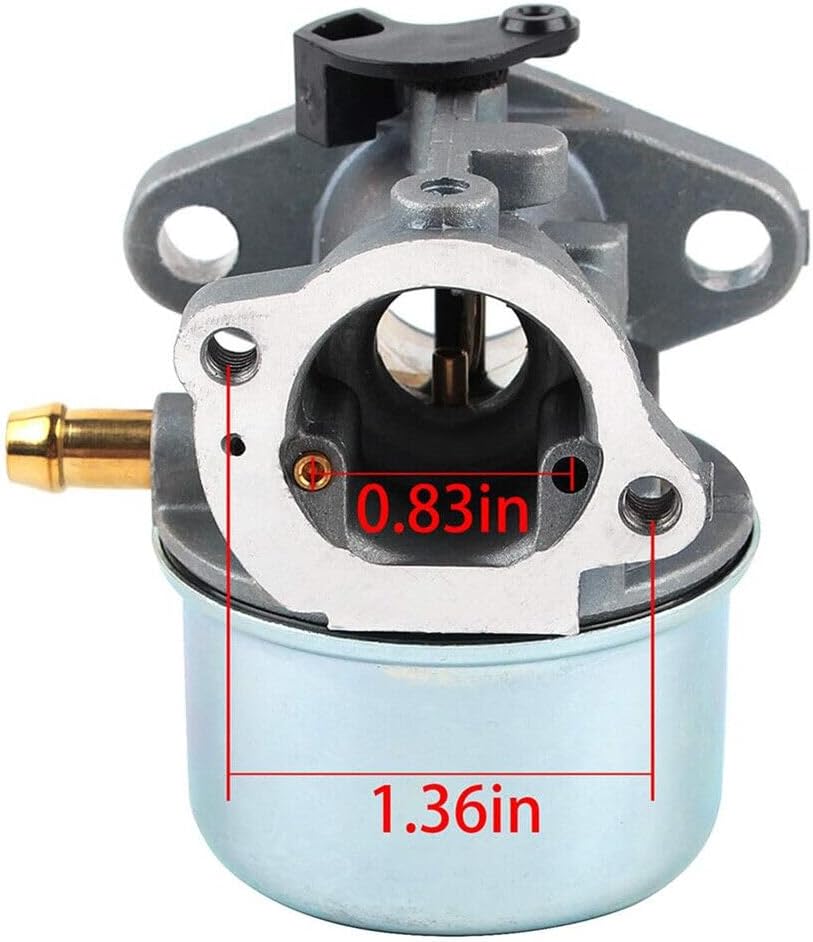

Figure 2: Carburetor view highlighting key dimensions: 0.83 inches (approx. 2.1 cm) for the intake bore and 1.36 inches (approx. 3.45 cm) for the bowl depth.
Figure 3: Carburetor view showing additional dimensions: 0.69 inches (approx. 1.75 cm) for the throttle bore and 1.78 inches (approx. 4.52 cm) for the overall width at the mounting flange.
5. Setup and Installation
This carburetor features a simple installation design for easy replacement. Follow these steps carefully:
- Preparation: Ensure the engine is off, cool, and the spark plug wire is disconnected. Drain any fuel from the tank and fuel lines.
- Remove Air Filter Assembly: Carefully detach the air filter housing and filter.
- Disconnect Fuel Line: Pinch off the fuel line and disconnect it from the old carburetor. Be prepared for minor fuel spillage.
- Disconnect Linkages: Detach the throttle and choke linkages from the old carburetor.
- Remove Mounting Bolts: Unscrew the bolts holding the old carburetor to the engine manifold.
- Remove Old Carburetor: Carefully remove the old carburetor and any gaskets.
- Install New Gaskets: Place new gaskets (not included, typically) on the engine manifold and air filter housing side.
- Mount New Carburetor: Position the FTYHFEFH Carburetor onto the manifold, ensuring it aligns with the mounting holes. Secure with the mounting bolts, tightening them evenly.
- Reconnect Linkages: Reattach the throttle and choke linkages to the new carburetor.
- Reconnect Fuel Line: Connect the fuel line to the new carburetor and remove the pinch.
- Reinstall Air Filter Assembly: Attach the air filter housing and filter.
- Final Checks: Double-check all connections, ensuring they are secure and there are no fuel leaks.
6. Operating Instructions
After successful installation, follow your engine's manufacturer guidelines for starting and operating. The carburetor is designed to provide optimal fuel-air mixture for efficient engine performance.
- Ensure the fuel tank is filled with the correct type of fuel.
- Reconnect the spark plug wire.
- Set the choke and throttle according to your engine's starting procedure.
- Start the engine. Allow it to warm up before operating under load.
- If the engine runs rough, refer to the Troubleshooting section.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your carburetor and engine.
- Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a common cause of carburetor issues.
- Fuel Filter: Regularly check and replace the fuel filter (if equipped) to prevent debris from reaching the carburetor.
- Air Filter: Keep the air filter clean to ensure proper air intake and prevent dirt from entering the carburetor.
- Storage: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system to prevent gumming and varnish buildup in the carburetor.
- Cleaning: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling, cleaning with carburetor cleaner, and reassembling with new gaskets.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, clogged fuel filter, spark plug issue, incorrect choke setting, carburetor jets clogged. | Check fuel level and quality. Replace fuel filter. Inspect/replace spark plug. Adjust choke. Clean carburetor jets. |
| Engine runs rough or stalls | Dirty air filter, clogged fuel filter, carburetor out of adjustment, old fuel. | Clean/replace air filter. Replace fuel filter. Adjust carburetor (if adjustable). Use fresh fuel. |
| Fuel leaks from carburetor | Loose connections, damaged gaskets, faulty float needle. | Tighten connections. Replace gaskets. Inspect and replace float needle/seat if necessary. |
| Engine lacks power | Clogged air filter, restricted exhaust, carburetor issues. | Clean/replace air filter. Check exhaust for blockages. Clean/adjust carburetor. |
9. Specifications
- Brand: FTYHFEFH
- Model Compatibility: Briggs & Stratton 6150 4-7 HP 650 Series Engine
- Part Type: Carburetor
- Manufacturer: FTYHFEFH
- UPC: 779824708828
- ASIN: B0F92GXPQQ
- GTIN: 779824708828
10. Warranty and Support
For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.
For further assistance, you may refer to the official Briggs & Stratton engine manuals for your specific engine model.
