Duramax Woodside Plus 10x8 Vinyl Storage Shed Instruction Manual

Introduction

This manual provides essential instructions for the assembly, operation, and maintenance of your Duramax Woodside Plus 10x8 Vinyl Storage Shed (Model 30227). Please read this manual thoroughly before beginning assembly or using the shed to ensure safe and correct installation and long-term performance. Keep this manual for future reference.

Image 1: Exterior view of the Duramax Woodside Plus 10x8 Vinyl Storage Shed, showcasing its design and color on a paved patio.

Important Safety Information

Always prioritize safety during assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Two-Person Assembly: Some components are heavy and require two people for safe handling and assembly.
• Follow Instructions: Always adhere to the assembly instructions provided with the product. Do not deviate from the steps.
• Site Preparation: Ensure the chosen site for the shed is level and clear of obstructions.
• Ventilation: While the shed is designed for storage, ensure adequate ventilation if storing items that may emit fumes.
• Secure Foundation: A proper foundation is crucial for stability and longevity.

Setup and Assembly

The Duramax Woodside Plus shed is designed for straightforward assembly with a snap-in panel and column system. A foundation framing kit is included to simplify installation and ensure the shed remains square. It is recommended that two people perform the assembly.

1. Site Selection: Choose a flat, level area for your shed. Ensure there is sufficient space around the shed for assembly and future access.
2. Foundation Preparation: Install the included foundation framing kit according to its specific instructions. This kit provides a base for your shed. You will need to finish the floor with plywood or concrete (not included) on top of this frame.
3. Wall Assembly: Follow the detailed step-by-step instructions provided in the separate assembly manual to connect the vinyl wall panels and metal-reinforced columns.
4. Roof Installation: Assemble and secure the steel-reinforced roof structure. Ensure all roof components are tightly fastened to withstand snow loads.
5. Door and Window Installation: Install the double doors and fixed windows as per the instructions. Ensure doors operate smoothly and windows are securely sealed.

Image 2: The Duramax Woodside Plus shed with both double doors fully open, revealing the spacious interior and the metal foundation frame in place, ready for flooring.

Operation

Your Duramax Woodside Plus shed is designed for convenient and secure storage.

• Access: The extra-wide double doors (61"W x 71"H) provide easy access for large equipment such as lawnmowers, bicycles, or garden carts.
• Interior Space: With a 73" interior height and 481 cubic feet of capacity, the shed offers ample room. The wall columns are reinforced with a solid metal structure, allowing for the easy mounting of shelves or hanging of tools (shelving/hooks not included).
• Security: Ensure the double doors are properly closed and secured to protect stored items. Consider adding a padlock (not included) for enhanced security.
• Natural Light: The three fixed windows allow natural light into the shed, improving visibility during the day.

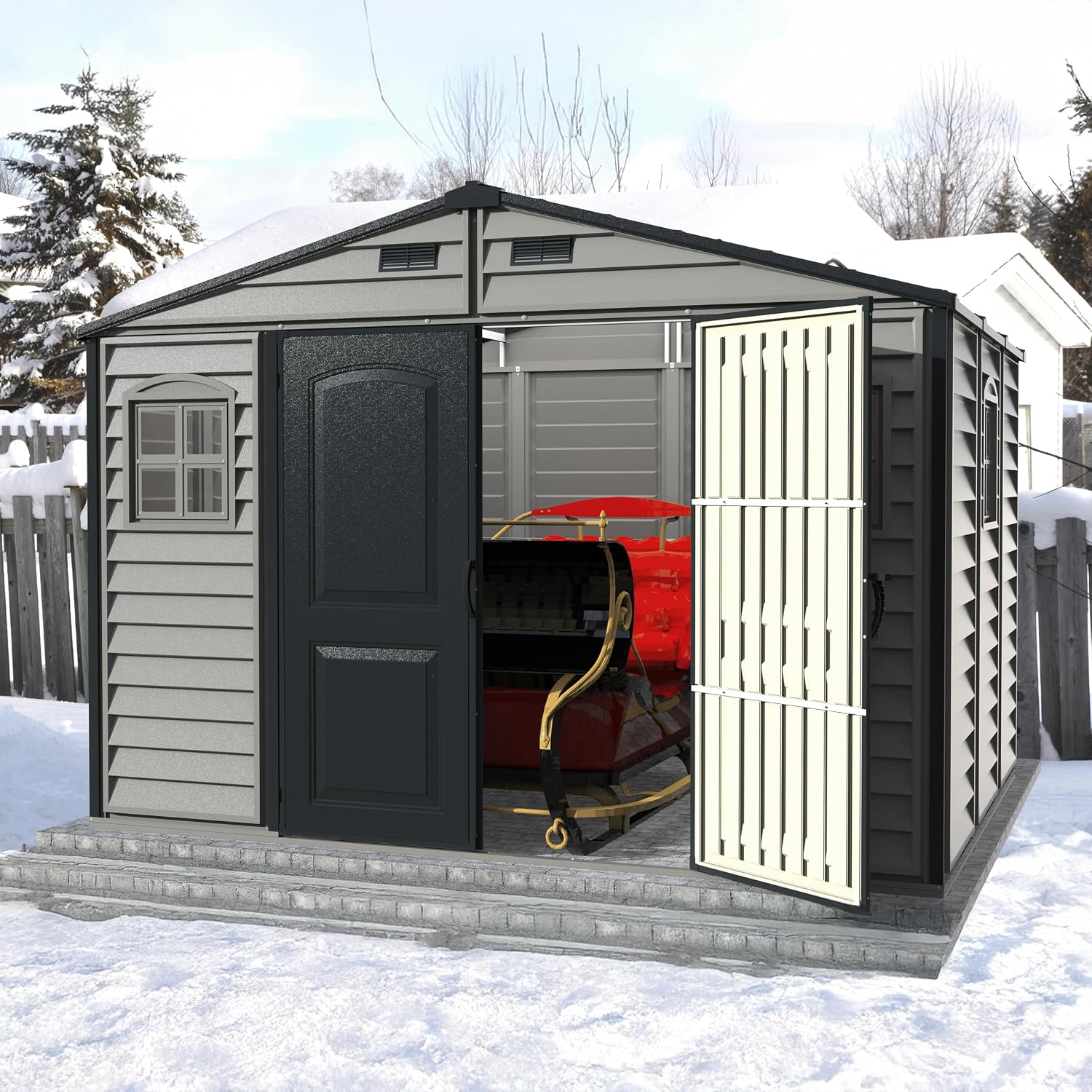

Image 3: The Duramax Woodside Plus shed situated in a snowy backyard, with one of its double doors open, illustrating its capacity to store larger items like a sleigh.

Maintenance

The Duramax Woodside Plus shed is designed to be maintenance-free, offering long-lasting durability without the need for painting or treating. However, some basic care will ensure its optimal condition.

• Cleaning: Periodically clean the vinyl surfaces with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the material.
• Drainage: Ensure that water drains away from the shed's base to prevent accumulation around the foundation.
• Door and Window Checks: Occasionally check that the doors open and close smoothly and that the windows remain securely sealed. Lubricate hinges if necessary.
• Structural Integrity: Inspect the shed annually for any loose fasteners or signs of wear, especially after severe weather conditions.

Troubleshooting

This section addresses common issues you might encounter with your storage shed.

If you encounter issues not listed here or require further assistance, please contact Duramax customer support.

Specifications

Warranty and Support

For specific warranty information regarding your Duramax Woodside Plus 10x8 Vinyl Storage Shed, please refer to the warranty documentation included with your purchase or visit the official Duramax website. For technical support, replacement parts, or any other inquiries, please contact Duramax customer service directly.

Manufacturer: Duramax

UPC: 638801302278

Contact Information: Please refer to the contact details provided in your product packaging or on the official Duramax website.
