Muphyers 10X14FT Double Door Outdoor Dog Kennel Instruction Manual

1. Introduction

Thank you for choosing the Muphyers 10X14FT Double Door Outdoor Dog Kennel. This heavy-duty enclosure is designed to provide a secure, spacious, and comfortable outdoor environment for your pet. Featuring a robust metal frame, double-lock security, and an all-weather roof, this kennel ensures durability and protection against various elements. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation.

2. Safety Information

• Always ensure all connections are securely fastened before placing your pet inside the kennel.
• Regularly inspect the kennel for any signs of wear, damage, or loose components. Tighten screws and replace damaged parts as necessary.
• Position the kennel on a level, stable surface to prevent tipping.
• Do not allow children to play unsupervised near or inside the kennel.
• Ensure adequate ventilation, especially during hot weather. The roof provides shade, but additional measures may be needed in extreme heat.
• Keep the area around the kennel clear of debris and potential hazards.
• This kennel is designed for pets. Do not use it for purposes other than its intended use.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Kennel Panels (various sizes for walls and doors)
• Roof Frame Components
• Weatherproof Roof Cover (Polyester)
• Double Door Assembly
• Feeder Door Assembly
• Double Lock Mechanisms
• Connecting Clips and Screws
• Ground Fixing Spikes
• Awning Connecting Buckles
• Assembly Tools (basic wrench/screwdriver)

4. Setup Instructions

Assembly typically requires two people. Follow these steps carefully for a secure installation.

4.1 Prepare the Site

Choose a level, clear area for the kennel. Ensure adequate space around the kennel for assembly and access. Consider laying down a weed barrier and gravel for better drainage and to prevent digging.

4.2 Assemble the Base Frame

Connect the bottom frame panels using the provided clips and screws. Ensure all corners are square and connections are tight. This forms the foundation of your kennel.

4.3 Install Wall Panels

Attach the vertical wall panels to the base frame using the clip and screw connection method. Work systematically around the perimeter, ensuring each panel is securely attached to the adjacent panels and the base.

Image: The fully assembled kennel structure, demonstrating its size and layout in an outdoor setting.

4.4 Attach Doors and Feeder Door

Integrate the double door assembly and the feeder door into their designated panel openings. Secure them using the provided hinges and hardware. Ensure the doors swing freely and close properly.

Image: Illustration highlighting the wider double doors for easy access.

Image: Detailed view of the feeder door for convenient feeding and the robust double lock system.

4.5 Install Roof Frame

Assemble the roof frame components according to the diagrams. Lift and secure the assembled roof frame onto the top of the wall panels. Ensure all connections are tight and stable.

4.6 Attach Roof Cover

Drape the weatherproof roof cover over the roof frame. Secure it using the awning connecting buckles, ensuring it is taut and evenly distributed to provide maximum protection from sun and rain.

Image: Detailed view of the awning connecting buckles for the roof cover, ground fixing spikes for stability, and the door locks.

4.7 Secure to Ground

Use the provided ground fixing spikes to anchor the kennel securely to the ground. This enhances stability and prevents movement, especially in windy conditions.

5. Operating Instructions

5.1 Using the Double Doors

The main entrance features double doors for easy access. To open, disengage both lock mechanisms and swing the doors outward. To close, align the doors and engage both locks to ensure your pet's security.

5.2 Utilizing the Feeder Door

A smaller feeder door is integrated into one of the panels, allowing you to provide food and water without fully entering the kennel. Simply unlatch the feeder door, place or remove bowls, and re-latch securely.

5.3 Security Locks

The kennel is equipped with a double-lock system on the main doors. Always ensure both locks are engaged when your pet is inside to prevent accidental opening and ensure maximum security.

6. Maintenance

• Cleaning: Regularly clean the kennel panels and floor with mild soap and water. Rinse thoroughly and allow to dry completely to prevent rust and maintain hygiene.
• Roof Cover Care: The polyester roof cover can be wiped clean with a damp cloth. Ensure it is free of debris to maintain its weatherproof and UV-resistant properties.
• Rust Prevention: While the metal frame has a protective spray coating, inspect for any scratches or chips in the coating, especially in areas exposed to moisture. Apply a rust-inhibiting paint or sealant to these areas to prevent corrosion. Pay particular attention to door hinges and lower sections.
• Hardware Check: Periodically check all screws, clips, and lock mechanisms for tightness. Tighten any loose hardware to maintain the kennel's structural integrity and security.
• Ground Anchors: Verify that the ground fixing spikes remain firmly in place, especially after heavy rain or strong winds.

7. Troubleshooting

• Difficulty during Assembly: Ensure all parts are correctly oriented as per the diagrams. Do not overtighten screws until all components are loosely fitted, then tighten them progressively. Having a second person assist can significantly ease the process.
• Doors Not Closing Properly: Check for any obstructions in the door frame or hinges. Ensure the kennel is on a level surface, as uneven ground can cause misalignment. Adjust hinges or panel connections if necessary.
• Kennel Instability: Verify that all panel connections are tight and that the ground fixing spikes are fully inserted into the ground. If the ground is soft, consider additional anchoring methods.
• Water Accumulation on Roof: Ensure the roof cover is taut and properly secured to allow water to run off. Adjust the awning connecting buckles if sagging occurs.

8. Specifications

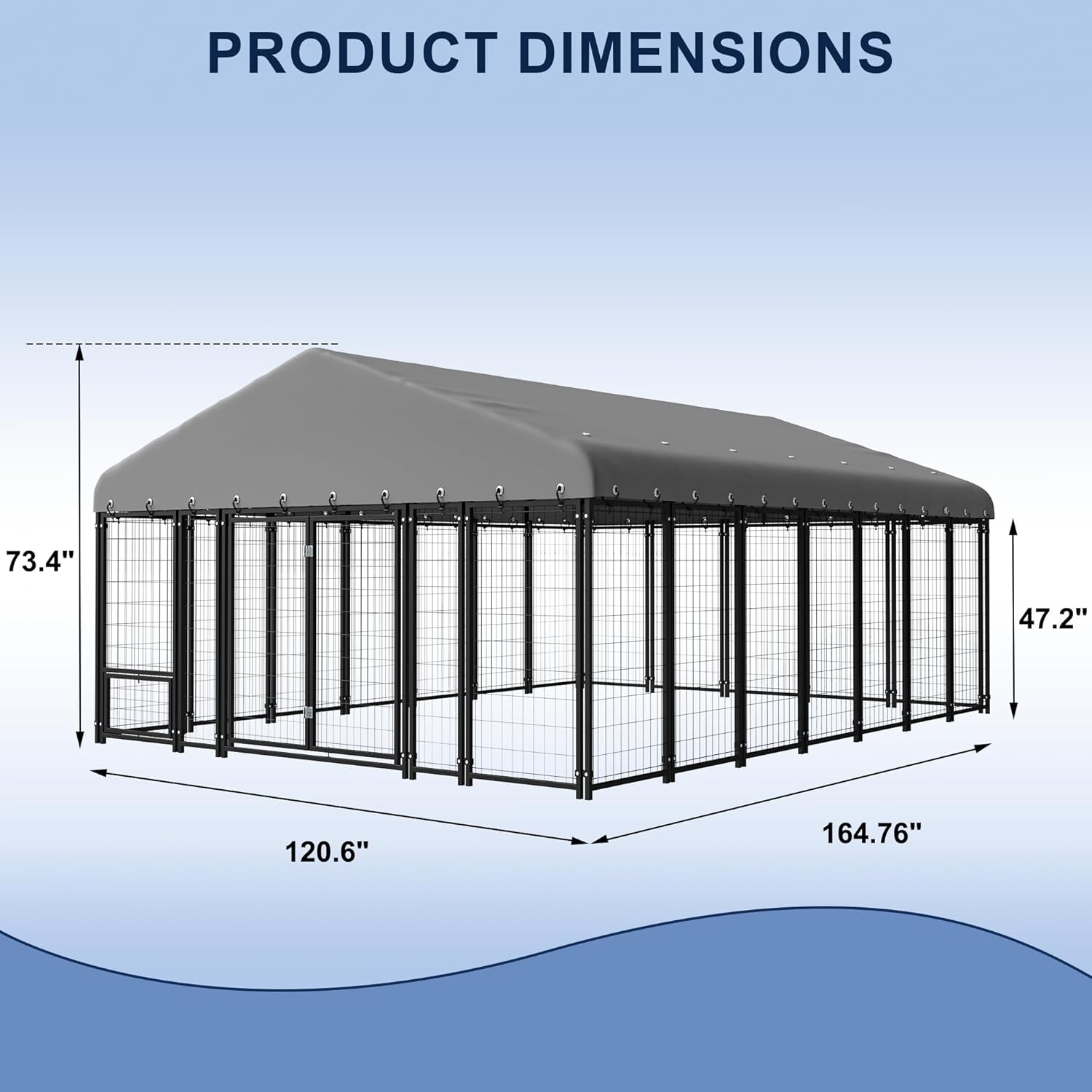

Image: Visual representation of the kennel's overall dimensions, including height, length, and width.

Image: Another detailed diagram illustrating the specific measurements of the kennel.

9. Warranty and Support

Muphyers stands behind the quality of its products. For any questions, concerns, or to report missing/damaged parts, please contact Muphyers customer support directly through your purchase platform or the manufacturer's official website. Please retain your proof of purchase for warranty claims.
