1. Product Overview
The SAFEBUILDER G2E Safety Helmet is designed to provide head protection in various demanding work environments, including electrical, construction, rescue, and work at height. This helmet is classified as Type 2, offering protection against both top and lateral impacts, and Class E, providing electrical insulation. It features an EPS foam liner for enhanced impact absorption and a lightweight, adjustable design for user comfort.
2. Safety Guidelines and Certifications
This safety helmet meets stringent international safety standards to ensure user protection. Adhere to all local safety regulations and guidelines when using this product.
Certifications:
- ANSI/ISEA Z89.1-2014 (R2019) Type II, Class C, G & E: Certified for impact protection from top and sides, and electrical insulation.
- CE EN 397:2012+A1:2012: European standard for industrial safety helmets.
- CSA Z94.1-15 (R2024) Type 2, Class E, G & C: Canadian standard for industrial protective headwear.
Electrical Performance:
Class E helmets are tested to withstand 20,000 volts at 60 Hz for 3 minutes, with no burn-through at 30,000 volts. This provides protection against high-voltage electrical conductors.
General Safety Warnings:
- Inspect the helmet for any signs of damage before each use. Do not use a damaged helmet.
- Retire the helmet immediately after any significant impact, even if visible damage is not apparent. Internal damage may compromise protection.
- Do not modify or alter the helmet in any way, as this may reduce its protective capabilities.
- Avoid applying paints, solvents, adhesives, or self-adhesive labels not recommended by the manufacturer, as they may degrade the helmet material.
Image: SAFEBUILDER G2E Safety Helmet displaying ANSI and CSA Type II certification labels, indicating compliance with safety standards.

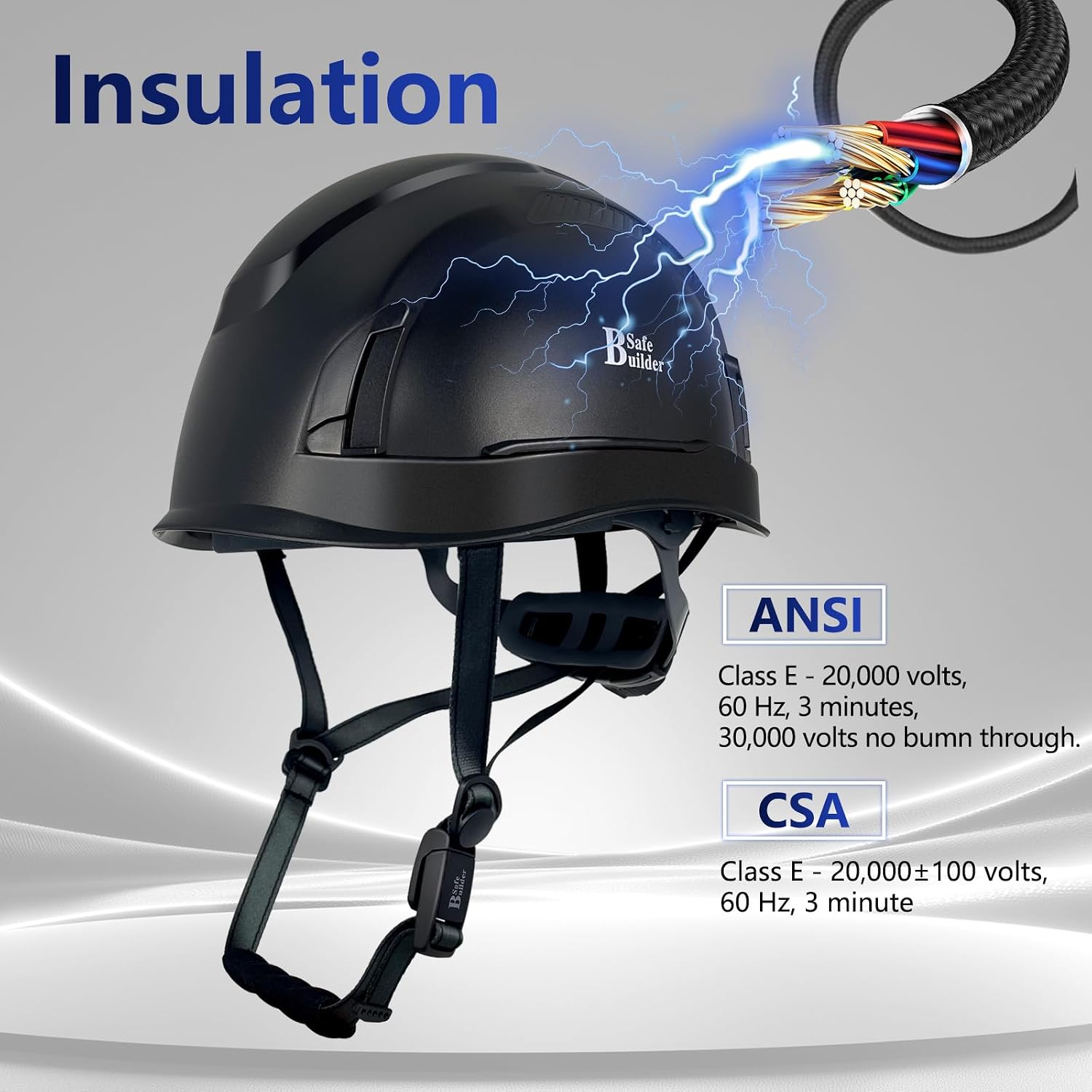

Image: Illustration of the SAFEBUILDER G2E Safety Helmet's electrical insulation properties, highlighting its Class E rating for protection against electrical hazards.
3. Helmet Components
The SAFEBUILDER G2E Safety Helmet consists of several key components designed for protection and comfort:
- Hard Hat Shell: Made from PC-ABS high-strength material for external impact resistance.
- EPS Foam Liner: Provides superior impact absorption from top and sides, meeting Type 2 requirements.
- 6-Point Suspension System: Distributes weight evenly and helps absorb impact forces.
- Sweatband: Integrated for moisture wicking and comfort.
- Washable Liner Pad: Removable for cleaning and hygiene.
- Removable Chin Cover: Soft cloth cover for the chin strap, enhancing comfort.
- Headlamp Clips: Located at the front for attaching headlamps.
- Magnetic Chin Strap Buckle: Allows for easy one-hand operation.
- Ratchet Adjustment System: Located at the rear for precise size adjustment.
- Accessory Slots: For attaching compatible visors, face shields, and earmuffs.
Image: Exploded view illustrating the internal structure of the SAFEBUILDER G2E Safety Helmet, showing the hard hat shell, EPS foam lining, and 6-point suspension system.
4. Setup and Adjustment
Proper fit and adjustment are crucial for the helmet's effectiveness and user comfort.
4.1. Size Adjustment:
- Place the helmet on your head.
- Locate the ratchet adjustment knob at the back of the helmet.
- Turn the knob clockwise to tighten the suspension system until the helmet fits snugly and securely without causing discomfort.
- Turn the knob counter-clockwise to loosen the fit.
- Ensure the helmet does not wobble or shift when you move your head.
4.2. Chin Strap Adjustment:
- Fasten the magnetic chin strap buckle.
- Adjust the strap length on both sides to ensure a snug fit under your chin, preventing the helmet from falling off.
- The soft chin cover can be attached or removed for additional comfort.
4.3. Accessory Attachment:
The helmet is equipped with accessory slots for compatible SAFEBUILDER visors, face shields, and earmuffs. Follow the instructions provided with each accessory for proper attachment.
Image: The SAFEBUILDER G2E Safety Helmet highlighting the rear ratchet adjustment system for head size and side slots for attaching accessories like visors and earmuffs.
Image: Detailed view of the SAFEBUILDER G2E Safety Helmet's interior, showing the pressure-free fit provided by the inner sweatband and the soft, removable chin cover for enhanced comfort.
5. Operation
Once properly adjusted, the SAFEBUILDER G2E Safety Helmet is ready for use in appropriate work environments.
5.1. Wearing the Helmet:
Ensure the helmet is worn correctly with the brim facing forward and the chin strap securely fastened. The helmet should sit level on your head, covering the top and sides adequately.
5.2. Magnetic Chin Strap Buckle:
The magnetic buckle allows for quick and easy fastening and unfastening, even with gloves. Simply push the two parts together to engage the magnetic lock. To release, slide the buckle parts apart.
Image: Detailed view of the SAFEBUILDER G2E Safety Helmet's magnetic chin strap buckle, designed for easy one-hand operation and secure fastening.
Image: A worker wearing the SAFEBUILDER G2E Safety Helmet in an electrical work environment, demonstrating its application in various industrial settings.
6. Maintenance and Care
Regular maintenance ensures the longevity and continued protective performance of your helmet.
6.1. Cleaning:
- Clean the helmet shell with mild soap and water. Avoid abrasive cleaners or solvents.
- The internal liner pad and sweatband are washable. Remove them from the helmet and hand wash with mild soap, then air dry completely before reinserting.
6.2. Inspection:
Perform a visual inspection before each use. Check for:
- Cracks, dents, or punctures on the outer shell.
- Damage to the EPS foam liner (cracks, compression).
- Fraying, tears, or damage to the suspension system and chin strap.
- Proper function of the ratchet adjustment and magnetic buckle.
6.3. Storage:
Store the helmet in a cool, dry place away from direct sunlight, extreme temperatures, and chemicals. Do not store heavy objects on top of the helmet.
7. Troubleshooting
If you encounter issues with your SAFEBUILDER G2E Safety Helmet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Helmet feels loose or wobbles | Improper size adjustment | Tighten the ratchet adjustment knob until snug. |
| Helmet is uncomfortable | Incorrect adjustment, chin strap too tight/loose, or liner issues | Re-adjust the ratchet and chin strap. Ensure the liner pad is correctly seated. |
| Chin strap buckle not engaging | Debris in buckle, buckle misalignment, or damage | Clean the buckle. Ensure proper alignment. If damaged, discontinue use and replace. |
| Accessories do not fit | Incompatible accessories or incorrect attachment | Ensure accessories are SAFEBUILDER compatible and follow their specific attachment instructions. |
| Visible damage to helmet | Impact or wear and tear | Immediately retire the helmet and replace it. Do not attempt repairs. |
8. Technical Specifications
| Specification | Detail |
|---|---|
| Brand | SAFEBUILDER |
| Model Number | G2E |
| Size | Universal Adjustable (52-63cm / 20.47-24.80 inch) |
| Item Weight | 0.62 Kilograms |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) Shell, EPS Foam Liner |
| Closure Type | Ratchet Adjustment, Magnetic Chin Strap Buckle |
| Specification Met | ANSI/ISEA Z89.1 Type 2 Class C, E & G; EN397: 2012; CSA Z94.1-15 Type 2 Class E, G & C |
| Included Components | 1PCS Hard Hat |
9. Warranty Information
The SAFEBUILDER G2E Safety Helmet comes with a 30-day warranty. For specific terms and conditions, or to initiate a warranty claim, please refer to the seller or contact SAFEBUILDER customer support.
10. Customer Support
For further assistance, product inquiries, or support, please visit the official SAFEBUILDER store or contact their customer service department.
