BALDR Pioneer 1000W Portable Power Station User Manual

Introduction

Thank you for choosing the BALDR Pioneer 1000W Portable Power Station. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

What's in the Box

Image: The contents of the BALDR Pioneer 1000W Power Station box, including the power station, wall charger, car charger, and user manual.

• BALDR Pioneer 1000W Portable Power Station
• AC Wall Charger
• Car Charger Cable
• User Manual

Product Overview

The BALDR Pioneer 1000W Portable Power Station is a lightweight, high-capacity power solution designed for various applications, from camping to home backup. It features multiple output ports and flexible recharging options.

Image: Front view of the BALDR Pioneer 1000W Portable Power Station, showcasing its display, power button, DC output, AC outlets, and input port.

Key Features:

• 1000W Pure Sine Wave Output (2000W Surge): Capable of powering devices up to 1000W continuously.
• 808Wh Capacity: Provides substantial power for extended use.
• Lightweight Design: Weighs 18.5 lbs for enhanced portability.
• Multiple Output Ports: Includes AC outlets, USB-A (QC 3.0), USB-C PD (60W), and 12V DC car outlet.
• 3-Way Recharging: Supports charging via AC wall outlet, solar panel, or car outlet.
• Smart ECO Mode: Optimizes energy consumption and extends battery life.
• Backlit LCD Display: Provides real-time information on battery level, input/output wattage, and remaining runtime.
• Integrated LED Flashlight: Features SOS mode for emergencies.
• Advanced Safety: Equipped with a 7-layer Battery Management System (BMS) for protection against overcharging, short circuits, overcurrent, voltage fluctuations, temperature extremes, low battery, and overload.
• Durable Construction: UL 94V-0 certified fireproof and UN38.3 certified drop-proof (3.3 ft without damage).
• Silent Cooling: Dual fans and heat sinks maintain optimal performance without excessive noise.

Setup

Before first use, fully charge your BALDR Pioneer 1000W Portable Power Station. This ensures the battery is conditioned and ready for optimal performance.

Initial Charging:

1. Connect the provided AC wall charger to the 12-28V INPUT port on the power station.
2. Plug the AC wall charger into a standard wall outlet.
3. The LCD display will show the charging status. Charge until the battery indicator shows 100%.

Charging the Power Station

The BALDR Pioneer 1000W offers three convenient ways to recharge:

Image: A visual representation of the three charging methods for the power station: using a 150W wall charger, a 200W solar panel, and a car socket.

1. AC Wall Outlet: Use the included AC wall charger. Fully recharges in approximately 6.7 hours.
2. Solar Panel: Connect a compatible solar panel (12-28V input, max 150W) to the INPUT port. Recharges in approximately 8.4 hours with a 120W solar input (MPPT optimized).
3. Car Outlet: Use the included car charger cable. Recharges in approximately 16.5 hours via a car charger.

The power station supports pass-through charging, allowing you to power devices while it is being recharged.

Operating Instructions

Powering On/Off:

• Press the red power button to turn the unit on or off. The LCD display will illuminate.

Using AC Output:

• Press the 'AC' button to activate the AC outlets. The green 'AC' indicator light will turn on.
• Plug your AC devices into the outlets.
• Press the 'AC' button again to turn off the AC output when not in use.

Using DC Output:

• Press the 'DC' button to activate the DC 12V car outlet and USB ports. The green 'DC' indicator light will turn on.
• Plug your DC or USB devices into the respective ports.
• Press the 'DC' button again to turn off the DC output when not in use.

Smart ECO Mode:

Image: A graphic illustrating the Smart ECO Energy Saving Mode, detailing when it's on (auto-shutdown for idle/low usage) and off (continuous power for sensitive devices like CPAP, fridge, smartphones).

• Press the 'ECO' button to toggle ECO mode. When active, the green 'ECO' indicator light will be on.
• ECO Mode ON: The power station will automatically shut down if the output is below a certain threshold for a period, conserving energy. This is ideal for general use with devices that draw intermittent power.
• ECO Mode OFF: For devices requiring continuous power, such as CPAP machines or portable refrigerators, ensure ECO mode is OFF. This prevents the power station from shutting down due to low power consumption.

LED Flashlight:

• Press the 'Light' button to turn on the LED flashlight.
• Press again to cycle through different modes (e.g., normal, SOS).
• Press a third time to turn off the flashlight.

LCD Display Information

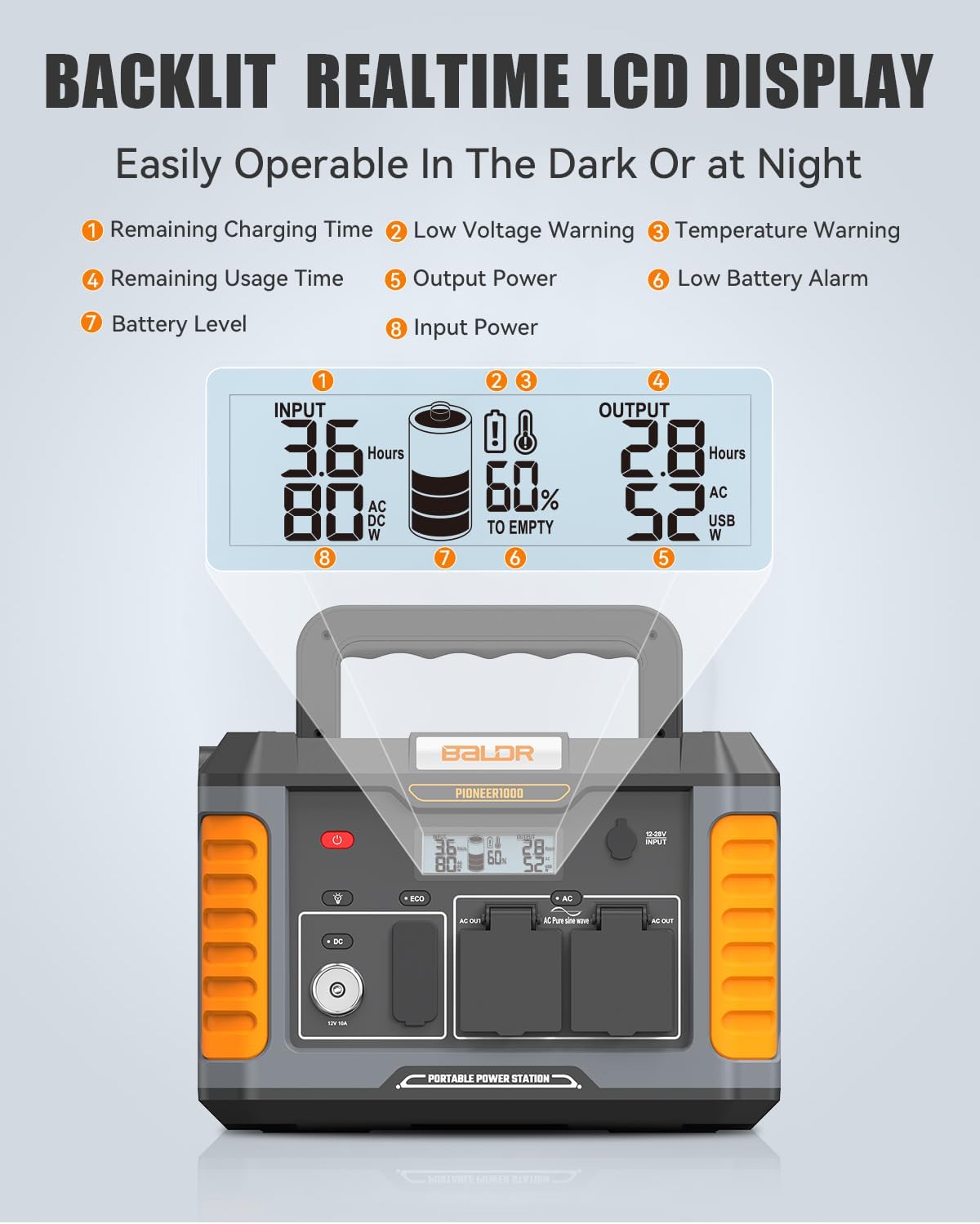

Image: A detailed view of the backlit LCD display, highlighting indicators for remaining charging time, low voltage warning, temperature warning, remaining usage time, output power, low battery alarm, battery level, and input power.

The backlit LCD display provides real-time operational status:

• Battery Level: Shows the current charge percentage.
• Input Power (W): Displays the current power input during charging.
• Output Power (W): Shows the current power output to connected devices.
• Remaining Charging Time: Estimated time until full charge.
• Remaining Usage Time: Estimated runtime based on current output.
• Warnings: Indicators for low voltage, temperature, and low battery.

Powering Your Devices

The BALDR Pioneer 1000W is designed to power a wide range of electronics and small appliances. Always check the wattage requirements of your devices to ensure compatibility and avoid overloading the power station.

Image: The BALDR Power Station connected to and powering a laptop, a Nintendo Switch, and a smartphone, demonstrating its multi-device charging capability.

Examples of Devices and Estimated Run Times:

• CPAP Machines: Can run for several hours, especially with ECO mode off.
• Mini-Fridges: Provides power to keep food fresh during outages or camping.
• Power Tools: Suitable for various power tools below 1000W.
• Coffee Makers: Can operate standard coffee makers.
• Laptops & Smartphones: Fast charging via 60W USB-C PD and 18W Quick Charge 3.0 USB-A ports.
• Electric Blankets: Can power electric blankets for several hours (e.g., 130W blanket for 3.5-4 hours).
• Televisions & Routers: Supports uninterrupted streaming and gaming for 5-6 hours (e.g., 55" TV, 10W lamp, 10W Wi-Fi router).

Safety Features

Your BALDR Pioneer 1000W is built with multiple layers of protection to ensure safe operation and longevity.

Image: A graphic detailing the 7-layer Smart BMS (Battery Management System) which monitors overcharging, short circuits, overcurrent, voltage control (over/under voltage), temperature control (low/high), low battery alarm, and overload protection.

• Smart BMS: A 7-layer safety system monitors and protects against: Overcharging, Short Circuit, Over Current, Voltage Control (Over/Under Voltage), Temperature Control (Low/High), Low Battery Alarm, and Overload.
• Fireproof: UL 94V-0 certified fireproof casing.
• Drop-Proof: UN38.3 certified to withstand a 3.3 ft drop without damage.

Silent Cooling

Image: A cutaway diagram illustrating the silent cooling system with dual fans and heat sinks, designed to maintain full 1000W output without throttling and operating at 28dB.

The power station incorporates dual fans and heat sinks to ensure efficient and silent cooling (28dB). This system maintains full 1000W output without thermal throttling, allowing for consistent performance even under heavy loads.

Solar Integration

Image: The BALDR Power Station connected to a foldable solar panel in an outdoor setting, demonstrating its solar charging capability.

Pair your BALDR Pioneer 1000W with a compatible solar panel for ultimate energy freedom. The built-in MPPT (Maximum Power Point Tracking) technology optimizes solar input for faster and more efficient charging.

• 5-hour solar charge to 80% (with appropriate solar input).
• Zero energy cost for recharging.
• Max efficiency with built-in MPPT technology.

Specifications

Maintenance

To ensure the longevity and optimal performance of your BALDR Pioneer 1000W Portable Power Station, follow these maintenance guidelines:

• Storage: Store the power station in a cool, dry place away from direct sunlight and extreme temperatures.
• Recharge Frequency: If not used regularly, recharge the unit every 3 months to maintain battery health.
• Cleaning: Use a dry, soft cloth to clean the exterior. Do not use abrasive cleaners or immerse the unit in water.
• Avoid Overloading: Do not exceed the rated output power (1000W continuous, 2000W surge) to prevent damage.

Troubleshooting

If you encounter issues with your power station, refer to the following common troubleshooting steps:

• Unit Not Turning On: Ensure the power button is pressed firmly. Check if the battery is completely depleted and try charging it.
• No Output from AC/DC Ports: Ensure the respective 'AC' or 'DC' button is pressed and its indicator light is on. Check if the device you are trying to power is within the power station's wattage limits.
• ECO Mode Shutdown: If your device requires continuous power (e.g., CPAP, refrigerator) and the unit shuts off, ensure ECO mode is disabled.
• Overload Protection: If the unit shuts down under load, it may be due to an overload. Disconnect the device, restart the power station, and try powering a lower-wattage device.
• Charging Issues: Verify that the charger is properly connected and the input voltage is within the specified range (12-28V).

For further assistance, please contact customer support.

Warranty & Support

BALDR is committed to your satisfaction. The BALDR Power Station comes with a 24-month worry-free warranty and friendly lifetime customer support.

• For any questions or concerns, please refer to the contact information provided in your product packaging or visit the official BALDR website.
