MelodySusie Mini Cordless UV Nail Lamp P-ART06G Instruction Manual

1. Introduction and Overview

The MelodySusie P-ART06G Mini Cordless UV Nail Lamp is a compact and portable device designed for curing gel nail polishes. It features a rechargeable battery, dual light sources (UV/LED), and smart sensor technology for convenient use. This manual provides essential information for the safe and effective operation of your nail lamp.

Image: The MelodySusie nail lamp being stored in a carrying bag, highlighting its compact and portable nature.

This 6W UV LED lamp is suitable for curing most soft gel nail polishes, including half-cured gels, base coats, and top coats. Its lightweight design makes it ideal for both at-home use and travel.

Image: Close-up of the MelodySusie nail lamp's interior, showing the 6 UV/LED light beads and dual light wave technology for efficient curing.

2. Package Contents

Upon opening the package, ensure all items are present and in good condition:

• 1 x MelodySusie P-ART06G UV Nail Lamp
• 1 x USB Charging Cable
• 1 x User Manual
• 1 x Warranty Card

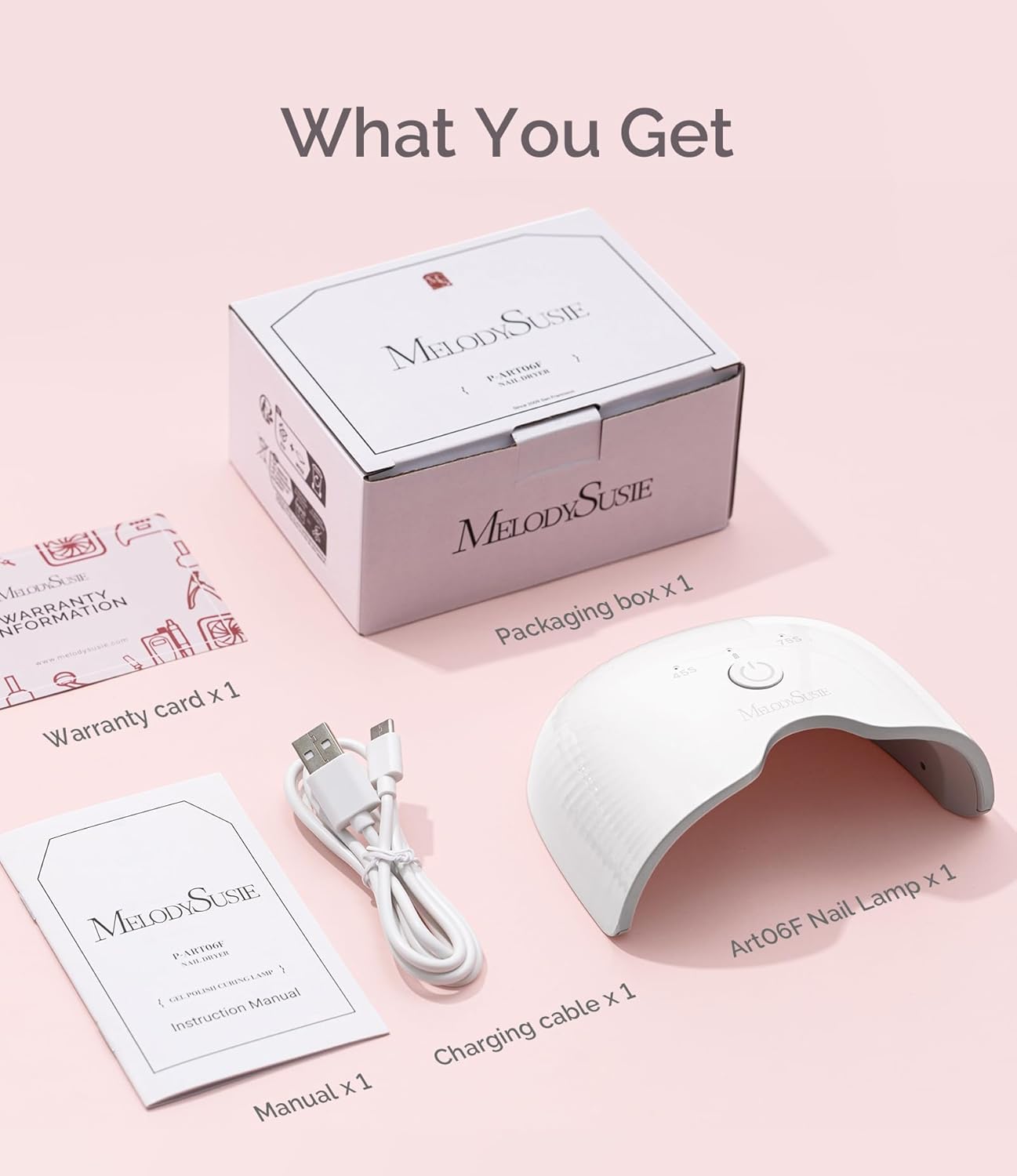

Image: The MelodySusie P-ART06G nail lamp, USB charging cable, user manual, and warranty card laid out on a pink surface.

3. Setup

3.1 Charging the Device

The nail lamp is equipped with a 1000mAh built-in battery. Before first use, fully charge the device using the provided USB charging cable. Connect the USB-C end of the cable to the lamp's charging port and the other end to a compatible USB power adapter (not included). A full charge provides approximately 3-5 hours of use.

Image: Close-up view of the MelodySusie nail lamp's USB-C charging port, indicating its rechargeable nature. Use only the original charger.

3.2 Placement

Place the nail lamp on a stable, flat surface. Ensure there is adequate space around the device for proper ventilation and ease of use.

4. Operating Instructions

4.1 Powering On and Timer Settings

The lamp features a power button and two timer settings: 45 seconds and 75 seconds.

• To activate the 45-second timer, press the power button once.
• To activate the 75-second timer, press the power button twice.
• The lamp will automatically turn off after the selected time.

Image: Top view of the MelodySusie nail lamp showing the power button and indicators for 45-second and 75-second timer settings.

4.2 Smart Sensor Function

The lamp is equipped with a smart sensor. When your hand is inserted into the lamp, it will automatically turn on. When your hand is removed, the lamp will turn off. This feature provides hands-free operation and conserves battery life.

4.3 Curing Nails

Due to the compact size of the lamp, it is recommended to cure your thumb separately from your other four fingers to ensure even curing. Place your four fingers into the lamp, activate the desired timer, and then repeat the process for your thumb.

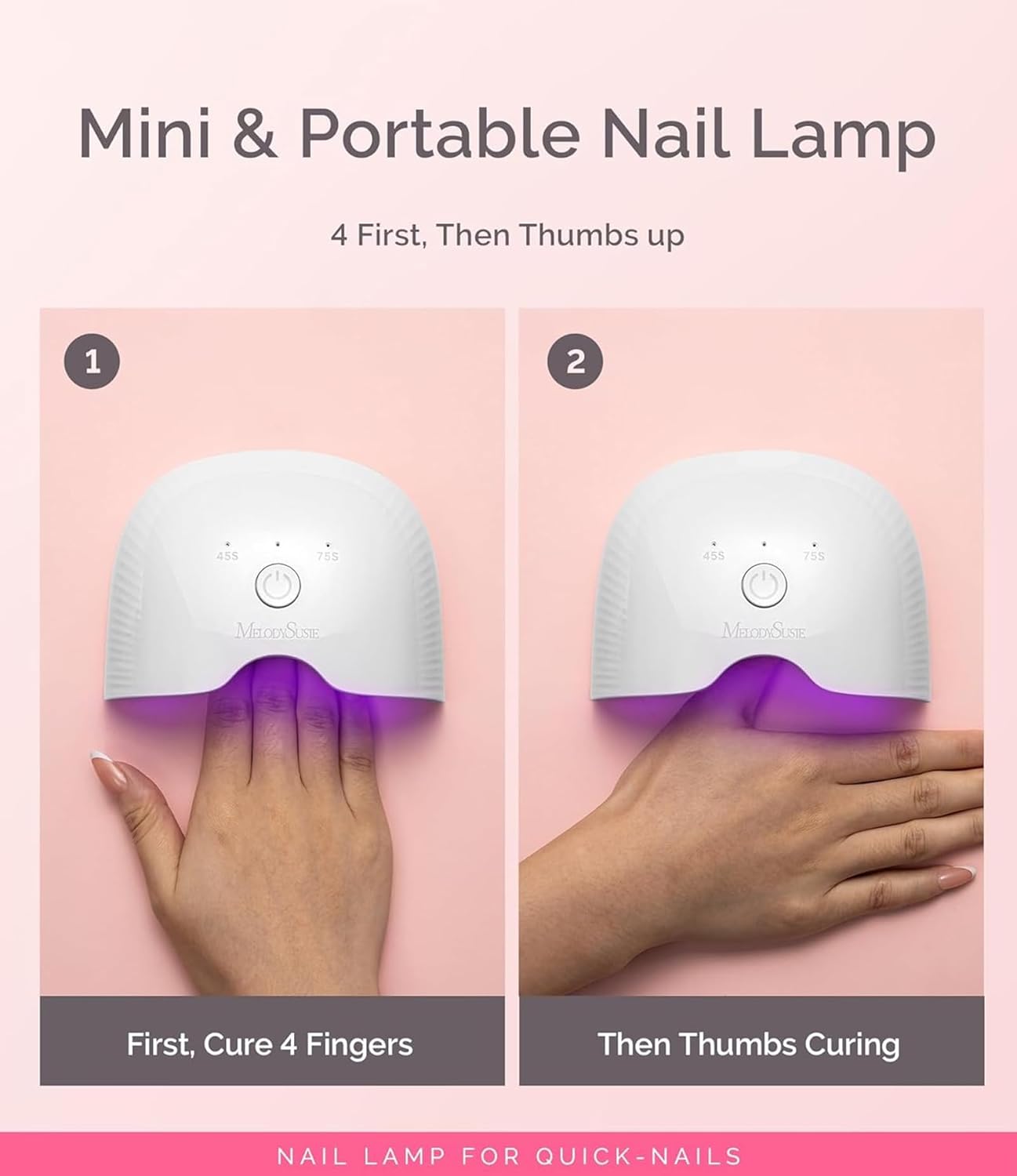

Image: Illustration demonstrating the recommended curing method: first cure four fingers, then cure the thumb separately, due to the lamp's mini size.

The lamp is designed to cure various gel types, including matte top coat, rhinestone glue, cat eye gel, and liner gel.

Image: A hand with gel nails being cured under the MelodySusie nail lamp, illustrating its versatility for different gel nail art applications.

5. Maintenance

To ensure the longevity and optimal performance of your MelodySusie P-ART06G Mini Cordless UV Nail Lamp, follow these maintenance guidelines:

• Cleaning: Wipe the exterior of the lamp with a soft, dry cloth after each use. Avoid using harsh chemicals or abrasive cleaners, as these can damage the surface.
• Storage: Store the lamp in a cool, dry place away from direct sunlight and moisture. When not in use for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.
• Charging Cable: Inspect the USB charging cable regularly for any signs of damage. If the cable is damaged, discontinue use and replace it with an official MelodySusie replacement cable.
• LED Beads: The LED beads are designed for long-term use and generally do not require replacement. Avoid touching the beads directly.

6. Troubleshooting

If you encounter any issues with your MelodySusie P-ART06G Mini Cordless UV Nail Lamp, refer to the following troubleshooting tips:

• Lamp Not Turning On:
  • Ensure the lamp is charged. Connect it to a power source using the USB cable and check if the charging indicator lights up.
  • Press the power button once for 45s or twice for 75s.
  • If using the smart sensor, ensure your hand is fully inserted into the lamp.
• Gel Not Curing Properly:
  • Verify that the gel polish you are using is compatible with UV/LED lamps.
  • Ensure you are applying thin, even coats of gel polish. Thick layers may not cure completely.
  • Check the recommended curing time for your specific gel polish and adjust the lamp's timer setting accordingly.
  • Ensure your fingers are positioned correctly under the LED beads, especially the thumb, as recommended in the operating instructions.
  • The lamp's battery might be low. Recharge the device fully.
• Battery Not Holding Charge:
  • Ensure you are using the original USB charging cable.
  • Try a different USB power adapter.
  • If the issue persists, contact customer support for assistance.

For further assistance, please refer to the Warranty & Customer Support section.

7. Specifications

8. Warranty & Customer Support

MelodySusie provides a 6-month warranty for this product. This warranty covers manufacturing defects and issues arising from normal use.

If you encounter any issues, defects, or require troubleshooting assistance, please contact MelodySusie customer support. You can typically reach support through your Amazon order page for prompt service. Please have your model number (P-ART06G) and purchase details ready when contacting support.

For more information, visit the official MelodySusie store on Amazon: MelodySusie Store.
