Introduction
Thank you for choosing the EliteShade USA Titan 12x12 Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
The EliteShade Titan Gazebo is designed to provide a comfortable and stylish outdoor living space, featuring a durable, fade-resistant canopy and a corrosion-resistant aluminum frame.
Image: The EliteShade Titan Gazebo providing shade and style in an outdoor backyard environment.
Safety Information
- Read all instructions: Ensure you understand all assembly and safety instructions before use.
- Two-person assembly: Assembly requires at least two adults for safety and ease.
- Clear area: Assemble the gazebo in a clear, level area free from obstructions.
- Secure anchoring: Always anchor the gazebo securely to the ground or a suitable deck surface to prevent wind damage.
- Weather conditions: Do not use the gazebo in extreme weather conditions, such as heavy winds, snow, or thunderstorms. Disassemble or secure the canopy during such conditions.
- Fire safety: Keep all flame and heat sources away from the gazebo fabric.
- Regular inspection: Periodically check all bolts, nuts, and connections to ensure they are tight and secure.
Parts List
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact EliteShade customer support.
Image: Key structural and fabric components of the gazebo. This includes the two-layer ventilation design, eight-bone three-dimensional support, fabric pockets for securing the top, built-in strong aluminum frame surrounded by rattan, and stable triangular column foot rests.
- Canopy Fabric: Weather-resistant, fade-resistant material with two-layer ventilation design.
- Main Frame Posts: Heavy-gauge extruded aluminum posts, powder-coated, wrapped in rattan.
- Roof Frame Components: Aluminum beams and connectors for roof structure, including eight-bone three-dimensional support.
- Foot Rests/Anchor Plates: Stable triangular column foot rests with concealed anchor plates for securing to ground.
- Hardware Kit: Includes all necessary bolts, nuts, washers, and wrenches for assembly.
- Fabric Pockets: Integrated pockets on the canopy for securing to the frame.
Setup and Assembly
The EliteShade Titan Gazebo is designed for straightforward assembly, typically requiring 2-3 hours with 1-2 people. No specialized tools are needed beyond the included wrenches.
- Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the parts list to ensure everything is present.
- Assemble Main Posts: Connect the main aluminum posts according to the provided diagrams. Ensure all connections are finger-tight at this stage.
- Construct Roof Frame: Assemble the roof frame components, including the eight-bone support structure. Use the patented connectors to secure beams.
- Attach Canopy: Carefully drape the canopy fabric over the assembled roof frame. Secure the canopy to the frame using the integrated fabric pockets and any other attachment points. Ensure the two-layer ventilation design is correctly positioned.
- Raise and Secure: With the help of another person, carefully raise the gazebo structure. Attach the main posts to the foot rests/anchor plates.
- Final Tightening and Anchoring: Once the gazebo is upright and stable, fully tighten all bolts and nuts using the provided wrenches. Securely bolt the anchor plates to a concrete slab or wooden deck. If placing on grass or soil, use appropriate ground anchors (not included) for stability.
Important: Do not fully tighten all fasteners until the entire structure is assembled and aligned. This allows for minor adjustments during assembly.
Operating Instructions
The EliteShade Titan Gazebo provides 144 square feet of outdoor living space, ideal for various activities.
- Outdoor Lounging: Arrange patio furniture, such as sofas, chairs, or dining sets, within the gazebo to create a comfortable area for relaxation or entertaining.
- Shade and Protection: The canopy offers shade from the sun and protection from light rain. The wind vent helps mitigate wind damage.
- Ventilation: The two-layer ventilation design promotes airflow, reducing heat buildup under the canopy.
Image: The gazebo positioned next to a pool, demonstrating its use as a shaded area for outdoor furniture and relaxation.
Note: A mosquito net is not included with this gazebo model. If desired, compatible mosquito nets may be purchased separately.
Image: An illustrative view of the gazebo with a mosquito net installed, demonstrating potential customization. Please note, the mosquito net is not included with the product.
Maintenance
- Canopy Cleaning: Clean the canopy fabric periodically with mild soap and water. Rinse thoroughly and allow to air dry completely before storage or continued use. Avoid harsh chemicals or abrasive cleaners.
- Frame Cleaning: Wipe down the aluminum frame and rattan-wrapped posts with a damp cloth. For stubborn dirt, use mild soap and water.
- Fastener Check: Regularly inspect all bolts, nuts, and connections. Tighten any loose fasteners to maintain structural integrity.
- Winter Storage: In areas with heavy snow or extreme cold, it is recommended to remove the canopy fabric and store it indoors to prolong its lifespan. The frame can remain outdoors if securely anchored.
- Canopy Longevity: The canopy is designed to be weather-resistant and fade-resistant for up to 5 years under normal conditions. Proper maintenance and storage will help maximize its lifespan.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Loose fasteners; inadequate anchoring; uneven ground. | Ensure all bolts and nuts are fully tightened. Verify anchor plates are securely fastened to a stable surface. Relocate to a level area or use shims to level the base. |
| Water pooling on canopy. | Canopy not stretched tightly; improper assembly of roof frame. | Re-adjust canopy tension. Ensure all roof frame components are correctly assembled and seated. Clear any debris from the canopy. |
| Difficulty during assembly. | Parts misaligned; attempting assembly alone. | Review the assembly instructions and diagrams carefully. Ensure parts are oriented correctly. Seek assistance from another person for lifting and aligning components. Do not fully tighten fasteners until all parts are in place. |
| Canopy fading or showing wear prematurely. | Exposure to extreme weather; lack of proper cleaning/storage. | Follow recommended maintenance and storage guidelines. Remove canopy during harsh weather conditions. |
Specifications

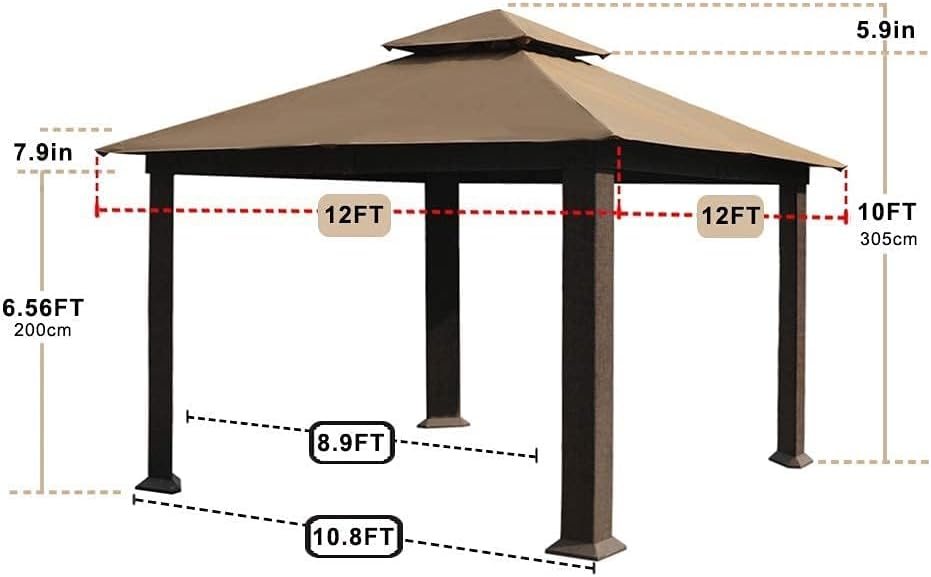

Image: A diagram illustrating the key dimensions of the 12x12 feet gazebo, including overall height, roof overhang, and base footprint.
- Model: Titan 12x12
- Brand: EliteShade
- Dimensions (Overall): Approximately 12 ft L x 12 ft W x 10 ft H (366cm L x 366cm W x 305cm H)
- Product Dimensions (Packaged): 89"L x 20"W x 13"H
- Material: Aluminum frame, weather-resistant fabric canopy
- Color: Cocoa
- Item Weight: 180 Pounds
- Water Resistance Level: Water Resistant
- Ultraviolet Light Protection: 85%
- Assembly Required: Yes (2-3 hours, 1-2 people)
- Canopy Durability: 5 Years Non-Fading
Warranty and Support
The EliteShade Titan Gazebo canopy is designed with a 5-year non-fading guarantee, ensuring long-lasting color and performance under normal conditions. The frame is constructed with corrosion-resistant materials for extended durability.
For specific warranty details, claims, or technical support, please contact EliteShade customer service directly. Refer to your purchase documentation for contact information or visit the official EliteShade website.
Contact Information: Please refer to the contact details provided with your purchase or visit the EliteShade Store on Amazon for further assistance.
