ELYKEN HNT02 Narrow Side Table Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, safe operation, and proper maintenance of your ELYKEN HNT02 Narrow Side Table. Please read this manual thoroughly before beginning assembly or use to ensure correct installation and to maximize the lifespan of your product.

Product Overview

The ELYKEN HNT02 is a compact and functional narrow side table featuring a fluted design and two integrated drawers. It is designed to fit into small spaces, serving as a nightstand, end table, or general storage unit.

• Dimensions: 11.81"D x 7.87"W x 20.59"H
• Material: Engineered Wood
• Drawers: 2
• Maximum Weight Recommendation: 66 Pounds

Figure 1: Product Dimensions. The main table measures 7.8" W x 11.8" D x 20.6" H. Each drawer measures approximately 10.4" L x 5.5" W x 6.3" H externally, with an internal depth of 3.8".

2. Safety Information

• Always assemble the product on a soft, clean surface to prevent scratches.
• Ensure all screws and fasteners are securely tightened before use.
• Do not exceed the maximum weight recommendation of 66 pounds for the tabletop.
• Keep small parts away from children during assembly.
• Periodically check all connections to ensure they remain tight.
• Avoid placing hot items directly on the surface without protection.

3. Setup and Assembly

The ELYKEN HNT02 Narrow Side Table requires assembly. Please follow the steps below carefully. An assembly guide is included with your product.

Required Tools (Not Included)

• Phillips Head Screwdriver
• Hammer (optional, for dowels)

Assembly Steps

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the included assembly guide are present and undamaged.
2. Assemble Frame: Attach the side panels to the top and bottom panels using the provided screws and dowels. Ensure the fluted panels face outwards.
3. Install Legs: Securely attach the four support legs to the bottom panel of the table using the designated screws. Ensure they are stable and even.
4. Assemble Drawers: Construct the two drawers by attaching the side, front, and back panels. Install the drawer slides onto the drawer boxes.
5. Install Drawer Slides (Cabinet): Attach the corresponding drawer slides to the inside of the table frame. Pay close attention to orientation as incorrect installation can prevent smooth operation.
6. Insert Drawers: Carefully slide the assembled drawers into the cabinet. Test for smooth operation.
7. Attach Handles: Secure the metal handles to the front of each drawer. Ensure they are tightened firmly but do not overtighten.
8. Final Check: Confirm all connections are secure and the table is stable.

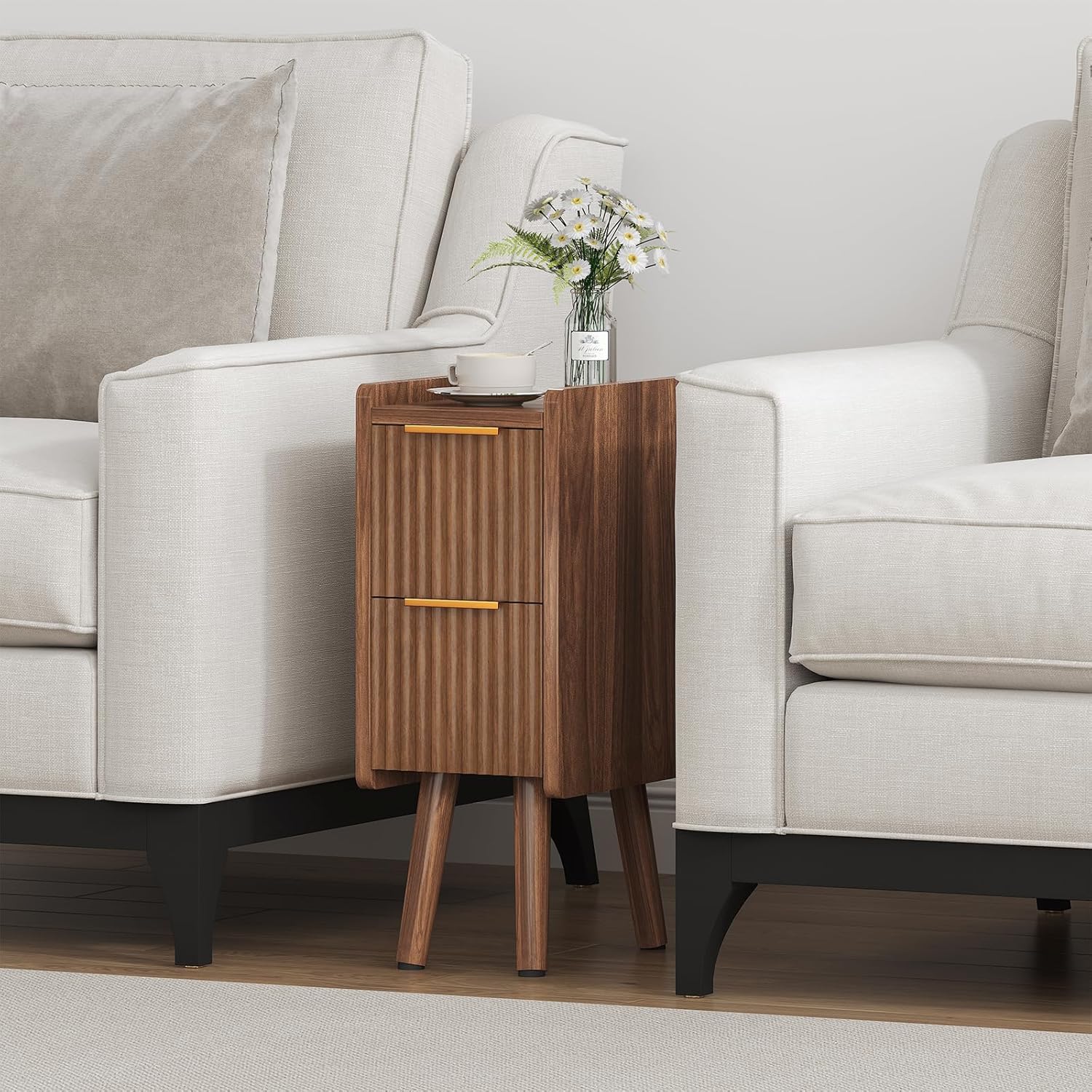

Figure 2: Assembled Side Table in a living room environment.

4. Operation

The ELYKEN HNT02 Narrow Side Table is designed for convenient storage and display.

Using the Drawers

• Gently pull the metal handles to open the drawers.
• Push the drawers back in until they are fully closed.
• Avoid overloading the drawers to ensure smooth operation and prevent damage to the slides.

Figure 3: Drawers in open position, demonstrating storage capacity.

Tabletop Use

• The tabletop features a raised guard rail to help prevent items from falling off.
• Place items such as lamps, books, or decorative objects on the tabletop.
• The surface is waterproof and easy to clean.

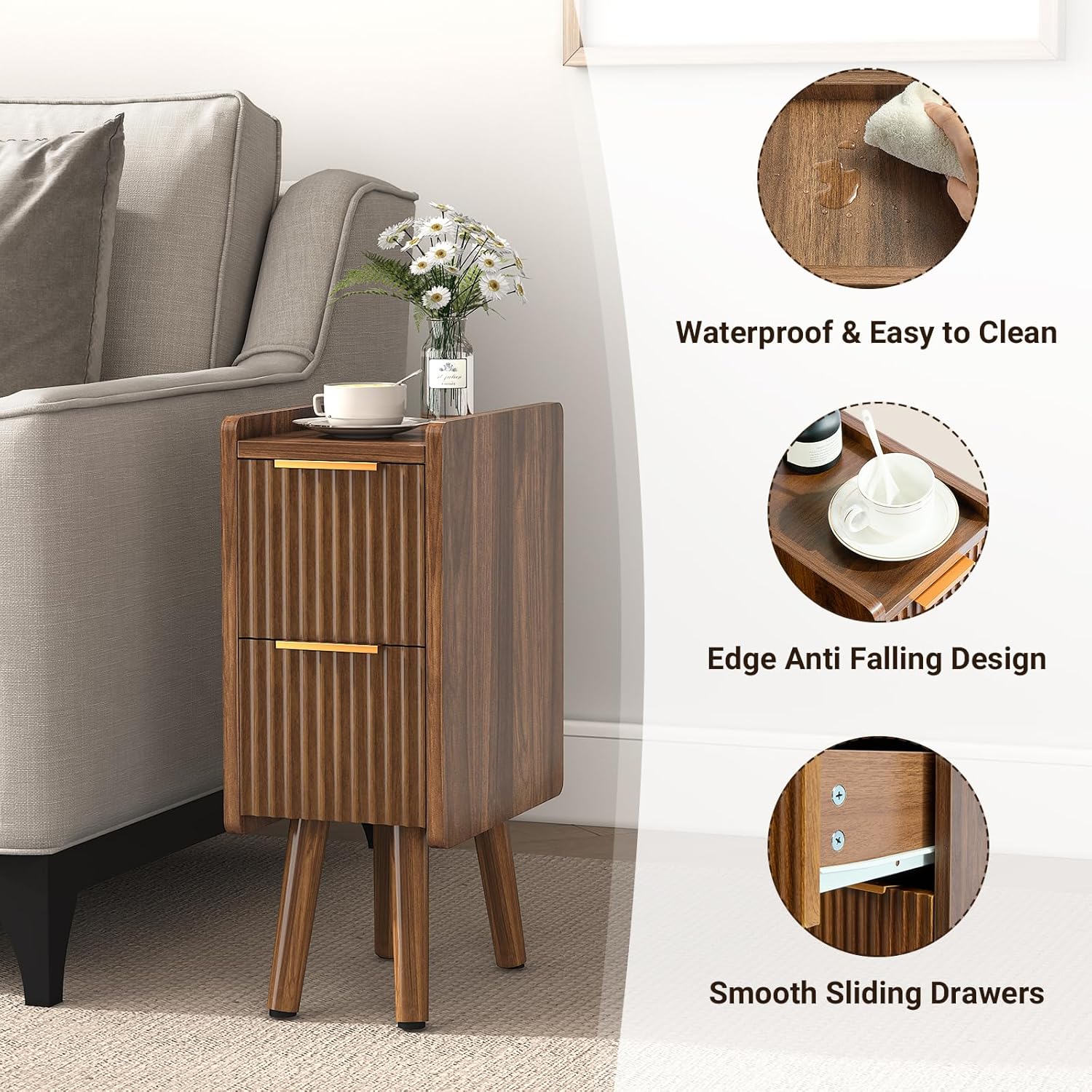

Figure 4: Features including waterproof surface, edge design, and drawer slides.

5. Maintenance

Regular maintenance will help preserve the appearance and functionality of your side table.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Spills: Although the surface is waterproof, wipe up spills immediately to prevent potential damage or staining.
• Hardware Check: Periodically inspect all screws and fasteners. Tighten any loose connections to maintain stability.
• Drawer Slides: If drawers become stiff, a small amount of silicone-based lubricant can be applied to the slides.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or warping of wood products.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For specific warranty information and customer support, please refer to the documentation included with your purchase or contact ELYKEN directly through their official channels.

You can visit the ELYKEN store for more information: ELYKEN Store on Amazon.
