Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your SideKing Battery Powered Backpack Sprayer. Please read this manual thoroughly before initial use to ensure proper handling and to maximize the lifespan of your product.
The SideKing 2.6 Gallon Electric Garden Sprayer is designed for various applications including weed control, pest spraying, and general yard and lawn care. It features adjustable pressures, USB-C charging, and multiple nozzles for versatile use.
Product Features
- Powerful Battery-Powered Operation: Equipped with a 7.4V motor and a 4000mAh lithium battery, providing 2-3 hours of continuous spraying.
- Adjustable Pressure Settings: Offers 3 pressure levels (mist, medium, strong) for diverse spraying needs.
- Versatile Nozzle Kit: Includes 5 interchangeable nozzles: flat fan, cone, wind-resistant, 6-hole, and fine mist.
- Convenient USB-C Charging: Full charge in approximately 3 hours with a universal USB-C port.
- Real-Time Battery Indicator: LED display shows remaining battery life.
- Ergonomic Backpack Design: Features padded shoulder straps, a soft back cushion, and a comfort-grip handle for extended use.
- Large Capacity Tank: 2.6-gallon (10L) semi-transparent tank with a wide-mouth opening for easy refilling and cleaning.
- Quiet and Eco-Friendly: Operates quietly with no harmful fumes, suitable for indoor and outdoor applications.
Package Contents
Please verify that all items listed below are present and in good condition upon opening the package.
- SideKing 2.6 Gallon Electric Backpack Sprayer Unit (Tank with integrated pump and battery)
- Spray Wand with Handle and Control Panel
- Telescopic Wand Extension
- 5 Interchangeable Nozzles (Flat Fan, Cone, Wind-Resistant, 6-Hole, Fine Mist)
- USB-C Charging Cable
- User Manual (this document)

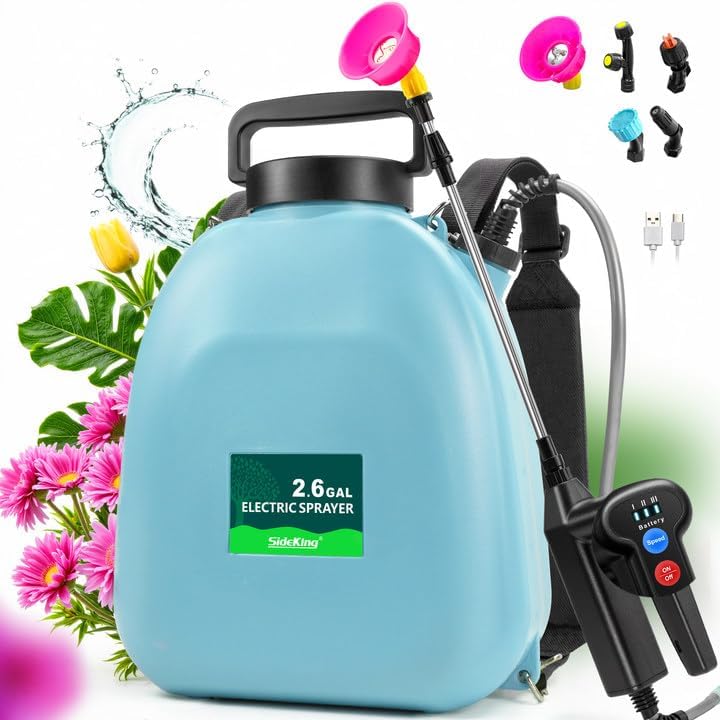

Image: The SideKing 2.6 Gallon Electric Backpack Sprayer shown with its main components and the five included nozzles, along with the USB-C charging cable.
Setup and Assembly
- Charge the Battery: Before first use, fully charge the sprayer's internal battery using the provided USB-C cable. Connect the USB-C end to the charging port on the spray handle and the other end to a compatible USB power adapter (not included). The LED battery indicator on the handle will show charging progress. A full charge typically takes 3 hours.
Image: Close-up of the USB Type-C charging port located on the handle of the sprayer, indicating where to connect the charging cable.
- Attach the Hose: Connect the hose from the sprayer tank to the spray handle. Ensure the connection is secure and tight to prevent leaks.
Image: Diagram showing the correct method for connecting the hose to the sprayer handle, emphasizing a secure fit.
- Assemble the Spray Wand:
- Screw the telescopic wand extension onto the spray handle.
- Select the desired nozzle and screw it onto the end of the telescopic wand. Ensure it is tightened securely.
Image: Illustration demonstrating the assembly of the telescopic wand and the attachment of one of the five interchangeable nozzles.
- Adjust Backpack Straps: Adjust the padded shoulder straps to ensure a comfortable and secure fit on your back. The sprayer should sit snugly without excessive movement.
Image: A close-up view of the wide padded and breathable adjustable backpack straps, highlighting their design for user comfort.
Operating Instructions
- Fill the Tank: Unscrew the wide-mouth lid and pour your desired liquid (water, fertilizer, herbicide, etc.) into the 2.6-gallon tank. Do not overfill. The semi-transparent tank has gallon markings for easy measurement. Securely close the lid after filling.
Image: A hand holding the measuring cup, demonstrating the wide-mouth opening of the sprayer tank for easy filling and cleaning.
- Power On: Press the "ON/OFF" button on the spray handle to turn on the sprayer. The battery indicator lights will illuminate.
- Select Pressure Setting: Use the "Speed" button on the handle to cycle through the 3 adjustable pressure settings: mist, medium, and strong. Choose the setting appropriate for your application.
Image: Close-up of the sprayer handle's control panel, showing the battery indicator lights and the 'Speed' button for adjusting pressure settings.
- Begin Spraying: Squeeze the trigger on the handle to begin spraying. Release the trigger to stop.
Image: A person wearing the SideKing backpack sprayer and operating the spray wand to water plants in a garden, demonstrating typical use.
- Adjust Spray Pattern: If using a twist-adjustable nozzle, rotate the nozzle head to change the spray pattern from a fine mist to a direct stream.
Image: A visual representation of the five different spray patterns achievable with the included nozzles: Windproof, F Type Dual, Cone, 6 Hole Pattern, and Fan Nozzle.
- Power Off: After use, press the "ON/OFF" button to turn off the sprayer.
Maintenance
- Cleaning the Tank: After each use, especially when spraying chemicals, rinse the tank thoroughly with clean water. Spray clean water through the wand and nozzle to flush out any residue. This prevents clogging and extends the life of the sprayer.
- Nozzle Maintenance: Periodically check nozzles for clogs. If a nozzle becomes clogged, remove it and clean it with water. Do not use sharp objects that could damage the nozzle opening.
- Battery Care: Store the sprayer with a partially charged battery (around 50%) if not used for extended periods. Recharge the battery every 3-6 months to maintain its health. Avoid completely draining the battery before recharging.
- Storage: Store the sprayer in a cool, dry place, away from direct sunlight and freezing temperatures. Ensure the tank is empty and clean before storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Sprayer does not turn on. | Battery is depleted. | Charge the battery fully using the USB-C cable. |
| No spray or weak spray. |
|
|
| Liquid leaking from connections. | Loose connections or damaged O-rings/seals. | Tighten all connections. Inspect O-rings/seals for damage and replace if necessary. |
| Inconsistent spray pattern. | Partially clogged nozzle or incorrect pressure setting. | Clean the nozzle. Adjust the pressure setting using the "Speed" button. |
Specifications
| Feature | Detail |
|---|---|
| Brand | SideKing |
| Model Name | ST10L-7.4VDXD-BU |
| Tank Volume | 2.6 Gallons (10 Liters) |
| Power Source | Battery Powered |
| Battery Type | 7.4V 4000mAh Lithium-Ion (included) |
| Charging Port | USB-C |
| Charging Time | Approx. 3 hours |
| Continuous Spraying Time | 2-3 hours |
| Pressure Settings | 3 Levels (Mist, Medium, Strong) |
| Nozzles Included | 5 (Flat Fan, Cone, Wind-Resistant, 6-Hole, Fine Mist) |
| Telescopic Wand Length | Up to 41 inches |
| Item Weight | 3.94 pounds (1.79 Kilograms) |
| Product Dimensions | 11"W x 15"H |
Warranty and Support
For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official SideKing website. Keep your purchase receipt as proof of purchase for any warranty claims.
For additional assistance or inquiries, you may contact SideKing customer service through their official channels. Please have your model number (ST10L-7.4VDXD-BU) ready when contacting support.
