Introduction
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your new FTYHFEFH Carburetor Kit. This kit is designed as a direct replacement for specific Cub Cadet mower engines, ensuring optimal performance and longevity. Please read this manual thoroughly before beginning any installation or maintenance procedures.
Package Contents
Your FTYHFEFH Carburetor Kit includes all components necessary for a direct replacement, as shown below. Please verify that all items are present and undamaged upon opening the package.
Image: The complete carburetor kit, including the main carburetor unit, two spark plugs, multiple gaskets of different shapes, a small fuel filter, and a red-handled fuel shut-off valve.
- 1 x Carburetor Assembly
- 2 x Spark Plugs
- Multiple Gaskets (various shapes and sizes for proper sealing)
- 1 x Fuel Filter
- 1 x Fuel Shut-off Valve
Compatibility
This carburetor kit is engineered for precise compatibility with the following mower specifications:
- Mower Model: Cub Cadet 50" RZT (Year 2009)
- Engine Type: Kawasaki 17AI2ACP Mower Engines
It is manufactured to exact factory standards to ensure a perfect fit and direct replacement for the original part.
Installation Instructions
Warning: Always ensure the engine is cool and the spark plug wire is disconnected before performing any installation or maintenance. Wear appropriate personal protective equipment, such as gloves and eye protection.
- Preparation: Turn off the mower engine and allow it to cool completely. Disconnect the spark plug wire to prevent accidental starting.
- Access Carburetor: Locate the existing carburetor on your engine. You may need to remove the air filter housing, engine cover, or other components to gain clear access.
- Disconnect Fuel Lines: Carefully disconnect the fuel lines from the old carburetor. Be prepared for minor fuel spills and have absorbent rags ready.
- Remove Old Carburetor: Unbolt and remove the old carburetor. Pay attention to any linkages, springs, or connections that need to be detached. Remove and discard all old gaskets.
- Install New Gaskets: Place the new gaskets provided in the kit onto the engine block and intake manifold as appropriate. Ensure they are correctly oriented and aligned with the bolt holes.
- Mount New Carburetor: Position the new carburetor onto the engine, aligning it with the bolt holes and ensuring all linkages and connections are properly reattached.
- Secure Carburetor: Bolt the new carburetor securely in place. Do not overtighten the bolts, as this can damage the carburetor or gaskets.
- Reconnect Fuel Lines: Reconnect the fuel lines to the new carburetor, ensuring all connections are snug to prevent leaks. Install the new fuel filter and fuel shut-off valve in the fuel line if replacing.
- Replace Spark Plugs (Optional): If replacing spark plugs, remove the old ones and install the new ones from the kit. Ensure they are properly gapped according to your engine's specifications (refer to your mower's engine manual for exact gap).
- Reassemble Components: Reattach any air filter housing, engine covers, or other components that were removed during the process.
- Reconnect Spark Plug Wire: Reconnect the spark plug wire to the spark plug.
- Test: Add fresh fuel to the tank if necessary. Start the engine and check for proper operation, smooth idling, and any signs of fuel leaks.

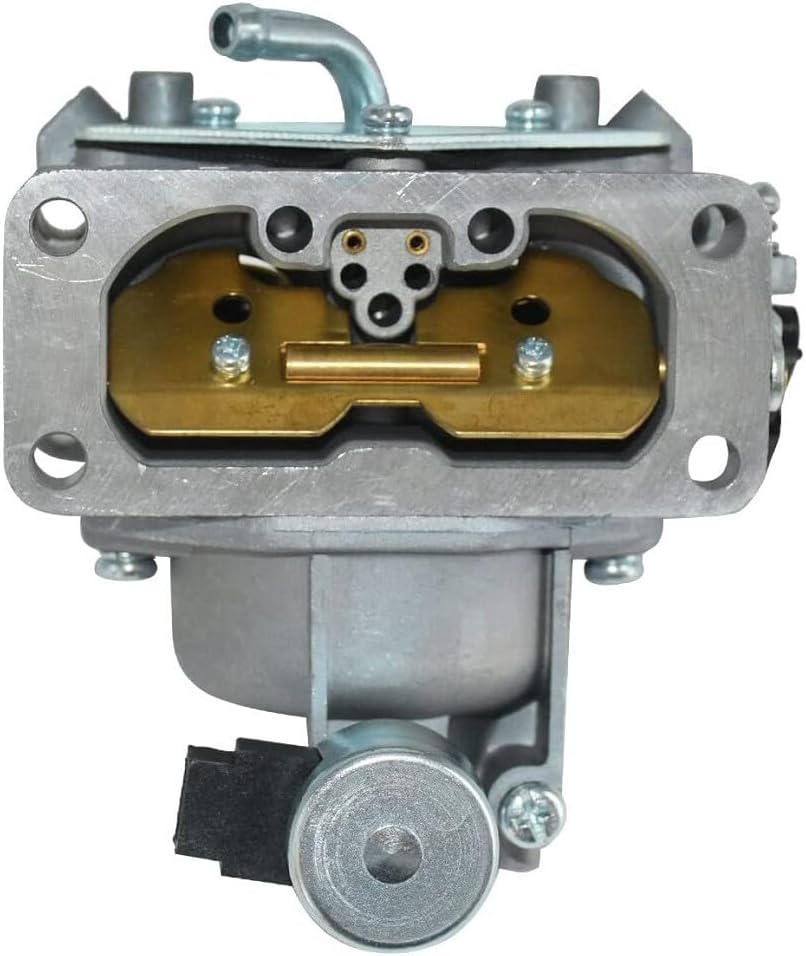

Image: A side view of the carburetor, highlighting the fuel inlet nozzle and the main mounting flange with bolt holes, crucial for proper installation.
Operation
Once the carburetor kit is successfully installed, your engine should start and run smoothly. Observe the following during initial operation:
- Allow the engine to warm up for a few minutes before engaging any attachments or operating under heavy load.
- Listen for any unusual noises, misfires, or signs of an improper air-fuel mixture (e.g., excessive black smoke, stalling, or hesitation).
- If the engine does not run smoothly or exhibits any issues, refer to the Troubleshooting section of this manual.
Maintenance
Regular maintenance is crucial for ensuring the longevity and optimal performance of your carburetor and mower engine. Adhere to the following guidelines:
- Fuel Quality: Always use fresh, clean, and high-quality fuel. Stale or contaminated fuel can lead to gumming and clogging of the carburetor's internal passages.
- Fuel Filter: Periodically inspect the fuel filter (included in this kit) and replace it if it appears dirty or clogged. A clean fuel filter prevents debris from reaching the carburetor.
- Air Filter: Ensure the engine's air filter is clean and free of debris. A dirty air filter restricts airflow, leading to an incorrect air-fuel mixture and poor engine performance.
- Seasonal Storage: If storing the mower for an extended period (e.g., over winter), it is recommended to drain the fuel from the carburetor bowl or use a high-quality fuel stabilizer to prevent fuel degradation and carburetor issues.
Image: A front view of the carburetor, displaying the two circular throttle and choke plates within the air intake, which regulate airflow into the engine.
Troubleshooting Common Issues
If you encounter problems after installing the carburetor kit, consult the table below for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel filter, incorrect choke setting, faulty spark plug | Check fuel level, replace fuel filter, adjust choke, inspect/replace spark plug |
| Engine runs rough/stalls | Clogged carburetor jet, old/stale fuel, air leak around gaskets, dirty air filter | Clean carburetor, use fresh fuel, check gasket seals, clean/replace air filter |
| Engine lacks power | Improper fuel mixture, restricted exhaust, dirty air filter | Check carburetor settings, clear exhaust obstruction, clean/replace air filter |
| Fuel leaks | Loose fuel line connection, damaged gasket, cracked fuel line | Tighten connections, replace gaskets, replace fuel lines |
Image: An angled view of the carburetor, highlighting the fuel bowl at the bottom and visible adjustment screws that may be used for fine-tuning.
Product Specifications
Key specifications for the FTYHFEFH Carburetor Kit:
| Feature | Detail |
|---|---|
| Brand | FTYHFEFH |
| Model | FTYHFEFH |
| Item Weight | 1 pounds |
| Product Dimensions | 1 x 1 x 1 inches |
| Manufacturer Part Number | 1 |
| UPC | 779603358824 |
| Compatibility | Cub Cadet 2009 50" RZT with Kawasaki 17AI2ACP Mower Engines |
Image: A top-down view of the carburetor, clearly showing the air intake opening and the precise arrangement of the mounting holes on the flange.
Warranty and Support
Specific warranty details for this FTYHFEFH Carburetor Kit are not provided within this manual. For information regarding product warranty, returns, or technical support, please refer to the product packaging or contact the manufacturer directly.
Manufacturer: FTYHFEFH
For further assistance or inquiries, please visit the product's original listing page or contact the seller from whom the product was purchased.
