FTYHFEFH Carburetor Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your new FTYHFEFH Carburetor. This carburetor is a direct replacement part designed for specific John Deere tractor models, including the 170, 240, LX172, and LX176, corresponding to OEM part number AM109205. Please read these instructions thoroughly before attempting any installation or operation to ensure safety and optimal performance.

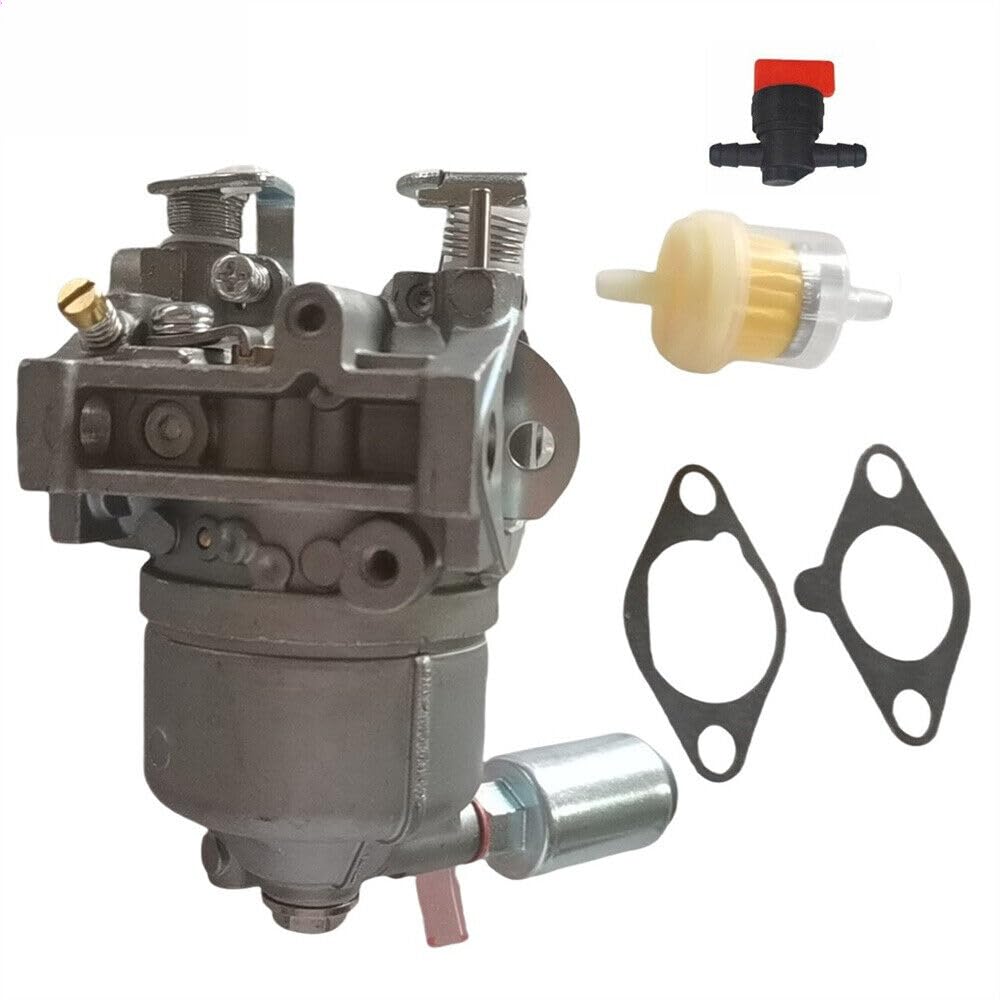

Figure 1: Overview of the FTYHFEFH Carburetor and included components.

2. Safety Information

Always prioritize safety when working with engine components. Failure to follow safety precautions can result in serious injury or damage to equipment.

• Ensure the engine is completely off and cool before beginning any work.
• Disconnect the spark plug wire to prevent accidental starting.
• Work in a well-ventilated area. Fuel fumes are flammable and hazardous.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Keep a fire extinguisher nearby.
• If you are unsure about any step, consult a qualified mechanic or refer to your tractor's service manual.

3. Package Contents

Verify that all items listed below are present and undamaged before proceeding with installation.

• 1 x Carburetor
• 1 x Fuel Line
• 1 x Fuel Filter
• 1 x Fuel Shut-Off Valve
• 2 x Gaskets

Figure 2: All components included in the FTYHFEFH Carburetor package.

4. Setup and Installation

This section outlines the general steps for replacing your tractor's carburetor. Specific procedures may vary slightly depending on your exact John Deere model. Refer to your tractor's service manual for detailed instructions.

1. Preparation:
   • Park the tractor on a level surface and engage the parking brake.
   • Turn off the engine and allow it to cool completely.
   • Disconnect the spark plug wire.
   • Close the fuel shut-off valve (if present) or clamp the fuel line to prevent fuel leakage.
2. Remove Old Carburetor:
   • Carefully disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Note their positions for reassembly.
   • Remove the mounting bolts or nuts securing the carburetor to the engine intake manifold.
   • Remove the old carburetor and any old gaskets. Dispose of fuel and old parts responsibly.
3. Install New Carburetor:
   • Clean the mounting surfaces on the engine intake manifold and air filter housing.
   • Place the new gaskets in their correct positions.
   • Mount the new FTYHFEFH Carburetor onto the engine, ensuring it is seated correctly.
   • Secure the carburetor with the mounting bolts/nuts, tightening them evenly to prevent air leaks. Do not overtighten.
   • Reconnect the throttle linkage, choke linkage, and fuel line to the new carburetor. Ensure all connections are secure and move freely.
   • Install the new fuel filter and fuel shut-off valve into the fuel line as appropriate.
4. Final Checks:
   • Double-check all connections for tightness and proper routing.
   • Ensure no tools or debris are left in the engine compartment.
   • Reconnect the spark plug wire.

Figure 3: Rear view of the carburetor, illustrating points for linkage and fuel line connections.

5. Operating Instructions

After installation, follow these steps for initial startup and operation.

1. Fuel Supply: Open the fuel shut-off valve (if installed) or unclamp the fuel line. Allow fuel to flow into the carburetor bowl.
2. Choke: Engage the choke lever to the "FULL CHOKE" position for cold starts.
3. Throttle: Set the throttle to a mid-range or "START" position.
4. Start Engine: Turn the ignition key or pull the starter rope according to your tractor's starting procedure.
5. Warm-up: Once the engine starts, gradually move the choke lever to the "OFF" position as the engine warms up and runs smoothly.
6. Idle Adjustment: If the engine idles too high or too low after warming up, a minor idle speed adjustment screw may be present on the carburetor. Consult your tractor's service manual for the exact location and procedure.

Note: A new carburetor may require a short break-in period. Monitor engine performance closely during the first few hours of operation.

Figure 4: Front view of the carburetor, showing the choke plate and air intake.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your carburetor.

• Fuel Filter: Replace the fuel filter annually or more frequently if operating in dusty conditions or with contaminated fuel. The included fuel filter should be checked regularly.
• Air Filter: Ensure your engine's air filter is clean and properly installed. A dirty air filter can restrict airflow and affect carburetor performance.
• Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel can clog carburetor passages. Consider using a fuel stabilizer if the tractor is stored for extended periods.
• Cleaning: If the carburetor becomes clogged or dirty, it may require cleaning. This typically involves disassembling the carburetor, cleaning passages with carburetor cleaner, and replacing gaskets. This procedure is best performed by experienced individuals or a professional.

Figure 5: Side view of the carburetor, highlighting the fuel inlet and drain screw (if applicable).

7. Troubleshooting

Refer to this section for common issues and potential solutions. If problems persist, consult a qualified technician.

Figure 6: Top view of the carburetor, showing adjustment screws (if present) and fuel inlet.

8. Specifications

• Brand: FTYHFEFH
• Model Compatibility: John Deere 170, 240, LX172, LX176 Tractors
• OEM Part Number Equivalent: AM109205
• Material: High-quality metal alloy (typical for carburetors)
• Package Includes: Carburetor, Fuel Line, Fuel Filter, Shut-Off Valve, Gaskets

9. Warranty and Support

For warranty information or technical support regarding your FTYHFEFH Carburetor, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: FTYHFEFH

Model Number: FTYHFEFH (refer to AM109205 for application)
