1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your SmartGyro Crossover Dual SG27-169 replacement tubeless tire. Please read these instructions carefully before proceeding with installation or use to ensure safety and optimal performance.
2. Product Overview
The SmartGyro Crossover Dual SG27-169 replacement tire is a high-quality, durable tubeless tire designed specifically for the SmartGyro Crossover Dual electric scooter. Manufactured from robust rubber, it offers superior grip, stability, and safety across various surfaces, including wet or uneven terrain. This tire is an ideal replacement for worn or damaged original tires, ensuring a precise fit and restoring your scooter's performance.

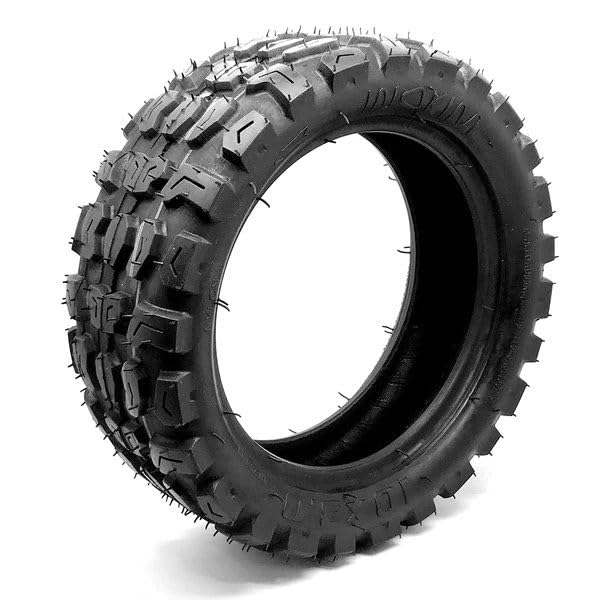

Image showing the SmartGyro Crossover Dual SG27-169 replacement tubeless tire, designed for electric scooters.
3. Safety Information
Always prioritize safety during installation and use. Improper installation or maintenance can lead to accidents or injury.
- Professional Installation: It is highly recommended that tire replacement be performed by a qualified technician or a professional service center.
- Appropriate Tools: Use only appropriate tools for tire removal and installation to prevent damage to the tire, rim, or personal injury.
- Tire Pressure: Always inflate the tire to the manufacturer's recommended pressure. Over-inflation or under-inflation can compromise safety and tire lifespan.
- Inspection: Regularly inspect the tire for any signs of wear, cuts, punctures, or other damage before each ride. Do not use a damaged tire.
- Compatibility: Ensure this tire is compatible with your specific scooter model (SmartGyro Crossover Dual SG27-169) before installation.
4. Setup (Installation)
This section outlines the general steps for replacing a tubeless scooter tire. For detailed instructions specific to your scooter model, consult your scooter's user manual or seek professional assistance.
- Prepare the Scooter: Turn off the scooter and place it on a stable surface. If possible, elevate the wheel to be replaced.
- Remove the Wheel: Carefully remove the wheel assembly from the scooter. This may involve loosening axle nuts or other fasteners.
- Deflate the Old Tire: Remove the valve cap and core to fully deflate the old tire.
- Break the Bead: Use appropriate tire levers or a bead breaker to separate the tire bead from the rim on both sides.
- Remove the Old Tire: Carefully pry the old tire off the rim using tire levers, taking care not to damage the rim.
- Inspect the Rim: Clean the rim thoroughly and inspect it for any damage, corrosion, or sharp edges.
- Mount the New Tire: Apply a tire mounting lubricant to the beads of the new tire and the rim edges. Carefully work one side of the tire onto the rim.
- Install Valve Core: If not already installed, insert the valve core into the valve stem.
- Seat the Tire: Use an air compressor to rapidly inflate the tire. The beads should audibly "pop" into place on the rim. Ensure both beads are fully seated.
- Inflate to Pressure: Inflate the tire to the recommended pressure (refer to your scooter's manual or the tire sidewall for specific values).
- Check for Leaks: Apply soapy water around the tire beads and valve stem to check for any air leaks.
- Reinstall Wheel: Reattach the wheel assembly to the scooter, ensuring all fasteners are tightened to the manufacturer's specifications.
5. Operating (Usage Guidelines)
Once the new tire is installed, follow these guidelines for safe and effective operation:
- Maintain Correct Pressure: Check tire pressure regularly (at least weekly) and before long rides. Correct pressure is crucial for handling, safety, and tire longevity.
- Avoid Overloading: Do not exceed the maximum load capacity of your scooter, as this can put excessive strain on the tires.
- Riding Conditions: Adapt your riding speed and style to road conditions. While this tire offers good grip, extreme conditions still require caution.
- Break-in Period: New tires may require a short break-in period (approximately 50-100 km) during which grip may be slightly reduced. Ride cautiously during this time.
6. Maintenance
Regular maintenance will extend the life of your tire and ensure continued safety.
- Tire Pressure: As mentioned, regularly check and adjust tire pressure.
- Visual Inspection: Before each ride, visually inspect the tire for any embedded objects (nails, glass), cuts, cracks, bulges, or excessive wear.
- Tread Wear: Monitor the tread depth. Replace the tire when the tread wear indicators are visible or when the tread is significantly worn.
- Cleaning: Clean the tires periodically with mild soap and water to remove dirt and debris. Avoid harsh chemicals that could damage the rubber.
- Storage: If storing the scooter for an extended period, ensure tires are properly inflated and stored in a cool, dry place away from direct sunlight and ozone-producing equipment.
7. Troubleshooting
This section addresses common issues you might encounter with your tire.
| Issue | Possible Cause | Solution |
|---|---|---|
| Rapid Air Loss / Flat Tire | Puncture, damaged valve stem, bead not seated correctly. | Inspect for punctures; repair if minor and safe, or replace tire. Check valve stem for damage. Re-seat tire beads. |
| Slow Air Leak | Small puncture, leaky valve core, porous rim, bead leak. | Use soapy water to locate leak. Tighten or replace valve core. Inspect rim and tire beads for damage. |
| Vibration or Uneven Ride | Improperly seated tire, damaged tire, unbalanced wheel (less common for scooter tires). | Check if tire beads are fully seated. Inspect tire for bulges or deformities. Consult a professional if issue persists. |
| Difficulty Seating Bead | Insufficient lubrication, low air pressure from compressor, tire cold. | Apply more tire lubricant. Ensure compressor provides sufficient air volume. Warm the tire slightly. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | SG27-169 |
| Type | Tubeless Tire |
| Material | Rubber (Caucho) |
| Color | Black (Negro) |
| Weight | Approximately 500 g |
| Dimensions (Package) | 25 x 25 x 5 cm |
| Load Index | 45.0 |
| Compatibility | SmartGyro Crossover Dual electric scooter |
9. Warranty Information
Warranty details for this product are not provided within this manual. Please refer to the original purchase documentation, the seller's website, or contact the manufacturer directly for information regarding warranty coverage and terms.
10. Support
For technical support, installation assistance beyond this guide, or other inquiries, please contact the retailer or manufacturer directly. Contact information is typically available on the product packaging or the seller's website.
