Sinbo SCM 2982 Electric Coffee and Spice Grinder User Manual

1. Introduction

Thank you for choosing the Sinbo SCM 2982 Electric Coffee and Spice Grinder. This versatile appliance is designed for efficient grinding of coffee beans, spices, nuts, and more. Please read this manual carefully before first use to ensure safe and optimal operation.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before use.
• Do not immerse the motor base in water or other liquids.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The appliance will not operate unless the lid is properly closed and locked into place. This is a safety feature.
• This appliance is for household use only.
• Keep hands and utensils out of the grinding chamber during operation to prevent injury and damage to the grinder.
• Do not fill the grinding cup beyond the maximum fill line (100g capacity).

3. Product Overview

The Sinbo SCM 2982 comes with two interchangeable stainless steel grinding cups to suit various grinding needs.

Figure 3.1: Sinbo SCM 2982 Electric Coffee and Spice Grinder with its components.

This image displays the main unit of the Sinbo SCM 2982 Electric Coffee and Spice Grinder, featuring its black base, gold accent ring, transparent lid, and the stainless steel grinding cup with a 4-blade assembly detached. The design is compact and modern.

Figure 3.2: Two interchangeable grinding cups.

This image illustrates the two distinct stainless steel grinding cups included with the Sinbo SCM 2982. One cup features a 2-blade assembly, ideal for coarser grinding, while the other has a 4-blade assembly, suitable for finer grinding of coffee, spices, nuts, and peppers.

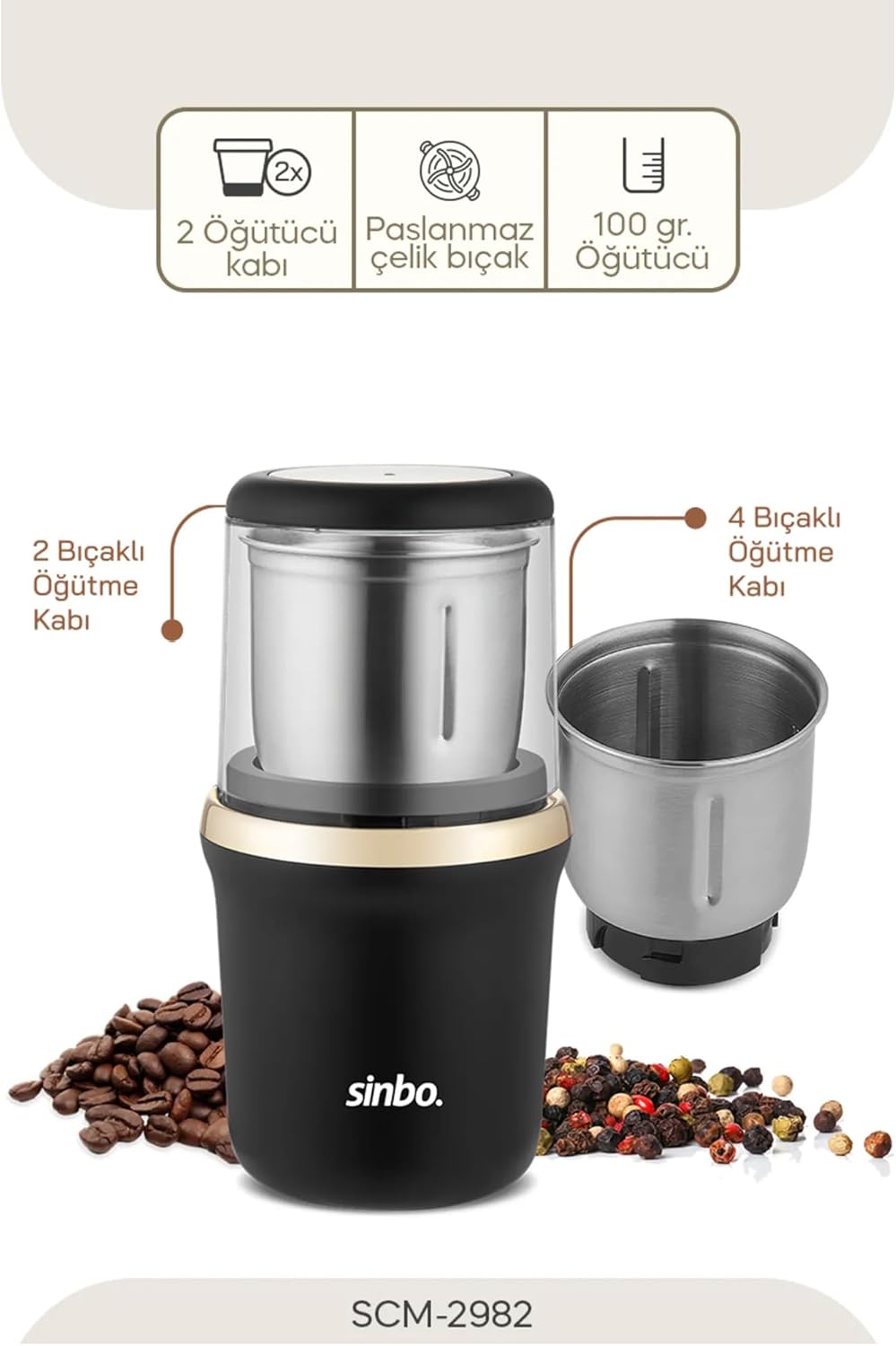

Figure 3.3: Key features of the Sinbo SCM 2982.

This image highlights the main features of the Sinbo SCM 2982, including its two distinct grinding cups (2-blade and 4-blade), durable stainless steel blades, and a generous 100-gram grinding capacity, making it suitable for various grinding tasks.

• 2-Blade Grinding Cup: Ideal for coarser grinding, such as nuts or larger spices.
• 4-Blade Grinding Cup: Suitable for finer grinding, perfect for coffee beans and smaller spices.
• Transparent Lid: Allows you to monitor the grinding process.
• Safety Lock System: The grinder will only operate when the lid is securely in place.
• Non-slip Feet: Ensures stability during operation.

4. Setup

1. Unpack the grinder and all its components.
2. Before first use, clean the grinding cups and lids with a damp cloth. Do not immerse the motor base in water.
3. Ensure the grinder is placed on a stable, flat, and dry surface.
4. Select the appropriate grinding cup (2-blade or 4-blade) for your desired grinding task.
5. Place the selected grinding cup onto the motor base, ensuring it is securely seated.

5. Operating Instructions

Follow these steps to operate your Sinbo SCM 2982 grinder:

1. Prepare Ingredients: Ensure coffee beans or spices are dry and free from foreign objects.
2. Add Ingredients: Place the desired amount of ingredients into the grinding cup. Do not exceed the MAX fill line (maximum 100 grams).
3. Secure Lid: Place the transparent lid onto the grinding cup and twist or press down firmly until it locks into place. The grinder will not operate if the lid is not properly secured due to its safety mechanism.
4. Plug In: Plug the power cord into a suitable electrical outlet.
5. Start Grinding: Press down on the lid to activate the grinding process. The grinder operates only when pressure is applied to the lid.

Figure 5.1: Operating the grinder by pressing down.
This image demonstrates the operation method of the Sinbo SCM 2982 grinder, which activates by pressing down on the top lid. A hand is shown pressing down on the lid, indicating the simple and intuitive activation mechanism.
6. Monitor Grinding: Observe the grinding process through the transparent lid. Grind in short bursts (pulsing) for better control over the consistency.
7. Stop Grinding: Release pressure from the lid to stop the grinder.
8. Unplug and Remove: Unplug the grinder from the outlet. Carefully remove the lid, then lift out the grinding cup to access your freshly ground ingredients.

For optimal results, avoid continuous operation for more than 30 seconds. Allow the motor to cool down for at least 1 minute between grinding cycles.

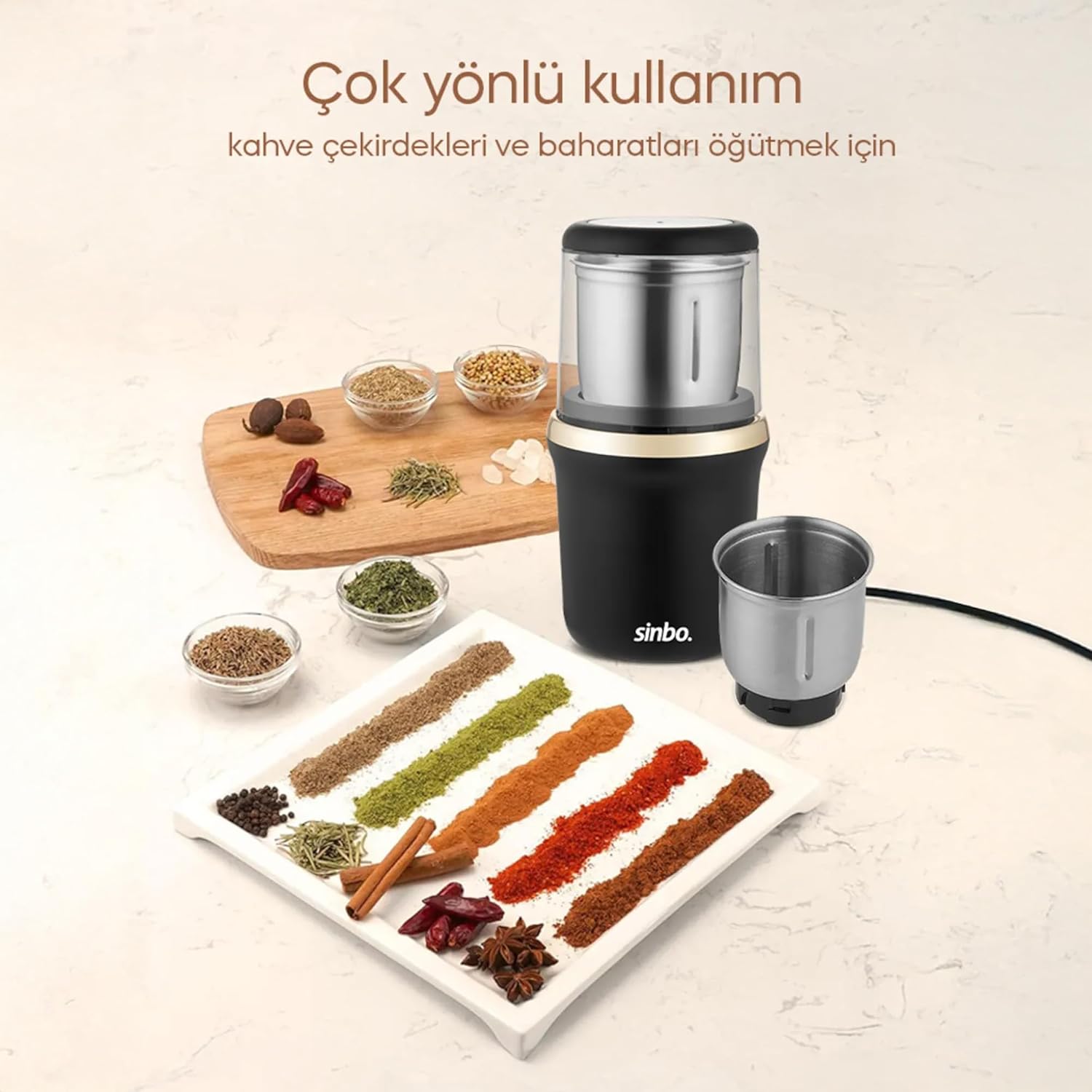

Figure 5.2: Versatile use for coffee and spices.

This image showcases the multi-purpose functionality of the Sinbo SCM 2982, demonstrating its ability to grind both coffee beans and various spices. The grinder is positioned amidst bowls of different spices and coffee beans, highlighting its versatility for kitchen use.

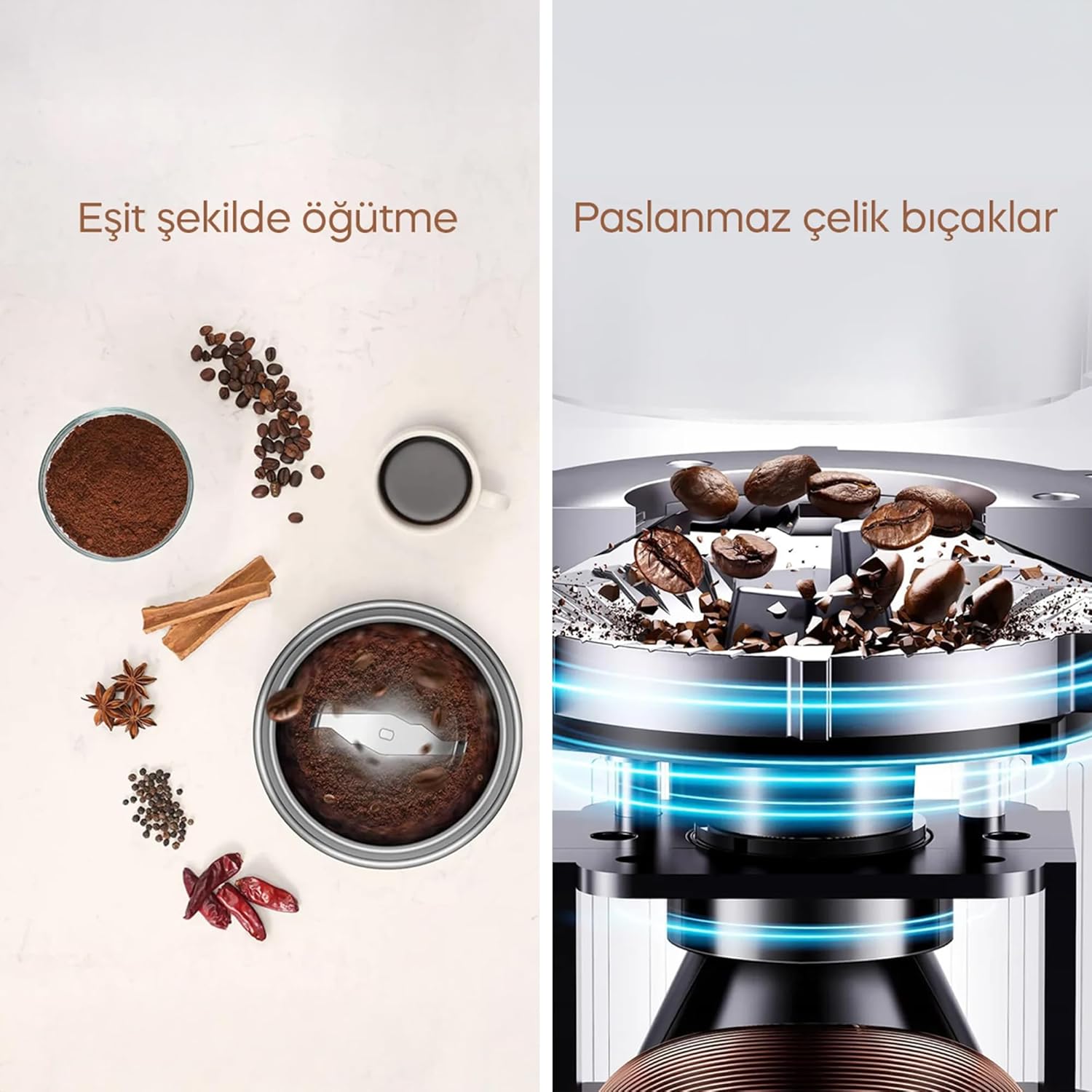

Figure 5.3: Even grinding and durable stainless steel blades.

This split image highlights two key features: on the left, it shows the result of evenly ground coffee and spices, emphasizing consistent texture. On the right, a close-up view of the stainless steel blades within the grinding cup illustrates their robust construction and efficient design for effective grinding.

6. Maintenance and Cleaning

Proper maintenance ensures the longevity and performance of your grinder.

1. Unplug: Always unplug the grinder from the power outlet before cleaning.
2. Clean Grinding Cups: Remove the grinding cup from the motor base. Use a small brush or a dry cloth to remove any remaining coffee grounds or spice residue. The stainless steel cups can be wiped clean with a damp cloth, but do not immerse them in water. Ensure they are completely dry before reassembling.
3. Clean Lid: Wipe the transparent lid with a damp cloth and dry thoroughly.
4. Clean Motor Base: Wipe the exterior of the motor base with a soft, damp cloth. Never immerse the motor base in water or any other liquid.
5. Storage: Store the grinder in a dry place when not in use.

7. Troubleshooting

8. Specifications

• Model: SCM 2982
• Brand: Sinbo
• Color: Gold
• Product Weight: 1030 Grams
• Product Dimensions: 14.2L x 24.9W x 19.6H centimeters
• Capacity: Up to 100 grams
• Blades: Stainless Steel (2-blade and 4-blade options)

Figure 8.1: Product dimensions.

This image provides a detailed diagram of the Sinbo SCM 2982 grinder's dimensions, including its overall height (20.4 cm), base width (10.4 cm), and the dimensions of the grinding chamber (8.4 cm diameter, 9 cm height), offering a clear understanding of its compact size.

9. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact Sinbo customer service through their official website or contact channels. Keep your purchase receipt as proof of purchase.

For further assistance, visit the Sinbo Official Website.
