1. Safety Information
Read all instructions before using the appliance. Keep this manual for future reference.
- Ensure the appliance is placed on a stable, level surface.
- Do not block ventilation openings. Maintain adequate space around the unit for proper air circulation.
- Do not place the appliance near heat sources (e.g., ovens, radiators, direct sunlight) or in excessively humid environments.
- Connect to a grounded power outlet. Do not use extension cords or ungrounded adapters.
- Unplug the appliance before cleaning or performing any maintenance.
- This appliance is intended for household use only.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
2. Setup
2.1 Unpacking
Carefully remove the wine cooler from its packaging. Inspect for any damage during transit. Retain packaging materials for future transport if needed.
2.2 Placement
Place the wine cooler in a location with sufficient ventilation. Allow at least 10 cm (4 inches) of space around the back and sides for proper heat dissipation. Avoid direct sunlight and heat sources. Ensure the unit is level to prevent vibrations and ensure proper door sealing.

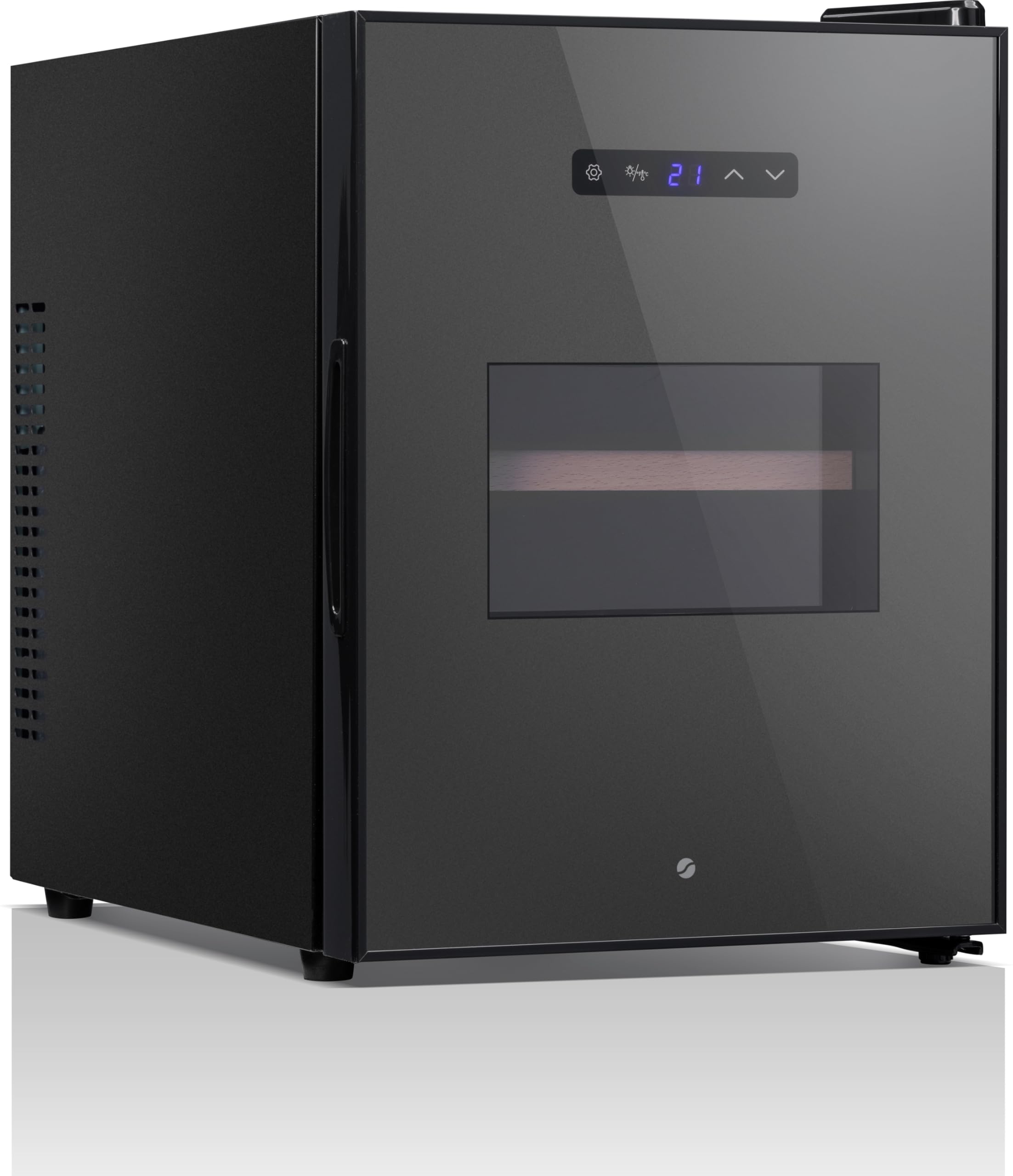

Image: The Ströme BCW-34A/02 Wine Cooler in a closed position, showcasing its compact and sleek design. This view is typical for initial placement.
2.3 Power Connection
Before plugging in, ensure the voltage indicated on the appliance's rating label matches your local power supply. Plug the power cord into a grounded electrical outlet.
2.4 Initial Use
After connecting to power, allow the wine cooler to stand for at least 2-4 hours before loading bottles. This allows the cooling system to stabilize. The internal temperature will gradually reach the set point.
3. Operating Instructions
3.1 Control Panel
The intuitive control panel is located at the top of the door. It allows you to adjust the temperature and control the internal LED lighting.
- Temperature Adjustment: Use the up and down arrows to set your desired temperature between 5°C and 18°C. The display will show the current internal temperature.
- LED Light Control: A dedicated button allows you to turn the internal LED lighting on or off.
3.2 Loading Bottles
The wine cooler is designed to hold up to 12 standard Bordeaux-sized bottles. The three robust wooden shelves are adjustable, providing flexibility to accommodate different bottle sizes. Ensure bottles are placed securely on the shelves.
Image: The Ströme BCW-34A/02 Wine Cooler with its door open, revealing the interior with bottles neatly arranged on the three wooden shelves. The internal LED lighting is visible at the top.
3.3 Temperature Range
The adjustable temperature range of 5°C to 18°C allows for optimal storage of various wine types, from sparkling to red wines. Set the temperature according to the specific requirements of your wine collection.
3.4 Internal LED Lighting
The internal LED lighting illuminates the cabinet, allowing you to view your wine collection without opening the door, thus maintaining a stable internal temperature.
4. Maintenance
4.1 Cleaning
- Exterior: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents.
- Interior: Clean the interior with a mild detergent and warm water. Remove shelves for easier cleaning. Ensure the interior is dry before replacing shelves and loading bottles.
- Door Seal: Regularly clean the door gasket to ensure a tight seal and efficient operation.
Always unplug the appliance before cleaning.
4.2 Long-Term Storage
If the wine cooler will not be used for an extended period, unplug it, clean the interior thoroughly, and leave the door slightly ajar to prevent odors and mold growth.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate | No power supply; Power cord not plugged in; Circuit breaker tripped. | Check power connection; Ensure outlet is functional; Reset circuit breaker. |
| Temperature is not cold enough | Door not closed properly; Door gasket damaged; Excessive door opening; Ambient temperature too high; Unit placed near heat source; Ventilation blocked. | Ensure door is fully closed; Inspect and clean door gasket; Reduce frequency of door opening; Relocate unit to a cooler area; Ensure adequate ventilation. |
| Excessive noise | Unit not level; Contact with wall or other objects. | Adjust leveling feet; Ensure unit is not touching anything. |
| LED light not working | Light switch off; LED bulb failure. | Press the light button on the control panel; Contact customer support if light still fails. |
If the problem persists after checking these points, contact qualified service personnel.
6. Specifications
- Model: BCW-34A/02
- Brand: Ströme
- Capacity: 12 Bottles (standard Bordeaux), 9 Liters
- Temperature Range: 5°C – 18°C
- Cooling Method: Thermoelectric
- Noise Level: 37 dB
- Energy Class: E
- Annual Energy Consumption: 75 kWh/year
- Shelves: 3 Adjustable Wooden Shelves
- Lighting: Internal LED
- Installation Type: Freestanding
- Color: Black
- Weight: 11.5 kg
- Power Source: Corded Electric
Image: The EU Energy Label for the Ströme BCW-34A/02 Wine Cooler, indicating an Energy Class E, annual energy consumption of 75 kWh, a capacity of 31 liters, and a noise level of 37 dB.
For more detailed product information, refer to the EPREL database: https://eprel.ec.europa.eu/qr/2065282
7. Warranty & Support
For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
