AirWire 12'x20' Hardtop Gazebo Instruction Manual

Introduction

Welcome to your new AirWire 12'x20' Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your outdoor structure. Please read all instructions carefully before beginning assembly to ensure proper setup and long-lasting enjoyment of your gazebo.

Image: The AirWire 12'x20' Hardtop Gazebo, showcasing its spacious design and integrated curtains and netting in a backyard setting.

Important Safety Instructions

Your safety is paramount. Adhere to the following guidelines to prevent injury and damage to the product.

• Always follow the provided instructions for assembly and disassembly.
• Secure the gazebo to the ground using the included stakes or appropriate anchors for stability. Failure to do so may result in structural collapse during adverse weather.
• Exercise caution when using electric lights or fans within the gazebo to prevent fire hazards. Ensure all electrical components are rated for outdoor use and installed correctly by a qualified professional if necessary.
• Keep the gazebo clean and free of debris to prevent accidents and maintain structural integrity.
• Do not hang heavy objects from the frame or roof. The structure is designed for light decorative items only.
• In extreme weather conditions (e.g., heavy snow, strong winds), it is recommended to remove curtains and netting and, if possible, disassemble the structure to prevent damage.

Package Contents

Your AirWire 12'x20' Hardtop Gazebo is shipped in multiple boxes. Please verify all parts are present and undamaged against the parts list provided in your package before beginning assembly. Contact customer support immediately if any parts are missing or damaged.

• Galvanized Steel Roof Panels
• Powder-Coated Aluminum Frame Components
• Support Beams and Connectors
• Removable Curtains
• Zippered Netting
• Assembly Hardware (screws, bolts, wrenches, gloves)
• Ground Stakes/Anchors
• Instruction Manual

Setup and Assembly

Assembly of the AirWire 12'x20' Hardtop Gazebo requires a minimum of 4-5 people. It is recommended to set aside ample time for assembly and follow the steps precisely.

Before You Begin

• Choose a level and stable location for your gazebo, ensuring adequate clearance around the structure.
• Clear the assembly area of any obstacles or debris.
• Lay out all components and organize them according to the parts list provided in your package.
• Wear appropriate safety gear, including gloves, during assembly.

Assembly Steps

1. Assemble the base frame components. Ensure all connections are secure and aligned.
2. Attach the vertical support posts to the base frame, ensuring they are upright and stable.
3. Install the upper frame structure, connecting the top beams to the posts.
4. Secure the roof support beams and central ventilation structure.
5. Install the galvanized steel roof panels, ensuring proper overlap and secure fastening to create a watertight seal.
6. Attach the dual-track sliding system for curtains and netting to the frame.
7. Install the removable curtains and zippered netting onto their respective tracks.
8. Secure the gazebo to the ground using the provided stakes or suitable anchors for long-term stability.

Image: An overview of the gazebo frame during the initial assembly phase, showing the sturdy aluminum structure.

Operating Instructions

Maximize your comfort and privacy with the versatile features of your AirWire Gazebo.

Curtains and Netting

The gazebo features a dual-track sliding system for easy operation of the curtains and netting, allowing you to adjust for privacy, shade, or insect protection.

• To Open: Slide the curtains/netting along the tracks and secure them to the posts using the provided ties.
• To Close: Unfasten the ties and slide the curtains/netting to fully enclose the gazebo. Use the zippers to secure the netting for complete insect protection.

Integrated Hooks

Two built-in hooks are provided on the roof frame for hanging lights or fans. Ensure any hung items do not exceed the weight limit specified in the product manual (refer to the full manual for specific details).

Image: The gazebo with its detachable curtains and netting, illustrating options for open views, free breeze, and private enclosed spaces.

Maintenance

Regular maintenance will extend the life and appearance of your AirWire Gazebo. Follow these steps to keep your gazebo in optimal condition.

• Cleaning: Clean the roof panels, frame, curtains, and netting regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the materials.
• Inspection: Periodically inspect all bolts, screws, and connections to ensure they are tight and secure. Tighten as necessary to maintain structural integrity.
• Fabric Care: Remove curtains and netting during strong winds or heavy snow to prevent damage. Store them in a dry place when not in use or during the off-season.
• Rust Prevention: Although the aluminum frame is powder-coated for rust resistance, inspect for any scratches or chips and touch up with appropriate paint to prevent corrosion.
• Snow Removal: In areas with heavy snowfall, regularly clear snow from the roof to prevent excessive weight accumulation, which can lead to structural damage.

Image: A detailed view of the galvanized steel double roof, highlighting its durable construction designed to withstand various weather conditions.

Troubleshooting

If you encounter any issues with your AirWire Gazebo, refer to the following common problems and their solutions.

Common Issues and Solutions

• Loose Connections: If the gazebo feels unstable, check all bolts and screws and tighten them using the appropriate tools.
• Water Leaks: Ensure all roof panels are correctly overlapped and securely fastened. Check for any gaps or damaged seals and apply a suitable sealant if necessary.
• Curtains/Netting Snagging: Inspect the dual-track system for any obstructions or damage. Ensure the tracks are clean and free of debris.
• Parts Missing/Damaged: If you discover any missing or damaged parts upon unboxing or during assembly, contact AirWire customer support immediately for assistance.

Product Specifications

Detailed specifications for your AirWire 12'x20' Hardtop Gazebo.

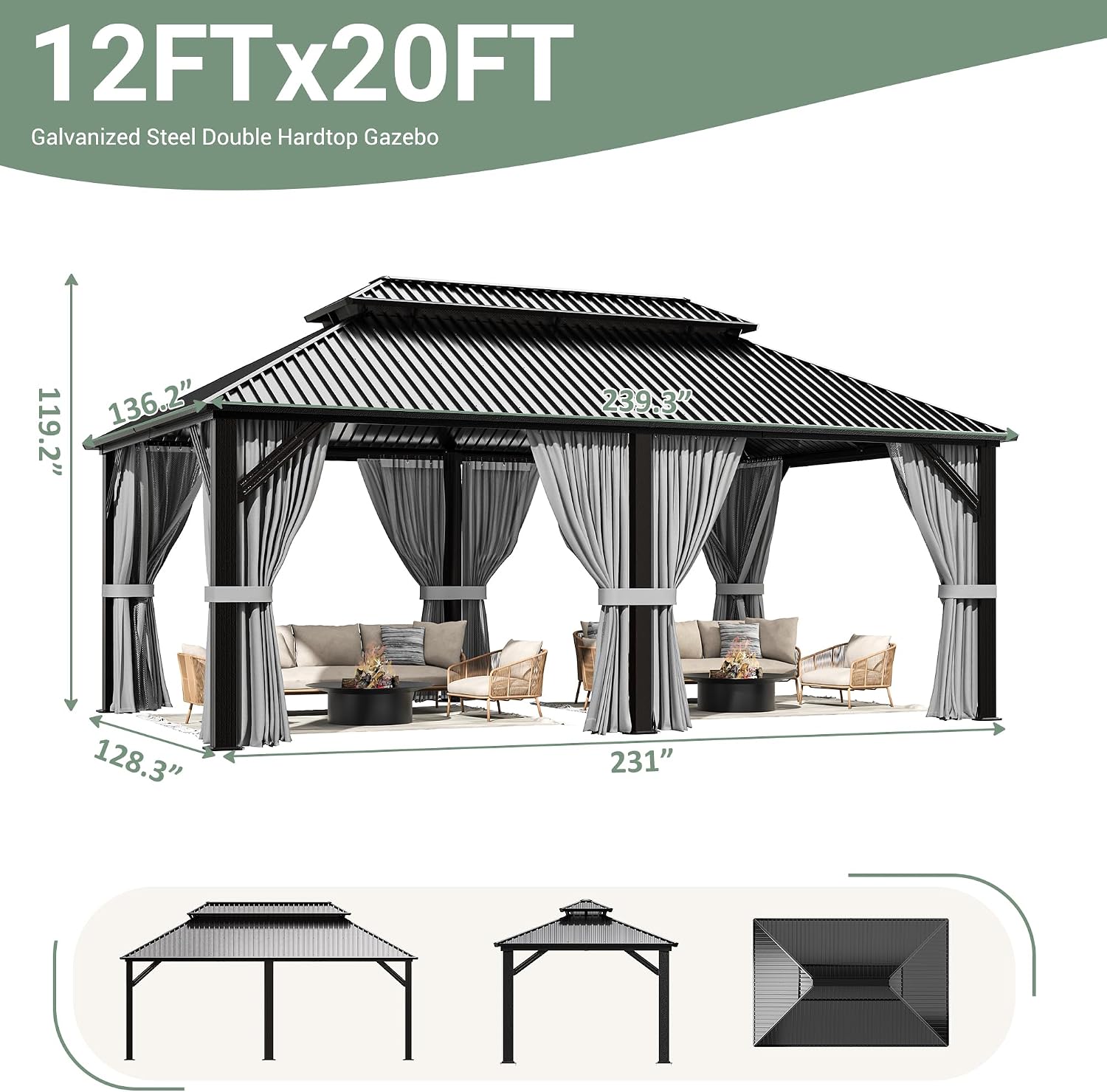

Image: A diagram illustrating the key dimensions of the AirWire 12'x20' Hardtop Gazebo.

Warranty and Support

AirWire is committed to providing high-quality products and excellent customer service.

Warranty Information

For detailed warranty information regarding your AirWire 12'x20' Hardtop Gazebo, please refer to the warranty card included in your product package. You may also find comprehensive warranty terms and conditions on the official AirWire website.

Customer Support

If you have any questions, require assistance with assembly, need to report missing or damaged parts, or have any other inquiries, our dedicated 24/7 support team is ready to help.

• Online Support: Visit the AirWire Store on Amazon for FAQs and contact options.
• Email/Phone: Refer to your product packaging or the AirWire website for direct customer service contact details.
