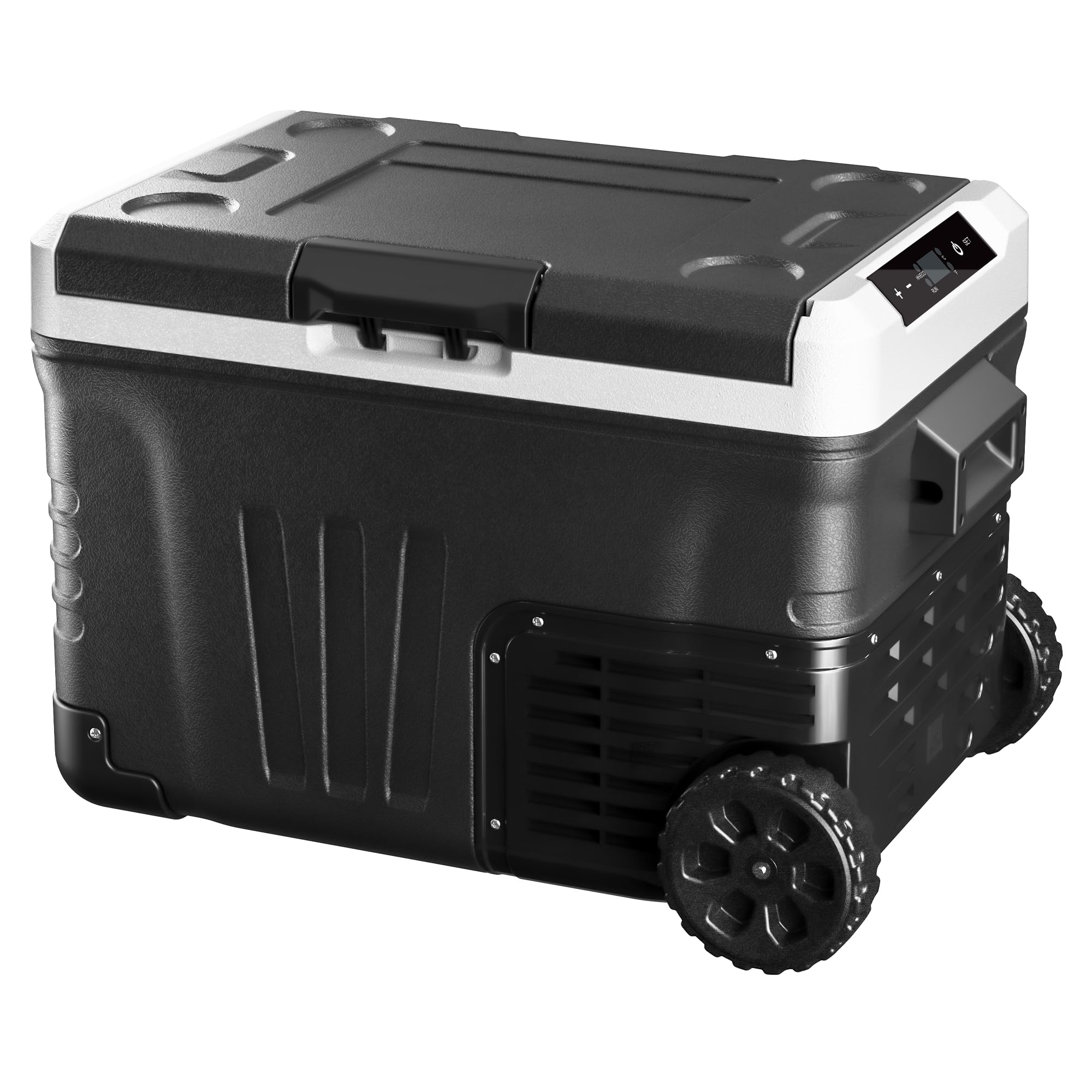

EKOJUCE 35L Portable Fridge/Freezer Instruction Manual

1. Introduction

Thank you for choosing the EKOJUCE 35L Portable Fridge/Freezer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the appliance.
• Do not operate the appliance if it has been damaged.
• Ensure proper ventilation around the unit. Do not block air vents.
• Use only the provided power cords (AC adapter and DC power cord).
• Keep the appliance away from heat sources and direct sunlight.
• Do not immerse the appliance in water or other liquids.
• Unplug the appliance before cleaning or maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

3. What's in the Box

Upon unpacking, please ensure all items are present and undamaged:

• 1 x EKOJUCE 35L Portable Fridge/Freezer
• 1 x AC Adaptor (for home use)
• 1 x DC Power Cord (for vehicle use)
• 1 x Instruction Manual

4. Setup

Before initial use, it is recommended to leave the fridge upright for 24 hours to allow the refrigerant to settle. This is an important prerequisite for good refrigeration effect.

4.1 Power Connection

Your EKOJUCE portable fridge/freezer can be powered by either AC (home) or DC (vehicle) power sources.

• AC Power (Home Use): Connect the AC adaptor to the fridge's power input port, then plug the AC adaptor into a standard 120V wall outlet.
• DC Power (Vehicle Use): Connect the DC power cord to the fridge's power input port, then plug the other end into your vehicle's 12V or 24V cigarette lighter socket.

4.2 Initial Cooling

For optimal performance, pre-cool the fridge/freezer before loading it with items. This can be done by plugging it in at home or in your vehicle and setting the desired temperature.

5. Operating Instructions

5.1 Control Panel Overview

The appliance features an intuitive LED control panel for easy temperature adjustment and monitoring. The panel displays current temperatures for both compartments (if applicable for dual zone models) and the current voltage.

To change the temperature, press the '+' or '-' buttons. To switch between compartments (for dual zone models), press the 'Settings' button. The display will blink, allowing you to adjust the temperature for the selected zone.

5.2 Temperature Settings

The temperature range for the EKOJUCE 35L Portable Fridge/Freezer is -4℉ to 68℉ (-20℃ to 20℃). You can set the temperature to function as either a refrigerator or a freezer.

5.3 Energy Modes

The appliance offers two energy modes:

• Max Mode: Provides rapid cooling to quickly reach the desired temperature. This mode consumes more power.
• Eco Mode: Optimizes power consumption for energy efficiency, resulting in slower cooling but extended battery life.

5.4 Battery Protection

The unit includes a three-level battery protection system (L/M/H) to prevent complete depletion of your car battery. If the voltage drops below the set level, the fridge will automatically cut off power to protect your vehicle's battery.

5.5 App Control

For enhanced convenience, the EKOJUCE portable fridge/freezer can be controlled via a dedicated mobile application. Download the app (details in the included manual) to remotely monitor and adjust settings such as temperature and energy mode from your smartphone or tablet.

6. Key Features

• Durable Construction: The unit features a robust metal container design, built to withstand the rigors of travel and outdoor use.
• Dual Zone Capability: This model offers two separate compartments, allowing you to set different temperatures for refrigeration and freezing simultaneously.
• Reversible Door: The lid can be easily removed and reattached to open from either the left or right side, providing flexibility for placement and access.
• Integrated Handles: Sturdy, built-in handles on each side facilitate easy lifting and transport.
• Cup Holders: The top lid includes integrated cup holders for convenient placement of beverages.
• Tie-Down Points: Designated tie-down points are available to secure the fridge/freezer in your vehicle, preventing movement during transit.
• Low Noise Operation: Engineered for quiet operation, minimizing disturbance during use in vehicles or quiet environments.
• Internal LED Light: An internal LED light illuminates the compartments, making it easy to find items in low-light conditions.
• Drain Plug: A convenient drain plug is located at the bottom of the unit for easy cleaning and removal of melted ice or spills.

7. Maintenance

7.1 Cleaning

• Always unplug the appliance before cleaning.
• Wipe the interior and exterior surfaces with a damp cloth and mild detergent.
• Do not use abrasive cleaners or harsh chemicals.
• Ensure the drain plug is open to remove any water after cleaning.

7.2 Defrosting

The EKOJUCE fridge/freezer features a frost-free defrost system, minimizing ice buildup. However, if significant frost accumulates, manually defrost the unit by unplugging it and allowing the ice to melt naturally. Use the drain plug to remove water.

7.3 Storage

When not in use for extended periods, ensure the unit is clean, dry, and stored in a well-ventilated area. Leave the lid slightly ajar to prevent odors and mildew.

8. Troubleshooting

If you encounter issues with your EKOJUCE portable fridge/freezer, refer to the following common problems and solutions:

• Appliance not turning on: Check power connections (AC or DC), ensure the power outlet is functional, and verify the battery protection level is not too high for the current voltage.
• Not cooling sufficiently: Ensure the lid is properly sealed, check for obstructions in air vents, verify the temperature setting is appropriate, and consider switching to Max mode for faster cooling.
• Unusual noise: A low humming sound is normal during operation. If the noise is excessive or unusual, check for loose components or obstructions around the fan.
• Error codes on display: Consult the detailed troubleshooting section in the included manual for specific error code interpretations and solutions.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact EKOJUCE customer support. If you require assistance, have questions, or need to report an issue, please contact EKOJUCE customer service through the contact information provided in your product packaging or on the official EKOJUCE website.
