RDYMONKEY ZLPOWER LW4000-24V Pure Sine Wave Inverter Charger

1. Introduction

This manual provides essential information for the safe and efficient operation of your RDYMONKEY ZLPOWER LW4000-24V Pure Sine Wave Inverter Charger. Please read all instructions carefully before installation and use. This device converts 24V DC battery power into 120V/240V AC split-phase pure sine wave output, suitable for various off-grid applications.

2. Safety Information

• Always ensure proper grounding of the inverter.
• Do not reverse battery polarity; this will damage the inverter. Connect positive to positive (red) and negative to negative (black).
• Ensure all connections are tight and secure to prevent arcing and overheating.
• Install the inverter in a well-ventilated area, away from flammable materials and moisture.
• Do not open the inverter casing unless you are a qualified technician. There are no user-serviceable parts inside.
• Keep children away from the inverter and its connections.

3. Product Overview

The ZLPOWER LW4000-24V is a robust pure sine wave inverter charger designed for reliable power conversion. It features a 4000W continuous output with a 12000W peak surge capacity, making it suitable for sensitive electronics and heavy-duty appliances.

Figure 3.1: ZLPOWER 4000W Inverter Charger with key features including 4000W AC output, 50Hz/60Hz frequency, and 97% efficiency in ECO mode. The image also shows the AC input/output terminal block.

Key Features:

• Powerful Output: 4000W continuous pure sine wave power, 12000W peak surge for 20 seconds.
• Efficient Charging: 5-step progressive charging with adjustable current (0-100%).
• Versatile Battery Compatibility: Supports 7 types of batteries including LiFePO4, lead-acid, gel, and car batteries.
• Split-Phase Output: Provides 110-120V/220-240V AC split-phase output.
• LCD Display: Real-time monitoring of voltage, load, and battery information.
• Safety Protections: Overload, over-temperature, overcharge, and low battery safeguards.

4. Setup and Installation

Proper installation is crucial for the safe and optimal performance of your inverter. Follow these steps carefully.

4.1 Battery Connection

The inverter operates on a 24V battery system. Ensure you use two 12V batteries connected in series to achieve 24V. Connect the positive (red) cable to the battery's positive terminal and the negative (black) cable to the battery's negative terminal. Be careful not to reverse the polarity, as this will damage the inverter.

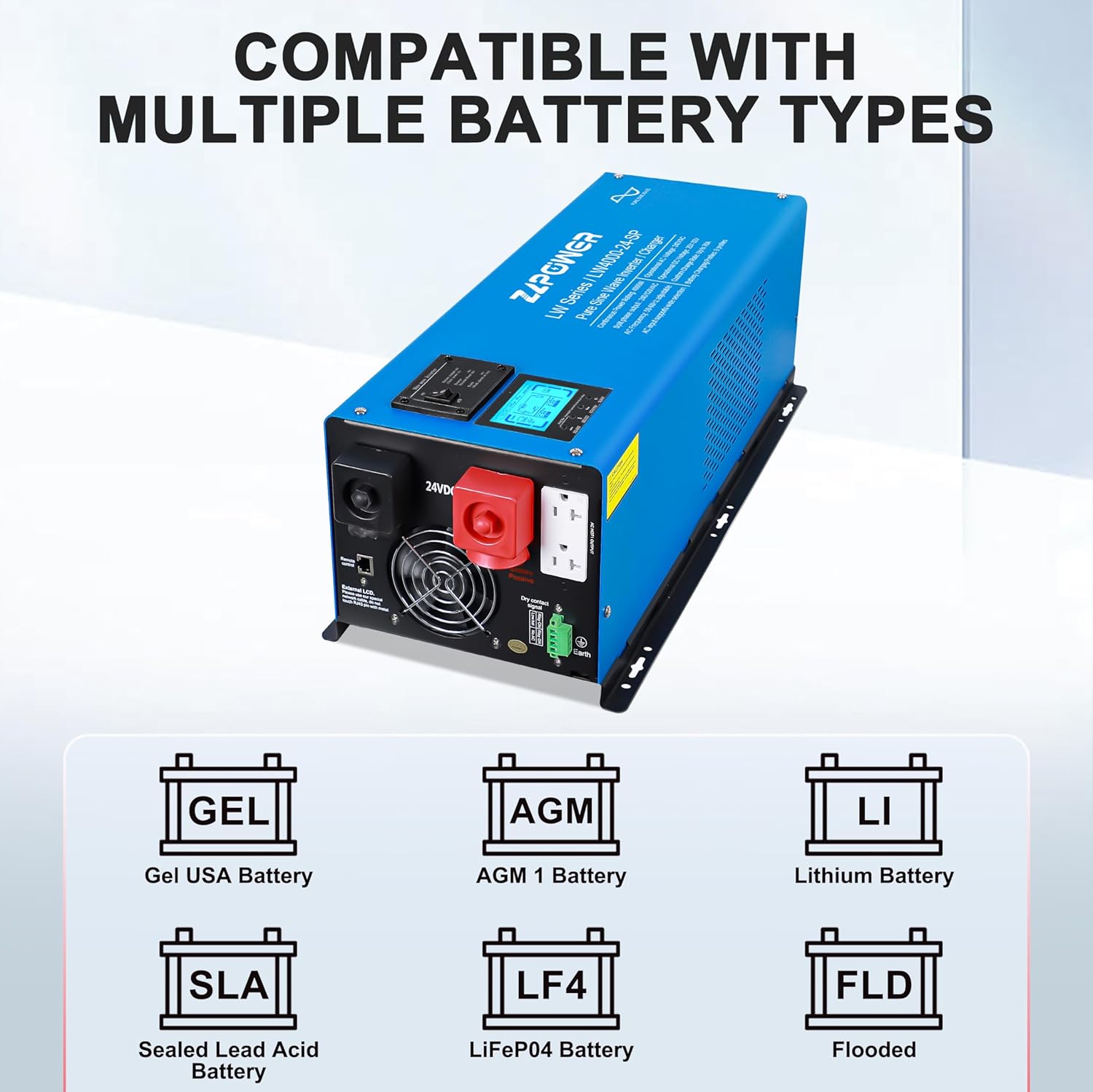

Figure 4.1: The inverter is compatible with various battery types, including Gel, AGM, Lithium, Sealed Lead Acid (SLA), LiFePO4, and Flooded batteries.

4.2 AC Input Connection

The AC input allows the inverter to charge batteries from the grid or a generator and to pass through AC power when available. Use a 3-core AC cable (Live (L), Neutral (N), and Ground (G)). Connect Live to 'AC Input L', Neutral to 'AC Input N', and Ground to the grounding screw.

4.3 AC Output Connection

This is where you connect your home appliances or loads. For demonstration purposes, two load panels are shown: one for 120V AC appliances and another for 240V AC equipment. Connect Live to 'AC Output L', Neutral to 'AC Output N', and Ground to the grounding point.

5. Operating Instructions

Once installed, the inverter is ready for operation. The LCD display provides real-time status information.

5.1 LCD Display

The integrated LCD screen displays critical operational data such as input voltage, output voltage, battery status, load percentage, and frequency. Use the 'SELECT' and 'CONFIRM' buttons to navigate through the menu and adjust settings like charging current and AC/battery priority.

Figure 5.1: The LCD screen provides real-time information on voltage, load, and battery status, with different display modes for battery inverter and AC operation.

5.2 Applications

The ZLPOWER LW4000-24V inverter is suitable for a wide range of applications, including powering household appliances, RVs, boats, and off-grid setups. Its pure sine wave output ensures compatibility with sensitive electronics.

Figure 5.2: The inverter is suitable for RVs, boats, and outdoor camping, providing 4000W AC output (12000W peak) for various appliances.

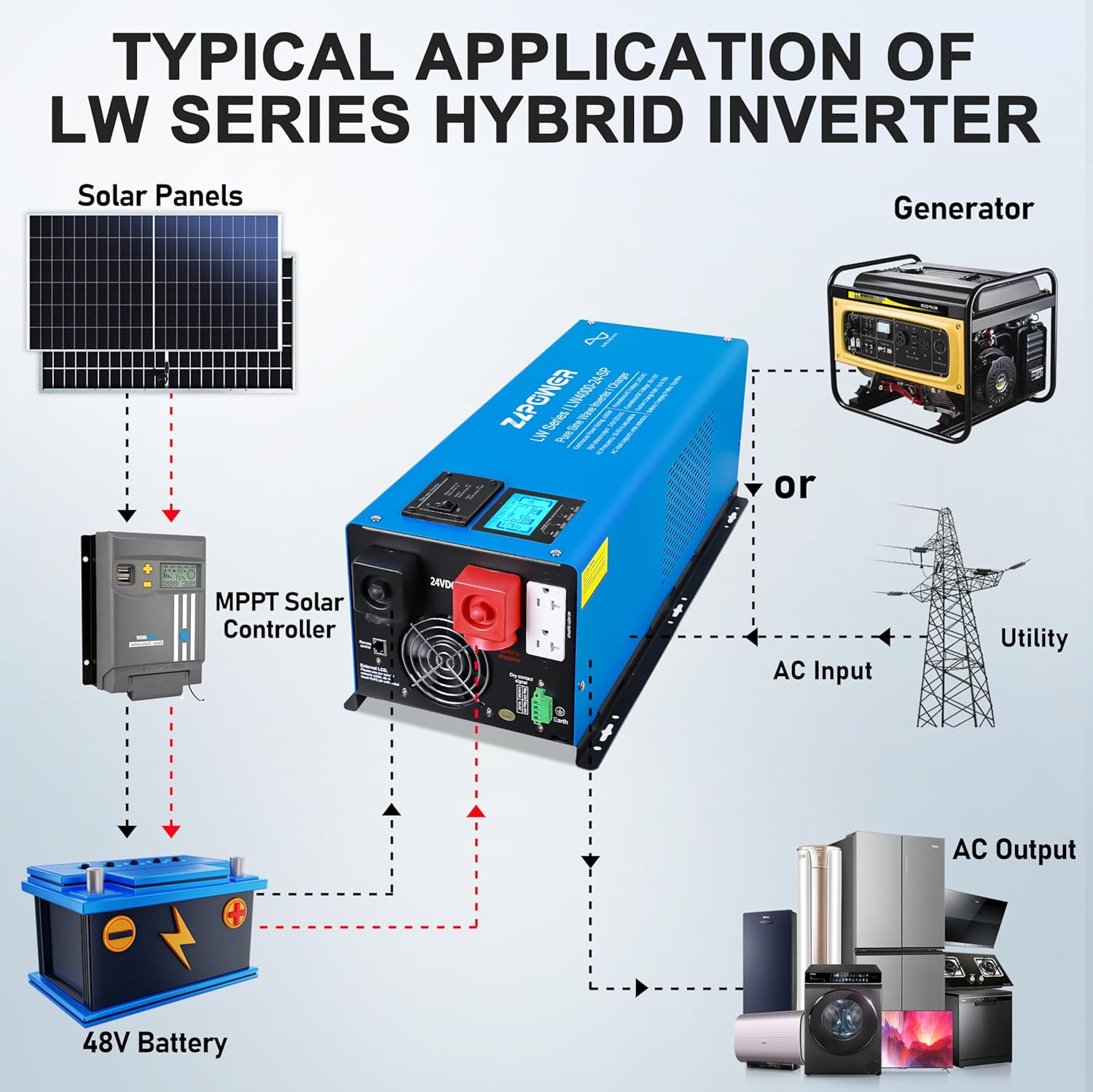

Figure 5.3: Typical application diagram illustrating the connection of solar panels (via MPPT controller), a 48V battery, and AC loads to the hybrid inverter, with options for AC input from utility or generator.

6. Maintenance

To ensure the longevity and optimal performance of your inverter, regular maintenance is recommended:

• Periodically check all electrical connections for tightness and corrosion.
• Keep the inverter's ventilation openings clear of dust and debris to prevent overheating.
• Inspect battery terminals for cleanliness and ensure they are securely fastened.
• Store the inverter in a cool, dry place when not in use for extended periods.

7. Troubleshooting

If you encounter issues with your inverter, refer to the following basic troubleshooting steps:

• No Power Output: Check battery connections, ensure the inverter is turned on, and verify battery voltage is within the operating range.
• Overload Alarm: Reduce the connected load. The inverter's peak power capacity is 12000W for 20 seconds, but continuous load should not exceed 4000W.
• Over-temperature Alarm: Ensure adequate ventilation around the inverter. Clear any obstructions from the cooling fan.
• Low Battery Alarm: Recharge the batteries. The inverter can start and maintain power with depleted batteries, but prolonged low voltage can cause damage.

For persistent issues or complex problems, please contact customer support.

8. Specifications

Figure 8.1: Dimensions of the ZLPOWER 4000W 24V Inverter, showing its length, width, and height, along with included accessories like the remote control and manual.

9. Warranty and Support

The ZLPOWER LW4000-24V Inverter Charger comes with a 2-year manufacturer's warranty. For any quality-related issues, technical support, or assistance with installation and usage, please contact ZLPOWER customer service. They provide free user support and guidance.

Manufacturer: ZLPOWER
