OMOTON Bluetooth Keyboard Instruction Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your OMOTON Bluetooth Keyboard. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.

2. Package Contents

Verify that all items are present in the package:

• 1 x OMOTON Bluetooth Keyboard
• 1 x Type-C Charge Cable
• 1 x User Manual (this document)

3. Product Features

• Multi-System Compatibility: Supports iOS, Windows, and Android operating systems.
• Compact and Portable: Ultra-thin design (6.6mm thickness) and lightweight (0.42 pounds) for easy transport. Dimensions: 9.7"L x 5.9"W x 0.2"H.
• Enhanced Typing Experience: Features large keycaps for comfortable and precise typing.
• Rechargeable Battery: Built-in 500mAh lithium battery provides up to 200 hours of working time on a 2-3 hour charge.
• 7-Color Backlight: Adjustable backlight with 7 color options and 3 brightness levels for typing in various lighting conditions.
• Automatic Sleep Mode: Conserves battery by entering sleep mode after 30 minutes of inactivity.

4. Setup Instructions

4.1 Charging the Keyboard

Before initial use, fully charge the keyboard. Connect the provided Type-C charge cable to the keyboard's charging port and to a USB power source. The charge indicator light will illuminate during charging and turn off when fully charged.

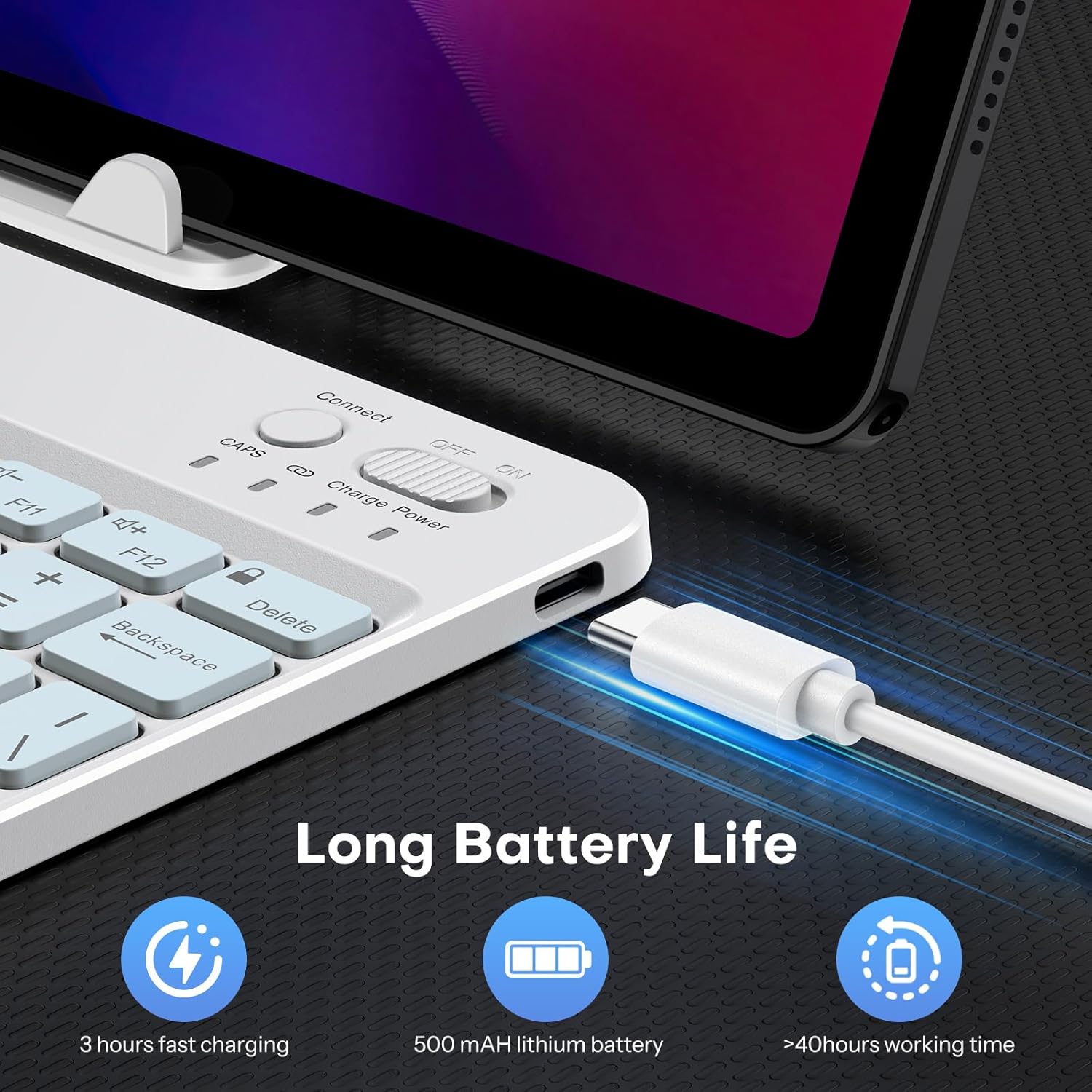

Image: Close-up of the keyboard showing the Type-C charging port and cable connected. The image highlights the charging process and the port location.

4.2 Bluetooth Pairing

1. Turn on the keyboard by sliding the power switch to the 'ON' position. The power indicator light will briefly illuminate.
2. Press the 'Connect' button (usually located near the power switch) to enter pairing mode. The Bluetooth indicator light will flash, indicating it is ready to pair.
3. On your device (tablet, phone, computer), enable Bluetooth and search for available devices.
4. Select 'OMOTON Keyboard' (or similar name) from the list of found devices.
5. If prompted, enter the pairing code displayed on your device using the OMOTON keyboard and press Enter.
6. Once paired, the Bluetooth indicator light on the keyboard will stop flashing and remain solid for a few seconds, then turn off. The keyboard is now connected.

Image: An overhead view of the OMOTON Bluetooth Keyboard, highlighting the power switch and the 'Connect' button, which are essential for initiating Bluetooth pairing.

4.3 Switching Operating Systems

The keyboard is compatible with multiple operating systems. It is crucial to switch to the correct system mode for optimal functionality. Press the following key combinations:

• FN + A: For iOS / iPadOS / macOS devices
• FN + S: For Windows devices
• FN + D: For Android devices

Image: A visual guide on the keyboard showing the FN key combined with A, S, or D keys to switch between iOS, Windows, and Android operating system modes.

5. Operating Instructions

5.1 Backlight Control

The keyboard features a 7-color adjustable backlight with 3 brightness levels.

• To turn the backlight on/off or adjust brightness, press the Fn key simultaneously with the lightbulb icon key (usually located near the right Ctrl key). Repeated presses will cycle through brightness levels or turn off the backlight.
• To change backlight colors, press the Fn key simultaneously with the color palette icon key (usually located next to the lightbulb icon key). Repeated presses will cycle through the 7 available colors.

Image: The OMOTON Bluetooth Keyboard displaying various backlight colors, illustrating the 7-color and 3-brightness level adjustment feature.

5.2 Automatic Sleep Mode

To conserve battery life, the keyboard will automatically enter sleep mode after 30 minutes of inactivity. To wake the keyboard, press any key. There may be a slight delay as the keyboard reconnects to your device.

5.3 Function Keys

The top row of keys (F1-F12) can be used as standard function keys or as multimedia/shortcut keys. To access the secondary function (e.g., volume control, media playback), press the Fn key simultaneously with the desired function key.

6. Maintenance

To ensure the longevity and optimal performance of your OMOTON Bluetooth Keyboard, follow these maintenance guidelines:

• Cleaning: Use a soft, dry, lint-free cloth to clean the keyboard surface. For stubborn dirt, slightly dampen the cloth with water or a mild cleaning solution. Avoid excessive moisture.
• Storage: When not in use, store the keyboard in a cool, dry place away from direct sunlight and extreme temperatures.
• Avoid Liquids: Do not expose the keyboard to liquids. Spills can cause permanent damage.
• Handle with Care: Avoid dropping the keyboard or subjecting it to strong impacts, as this can damage internal components.

7. Troubleshooting

7.1 Keyboard Keys Not Working or Responding

1. Confirm Device's Operating System: Ensure you have selected the correct operating system mode on the keyboard. Press FN+A for iOS, FN+S for Windows, or FN+D for Android.
2. Check Bluetooth Connection: Verify that the keyboard is properly paired and connected to your device. If not, re-initiate the pairing process (Section 4.2).
3. Battery Level: Ensure the keyboard has sufficient battery charge. Recharge if necessary.
4. Restart Devices: Try turning off and on both the keyboard and your device, then attempt to reconnect.

Image: A troubleshooting graphic explaining how to fix issues with keyboard keys not working, emphasizing confirming the device's operating system and switching modes.

7.2 Bluetooth Connection Issues

• Distance: Ensure the keyboard is within the effective range of your device's Bluetooth signal (typically up to 10 meters).
• Interference: Move away from other wireless devices that might cause interference.
• Forget Device: On your device, 'forget' or 'remove' the keyboard from your Bluetooth device list, then attempt to pair again.

8. Specifications

Image: A visual comparison of the OMOTON Bluetooth Keyboard's dimensions against a smartphone and a tablet, illustrating its compact and portable size.

9. Warranty Information

The OMOTON Bluetooth Keyboard comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or external factors.

Please retain your proof of purchase for warranty claims.

10. Customer Support

If you encounter any issues or have questions regarding your OMOTON Bluetooth Keyboard that are not addressed in this manual, please contact OMOTON customer support through the retailer's platform or the official OMOTON website. Our support team is available to assist you.

For more information, visit the OMOTON Store on Amazon.
