1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your ELEMARA Licensed Lamborghini QLS-8603 12V Ride-On Car. Please read all instructions carefully before use and retain this manual for future reference.
Image: The ELEMARA Licensed Lamborghini QLS-8603 12V Ride-On Car in hot pink, showcasing its open scissor doors and sleek design.
2. Safety Information
- CHOKING HAZARD: This product contains small parts. Not suitable for children under 37 months. Keep children away during assembly.
- Always supervise children during operation.
- Ensure the seatbelt is securely fastened before each use.
- Do not operate near stairs, steep inclines, public roads, or swimming pools.
- Only use the provided charger and battery.
- Regularly inspect the vehicle for damage or loose parts.
3. What's in the Box
Upon opening the package, verify that all components are present:
- Ride On Car Body (1)
- Remote Control (1)
- Instruction Manual (1)
- Wheels (4)
- Wheel Covers (4)
- Steering Wheel (1)
- Windshield (1)
- Rear View Mirrors (2)
- Seat with Seatbelt (1)
- Charger (1)
Image: All parts of the ride-on car, including the main body, wheels, steering wheel, seat, and remote control, are laid out on the floor before assembly.
4. Assembly Instructions
Follow these steps to assemble your ride-on car. Refer to the assembly video for visual guidance.
4.1. Watch the Assembly Video

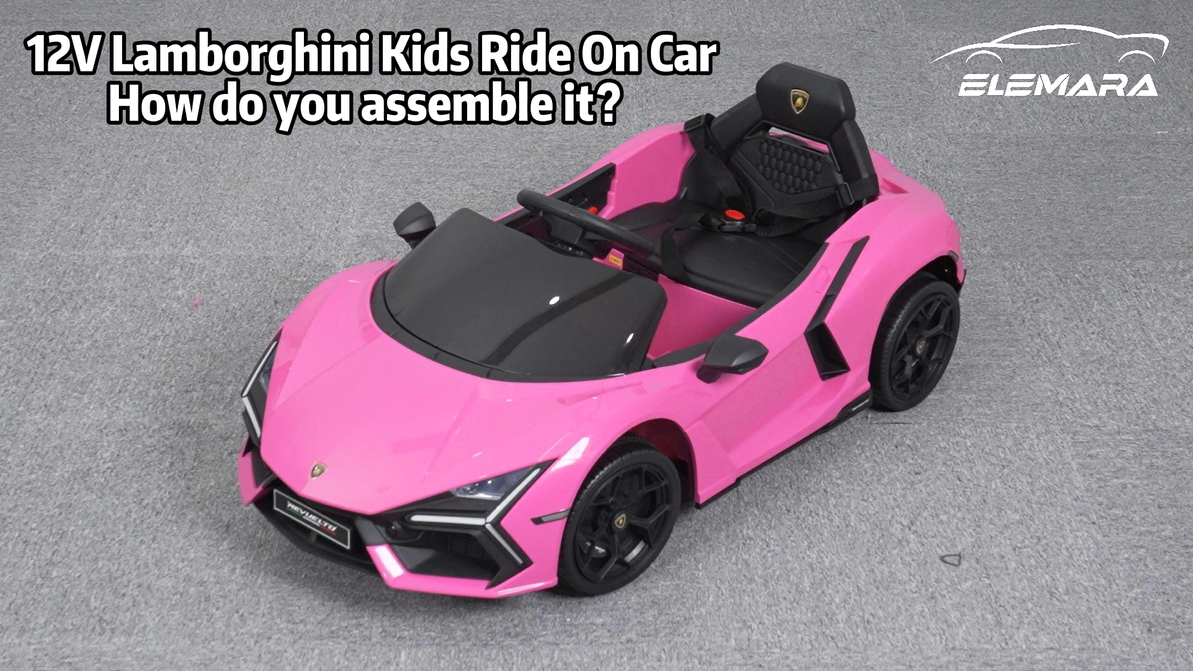

Video: A detailed guide on how to assemble the ELEMARA 12V Lamborghini ride-on car, showing each step from unboxing to final setup.
4.2. Step-by-Step Assembly
- Install the Front Wheels:
- Remove the nut and a gasket from the front axle.
- Install the wheel, gasket, and nut onto the front axle in turn.
- Tighten the nut with a wrench.
- Install the wheel cover on the wheel.
- Repeat for the other front wheel.
- Install the Rear Wheels:
- Remove the nut, gasket, and cardboard tube from the rear axle.
- Install the wheel, gasket, and nut onto the rear axle in turn.
- Tighten the nuts with two wrenches in opposite directions at the same time.
- Install the wheel cover on the wheel.
- Repeat for the other rear wheel.
- Install the Steering Wheel:
- Connect the steering wheel cable to the instrument panel.
- Plug the cable into the cable hole.
- Align the steering wheel with the connector and push it into place.
- Install the Windshield:
- Align the windshield to the body position.
- Fix the clip to the hole position.
- Install the Rear View Mirrors:
- Distinguish the left mirror from the right one.
- Insert the mirrors into the hole site on the door.
- Connect Battery and Install Seat:
- Connect the power cord to the battery.
- Align the seat to the position on the body.
- Lock the seat with screws.
5. Operating Instructions
Your ELEMARA Lamborghini ride-on car offers dual driving modes: manual control by the child or remote control by an adult.
5.1. Manual Control
- To move forward, press the 'D' button on the control panel and then press the foot pedal.
- To reverse, press the 'R' button on the control panel and then press the foot pedal.
- Use the steering wheel to control direction.
- Adjust speed using the high/low speed buttons on the control panel.
Image: The ride-on car can be operated manually by the child or via remote control by an adult.
5.2. Remote Control Operation
- The remote control allows parents to steer, move forward/backward, and stop the vehicle for safety.
- Use the directional arrows on the remote to control movement.
- The remote has buttons for forward, reverse, left turn, and right turn.
Video: A demonstration of the ELEMARA Licensed Lamborghini Ride-On Car's features, including remote control functionality and LED lights.
5.3. Multimedia Features
- The car features a multifunctional control panel with music playback.
- Connect via Bluetooth or USB to play your own music.
- LED headlights and taillights enhance the driving experience.
Image: The ride-on car features Bluetooth music mode, allowing children to enjoy their favorite tunes while driving.
6. Maintenance
- Charging: The charging time is approximately 8 to 12 hours. Do not overcharge.
- Battery Depletion: If the car's battery is depleted, it can be effortlessly pulled home using the built-in small wheels located at the rear.
- Cleaning: Wipe the car with a damp cloth. Avoid using harsh chemicals.
- Storage: Store the car in a dry, cool place away from direct sunlight when not in use.
Image: The ride-on car includes a battery depletion warning system and built-in wheels for easy towing when power is low.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Car does not move. | Battery is low or disconnected. | Charge the battery for 8-12 hours. Ensure battery cables are securely connected. |
| Remote control not working. | Remote batteries are dead or not paired. | Replace remote batteries. Refer to the full manual for pairing instructions. |
| Car moves slowly. | Low battery or operating on an uneven surface. | Charge the battery. Operate on flat, smooth surfaces. |
| Lights not working. | Loose connection or switch is off. | Check all light connections. Ensure light switch is in the 'on' position. |
8. Specifications
- Model Number: QLS-8603
- Product Dimensions: 41.3 x 23.6 x 15.7 inches
- Item Weight: 25 pounds
- Battery: 12V (included)
- Motors: Two 35W motors
- Speed: 1.9 to 3.1 mph
- Charging Time: 8 to 12 hours
- Recommended Age: 3 - 8 years
- Seat Dimensions: 11.6"D x 7.1"W
Image: Key performance specifications of the Licensed Lamborghini Ride-On Car, including motor power, speed, charging time, and usage duration.
Image: The ride-on car's dimensions and recommended age range, demonstrating its suitable size for young children.
9. Warranty and Support
For warranty information, product support, or to inquire about replacement parts, please contact ELEMARA customer service. Refer to your purchase documentation for specific warranty terms and contact details.
You can find more information and contact details on the official ELEMARA store page: ELEMARA Store.
Image: Various replaceable parts for the ride-on car, indicating availability for maintenance and repairs.
