1. Introduction
The NOYAFA NF-5101 is a versatile 5-in-1 wall scanner designed for accurate detection of various materials hidden behind walls, ceilings, and floors. This device assists in locating wood studs, magnetic and non-magnetic metals, and live AC wires, making it an essential tool for renovation, installation, and general home improvement projects. This manual provides detailed instructions for the proper setup, operation, and maintenance of your NF-5101 wall scanner.
Image 1.1: The NOYAFA NF-5101 Stud Finder Wall Scanner, featuring a red and black design with an LCD screen.
2. Product Features
- Multi-Wall Detection: Accurately detects magnetic metal up to 3.94 inches (100mm), non-magnetic metal up to 3.15 inches (80mm), wood up to 1.18 inches (30mm), and live AC wires up to 1.97 inches (50mm).
- HD LCD Display & Audio Alarm: Features a 3.14-inch backlit screen displaying real-time signal strength and detection status with color indicators (yellow/green/red). An audible alarm sounds upon target detection.
- Easy Operation: Simple interface with clear signal and center positioning icons for user-friendly operation.
- Automatic Calibration: Self-calibrates upon power-on, indicated by an audible 'drip' prompt, allowing for quick and accurate scanning.
- IP54 Waterproof: Provides protection against dust and splashing water.
- Wide Applications: Suitable for locating hidden elements in drywall, wood floors, acoustical ceilings, painted walls, and wallpaper for various home improvement tasks.
Image 2.1: Illustration highlighting the NF-5101's accurate and fast detection capabilities, featuring its 3.14-inch LED screen, automatic calibration, and audible alarm.

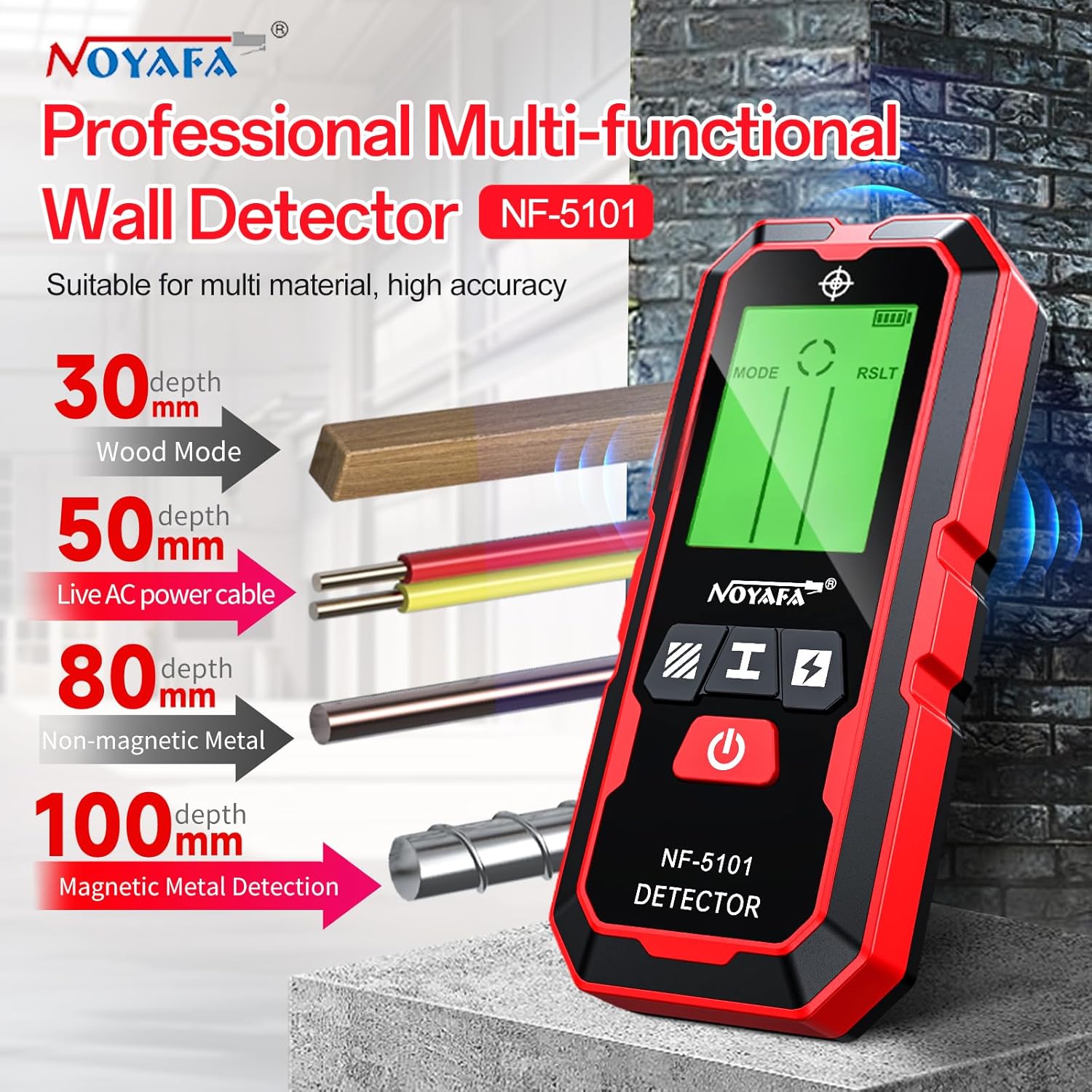

Image 2.2: Visual representation of the NF-5101's three detection modes and their respective maximum depths for wood, live AC power cables, magnetic metal, and non-magnetic metal.
3. Package Contents
Verify that all items are present in the package:
- NF-5101 Stud Detector (1 unit)
- Color Packaging Box (1 unit)
- Certificate of Conformity (1 unit)
- User Manual (1 unit)
- 9V Alkaline Battery (1 unit)
Image 3.1: Depiction of the NF-5101 detector and its included accessories: a 9V battery, QC card, packaging box, and user manual.
4. Safety Information
Please read and understand all safety instructions before operating the device. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always exercise caution when drilling, cutting, or nailing into walls, ceilings, or floors that may contain electrical wiring or plumbing.
- Do not rely solely on the detector to locate items behind surfaces. Use other available information, such as building plans, to help avoid hazards.
- Before working near detected live wires, always turn off the power to the circuit at the main breaker or fuse box.
- Keep the device dry and clean. Do not expose it to moisture or extreme temperatures.
- Do not attempt to open, modify, or repair the device. Refer all servicing to qualified personnel.
- Dispose of used batteries responsibly according to local regulations.

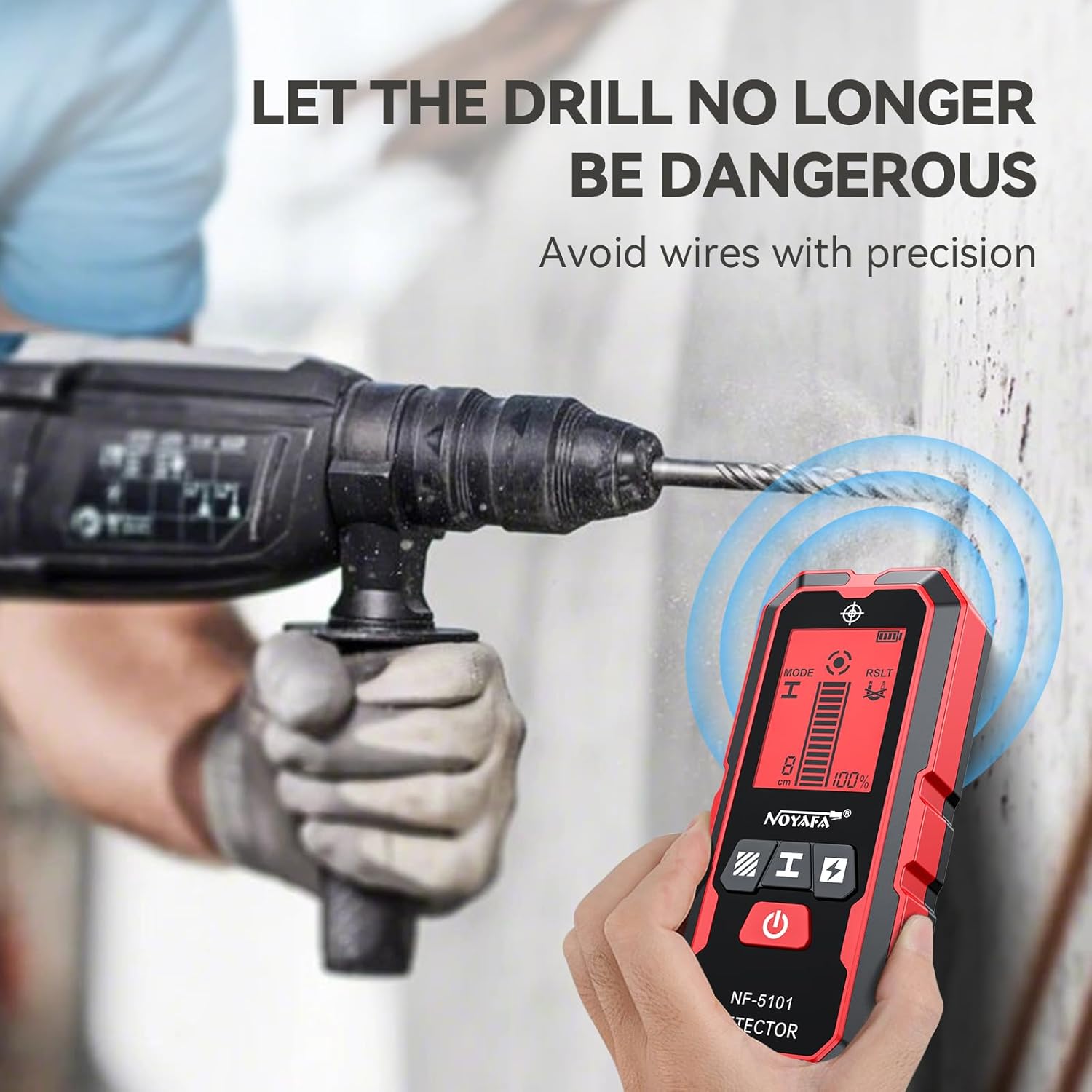

Image 4.1: The NF-5101 detector being used to identify hidden wires before drilling, emphasizing the importance of precision and safety.
5. Setup
5.1 Battery Installation
- Locate the battery compartment cover on the back of the device.
- Slide the cover open.
- Insert the included 9V alkaline battery, ensuring correct polarity (+/-).
- Close the battery compartment cover securely.
5.2 Automatic Calibration
The NF-5101 features an automatic calibration function. Upon powering on, the device will self-calibrate. A 'drip' sound prompt indicates that calibration is complete and the device is ready for use. For optimal results, ensure the device is held against the wall surface where scanning will begin, away from known studs or metal objects, during calibration.
Image 5.1: Front and back views of the NF-5101, showing its dimensions and the location of the battery compartment on the rear.
6. Operating Instructions
6.1 Mode Selection
The NF-5101 offers three distinct detection modes, selectable via the buttons on the device:
- Wood Detection Mode: For locating wood studs up to 1.18 inches (30mm) deep.
- Metal Detection Mode: For detecting magnetic metal up to 3.94 inches (100mm) and non-magnetic metal up to 3.15 inches (80mm) deep.
- AC Live Wire Detection Mode: For identifying live AC wires up to 1.97 inches (50mm) deep.
Image 6.1: The NF-5101 displaying its three detection modes: Wooden Detection, Cable Detection (AC Live Wire), and Metal Detection, along with their respective depth capabilities.
Image 6.2: An illustration demonstrating the NF-5101's ability to detect wood, live AC power cables, non-magnetic metal, and magnetic metal at different depths within a wall.
6.2 Scanning Procedure
- Press the power button to turn on the device. It will automatically calibrate.
- Select the appropriate detection mode (wood, metal, or AC live wire) using the mode selection buttons.
- Place the scanner flat against the wall surface. Ensure the sensor area on the back of the device is in full contact with the surface.
- Slowly slide the device horizontally across the surface. Maintain constant contact and pressure.
- Observe the LCD display and listen for audio alerts. The signal strength indicator will increase as the device approaches a target.
- When the device detects a target, the screen color will change, and an audible alarm will sound. A center positioning icon will appear on the screen when the center of the target is located.
- Mark the location of the detected object. For greater accuracy, scan the area from both directions and mark the edges, then determine the center point.
Image 6.3: A visual guide demonstrating how to scan a wall to locate a stud, showing the scanner moving from the left of a stud to its center, indicated by the display and audio alerts.
7. Understanding the Display and Audio Alerts
The NF-5101's HD LCD display provides visual feedback, complemented by audio alerts, to indicate detection status:
- Yellow Screen: Indicates the device is in calibration mode.
- Green Screen: Indicates calibration is complete and the device is ready for scanning, or no target is currently detected.
- Red Screen: Indicates a target has been detected.
- Signal Strength Indicator: Bars on the screen show the proximity and strength of the detected object. More bars indicate closer proximity.
- Center Positioning Icon: An icon appears on the screen when the device is directly over the center of a detected object.
- Audible Alarm: A 'beeping' sound will activate when a target is detected, becoming more frequent as the device approaches the center of the object.
Image 7.1: The NF-5101's display showing different color indications (yellow for calibration, green for calibration complete, red for target detected) and signal strength.
Image 7.2: The NF-5101 display indicating a 100% full signal when a subject is detected, with corresponding color changes for different stages of detection and calibration.
8. Applications
The NOYAFA NF-5101 wall scanner is suitable for a variety of tasks, including but not limited to:
- Housing decoration or modification projects.
- Installation of home appliances and wall decorations.
- Construction site inspections.
- Electrical maintenance and troubleshooting.
- Locating studs for hanging pictures, shelves, or mounting TVs.
- Identifying pipes or conduits before drilling.
Image 8.1: Various application scenarios for the NF-5101, including housing decoration, home appliance installation, and bridge maintenance.
Image 8.2: A collage of usage scenarios for the NF-5101, demonstrating its utility in housing decoration, home appliance installation, construction sites, wall decoration, and electrician maintenance.
9. Maintenance
- Cleaning: Wipe the device with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, remove the battery to prevent leakage.
- Battery Replacement: Replace the 9V battery when the low battery indicator appears on the display to ensure accurate readings.
10. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Inconsistent or inaccurate readings | Improper calibration; conductive wall coverings or high humidity; presence of magnetic fields or metal building materials; device not flat against surface. | Ensure proper automatic calibration away from known objects. Ensure wall surfaces are dry and non-metallic. Avoid scanning near strong magnetic fields. Maintain constant, flat contact with the wall. |
| No detection or weak signal | Low battery; incorrect mode selected; object too deep for selected mode. | Check battery level and replace if necessary. Verify the correct detection mode is selected for the target material. Note the maximum detection depths for each mode. |
| Device not powering on | Dead or improperly installed battery. | Check battery installation. Replace with a new 9V alkaline battery. |
11. Specifications
| Feature | Detail |
|---|---|
| Model Number | NF-5101 |
| Detection Depth (Magnetic Metal) | 3.94 inches (100mm) |
| Detection Depth (Non-magnetic Metal) | 3.15 inches (80mm) |
| Detection Depth (Wood) | 1.18 inches (30mm) |
| Detection Depth (Live AC Wire) | 1.97 inches (50mm) |
| Display | HD LCD with Backlight (3.14-inch) |
| Power Source | Battery Powered (9V Alkaline) |
| IP Rating | IP54 Waterproof |
| Item Weight | 8.4 ounces |
| Package Dimensions | 8.15 x 4.61 x 1.54 inches |
| Operating Temperature | -10°C to 45°C |
12. Warranty and Support
For warranty information and technical support, please refer to the documentation included with your product or contact NOYAFA customer service through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
