GUTSTARK Commercial 2-Level Electric Pizza Oven

Introduction

Thank you for choosing the GUTSTARK Commercial 2-Level Electric Pizza Oven. This industrial-grade oven is designed for precise and efficient cooking, perfect for artisanal pizzas, bread, pastries, and other baked goods. Featuring a robust stainless steel construction, dual thermostats, and independent controls for upper and lower heating elements, it ensures consistent and uniform results. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to help you get the most out of your new oven.

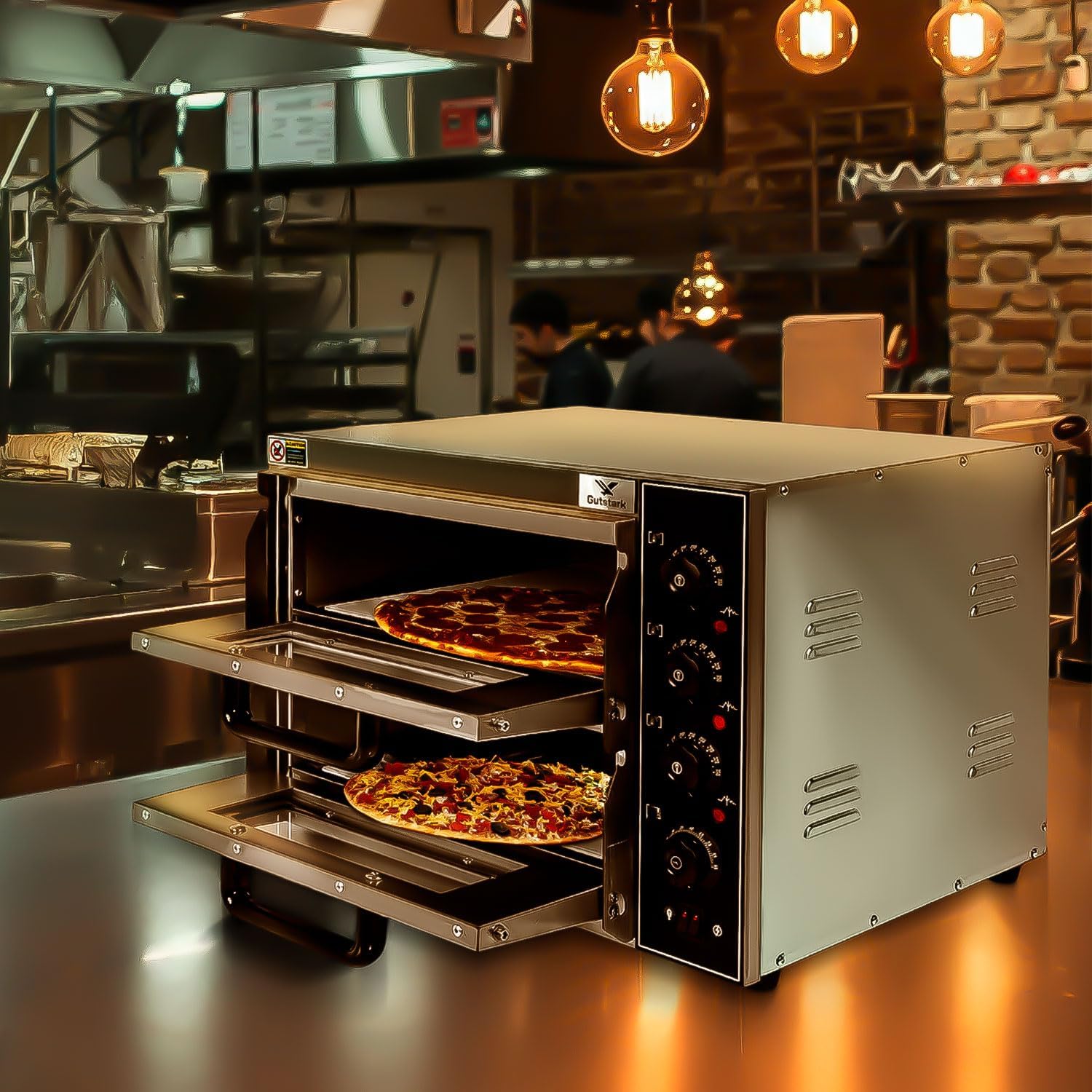

Image: The GUTSTARK 2-Level Electric Pizza Oven in a commercial kitchen setting, showcasing two pizzas baking simultaneously on its ceramic trays.

Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:

• Read all instructions before using the appliance.
• Ensure the power supply matches the oven's requirements (220 V~ / 50 Hz). Use a properly grounded 3-prong outlet.
• Do not touch hot surfaces. Always use oven mitts or gloves when handling hot items or parts.
• To protect against electrical hazards, do not immerse the cord, plugs, or the appliance body in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always ensure adequate ventilation around the oven during operation.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.

Package Contents

Your GUTSTARK Electric Pizza Oven package includes:

• 1 x GUTSTARK Electric Oven
• 2 x Ceramic Trays (40 x 40 x 1 cm each)
• 2 x Handles
• 4 x Stabilizing Feet

Specifications

Setup

1. Unpacking and Inspection

Carefully remove all packaging materials. Inspect the oven for any signs of damage during transit. Keep packaging for future transport or returns if necessary.

2. Attaching Stabilizing Feet

Attach the four stabilizing feet to the bottom of the oven. Ensure they are securely fastened to provide a stable base for the appliance.

3. Placement

Place the oven on a flat, stable, and heat-resistant countertop or surface. Ensure there is adequate clearance (at least 10-15 cm) on all sides and above the oven for proper ventilation. Do not place the oven near flammable materials or against a wall that is not heat-resistant.

Image: A diagram illustrating the external dimensions of the pizza oven (58.5 cm width, 48 cm depth, 45.5 cm height) to aid in proper placement.

4. Inserting Ceramic Trays

Slide the two ceramic trays into their respective levels inside the oven. Ensure they are seated correctly on the support rails.

Image: The pizza oven with both doors open, revealing the two empty cooking levels and the ceramic trays ready to be inserted or removed.

5. Power Connection

Plug the 3-way power cord into a dedicated 220 V~ / 50 Hz grounded electrical outlet. Do not use extension cords or adapters unless absolutely necessary and rated for the oven's power requirements.

Operating Instructions

1. Controls Overview

Image: A close-up of the oven's front panel, highlighting the dual temperature control knobs and power/light switches.

The oven features independent temperature control knobs for the upper and lower heating elements, allowing precise heat management for different cooking needs. It also includes timers and indicator lights.

• Temperature Knobs: Two independent knobs control the temperature for the upper and lower heating elements, ranging from 50°C to 350°C.
• Timers: Two independent timers allow you to set precise cooking durations for each level.
• Power Switch: Turns the oven on/off.
• Light Switch: Controls the internal light for visibility.
• Indicator Lights: Illuminate when heating elements are active.

2. Preheating the Oven

1. Ensure the ceramic trays are inside the oven.
2. Turn on the main power switch.
3. Set both the upper and lower temperature knobs to your desired cooking temperature, typically 300-350°C for pizzas.
4. Allow the oven to preheat for approximately 15-20 minutes until the desired temperature is reached. The indicator lights will cycle on and off as the oven maintains temperature.

3. Cooking Your Food

1. Once preheated, carefully open the oven door using the handle.
2. Place your pizza or other food item directly onto the hot ceramic tray using a pizza peel or appropriate utensil.
3. Close the oven door immediately to retain heat. The tempered glass window allows you to monitor cooking progress without opening the door.
4. Set the timer for the recommended cooking duration. For pizzas, this is typically 90-120 seconds, but may vary based on dough thickness and toppings.
5. For even cooking, it is recommended to rotate the pizza 2-3 times during the baking process.
6. When cooking is complete, carefully remove the food using a pizza peel or heat-resistant utensils.

4. Adjusting Temperature and Timers

The independent temperature and timer controls allow for versatile cooking. For example, you can set a higher temperature for the upper element to brown toppings while maintaining a slightly lower temperature for the bottom to ensure a crispy crust without burning.

Maintenance and Cleaning

Regular cleaning and maintenance will prolong the life of your GUTSTARK pizza oven.

• Always unplug the oven from the power outlet and allow it to cool completely before cleaning.
• Exterior Cleaning: Wipe the stainless steel exterior with a soft, damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads, as they can scratch the surface.
• Interior Cleaning: Remove the ceramic trays. Use a soft brush or damp cloth to wipe away crumbs and food residue from the interior. For stubborn stains, a non-abrasive oven cleaner designed for commercial ovens can be used, following the product's instructions carefully. Ensure all cleaner residue is removed before next use.
• Ceramic Trays: Allow the ceramic trays to cool completely. Scrape off any baked-on food residue with a plastic scraper. For deeper cleaning, wash with warm soapy water and a soft sponge. Rinse thoroughly and allow to air dry completely before placing back in the oven. Avoid sudden temperature changes to prevent cracking.
• Glass Doors: Clean the tempered glass doors with a glass cleaner or a damp cloth.

Troubleshooting

If you encounter issues with your oven, refer to the following common problems and solutions:

• Oven does not turn on: Check if the power cord is securely plugged into a working outlet. Verify the main power switch is in the 'ON' position. Check your circuit breaker.
• Oven is not heating: Ensure temperature knobs are set to a desired temperature. Check if indicator lights are on. If not, there might be an issue with the heating elements or thermostat.
• Uneven cooking: Ensure the oven is properly preheated. Rotate food during cooking for more even results. Verify that the upper and lower temperature settings are appropriate for your food.
• Excessive smoke: This can be caused by food spills or residue inside the oven. Clean the interior thoroughly. If smoke persists, discontinue use and contact support.

If the problem persists after attempting these solutions, please contact GUTSTARK customer support for assistance.

Warranty and Support

Your GUTSTARK Commercial 2-Level Electric Pizza Oven comes with a manufacturer's warranty. Please refer to the warranty card included in your original packaging for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact GUTSTARK customer service through the contact information provided on your warranty card or the official GUTSTARK website.
