Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your BYSAUD Floating King Size Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Important Safety Information
- Always unplug the power strip before assembly or cleaning.
- Do not exceed the weight limit of the floating king bed frame.
- Always follow the instructions provided for safe and proper use.

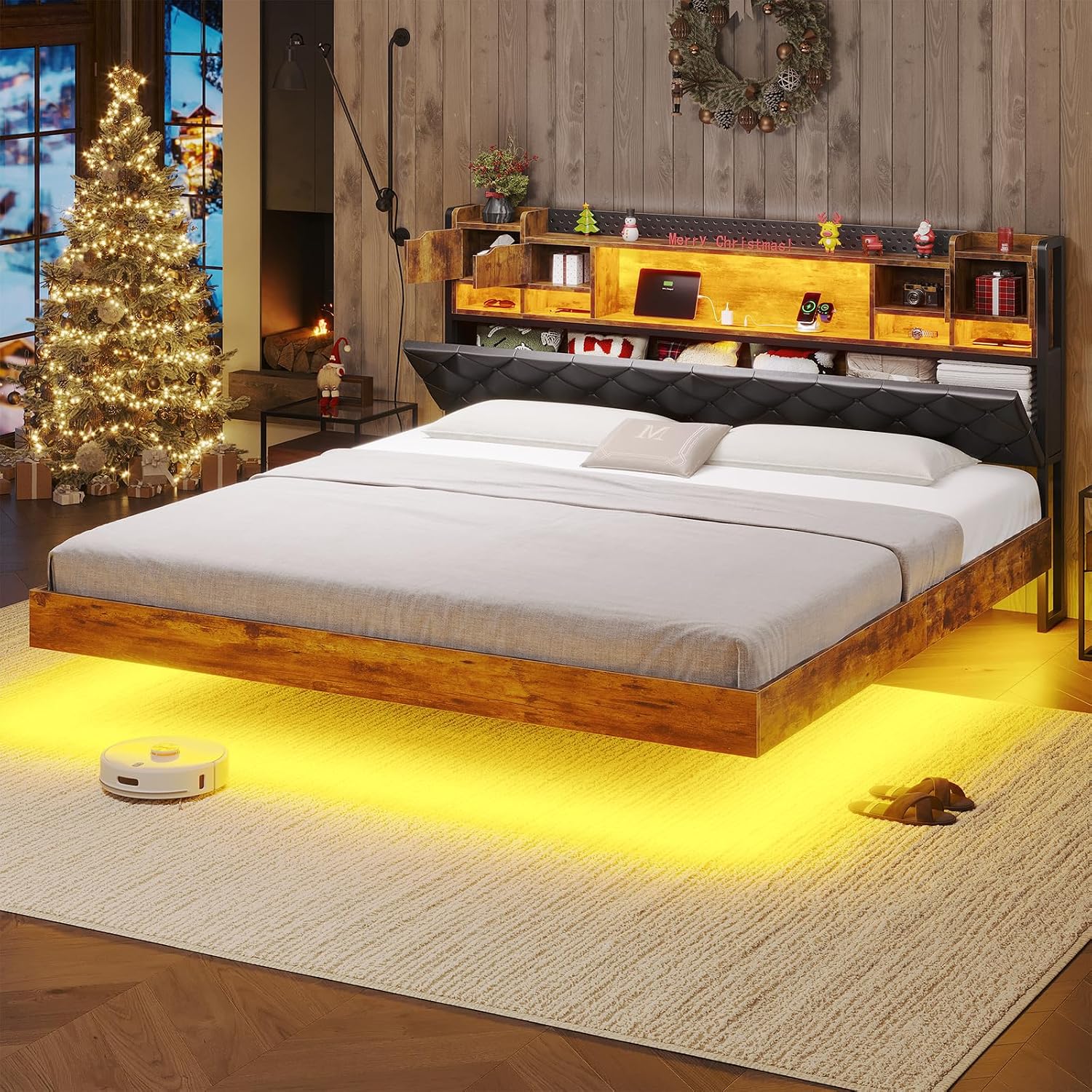

Image: The BYSAUD Floating King Size Bed Frame, showcasing its unique design with under-bed LED lighting and a functional storage headboard.
Product Features
Modern Floating Design
The bed frame features a unique floating appearance, creating an ethereal and modern aesthetic in your bedroom. This design integrates fine frame lines and quality materials for both style and practicality.
Image: Visual comparison illustrating the thoughtful hidden leg design that creates the floating effect, preventing accidental toe stubbing.
Integrated Storage Headboard
The headboard includes three open shelves for easy access to frequently used items, one large hidden compartment for private belongings, and four smaller storage doors to expand storage capacity. This design promotes an organized sleeping environment.
Image: A detailed view of the headboard's storage capabilities, including open shelves and a hidden compartment for discreet storage.
LED Lighting System
Equipped with LED lights in the headboard for ambient lighting and under the bed for nighttime navigation. The lighting system offers unique light and shadow effects, enhancing the floating design. Control options include an app and a remote, providing access to over 60,000 colors, dynamic modes, music synchronization, and timing functions.
Image: The bed frame illuminated by its RGB LED lights, demonstrating the various control methods and color options available.
Integrated Charging Station
The headboard features a convenient charging station with two standard 125V/12A AC outlets, one 5V/2.1A USB port, and one 5V/2.1A Type-C port. This allows for easy charging of various electronic devices directly from your bedside.
Image: A close-up of the integrated charging station, highlighting the AC, USB, and Type-C ports for convenient device charging.
Durable Construction and Materials
The bed frame combines a black PU leather backrest with high-density sponge filling for comfort and easy cleaning, alongside brown wooden boards that display natural wood grains. The sturdy design includes double beams and triangular engineering for stability, supporting up to 1200 pounds.

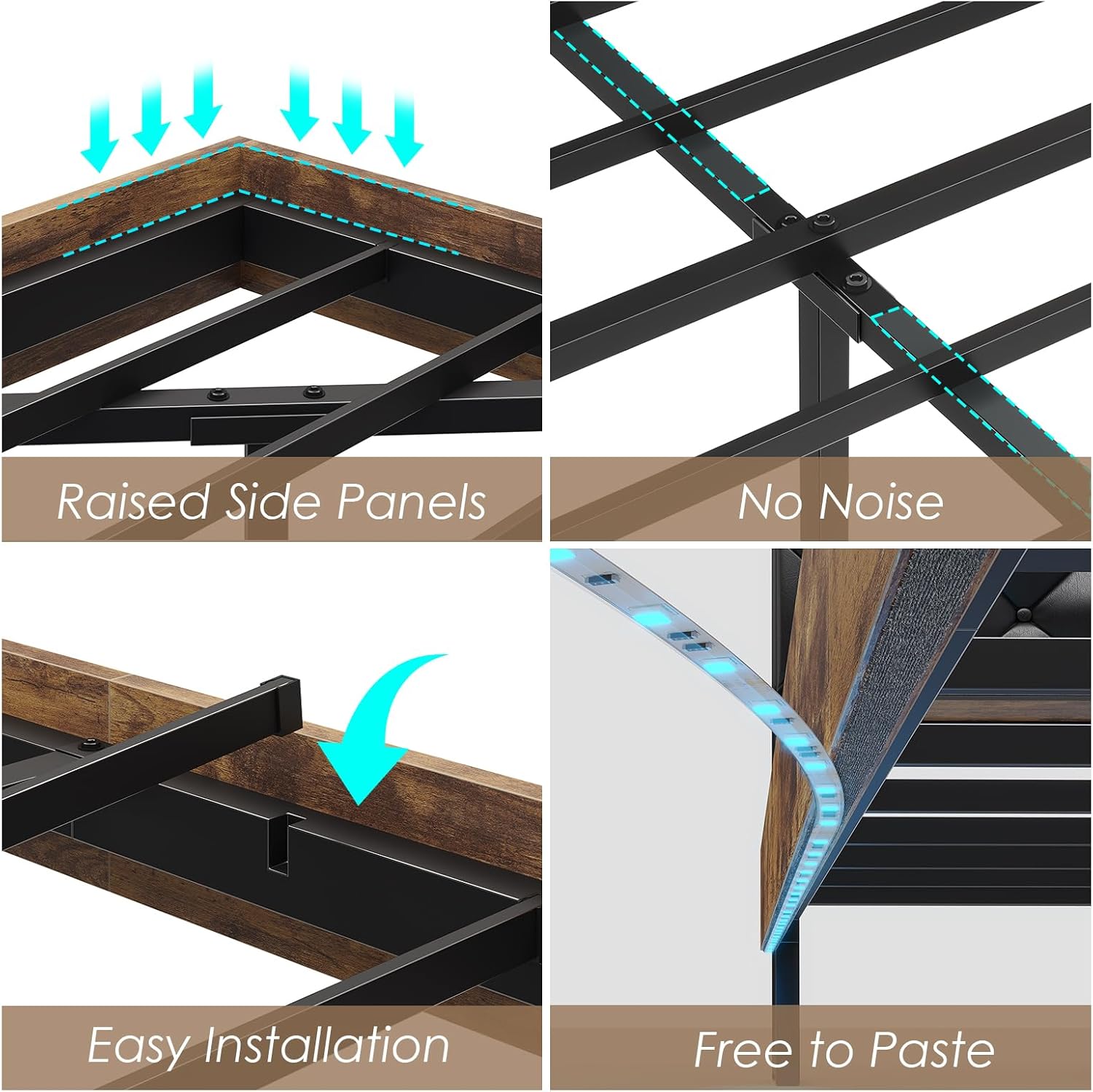

Image: An illustration detailing the robust construction features, including raised side panels to prevent mattress movement and a noise-free design.
Anti-Move Mattress Design
The platform bed frame is designed to be used without a box spring. It features elevated panels on three sides to prevent the mattress from shifting or sliding, ensuring stability and comfort.
Image: The embedded mattress design, illustrating how it securely holds the mattress in place without the need for a box spring.
Specifications
| Feature | Detail |
|---|---|
| Brand | BYSAUD |
| Model Number | Floating King Size Bed Frame |
| Size | King Bed Frame |
| Product Dimensions | 80"L x 76"W x 47"H |
| Item Weight | 120 Pounds |
| Weight Capacity | 1200 Pounds (approximate, inferred from sturdy construction) |
| Color | Pu Black |
| Upholstery Fabric Type | Faux Leather |
| Finish Type | Unfinished (wood components) |
| Form Factor | Platform Bed |
| Included Components | Headboard, Bed Frame Components |
| Special Features | Artificial Leather, Floating Bed Design, LED Lights, Charging Station, Storage Headboard |
Image: Detailed dimensions and weight capacity of the King Size bed frame.
Package Contents
Upon opening the package, please verify that all components are present and undamaged. The package typically includes:
- Headboard with integrated storage, LED lights, and charging station
- Bed frame side rails and support beams
- Bed legs and support feet
- LED light strips (for under-bed lighting)
- Assembly hardware (screws, bolts, washers, Allen wrench)
- Instruction manual
- Remote control for LED lights
Setup and Assembly
The BYSAUD Floating King Size Bed Frame requires assembly. It is recommended to have two people for assembly. Please follow the step-by-step instructions provided in the separate assembly guide included in your package. Ensure you have ample space and all tools provided before starting.
General Assembly Tips:
- Lay out all components on a soft, clean surface to prevent scratches.
- Identify each part using the labels in the assembly guide.
- Do not fully tighten screws until all parts are loosely assembled.
- Connect the LED light strips to the designated areas as per the assembly guide.
- Ensure all electrical connections for the charging station and LED lights are secure before plugging into a power source.
Image: An exploded view of the bed frame's robust support system, indicating the placement of 12 thick support legs and 16 support beams for stability and load-bearing capacity.
Operating Instructions
LED Lights Operation:
- Power On/Off: Use the power button on the remote control or within the dedicated mobile application.
- Color Selection: Choose from over 60,000 colors via the app or select preset colors using the remote.
- Dynamic Modes: Activate various lighting effects such as fading, jumping, or strobing through the app or remote.
- Music Synchronization: Use the 'Music Mode' in the app to synchronize the lights with audio playback.
- Timing Function: Set schedules for the lights to turn on or off automatically using the app.
Charging Station Usage:
- Ensure the bed frame's power cord is securely plugged into a wall outlet.
- AC Outlets: Plug in standard electrical appliances (e.g., lamps, laptops) into the two 125V/12A AC outlets.
- USB Ports: Connect compatible devices to the 5V/2.1A USB-A port for charging.
- Type-C Port: Connect compatible devices to the 5V/2.1A Type-C port for charging.
- Always unplug devices when not in use or before cleaning the bed frame.
Maintenance
Regular maintenance will help prolong the life and appearance of your bed frame.
- Cleaning the PU Leather: Wipe with a soft, damp cloth. For stubborn stains, use a mild soap solution and immediately wipe dry. Avoid harsh chemicals or abrasive cleaners.
- Cleaning the Wood Surfaces: Dust regularly with a soft, dry cloth. For deeper cleaning, use a wood-safe cleaner and follow product instructions.
- Checking Connections: Periodically inspect all screws and bolts to ensure they remain tight. Retighten as necessary to maintain stability.
- Electrical Components: Keep the charging station and LED lights free from dust. Do not attempt to repair electrical components yourself; contact qualified personnel if issues arise.
Troubleshooting
If you encounter any issues with your bed frame, refer to the following common troubleshooting steps:
- LED Lights Not Working:
- Ensure the power cord for the bed frame is securely plugged into a working wall outlet.
- Check if the LED light strips are properly connected to the power source on the bed frame.
- Verify that the remote control batteries are functional or that the mobile app is correctly paired.
- Charging Station Not Providing Power:
- Confirm the bed frame's main power cord is plugged in.
- Test the wall outlet with another device to ensure it is functional.
- Ensure the device you are trying to charge is compatible with the port (AC, USB, Type-C) and its power requirements.
- Bed Frame is Noisy or Unstable:
- Inspect all assembly hardware (screws, bolts) and tighten any that are loose.
- Ensure the bed frame is on a level surface.
- Verify that all support beams and legs are correctly installed and making full contact with the floor.
- Mattress is Sliding:
- Confirm that the mattress is correctly positioned within the raised side panels of the bed frame.
- Ensure the mattress size matches the bed frame size (King).
If these steps do not resolve the issue, please contact BYSAUD customer support for further assistance.
Warranty and Support Information
Specific warranty details for the BYSAUD Floating King Size Bed Frame are not provided within this manual. For information regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your purchase or contact BYSAUD customer service directly through their official website or the retailer where the product was purchased.
When contacting support, please have your model number (Floating King Size Bed Frame) and ASIN (B0F5WWKPK7) readily available.
