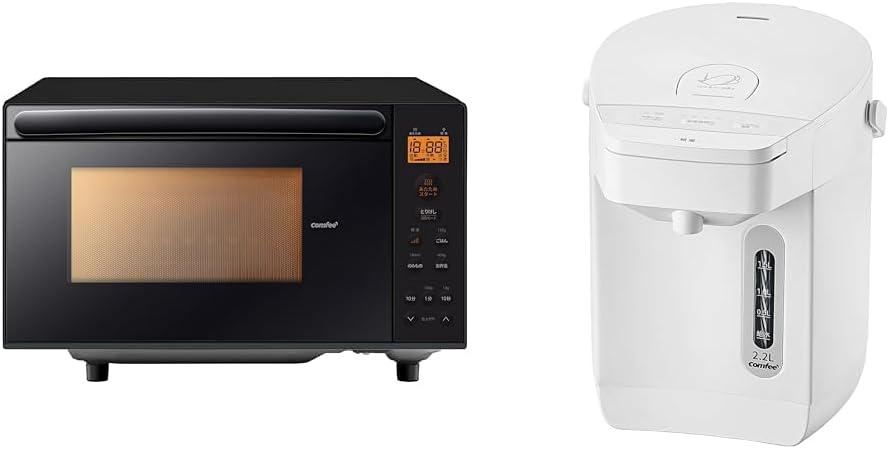

COMFEE 17L Flat Table Microwave Oven (CF-EX201-BK) & 2.2L Electric Pot (CKW-22SW07A1)

1. Setup

1. Unpacking: Carefully remove the microwave oven from its packaging. Retain all packaging materials for potential future transport or service.
2. Placement: Place the microwave oven on a stable, flat, heat-resistant surface. Ensure adequate ventilation by leaving at least 10 cm of space around the sides and back, and 30 cm above the unit. Do not block ventilation openings.
3. Power Connection: Plug the power cord into a grounded AC 100V (50/60Hz) electrical outlet.

2. Operating Instructions

The CF-EX201-BK features a simple control panel for easy operation.

• Power Levels: Select from 200W (Defrost), 500W, or 650W output settings.
• Automatic Warming: For common items, simply press the auto menu button. The microwave will automatically determine the optimal heating time and temperature, eliminating the need for manual settings.
• Manual Operation:
  1. Place food in a microwave-safe container inside the oven.
  2. Close the door securely.
  3. Select the desired power level.
  4. Set the heating time using the control panel.
  5. Press the Start button.
• Flat Table Design: The 17L wide interior space accommodates larger items like bento boxes or frozen pizzas up to 29cm in width, providing flexibility for various meal preparations.

3. Maintenance

• Cleaning the Interior: Wipe the interior with a damp cloth and mild detergent after each use to prevent food buildup.
• Cleaning the Exterior: Clean the exterior with a soft, damp cloth. Do not use abrasive cleaners.
• Door Seal: Regularly inspect the door seal for any damage or debris. Clean as necessary to ensure a proper seal.
• Power Off: Always unplug the microwave oven before cleaning or performing any maintenance.

4. Troubleshooting

5. Specifications (CF-EX201-BK)

• Model: CF-EX201-BK
• Capacity: 17 Liters
• Power Supply: AC 100V, 50/60Hz (Nationwide compatible)
• Rated Power Consumption: 950W (50Hz) / 1300W (60Hz)
• Maximum Output: 650W (3 power levels: 200W, 500W, 650W)
• Exterior Dimensions (approx.): Width 45.8 cm x Depth 35.4 cm x Height 28.6 cm
• Interior Dimensions (approx.): Width 31.5 cm x Depth 31.8 cm x Height 18.0 cm
• Weight (approx.): 12.3 kg
• Annual Power Consumption: 59.5 kWh/year

1. Setup

1. Unpacking: Remove the electric pot from its packaging.
2. Placement: Place the pot on a stable, flat, heat-resistant surface away from walls or other appliances to ensure proper ventilation.
3. Initial Cleaning: Before first use, wash the interior of the pot and lid with warm soapy water, then rinse thoroughly.
4. Power Connection: Connect the magnetic power plug to the pot, then plug the other end into a grounded AC 100V (50/60Hz) electrical outlet.

2. Operating Instructions

• Filling Water: Open the lid and fill the pot with water up to the desired level, observing the water level indicator. Do not exceed the MAX fill line.
• Boiling Function:
  1. From standby, short press the boil button to initiate boiling.
  2. The pot will heat water to near boiling, then intermittently heat to maintain boiling for 3 minutes to remove chlorine.
  3. After boiling, it will either enter keep warm mode (if selected) or return to standby.
  4. To cancel boiling during operation, short press the boil button again.
• Keep Warm Function:
  • The pot offers 4 levels of keep warm temperature settings. Select your desired temperature.
  • If keep warm is selected after boiling, the pot will maintain the set temperature for up to 48 hours before returning to standby.
  • Reboil Mode: During keep warm, you can use the reboil mode to quickly bring the water back to boiling temperature.
• ECO Energy-Saving Mode:
  1. From standby or during boiling, long press the ECO button for 3 seconds to activate.
  2. The pot will heat to a preset temperature (default 70°C if no specific keep warm temperature is set) and maintain it for 8 hours, then return to standby.
  3. To deactivate ECO mode, long press the ECO button for 3 seconds during its operation.
  4. Note: In ECO mode, the power automatically turns off if there is no operation for 8 hours.
• Water Dispensing:
  • Ensure the safety lock is disengaged (if applicable).
  • Press the dispense button to release water.
  • The pot allows for water volume selection (Level I, Level II) for precise dispensing.
• 360° Rotation: The pot base allows the unit to rotate 360 degrees for convenient pouring from any angle.

3. Safety Features

• Safety Lock: Prevents accidental dispensing, especially important for households with children.
• Anti-Tip Overflow: Designed to minimize water spillage if the pot is accidentally tipped.
• Anti-Dry Boil Protection: Automatically shuts off the heating element if the water level is too low, preventing damage to the unit.
• Magnetic Power Plug: The power cord detaches easily if accidentally pulled, reducing the risk of the pot tipping over.

4. Maintenance

• Cleaning the Interior: Regularly descale the interior to prevent mineral buildup. Use a descaling solution suitable for electric kettles or a mixture of water and vinegar. Follow product instructions for descaling.
• Cleaning the Exterior: Wipe the exterior with a soft, damp cloth. Do not immerse the pot in water.
• Lid and Spout: Clean the lid and dispensing spout regularly to ensure hygiene and proper function.
• Power Off: Always unplug the electric pot and allow it to cool completely before cleaning.

5. Troubleshooting

6. Specifications (CKW-22SW07A1)

• Model: CKW-22SW07A1
• Capacity: 2.2 Liters
• Power Supply: AC 100V, 50/60Hz
• Keep Warm Settings: 4 levels
• Safety Features: Automatic Lock, Anti-Tip Overflow, Anti-Dry Boil, Magnetic Power Plug
• Special Modes: ECO Energy-Saving Mode, Reboil Mode
