Introduction
This manual provides essential information for the safe and effective use of your HECASA Universal Adjustable Steel Lawn Mower Hitch. Please read these instructions carefully before installation and operation to ensure proper functionality and longevity of the product.

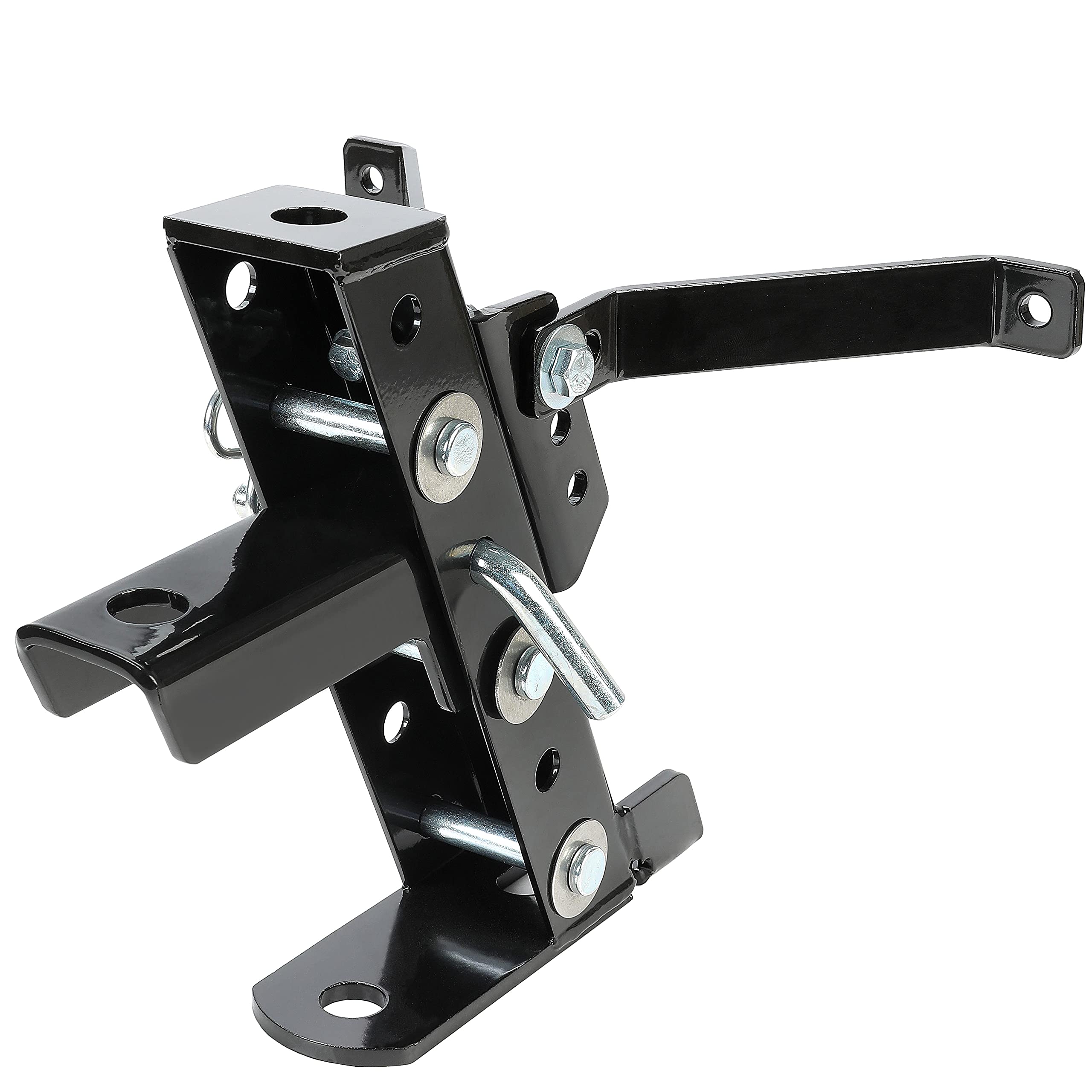

Figure 1: Overview of the HECASA Universal Adjustable Steel Lawn Mower Hitch.
Product Features
- Universal Compatibility: Designed to be widely compatible with John Deere, Cub Cadet, and Craftsman lawn mowers and garden tractors.
- Adjustable Height: Features 5 adjustable height settings, allowing you to level various trailer sizes and equipment for diverse towing tasks.
- Durable Construction: Manufactured from a robust steel alloy, ensuring high strength and resistance to wear, suitable for heavy-duty tasks and challenging outdoor conditions.
- Powder-Coated Finish: Provides enhanced durability and corrosion resistance.
- Easy Installation: Bolt-on design simplifies mounting to traditional lawn mowers or tractors, often utilizing existing holes.
Figure 2: Detail of the adjustable height mechanism, showing multiple pin positions.
Setup and Installation
The HECASA Universal Adjustable Steel Lawn Mower Hitch is designed for a bolt-on installation. While minimal drilling may be required for some models, existing holes on your equipment can often be used to simplify the process.
Included Components:
- 1 x Adjustable Garden Tractor Hitch
- All necessary mounting hardware (bolts, nuts, washers, pins)
Figure 3: All hardware and components included in the package.
Installation Steps:
- Identify Mounting Location: Locate the appropriate mounting points on the rear of your lawn mower or garden tractor. These are typically pre-drilled holes or areas suitable for drilling.
- Position the Hitch: Align the hitch with the mounting points. Ensure the hitch is centered and level.
- Secure with Hardware: Use the provided bolts, washers, and nuts to firmly attach the hitch to your equipment. Tighten all fasteners securely.
- Check Stability: After installation, ensure the hitch is stable and does not wobble. Re-tighten any loose fasteners.
Note: Installation instructions are not explicitly included in the product packaging. Refer to your equipment's manual for specific mounting recommendations if available. Professional installation is recommended if you are unsure about the process.
Figure 4: Example of the hitch installed on a lawn tractor.
Operating Instructions
Once installed, the HECASA hitch allows you to tow various garden trailers and equipment. Follow these steps for safe operation:
- Select Appropriate Height: Determine the required hitch height to ensure your trailer or equipment is level when attached. Use the adjustable pin mechanism to select one of the 5 available height settings.
- Attach Trailer: Connect your trailer or garden tool to the hitch receiver. Ensure the trailer tongue is fully seated and secured with a hitch pin or ball (not included).
- Verify Connection: Before moving, double-check that the trailer is securely attached to the hitch and that all pins and fasteners are in place.
- Towing Capacity: Do not exceed the maximum towing capacity of 3000 lbs (1360 kg). Always consider the towing capacity of your lawn mower or tractor as well.
- Safe Operation: Operate your equipment at a safe speed, especially when towing. Avoid sudden starts, stops, or turns that could cause the trailer to sway or detach.
Figure 5: The hitch in use, towing a trailer.
Maintenance
Regular maintenance will help prolong the life and ensure the safe operation of your HECASA hitch.
- Inspect Regularly: Before each use, inspect the hitch for any signs of wear, damage, or corrosion. Check all bolts, nuts, and pins for tightness.
- Clean After Use: Clean the hitch after each use, especially if exposed to mud, dirt, or moisture. A damp cloth is usually sufficient.
- Lubrication: Periodically apply a light lubricant to moving parts, such as the adjustable pin mechanism, to ensure smooth operation and prevent rust.
- Storage: Store the hitch in a dry environment when not in use to prevent rust and corrosion.
- Replace Damaged Parts: If any part of the hitch becomes damaged or excessively worn, replace it immediately. Do not use a damaged hitch.
Troubleshooting
This section addresses common issues you might encounter with your HECASA hitch.
- Hitch is Loose After Installation:
- Ensure all mounting bolts and nuts are tightened to the recommended torque.
- Verify that the hitch is correctly aligned with the mounting points on your equipment.
- Difficulty Adjusting Height:
- Check for any debris or rust in the adjustment holes. Clean and lubricate if necessary.
- Ensure the adjustment pin is fully disengaged before attempting to change height.
- Trailer Sway or Instability:
- Ensure the trailer is properly loaded with weight distributed evenly.
- Verify that the hitch height is correctly set to keep the trailer level.
- Do not exceed the maximum towing capacity of the hitch or your towing vehicle.
Specifications
| Brand | HECASA |
| Model Number | MO-5256 |
| Material | Steel Alloy |
| Finish Type | Powder Coated |
| Maximum Towing Capacity | 3000 lbs (1360 kg) |
| Adjustable Heights | 5 positions |
| Compatible Vehicle Types | Tractor, Lawn Mower (John Deere, Cub Cadet, Craftsman compatible) |
| Item Weight | 9 lbs (4.08 kg) |
Warranty and Support
Specific warranty information for the HECASA Universal Adjustable Steel Lawn Mower Hitch is not provided in the product details. For any warranty claims, technical support, or inquiries, please contact the retailer or manufacturer directly using the contact information provided at the time of purchase.
