1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your EaseLife 5 FT Mini Cabinet Bi-Folding Sliding Barn Door Hardware Track Kit. This kit is designed to facilitate the smooth and quiet operation of four bi-folding doors for various cabinet applications, such as TV stands, vanities, bookshelves, and other shielding needs. Please read all instructions carefully before beginning installation.
Image 1.1: The EaseLife Mini Cabinet Bi-Folding Sliding Barn Door Hardware Kit installed on a cabinet, showcasing its functionality with doors open.
2. Safety Information
Always adhere to the following safety guidelines during installation and use:
- Follow all installation instructions provided.
- Ensure the wall or cabinet structure can adequately support the combined weight of the doors and the hardware.
- Do not exceed the maximum door weight capacity of 120 lbs (54.4 kg).
- Keep hands and fingers clear of moving parts during installation and operation to prevent injury.
- Verify all fasteners are securely tightened before use.
3. Package Contents
Carefully unpack the hardware kit and verify all components are present. If any parts are missing or damaged, please contact customer support.
Image 3.1: Visual representation of the components included in the hardware kit.
The package includes:
- 1 x 60 inch (5 FT) Rail (composed of 5 sections for splicing)
- 4 x Rollers
- 6 x Rail Spacers (Wall Supporters)
- 2 x Door Stoppers
- 2 x Floor Guides
- Necessary mounting hardware (screws, anchors)
Note: Cabinet and doors are NOT included with this hardware kit.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | EaseLife |
| Model Number | 01S10_153PJ_4 |
| Material | Iron |
| Color | Black |
| Track Length | 60 inches (5 FT) |
| Number of Doors Supported | 4 |
| Fit Door Thickness | 19/32" to 1" (15 mm to 25 mm) |
| Door Weight Capacity | 120 lbs (54.4 kg) |
| Required Assembly | Yes |

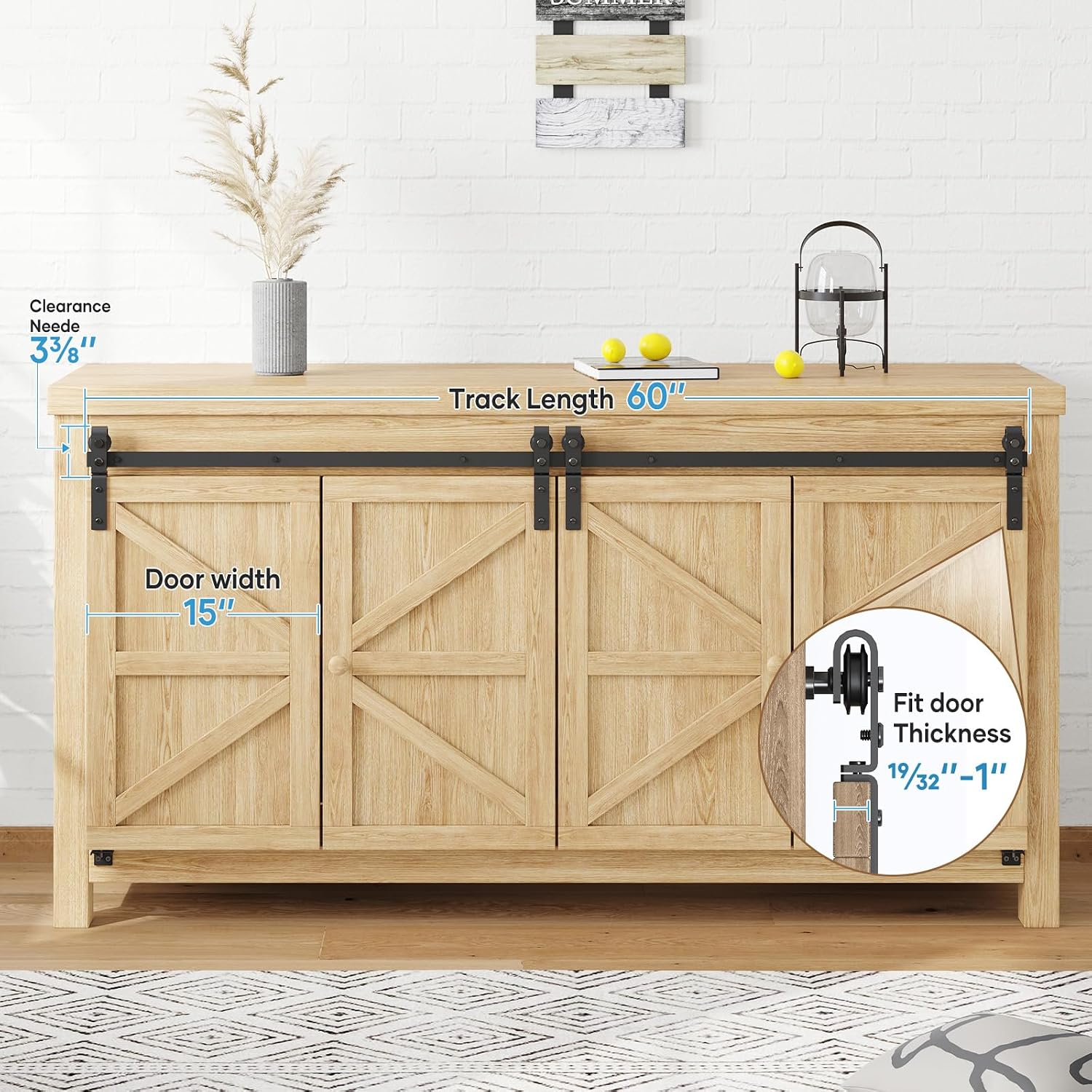

Image 4.1: Key dimensions and specifications for the hardware kit, including track length and compatible door thickness.
5. Setup and Installation
The installation process is designed to be straightforward. Refer to the included step-by-step manual for precise measurements and detailed instructions. The general steps are outlined below:
Image 5.1: Visual guide to the installation steps.
- Install Track: Assemble the 5 rail sections to form the 60-inch track. Secure the track to the cabinet or wall using the provided rail spacers and mounting hardware. Ensure the track is level and securely fastened.
- Install Hangers: Attach the rollers (hangers) to the top edge of your bi-folding doors according to the door manufacturer's recommendations and the provided hardware kit instructions.
- Install Hinges: Connect the bi-folding door panels using appropriate hinges (not included in this kit, typically part of the door assembly).
- Mount Doors: Carefully lift and hang the doors onto the installed track, ensuring the rollers engage properly.
- Install Door Guide: Secure the floor guides to the cabinet base or floor directly beneath the doors. Adjust the guides to ensure smooth door movement and prevent swaying.
- Adjust and Test: Once all components are installed, test the doors for smooth operation. Make any necessary adjustments to the door stoppers and floor guides to achieve desired movement and closure.
For optimal performance, ensure all measurements are precise and components are aligned correctly.
6. Operating Instructions
To operate the bi-folding sliding barn doors, simply grasp the door handle (if installed) and slide the door along the track. The rollers are designed for smooth and quiet movement.
Image 6.1: The roller mechanism designed for smooth and quiet door movement.
The bi-folding design allows the doors to fold inward or outward, depending on your setup, providing access to the cabinet interior while minimizing the space required for door swing.
7. Maintenance
Regular maintenance helps ensure the longevity and smooth operation of your hardware kit:
- Cleaning: Wipe the track and rollers periodically with a soft, damp cloth to remove dust and debris. Avoid abrasive cleaners.
- Inspection: Annually inspect all mounting hardware, screws, and rollers for any signs of loosening or wear. Tighten any loose fasteners.
- Lubrication: While the nylon rollers are designed for quiet operation, a light application of silicone-based lubricant to the roller bearings and track can further enhance smoothness if needed. Avoid oil-based lubricants that can attract dust.
8. Troubleshooting
If you encounter issues with your hardware kit, refer to the following troubleshooting tips:
- Doors not sliding smoothly:
- Check the track for any obstructions or debris. Clean the track thoroughly.
- Verify that the track is level and securely mounted. Uneven installation can cause friction.
- Inspect the rollers for damage or excessive wear.
- Ensure the floor guides are properly aligned and not causing resistance.
- Rollers jumping off track:
- Confirm that the hangers are correctly installed on the doors and fully engaged with the track.
- Check the door stoppers at the ends of the track; they should prevent the rollers from exiting.
- Ensure the doors are within the specified thickness and weight capacity.
- Stiff operation:
- Apply a silicone-based lubricant to the rollers and track.
- Verify that the doors are not binding against the cabinet frame or other doors.
- Re-check the alignment of the track and floor guides.
9. Warranty and Support
EaseLife specializes in sliding door hardware and is committed to customer satisfaction. For specific warranty information, please refer to your purchase documentation or the official EaseLife website.
If you encounter any issues, have questions, or require assistance with missing or broken parts, please contact EaseLife customer service. Our team is available to provide professional support and resolve your concerns.
Contact Information: Refer to the EaseLife official website or your product packaging for the most current customer support details.
