1. Introduction
This manual provides comprehensive instructions for the proper use, setup, and maintenance of your LIGE LG89110A Men's Tonneau Chronograph Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.
Key Features:
- Tonneau case design with a skeleton dial.
- High-accuracy Japanese quartz chronograph movement.
- Multi-functional chronograph (stopwatch) with 1/10-second precision.
- Luminous hands for visibility in low-light conditions.
- Integrated date window.
- 30M (3ATM) water resistance for daily wear.
- Durable silicone strap.
2. Product Overview
The LIGE LG89110A watch features a distinctive tonneau-shaped case and a skeleton dial that showcases the internal mechanism. It is equipped with multiple sub-dials for chronograph functions and a date display. The watch is designed for both functionality and aesthetic appeal.

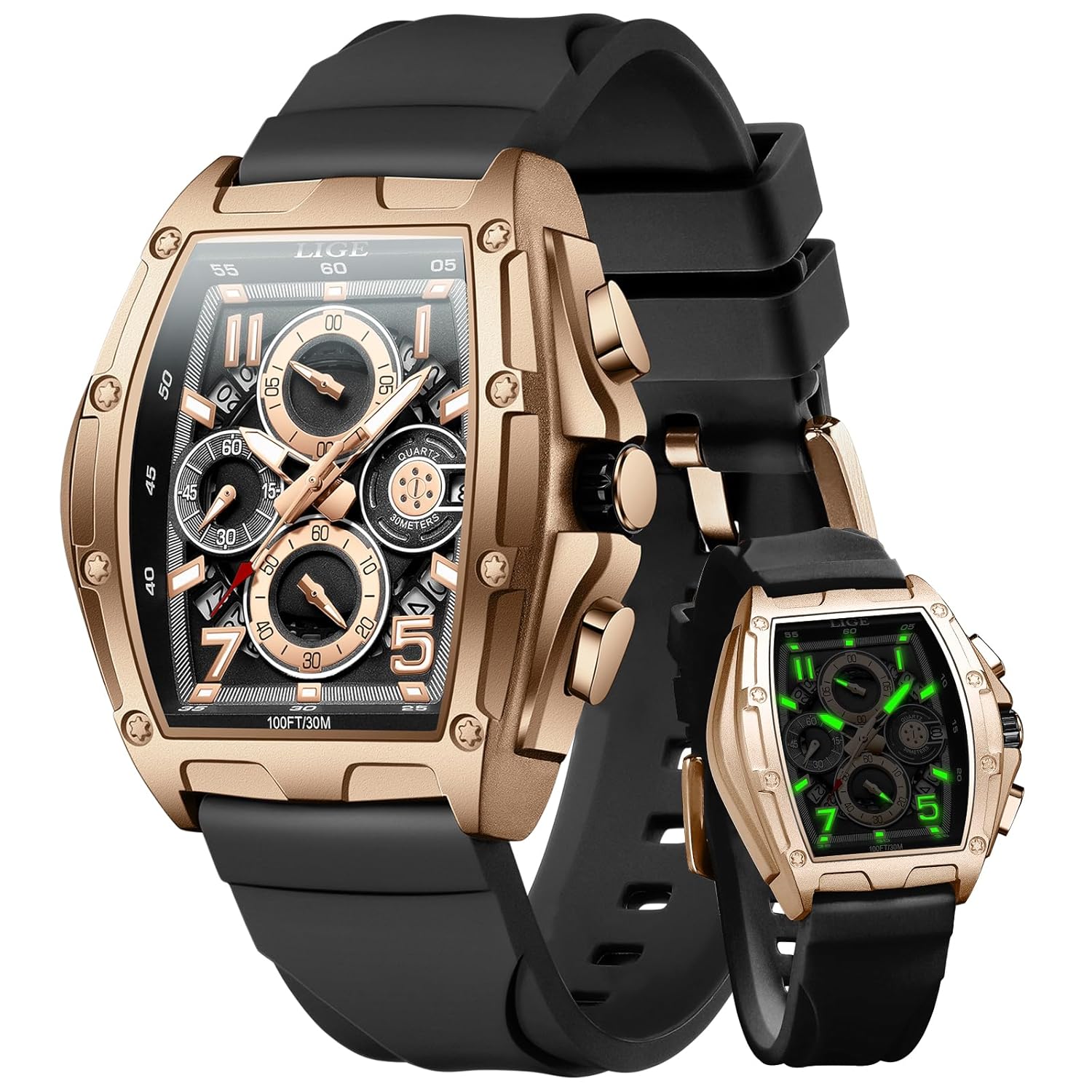

Image 2.1: Front view of the LIGE LG89110A watch, highlighting its tonneau case and skeleton dial.
3. Setup
3.1 Setting Time and Date
- Pull out the crown: Gently pull the crown (located on the right side of the watch case) to position 2 for date adjustment, or position 3 for time adjustment.
- Adjust the date: In position 2, rotate the crown clockwise or counter-clockwise to set the correct date.
- Adjust the time: In position 3, rotate the crown to set the correct hour and minute. Ensure the AM/PM is correctly set if your watch has a 24-hour indicator or if the date changes at midnight.
- Push in the crown: Once the time and date are set, push the crown back into position 1 (normal operating position) to start the watch movement.
3.2 Adjusting the Strap
The silicone strap is designed for comfort and durability. If adjustment is needed, it typically involves cutting the strap to size. It is recommended to seek professional assistance for strap adjustment to avoid damage. Ensure the strap is securely fastened to prevent accidental loss of the watch.
4. Operating the Watch
4.1 Chronograph Function
The chronograph function allows you to measure elapsed time with precision.
- Start: Press the top pusher (button A) to start the chronograph. The chronograph second hand and sub-dials will begin to move.
- Stop: Press the top pusher (button A) again to stop the chronograph. The elapsed time will be displayed on the sub-dials.
- Reset: After stopping the chronograph, press the bottom pusher (button B) to reset all chronograph hands to their zero positions.
4.2 Luminous Display
The watch features luminous hands and markers that absorb light and glow in dark environments, providing readability in low-light conditions. The intensity and duration of the glow depend on the exposure to light.

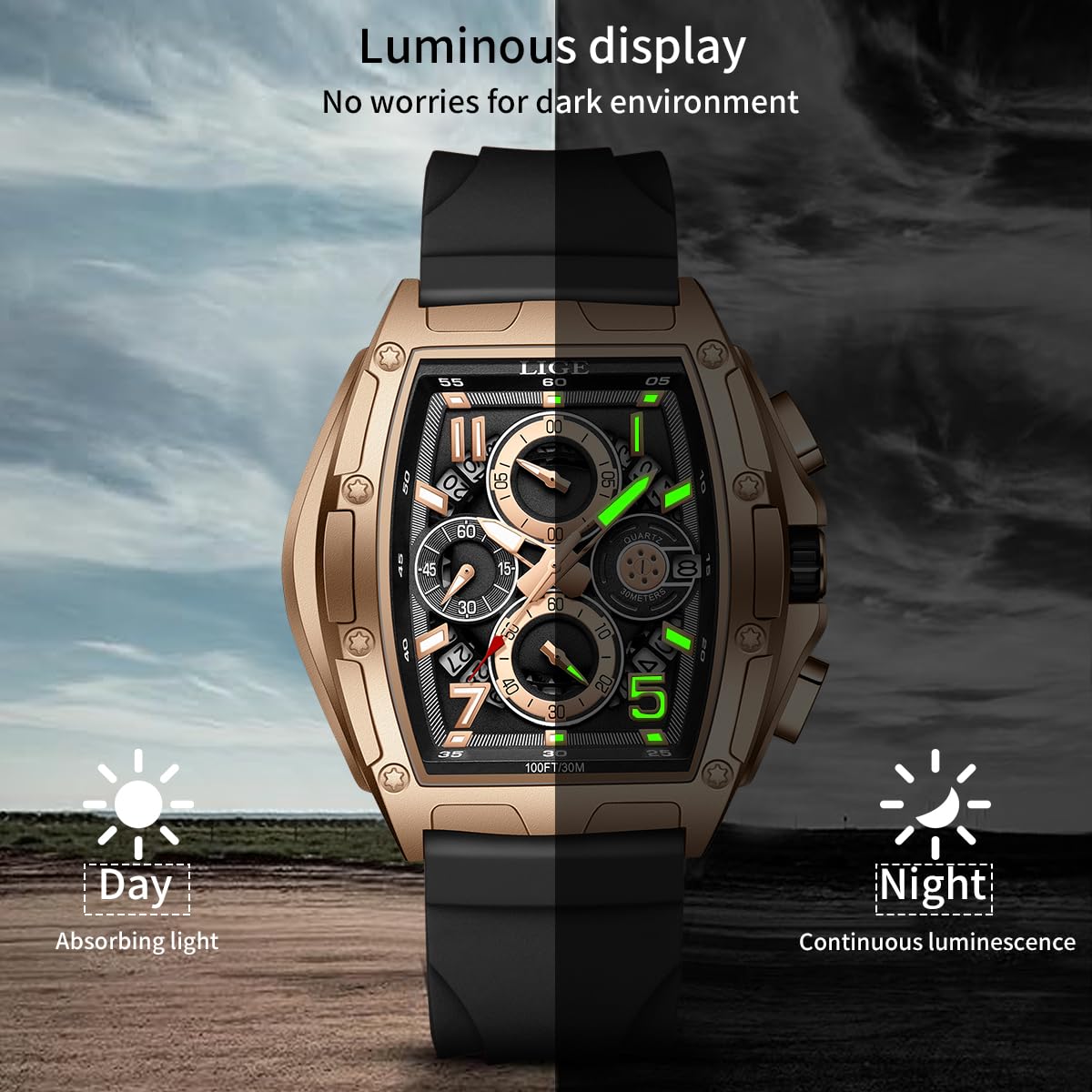

Image 4.1: The watch displaying its luminous features in a dark environment.
5. Maintenance
5.1 Water Resistance
This watch is rated for 30 meters (3ATM) of water resistance. This means it is suitable for daily use, such as hand washing, splashes, and brief immersion. It is not recommended for swimming, diving, or prolonged water activities. Avoid operating the crown or pushers when the watch is wet to prevent water ingress.
Image 5.1: Illustration of the watch's 30M water resistance for daily activities.
5.2 Cleaning
To clean your watch, wipe the case and strap with a soft, damp cloth. For the silicone strap, mild soap and water can be used. Ensure the watch is completely dry before wearing. Avoid using harsh chemicals or abrasive materials, as these can damage the watch's finish.
5.3 Battery Replacement
The watch is powered by a quartz movement, which requires a battery. When the watch stops or the chronograph functions become erratic, the battery may need replacement. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.
6. Troubleshooting
- Watch not running: Check if the crown is fully pushed in. If it is, the battery may need replacement.
- Date not changing: Ensure the time is set correctly, especially past midnight. The date typically changes between 9 PM and 3 AM. If the date is stuck, manually advance it using the crown.
- Chronograph hands not resetting to zero: This may indicate a need for calibration. Consult a watch technician for adjustment.
- Condensation under the crystal: This indicates a loss of water resistance. Avoid further contact with water and seek immediate professional service.
7. Specifications
Detailed technical specifications for the LIGE LG89110A watch:
Image 7.1: Visual representation of key product parameters.
| Specification | Detail |
|---|---|
| Model Number | LG89110A |
| Case Diameter | 47 Millimetres |
| Case Thickness | 10 Millimetres |
| Band Width | 22 Millimetres |
| Strap Length | 260 Millimetres |
| Watch Movement Type | Quartz |
| Water Resistance Depth | 30 Meters (3ATM) |
| Band Material Type | Silicone |
| Mirror Material | Mineral high hardness glass |
| Item Weight | 150 Grams |
| Batteries | 1 C battery required (included) |
| Manufacturer | LIGE |
| Country of Origin | China |
8. Warranty and Support
Your LIGE LG89110A watch comes with a 1-year manufacturer's warranty, covering defects in materials and workmanship under normal use. This warranty does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear.
For warranty claims, technical support, or any inquiries regarding your watch, please contact LIGE customer service. Keep your purchase receipt as proof of purchase.
You can find more information and contact details on the official LIGE store: LIGE Store on Amazon.
