ALAULM 7-Piece Outdoor Dining Set with 40000 BTU Round Fire Pit Table Instruction Manual

1. Introduction

Thank you for choosing the ALAULM 7-Piece Outdoor Dining Set with Round Fire Pit Table. This manual provides essential instructions for the safe assembly, operation, and maintenance of your new outdoor furniture set. Please read all instructions carefully before assembly and use, and retain this manual for future reference.

Image 1.1: The ALAULM 7-Piece Outdoor Dining Set, featuring six chairs and a round fire pit table.

2. Important Safety Information

WARNING: Failure to follow these instructions could result in fire, explosion, or carbon monoxide poisoning, which could cause property damage, personal injury, or death.

General Safety Precautions:

• Read all instructions before assembling and operating this product.
• Keep children and pets away from the fire pit table at all times, especially during operation.
• Ensure the fire pit is placed on a level, non-combustible surface. Maintain adequate clearance from combustible materials (e.g., walls, fences, trees).
• Never leave the fire pit unattended when in use.
• Do not use the fire pit in an enclosed area. Ensure proper ventilation.
• Only use propane gas as fuel. Do not use solid fuels or other liquids.
• Do not store a spare propane cylinder under or near the fire pit table.
• Inspect the gas hose and connections for leaks before each use.
• Allow the fire pit to cool completely before moving or covering.

Fire Pit Specific Safety:

Image 2.1: The fire pit table features a magnetic opening door for propane tank access and is CSA certified for safety.

• This fire pit is CSA certified, ensuring it meets safety standards.
• Ensure the propane tank is securely connected and placed within the designated compartment.
• Keep the area around the fire pit clear of flammable liquids, vapors, and other combustible materials.
• Do not attempt to light the fire pit if you smell gas. Immediately turn off the gas supply and ventilate the area.

3. Package Contents

Your ALAULM 7-Piece Outdoor Dining Set is shipped in 4 separate boxes, which may arrive at different times. Please verify all components are present before beginning assembly.

Components List:

• 6 x Dining Chairs (with cushions)
• 1 x Round Fire Pit Table
• 1 x Metal Cover Lid for Fire Pit
• 1 x Windshield for Fire Pit
• 1 x Bag of Blue Glass Stones
• Hardware Pack (bolts, washers, nuts, tools)
• Instruction Manual

4. Assembly Instructions

Assembly is required for both the chairs and the fire pit table. It is recommended to have two people for easier assembly. Ensure all hardware is tightened securely, but do not overtighten.

4.1. Chair Assembly

1. Unpack all chair components: seat frame, backrest, armrests, and legs.
2. Attach the backrest to the seat frame using the provided bolts and washers. Do not fully tighten yet.
3. Connect the armrests to both the seat frame and the backrest. Secure with bolts and washers.
4. Attach the four legs to the underside of the seat frame.
5. Once all components are loosely assembled, place the chair on a flat surface and gently rock it to ensure it is level. Then, fully tighten all bolts.
6. Place the seat and back cushions onto the chair. The cushions feature a zipper design for easy removal and cleaning, and Velcro straps to prevent displacement.

Image 4.1: Detailed view of chair features, including the sturdy frame, curved armrest, zippered cushion cover, and Velcro for cushion stability.

4.2. Fire Pit Table Assembly

1. Unpack all fire pit table components: base, tabletop, burner assembly, and hardware.
2. Assemble the base structure according to the diagrams in the separate fire pit manual (if provided). Ensure the magnetic opening door is correctly oriented for propane tank access.
3. Carefully place the burner assembly into the designated opening in the tabletop.
4. Connect the gas hose from the burner assembly to the control valve located inside the base.
5. Secure the tabletop to the assembled base using the provided hardware.
6. Place the blue glass stones evenly over the burner area. Do not cover the igniter.
7. Install the windshield around the burner if desired.
8. Connect your propane tank (not included) to the gas hose inside the base. Ensure all connections are tight.

5. Operating Instructions (Fire Pit Table)

Follow these steps for safe ignition and operation of your fire pit table.

5.1. Ignition Procedure

1. Ensure the propane tank valve is in the OFF position.
2. Connect the propane tank to the gas hose. Tighten the connection by hand.
3. Open the propane tank valve slowly.
4. Push and turn the control knob on the fire pit to the 'LOW' position.
5. Press and hold the igniter button for 5-10 seconds until the flame ignites. If the flame does not ignite, release the igniter button, turn the control knob to 'OFF', wait 5 minutes, and repeat steps 3-5.
6. Once ignited, release the igniter button and adjust the flame height using the control knob.

Image 5.1: The fire pit table operating with a windshield for stable flame burning, showcasing its 40,000 BTU heat output and decorative blue glass stones.

5.2. Shut-Down Procedure

1. Turn the control knob on the fire pit to the 'OFF' position.
2. Close the valve on the propane tank completely.
3. Allow the fire pit to cool down completely before placing the metal cover lid or moving.

5.3. Using the Metal Cover Lid

The fire pit table includes a removable metal cover lid. When the fire pit is not in use and has cooled down, place the lid over the burner area to convert it into a functional dining table surface. This also protects the burner from elements.

Image 5.2: The fire pit table shown with the metal cover lid in place, functioning as a dining table, and without the lid, revealing the fire pit.

6. Maintenance

Regular maintenance will extend the life and appearance of your outdoor dining set.

6.1. Chair Maintenance

• Cushions: The fabric covers are designed with zipper closures for easy removal. Machine wash covers on a gentle cycle with cold water and mild detergent. Air dry only. Do not bleach or iron.
• Frames: The metal frames have a powder coating for rust resistance. Clean with a soft cloth dampened with mild soap and water. Rinse thoroughly and dry completely to prevent water spots.

6.2. Fire Pit Table Maintenance

• Tabletop: Wipe the tabletop with a soft cloth and mild soap solution. Avoid abrasive cleaners.
• Burner Area: Periodically inspect the burner and gas lines for any obstructions or damage. Clean the blue glass stones if necessary.
• Storage: When not in use for extended periods, especially during harsh weather, it is recommended to cover the fire pit table with a weather-resistant cover (not included) or store it indoors.

7. Troubleshooting

If you encounter issues with your fire pit table, refer to the following common problems and solutions:

8. Specifications

Product Dimensions:

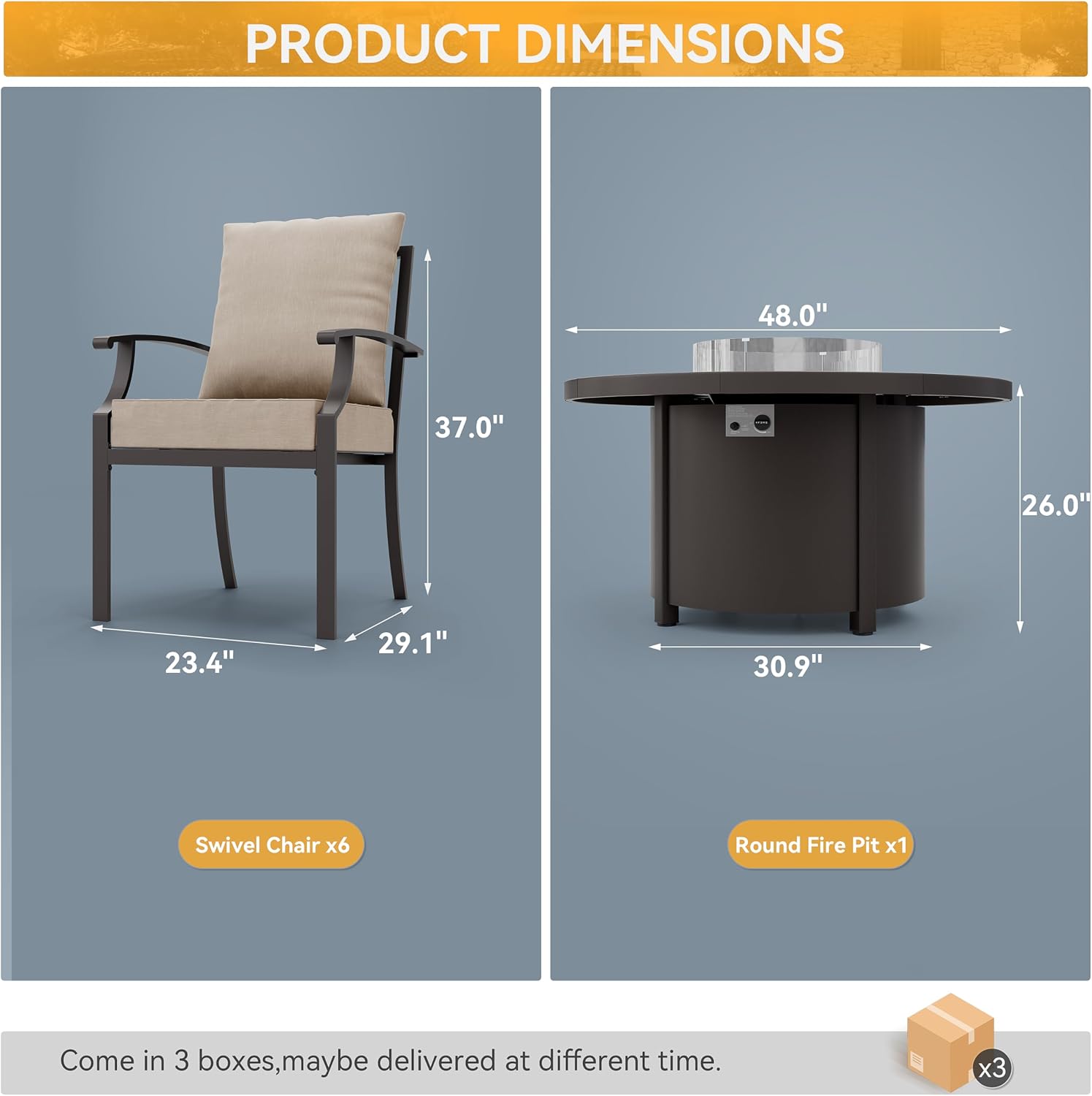

Image 8.1: Dimensional overview of the dining chair and round fire pit table.

• Brand: ALAULM
• Model: 7Pcs-Metal Set
• Color: Sand
• Chair Dimensions (each): 23.4" (Width) x 29.1" (Depth) x 37.0" (Height)
• Fire Pit Table Dimensions: 48.0" (Diameter) x 26.0" (Height)
• Heat Output: 40,000 BTU
• Fuel Type: Propane Gas
• Certification: CSA Certified
• Frame Material: Metal with Powder Coating
• Assembly Required: Yes

9. Warranty & Support

ALAULM is committed to providing quality products and customer satisfaction.

• Missing or Broken Accessories: If you receive any missing or broken accessories, please contact our customer support team immediately with pictures of the issue. Our after-sales team will respond within 30 hours to assist you.
• Contact Support: For any questions, concerns, or support needs, please refer to the contact information provided by your retailer or visit the official ALAULM website.
