Introduction
Thank you for choosing the Alpine Corporation TZL404 71" Cascading Tree Trunk Fountain. This outdoor water feature is designed to enhance your garden, patio, or backyard with the soothing sounds of flowing water and integrated LED lighting. This manual provides essential information for safe installation, operation, and maintenance of your fountain.
Safety Information
Please read and understand all safety instructions before operating this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always disconnect the power supply before performing any maintenance or cleaning.
- Ensure the power cord is not damaged or pinched. Do not operate the fountain with a damaged cord or plug.
- Place the fountain on a level, stable surface to prevent tipping.
- Do not allow children or pets to play with the fountain unsupervised.
- Use only clean water in the fountain. Do not add chemicals other than those specifically designed for fountain maintenance.
- Ensure the pump is fully submerged in water during operation to prevent overheating.
- Protect electrical connections from moisture. Use a Ground Fault Circuit Interrupter (GFCI) outlet for outdoor use.
Package Contents
Verify that all components are present and undamaged before beginning assembly.
- Fountain Body (Tree Trunk Design)
- Water Pump with Power Cord
- LED Light Assembly with Power Cord
- Instruction Manual
Setup
Follow these steps to set up your fountain:
- Unpack Components: Carefully remove all items from the packaging and place them on a soft, clean surface to avoid scratches.
- Position the Fountain: Choose a level and stable location for your fountain. Ensure it is near a suitable outdoor electrical outlet (GFCI protected).
- Connect the Pump: Locate the water pump and the tubing inside the fountain. Connect the pump's outlet to the tubing. Ensure a secure fit.
- Place the Pump: Place the pump at the bottom of the fountain's reservoir, ensuring it sits flat and is fully submerged once filled with water.
- Connect LED Lights: If the LED lights are separate, connect them according to the instructions provided with the light assembly. Ensure all connections are watertight.
- Fill with Water: Fill the fountain reservoir with distilled or clean tap water until the pump is completely submerged. Do not overfill.
- Plug In: Plug the pump and LED light power cords into the GFCI-protected electrical outlets. The fountain should begin operating, and the lights will illuminate.

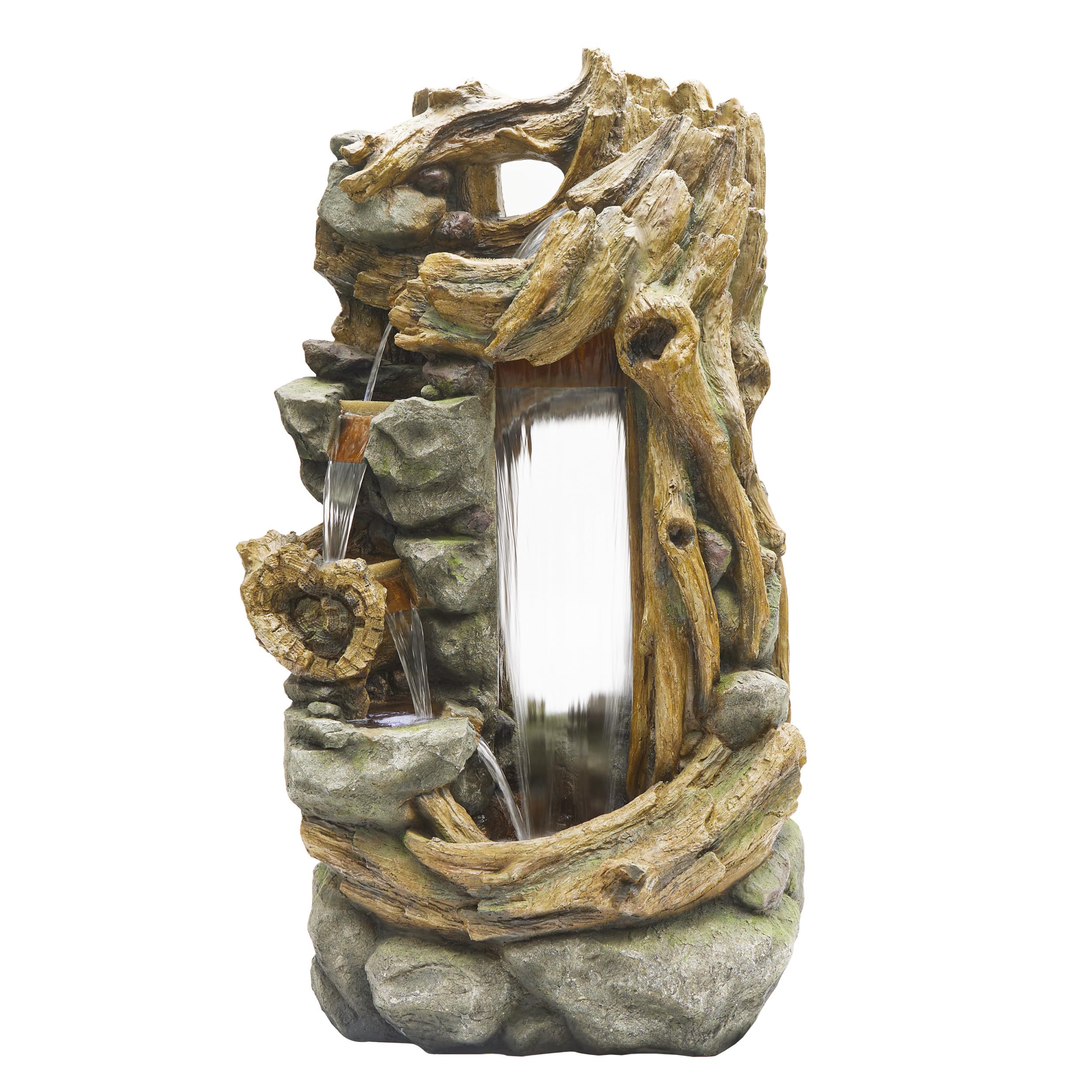

Image: Front view of the 71-inch Cascading Tree Trunk Fountain with water flowing and LED lights illuminated.
Image: Diagram showing the fountain's dimensions: 39" L x 31" W x 71" H (99 cm L x 79 cm W x 180 cm H).
Video: Official product video demonstrating the cascading tree trunk fountain with LED lights in operation.
Operating Instructions
Once the fountain is set up and filled with water, simply plug it into a suitable electrical outlet. The pump will start circulating water, and the LED lights will illuminate. Ensure the water level is always sufficient to cover the pump.
- Water Level: Regularly check the water level, especially during hot weather, and refill as needed to prevent pump damage.
- LED Lights: The integrated LED lights operate automatically when the fountain is powered on, providing ambient illumination.
Maintenance
Regular maintenance will prolong the life and appearance of your fountain.
- Cleaning the Fountain: Periodically drain the water and clean the fountain body with a soft brush and mild soap to remove algae or mineral buildup. Rinse thoroughly.
- Pump Cleaning: Disconnect the pump from power. Remove the pump from the fountain and disassemble it according to its specific instructions (usually involves removing the impeller cover). Clean the impeller and pump housing to remove any debris or mineral deposits.
- Water Treatment: Use non-toxic fountain algaecide or clarifier to keep the water clean and prevent algae growth. Follow product instructions for dosage.
- Winterization: In freezing climates, drain all water from the fountain and pump. Clean and dry all components. Store the fountain and pump indoors in a dry, frost-free location to prevent damage.
Image: Detail of the fountain's durable, weather-resistant construction, made from fiberglass and resin.
Image: Close-up view of the integrated LED lights enhancing the cascading water flow.
Troubleshooting
If your fountain is not operating correctly, consult the following table for common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water not flowing | Pump not plugged in; insufficient water level; clogged pump/tubing; kinked tubing. | Check power connection; add water; clean pump and tubing; straighten tubing. |
| Water flow is weak | Low water level; dirty pump/impeller; debris in tubing. | Add water; clean pump and impeller; clear tubing. |
| LED lights not working | Lights not plugged in; damaged light assembly; power outage. | Check power connection; inspect light assembly for damage; verify power supply. |
| Excessive splashing | Water flow too strong; fountain not level. | Adjust pump flow rate (if applicable); ensure fountain is on a level surface. |
Specifications
- Model Number: TZL404
- Dimensions (L x W x H): 39" x 31" x 71" (99 cm x 79 cm x 180 cm)
- Material: Fiberglass, Resin
- Color: Gray
- Power Source: Cord Connected
- Special Feature: Integrated LED Lighting
Warranty and Support
Alpine Corporation provides a 2-year support period for this product. For assistance with setup, operation, troubleshooting, or warranty claims, please contact Alpine Corporation customer service.
Contact Information: Please refer to the contact details provided on the product packaging or the official Alpine Corporation website for the most current support information.
