1. Product Overview
The Cecotec Conga Pooldroid AquaSkater is a wireless robotic pool cleaner designed for efficient cleaning of the pool surface and waterline. It operates autonomously, collecting debris such as leaves, insects, and dust.

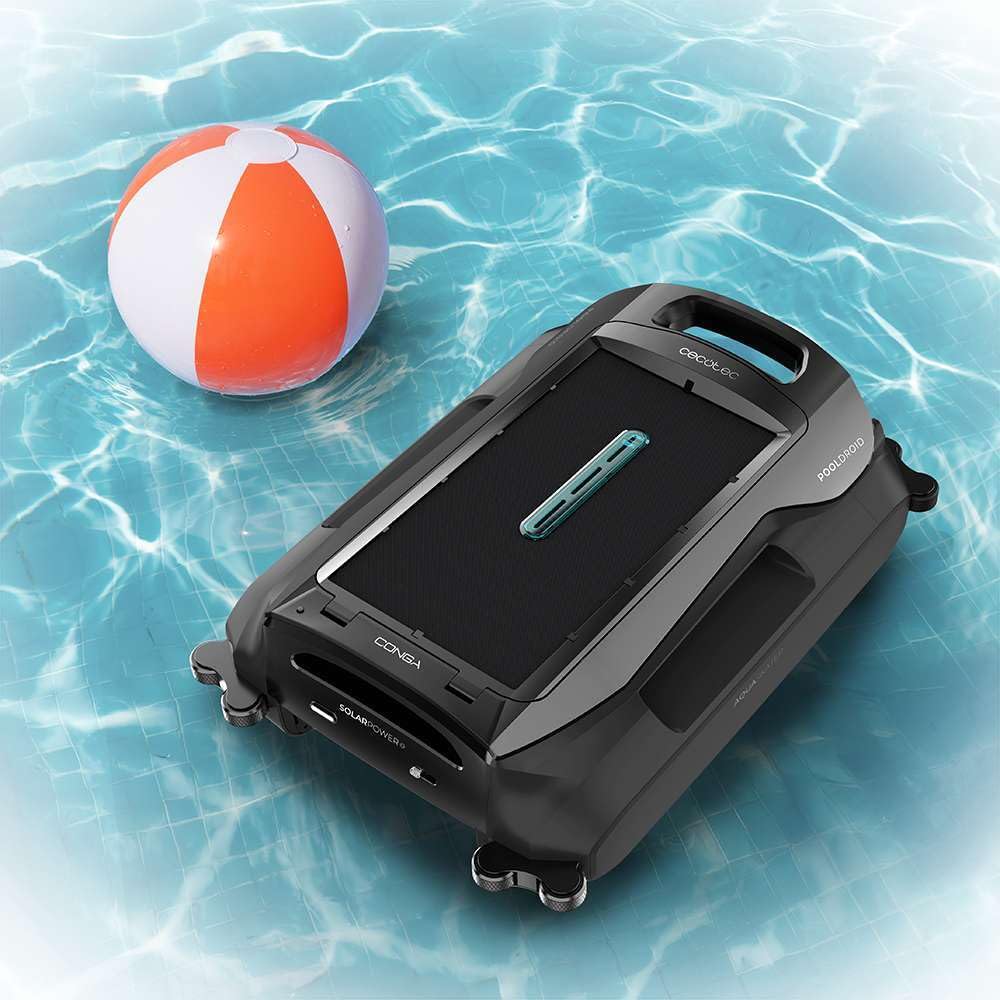

Front view of the Cecotec Conga Pooldroid AquaSkater robotic pool cleaner.
Key Features:
- Wireless Operation: Simply activate with one click and place it in the water for autonomous surface cleaning.
- Solar Charging: Equipped with a solar panel for up to 16 hours of autonomy, allowing continuous operation while charging under sunlight. Includes a Type-C charging port for alternative power.
- Ultrasonic Sensors: Two ultrasonic sensors facilitate precise navigation across the pool surface.
- Versatile Compatibility: Suitable for small, medium, and large pools, compatible with both chlorine and saltwater environments.
- Large Capacity Filter: Features an XXL 4.5L basket and a 187.5 µm filter to capture even the finest particles.
2. Setup and First Use
Charging the Device:
Before initial use, ensure the robot is fully charged. Use the provided Type-C charger or allow it to charge via its solar panel.
The robot cleaner connected to a Type-C charger for battery replenishment.
Placing the Robot in the Pool:
- Ensure the robot is fully charged and the power button is off.
- Hold the robot by its handle and gently submerge it into the pool water.
- Once submerged, press the power button to activate the cleaning cycle. The robot will begin its autonomous cleaning process.
A person carefully placing the robotic pool cleaner into the water.
3. Operating Instructions
The Conga Pooldroid AquaSkater is designed for ease of use. Once activated and placed in the water, it will automatically navigate and clean the pool surface.
The robot actively collecting debris from the pool surface.
Solar Power Operation:
The integrated solar panel allows the robot to continuously operate and recharge during daylight hours, maximizing its cleaning time without manual intervention.
Detailed view of the solar panel, highlighting its design and integration.
Ultrasonic Navigation:
The robot utilizes advanced ultrasonic sensors to detect obstacles and navigate efficiently, ensuring comprehensive coverage of the pool surface.
The robot's ultrasonic sensors in action, guiding its movement across the water.
Retrieving the Robot:
When the cleaning cycle is complete or the battery is low, retrieve the robot from the pool using its handle. Ensure to turn off the power before removing it from the water.

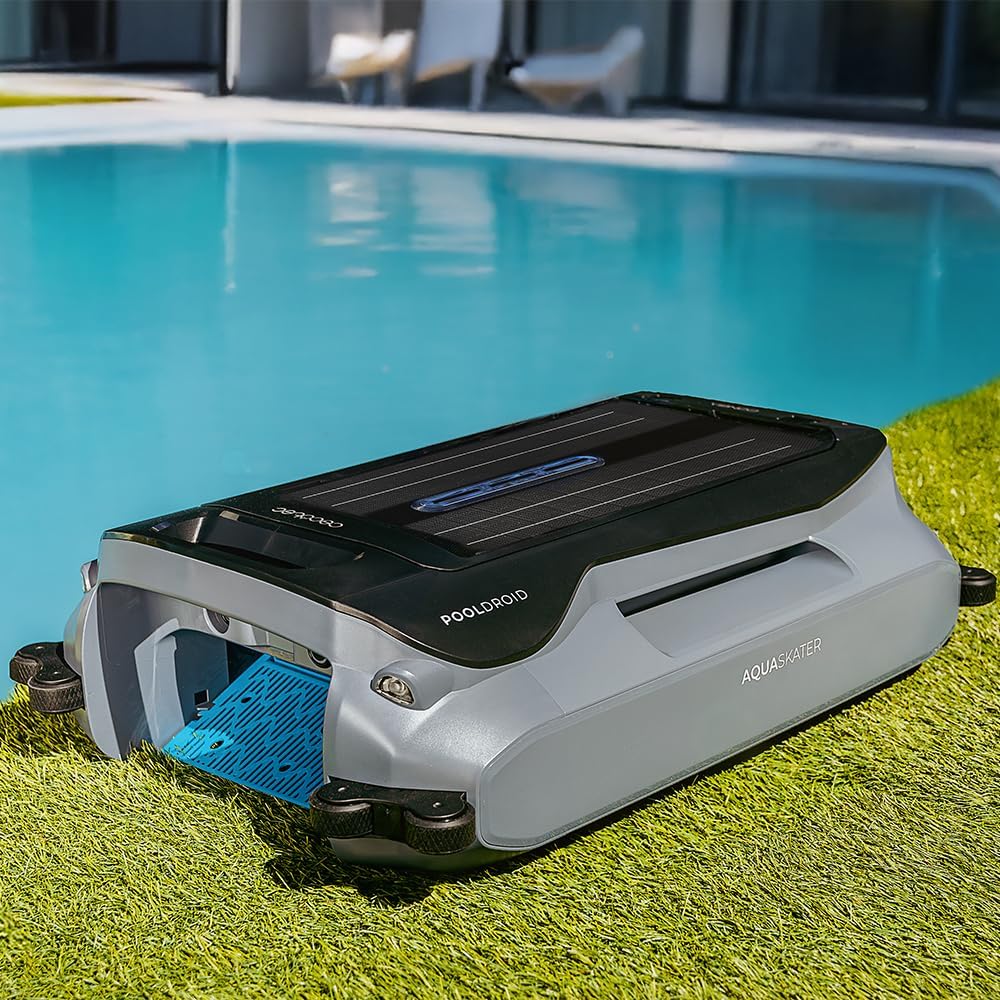

The robotic cleaner positioned on the grass beside the pool, ready for use or after cleaning.
Official Product Video:
Official video demonstrating the Cecotec Robot Limpiapiscinas Conga Pooldroid 1000 TotalClean AquaSkater in action, showcasing its features and cleaning capabilities.
4. Maintenance
Cleaning the Filter Basket:
Regularly clean the 4.5L filter basket to maintain optimal cleaning performance. Open the robot's lid, remove the basket, empty debris, and rinse thoroughly with clean water.

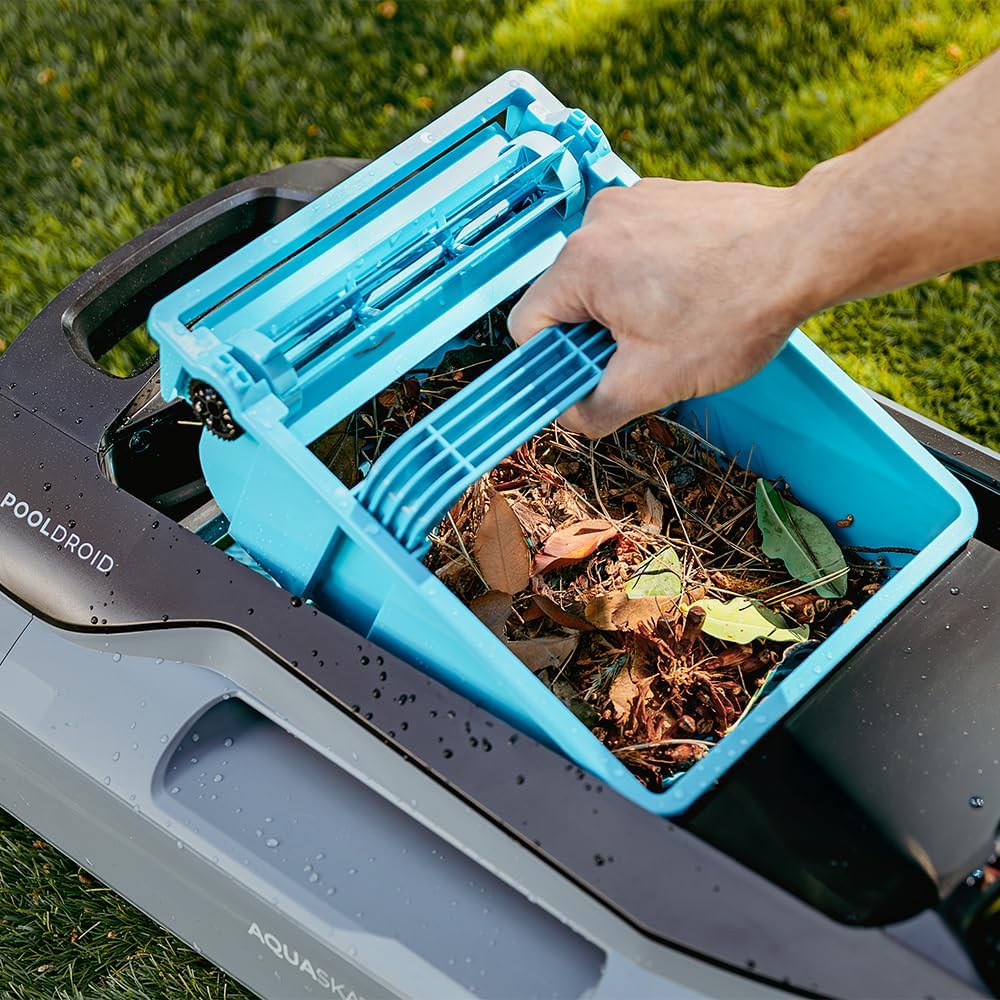

A hand lifting the filter basket from the robotic pool cleaner, showing collected debris.
A person rinsing the filter basket with a hose to remove accumulated dirt and debris.
5. Specifications
| Feature | Detail |
|---|---|
| Model Name | Conga Pooldroid AquaSkater |
| Model Number | A01_EU01_108474 |
| Power Source | Solar energy and battery |
| Battery Autonomy | Up to 16 hours (with solar power) |
| Filter Basket Capacity | 4.5 Liters |
| Filter Mesh Size | 187.5 µm |
| Navigation | Ultrasonic sensors |
| Control Method | Push button |
| Product Dimensions | 66 cm (L) x 45.2 cm (W) x 19 cm (H) |
| Product Weight | 8.26 kg |
| Battery Weight | 190.1 Grams |
| Voltage | 240 Volts |
| Assembly Required | No |
Dimensions of the Cecotec Conga Pooldroid AquaSkater robotic pool cleaner.
The robot is suitable for various pool shapes and sizes.
6. Troubleshooting
If the robot is not performing as expected, please check the following:
- Power: Ensure the robot is fully charged. If using solar power, verify sufficient sunlight exposure.
- Filter Basket: A clogged filter basket can reduce cleaning efficiency. Clean it as described in the Maintenance section.
- Obstructions: Check for any large debris or objects in the pool that might be impeding the robot's movement or sensors.
- Water Level: Ensure the pool water level is within the recommended range for optimal operation.
7. Warranty and Support
This product comes with a standard manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please refer to the official Cecotec website or contact customer service directly.
Keep your purchase receipt as proof of purchase for warranty claims.
