Yabano Espresso Machine JH-C7286 User Manual

1. Introduction

Thank you for choosing the Yabano Espresso Machine JH-C7286. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new espresso machine. Please read it thoroughly before first use and keep it for future reference.

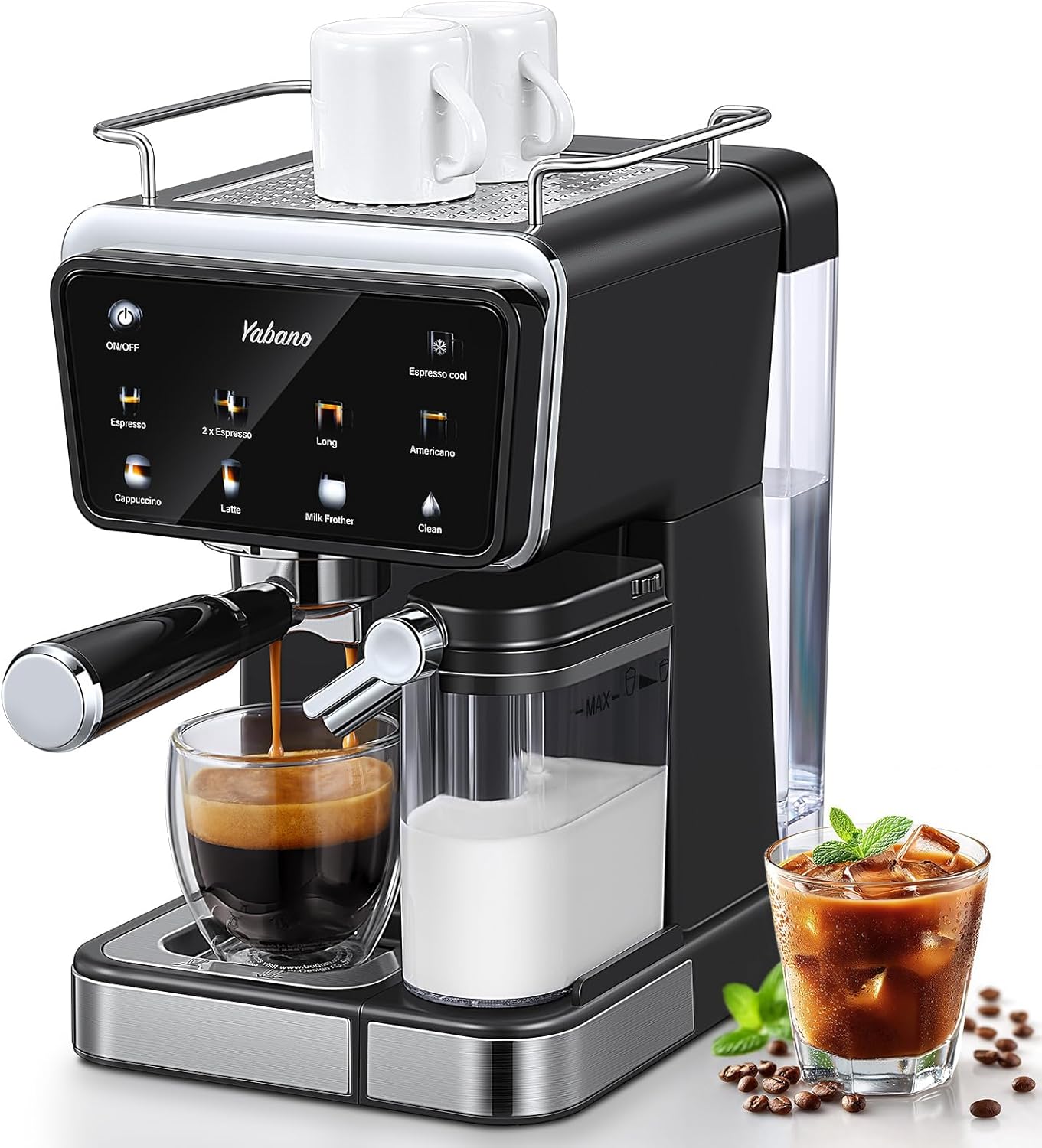

Front view of the Yabano Espresso Machine, showcasing its compact design, touchscreen interface, portafilter, and integrated milk frother.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. Product Overview

The Yabano Espresso Machine JH-C7286 is designed for versatile coffee preparation, featuring a 20-bar pump, 1350W motor, and an intuitive touchscreen interface.

Key Components:

• Control Panel: Color touchscreen for beverage selection and settings.
• Water Reservoir: 1.5L capacity, removable for easy refilling.
• Milk Frother: 500ml detachable container for automatic milk frothing.
• Portafilter: Holds ground coffee for espresso extraction.
• Drip Tray: Detachable for easy cleaning.
• Cup Warming Plate: Located on top of the machine.

Detailed diagram showing the dimensions of the Yabano Espresso Machine and its included accessories, such as the coffee scoop and filter baskets for single and double shots.

4. Setup

4.1 Unpacking

1. Carefully remove all packaging materials and the machine from the box.
2. Remove any protective films or stickers from the machine.
3. Check that all accessories are present: portafilter, single shot filter, double shot filter, coffee scoop.

4.2 Placement

Place the machine on a stable, flat, heat-resistant surface, away from water sources and heat. Ensure there is adequate space around the machine for ventilation.

4.3 Filling the Water Reservoir

1. Remove the 1.5L water reservoir from the back of the machine.
2. Fill the reservoir with fresh, cold water up to the MAX line. Do not use hot water or other liquids.
3. Place the reservoir back into the machine, ensuring it is securely seated.

4.4 Attaching the Milk Frother

1. Ensure the 500ml milk frother container is clean.
2. Fill with desired amount of milk (up to MAX line).
3. Attach the milk frother container to the designated port on the machine.

Visual representation of the machine's removable components: the 1.5L water reservoir, the detachable drip tray for easy cleaning, and the 500ml detachable milk frother.

4.5 Initial Cleaning / Priming

1. Plug the machine into a grounded power outlet.
2. Press the ON/OFF button to power on the machine.
3. Place a large cup under the coffee spout and another under the milk frother nozzle.
4. Run a cycle without coffee or milk to flush the system. Refer to the 'CLEAN' function in the operating section.
5. Discard the flushed water. The machine is now ready for use.

5. Operating Instructions

The Yabano Espresso Machine offers a variety of one-touch beverage options via its color touchscreen.

A user's hand touching the intuitive color touchscreen interface, demonstrating the ease of selecting different coffee options.

5.1 Preparing Espresso

1. Ensure the water reservoir is filled and the machine is powered on.
2. Insert the desired filter (single or double shot) into the portafilter.
3. Add freshly ground coffee to the filter. Level and tamp the coffee evenly.
4. Attach the portafilter securely to the brewing head.
5. Place a cup under the portafilter spouts.
6. On the touchscreen, select 'Espresso' for a single shot or '2 x Espresso' for a double shot.
7. The machine will automatically brew and dispense the espresso.

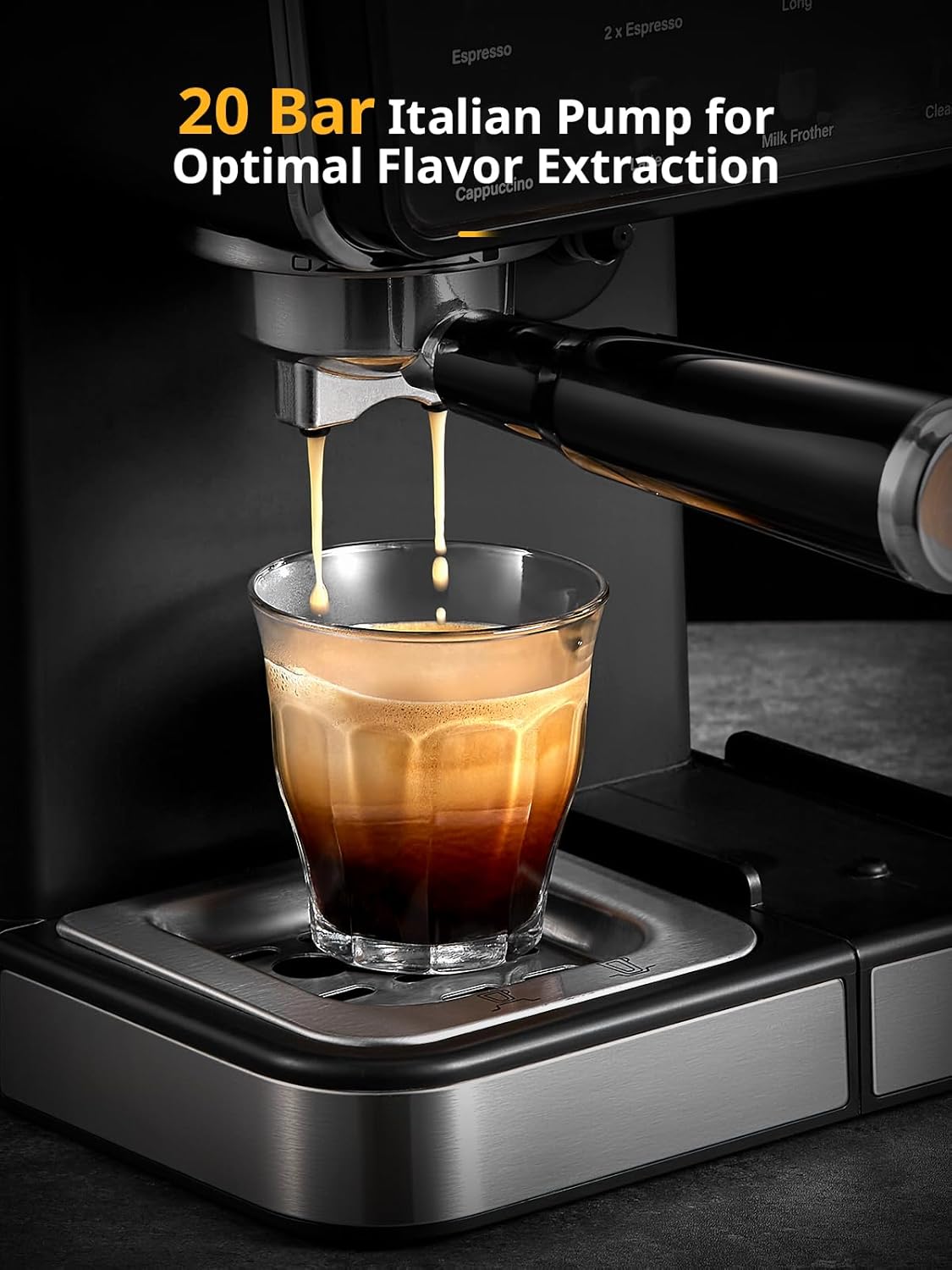

A close-up view demonstrating the espresso extraction process, highlighting the rich crema produced by the 20-bar pump.

5.2 Preparing Milk-Based Beverages (Cappuccino, Latte)

1. Prepare your espresso shot as described in section 5.1.
2. Ensure the milk frother container is filled with cold milk and properly attached.
3. Place your cup (containing the espresso) under the milk frother nozzle.
4. On the touchscreen, select 'Cappuccino' or 'Latte'.
5. The machine will automatically froth and dispense milk into your cup.

5.3 Preparing Americano and Long Coffee

1. Prepare your espresso shot as described in section 5.1.
2. For Americano, select 'Americano' on the touchscreen. The machine will dispense hot water after the espresso.
3. For Long coffee, select 'Long' on the touchscreen. This will dispense a larger volume of coffee.

5.4 Preparing Cold Espresso (Iced Coffee)

For optimal cold espresso, always use ice water in the water reservoir.

1. Fill the water reservoir with ice water.
2. Prepare your portafilter with ground coffee.
3. Place a glass with ice under the portafilter.
4. Select 'Espresso Cool' on the touchscreen.
5. The machine will brew a cold espresso (approx. 60ml).
6. Important: After making cold espresso, if you wish to make hot beverages, the machine requires complete cooling. To accelerate this, hold the 'Espresso Cool' button for 3 seconds to drain hot water and prevent a burnt taste in subsequent hot brews.

The machine preparing an iced espresso, illustrating the cold brew function and the recommendation to use ice water for optimal results.

An illustration of the six different coffee beverages the machine can prepare, including Espresso, Cappuccino, Latte, Americano, Espresso Cool, and frothed milk, with their respective volumes.

6. Maintenance

Regular cleaning and maintenance ensure the longevity and optimal performance of your Yabano Espresso Machine.

6.1 One-Button Cleaning System

The machine features a 1-button cleaning system for both milk and coffee paths to prevent blockages and residues.

1. Place a large cup under the coffee spout and another under the milk frother nozzle.
2. Press the '[CLEAN]' button on the touchscreen.
3. The system will automatically rinse the milk frother nozzle with steam and clean the coffee path with water.
4. The automated process stops independently. Press '[CLEAN]' again to exit if needed.

A user initiating the one-touch cleaning cycle for both the milk and coffee systems, emphasizing the ease of maintenance.

6.2 Cleaning the Milk Frother Container

The detachable milk container should be cleaned regularly.

1. Remove the milk frother container from the machine.
2. Disassemble any removable parts of the frother.
3. Wash all parts by hand with warm, soapy water.
4. Rinse thoroughly with clean water and dry completely before reassembling and storing or reattaching.

6.3 Cleaning the Drip Tray

1. Regularly empty and clean the detachable drip tray.
2. Remove the drip tray and discard any collected liquid.
3. Wash the tray and grid with warm, soapy water, rinse, and dry.

6.4 Descaling

Depending on water hardness, descaling should be performed periodically (e.g., every 2-3 months) to remove mineral buildup. Refer to the descaling instructions provided with a suitable descaling solution, or consult the manufacturer's website for specific guidance.

7. Troubleshooting

If you encounter issues with your Yabano Espresso Machine, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

Information regarding product warranty and customer support was not available in the provided product data. Please refer to the product packaging or the manufacturer's official website for details on warranty coverage and how to contact customer support for assistance.
