Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your DUMOS TV Stand Dresser with 5 Fabric Storage Drawers, Model DUMOS-TV5BC. Please read all instructions carefully before assembly and use to ensure safe and proper functionality.
Safety Information
- Anti-Tip Device: Always install the included anti-tip device to secure the dresser to the wall. This prevents accidental tipping, especially in households with children.
- Weight Capacity: Do not exceed the recommended weight capacity for the top shelf (66 lbs) and individual drawers (11 lbs for large, 7 lbs for small). Overloading can cause structural damage or injury.
- Stable Placement: Place the unit on a flat, level surface to ensure stability. Adjust the feet as necessary to prevent wobbling.
- Proper Use: This unit is designed as a TV stand and storage dresser. Avoid climbing on or hanging from the unit.
- Assembly: Ensure all bolts and fasteners are securely tightened during assembly. Periodically check and re-tighten as needed.
Parts List
Before beginning assembly, verify that all parts are present and undamaged. Refer to the diagram below for identification.
Image: Comprehensive diagram showing all components of the DUMOS TV Stand Dresser, including metal frames, wooden boards, fabric drawers, and hardware.
- A: Side Frame (x1)
- B: Side Frame (x1)
- C: Middle Frame (x2)
- D: Middle Frame (x1)
- E: Cross Tube (x2)
- F: Cross Tube (x3)
- G: Middle Board (x1)
- H: Top Board (x1)
- I: Expanded Drawer (x5) - (3 small, 2 large)
- J: Base Board for Drawer (x5) - (3 small, 2 large)
- K: Drawer Handle (x5)
- Hardware: Bolts (various sizes), Allen wrench, adjustable feet.
Assembly Instructions
Follow these steps for proper assembly. An installation video is also available for visual guidance.
Video: Official DUMOS TV Stand Dresser Installation Guide. This video demonstrates each assembly step visually.
- Step 1: Install Adjusting Feet
Install the 4 adjusting feet to the bottom of the Side Frames (A & B). Ensure they are securely tightened.
Image: Close-up of a hand screwing an adjustable foot into the base of a metal side frame.
- Step 2: Connect Side Frames with Cross Tubes
Use Bolts (2)*10 to attach Cross Tube (F) to the top of the Side Frames (A & B). Note: Side Frames (A & B) should face the same direction, with holes facing backward.
- Step 3: Install Middle Frame (D) to Cross Tubes (E&F)
Install Middle Frame (D) to the Cross Tubes (E & F) using Bolts (2)*4. Ensure all connections are firm.
- Step 4: Install Middle Frame (C) to Cross Tube (E)
Install Middle Frame (C)*2 to the Cross Tube (E) with Bolts (2)*4. These frames will support the smaller drawers.
- Step 5: Install Middle Board (G)
Install the Middle Board (G) to the Side Frames (A & B) with Bolts (5)*4 and to the Middle Frame (C)*2 with Bolts (4)*2. This forms the shelf above the smaller drawers.
- Step 6: Attach Top Board (H)
Attach the Top Board (H) to the frame, and tighten the Bolts (3)*5. This completes the main structure of the unit.
- Step 7: Assemble Drawers (I & J)
Place Base Board for Drawer (J) into the expanded Drawer (I), and install the Drawer Handle (K) with Bolts (7)*2. Install the two Drawers (I)*2 in the same way. Repeat for all 5 drawers.
- Step 8: Install Anti-Tip Device
If you need to fix the Dresser TV Stand to the wall, drill holes in the wall with an electric drill, then insert Expansion Tube (9)*2 and fix the Dresser TV Stand with Bolts (8)*2. This is a crucial safety step.
- Step 9: Insert Drawers
Put the installed drawers (K & I) into the frame in turn. Ensure they slide smoothly.

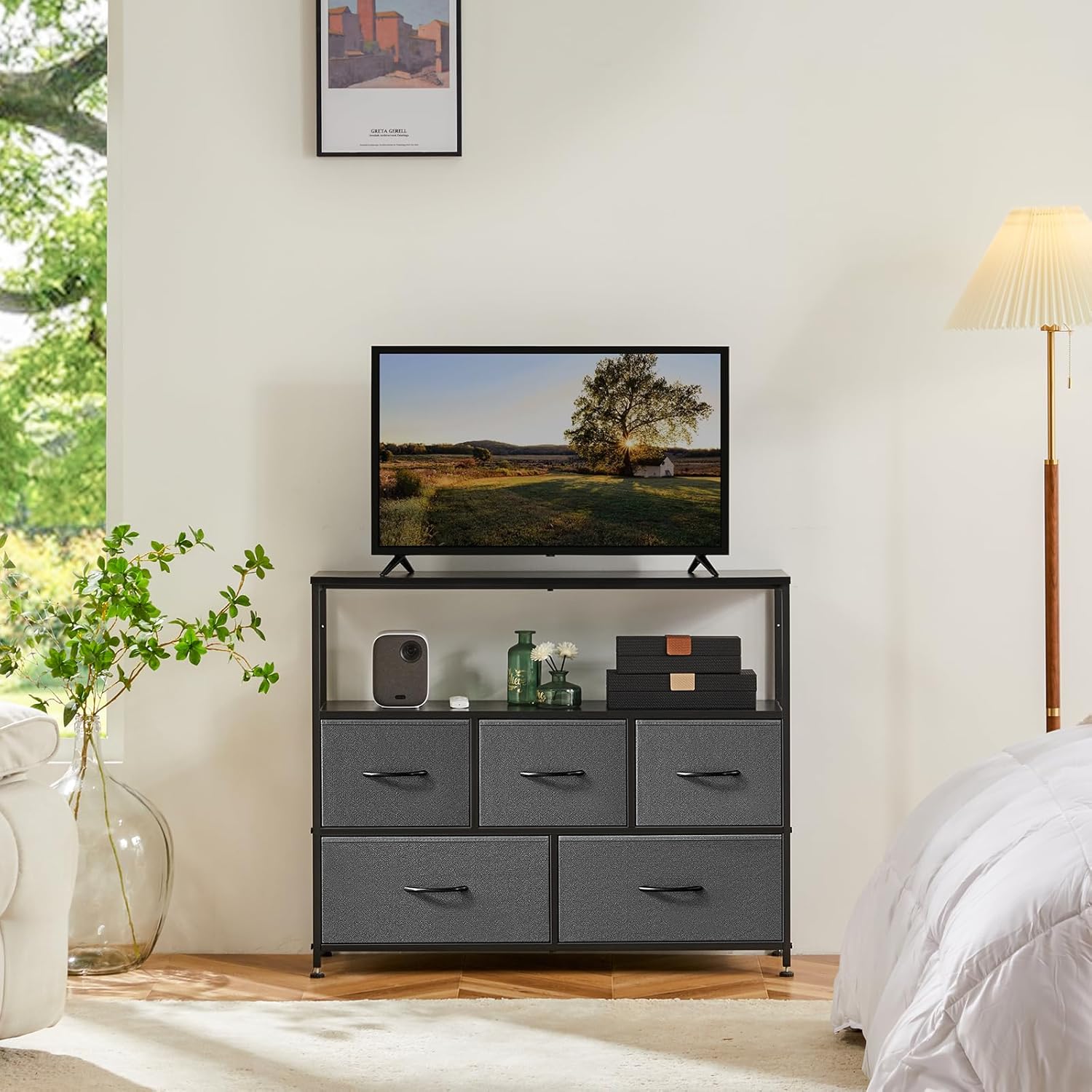

Image: The completed DUMOS TV Stand Dresser with all drawers in place, showcasing its functional design.
Operating Instructions
Your DUMOS TV Stand Dresser is designed for versatile storage and media display.
- Drawer Use: The 5 fabric drawers are ideal for organizing clothing, accessories, media, or other household items. Pull handles gently to open and push firmly to close.
- Top Shelf: The top wooden shelf can accommodate a TV up to 45 inches or serve as a display area for decorative items, lamps, or other electronics.
- Middle Shelf: The open middle shelf provides additional space for media devices, books, or decorative accents.
- Versatile Placement: This unit can be used in living rooms, bedrooms, dorms, or entryways as a TV stand, dresser, or general storage unit.
Image: The TV stand dresser integrated into a living space, demonstrating its use for a television and storage.
Maintenance
- Cleaning Frame: Wipe the metal frame and wooden shelves with a soft, damp cloth. Avoid harsh chemicals that may damage the finish.
- Cleaning Drawers: The fabric drawers can be spot cleaned with a mild detergent and a damp cloth. Allow to air dry completely. Do not machine wash.
- Regular Checks: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten if necessary to maintain stability.
- Avoid Moisture: Keep the unit away from excessive moisture or direct sunlight to prevent warping or fading of materials.
Troubleshooting
- Unit is Wobbly:
- Ensure the unit is on a flat surface.
- Adjust the leveling feet at the bottom of the frame until stable.
- Check all assembly bolts and tighten any loose connections.
- Drawers Do Not Slide Smoothly:
- Ensure the drawer base board (J) is fully inserted and flat within the fabric drawer (I).
- Verify that the middle frames (C & D) are correctly installed and not bent.
- Ensure drawers are not overloaded, which can cause them to sag.
- Missing Parts:
- Refer to the Parts List and contact customer support if any components are missing.
Specifications
| Feature | Detail |
|---|---|
| Brand | DUMOS |
| Model Name | TV Stand Dresser with 5 Fabric Storage Drawers |
| Item Model Number | DUMOS-TV5BC |
| Product Dimensions | 11.8"D x 39.4"W x 31.9"H |
| Color | Grey |
| Material | Wood, Metal, Fabric |
| Number of Drawers | 5 |
| Item Weight | 31.3 pounds |
| Assembly Required | Yes |
| Max TV Size | Up to 45 inches |
| Top Board Capacity | 66 lbs |
| Drawer Capacity (Large) | 11 lbs |
| Drawer Capacity (Small) | 7 lbs |
Image: Visual representation of the dresser's dimensions and weight limits for various components.
Warranty & Support
For any questions, concerns, or assistance with your DUMOS TV Stand Dresser, please contact our customer support team. We are committed to ensuring your satisfaction.
- Customer Service: Refer to your purchase documentation or the DUMOS official website for contact information.
- Warranty: This product comes with a standard manufacturer's warranty. Please retain your proof of purchase for any warranty claims.
