Rfiver Mobile TV Stand with Casters

Introduction

Thank you for purchasing the Rfiver Mobile TV Stand. This stand is designed to accommodate televisions and monitors ranging from 27 to 55 inches, with a maximum load capacity of 40kg and VESA compatibility from 100x100mm to 400x400mm. It features a stable wooden base, height adjustment, 35-degree swivel, and silent casters for easy mobility. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your TV stand.

Safety Information

• Ensure your TV's size, VESA pattern, and weight are within the specified limits (27-55 inches, VESA 100x100mm to 400x400mm, max 40kg). Exceeding these limits can cause instability and damage.
• Always assemble the stand on a soft, clean surface to prevent scratches.
• Do not overtighten screws during assembly.
• Keep children and pets away from the assembly area.
• Use the included safety lock to secure the TV to prevent accidental falling.
• Lock the casters when the stand is in a stationary position to prevent unintended movement.
• Distribute weight evenly on the shelf; do not exceed the shelf's maximum load capacity (10kg).

Package Contents

Before assembly, please verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer support.

• TV Stand Main Body Components
• Assembly Hardware (Screws, washers, spacers, etc.)
• Assembly Instructions Manual

Note: All necessary tools for assembly are included in the package.

Specifications

Figure 1: Product Dimensions Diagram. This image illustrates the various measurements of the TV stand, including the adjustable height range from 115.9cm to 131.9cm, the base dimensions, and the TV mounting bracket dimensions.

Setup and Assembly Instructions

Follow these steps carefully to assemble your Rfiver Mobile TV Stand. Refer to the included printed manual for detailed diagrams and part numbers.

Step 1: Prepare the Base

1. Unpack all components and lay them out on a soft, flat surface.
2. Attach the casters to the wooden base. Ensure all casters are securely fastened.

Figure 2: Wooden Base and Casters. This image shows the robust wooden base and the silent, lockable casters, emphasizing stability and ease of movement.

Step 2: Assemble the Main Column

1. Connect the vertical support columns.
2. Attach the assembled column to the base using the provided screws.

Step 3: Install the Shelf

1. Slide the accessory shelf onto the main column.
2. Adjust the shelf to your desired height and secure it with the locking mechanism.

Figure 3: Height Adjustment. This image illustrates how the TV mounting bracket and the accessory shelf can be adjusted vertically to achieve optimal viewing height.

Step 4: Attach the TV Mounting Bracket

1. Attach the VESA mounting arms to the back of your television using the appropriate screws and spacers.
2. Carefully lift the TV and hook the mounting arms onto the main bracket on the stand.
3. Secure the TV to the stand using the safety lock mechanism to prevent accidental dislodgement.

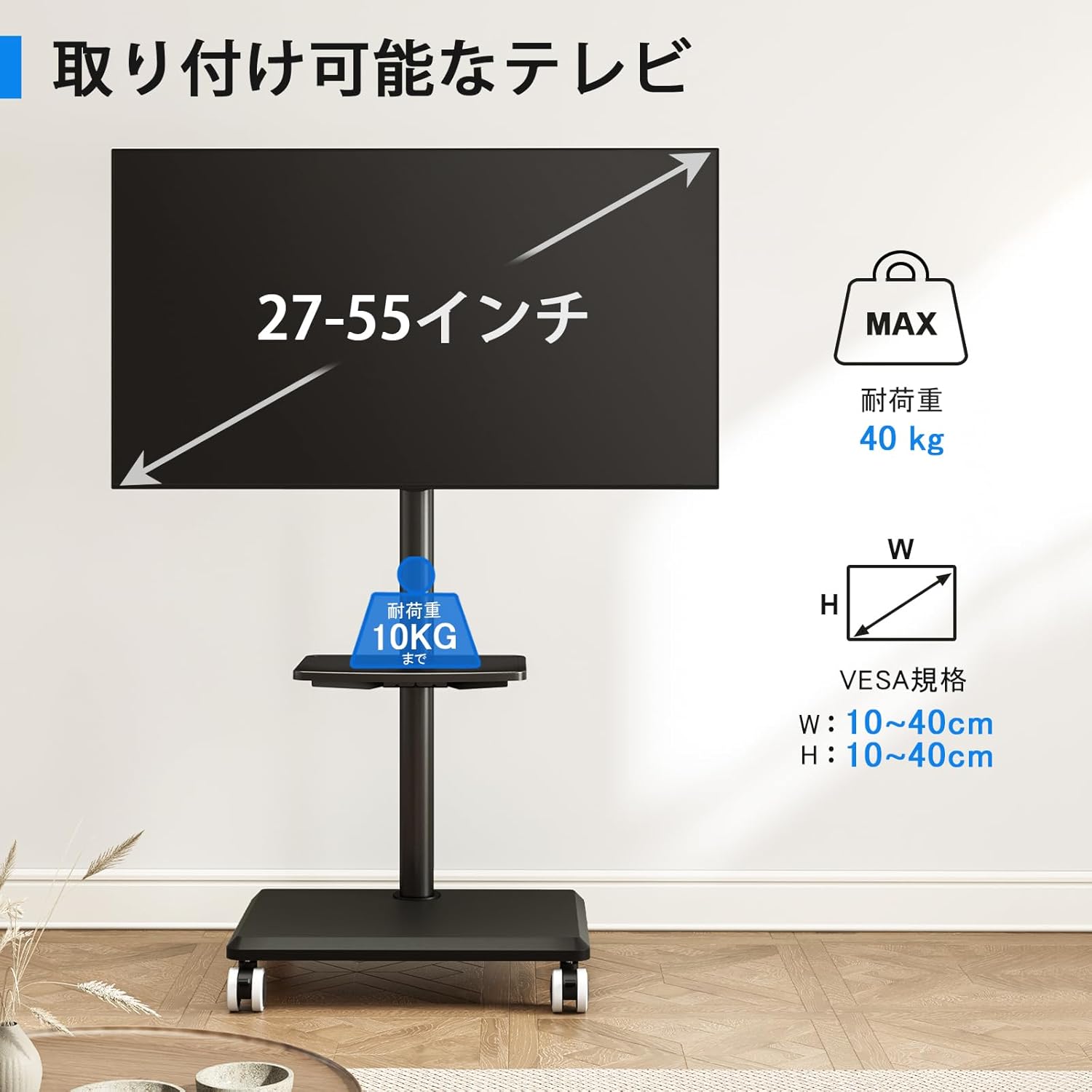

Figure 4: TV Compatibility. This diagram outlines the supported TV sizes (27-55 inches), VESA mounting patterns (100x100mm to 400x400mm), and maximum weight capacity (40kg).

Video 1: Product Features Overview. This video demonstrates key features such as the 35-degree swivel, height adjustment, cable management, and silent casters for easy movement.

Operating Instructions

Adjusting TV Height

To adjust the TV height, loosen the locking screws on the main column, slide the TV mounting bracket to the desired height (between 115.9cm and 131.9cm), and then securely tighten the locking screws. Ensure the TV is stable after adjustment.

Swiveling the TV

The TV can be swiveled up to 35 degrees left or right. Gently push the TV to the desired angle. Ensure the stand remains stable and does not tip over during adjustment.

Moving the Stand

To move the TV stand, unlock all casters. Gently push the stand to its new location. Once in position, lock all casters to prevent accidental movement and ensure stability.

Figure 5: Easy Mobility. This image shows a user effortlessly moving the TV stand, highlighting the convenience of its silent, 360-degree swivel casters.

Cable Management

Utilize the cable management clips on the back of the main column to neatly route and secure power cords and other cables. This helps maintain a tidy appearance and prevents tripping hazards.

Maintenance

• Cleaning: Wipe the stand with a soft, dry cloth. For stubborn marks, use a slightly damp cloth with mild soap, then dry thoroughly. Avoid harsh chemicals or abrasive cleaners.
• Inspections: Periodically check all screws and connections to ensure they are tight and secure. Retighten if necessary.
• Casters: Keep casters free of debris to ensure smooth movement. Lubricate if they become stiff.

Troubleshooting

Warranty and Support

The Rfiver Mobile TV Stand comes with a 5-year warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by improper assembly, misuse, accidents, or unauthorized modifications.

For warranty claims, technical support, or replacement parts, please contact Rfiver customer service through the retailer where you purchased the product or visit the official Rfiver website for contact information.
