Generico BL-5C

Generico BL-5C Battery Instruction Manual

For Uleway G180, G380, G380D and Ushining G380S, M2301, M2302, F200 Mobile Phones

1. Introduction

This instruction manual provides important information for the safe and effective use of your Generico BL-5C replacement battery. Please read this manual thoroughly before installation and use, and retain it for future reference. This battery is designed to provide reliable power for compatible mobile phone models.

2. Product Overview and Specifications

The BL-5C battery is a rechargeable Lithium-ion battery designed as a replacement for specific mobile phone models. It offers stable performance and is built with safety features.

  • Model: BL-5C
  • Battery Type: Lithium-ion (Li-ion) Rechargeable Battery
  • Nominal Voltage: 3.7VDC
  • Capacity: 1000mAh (3.7Wh)
  • Recharge Voltage: 4.2VDC
  • Compatible Devices: Uleway G180, Uleway G380, Uleway G380D, Ushining G380S, Ushining M2301, Ushining M2302, Ushining F200
  • Protections: Integrated against overcharge, short circuit, and overheating.

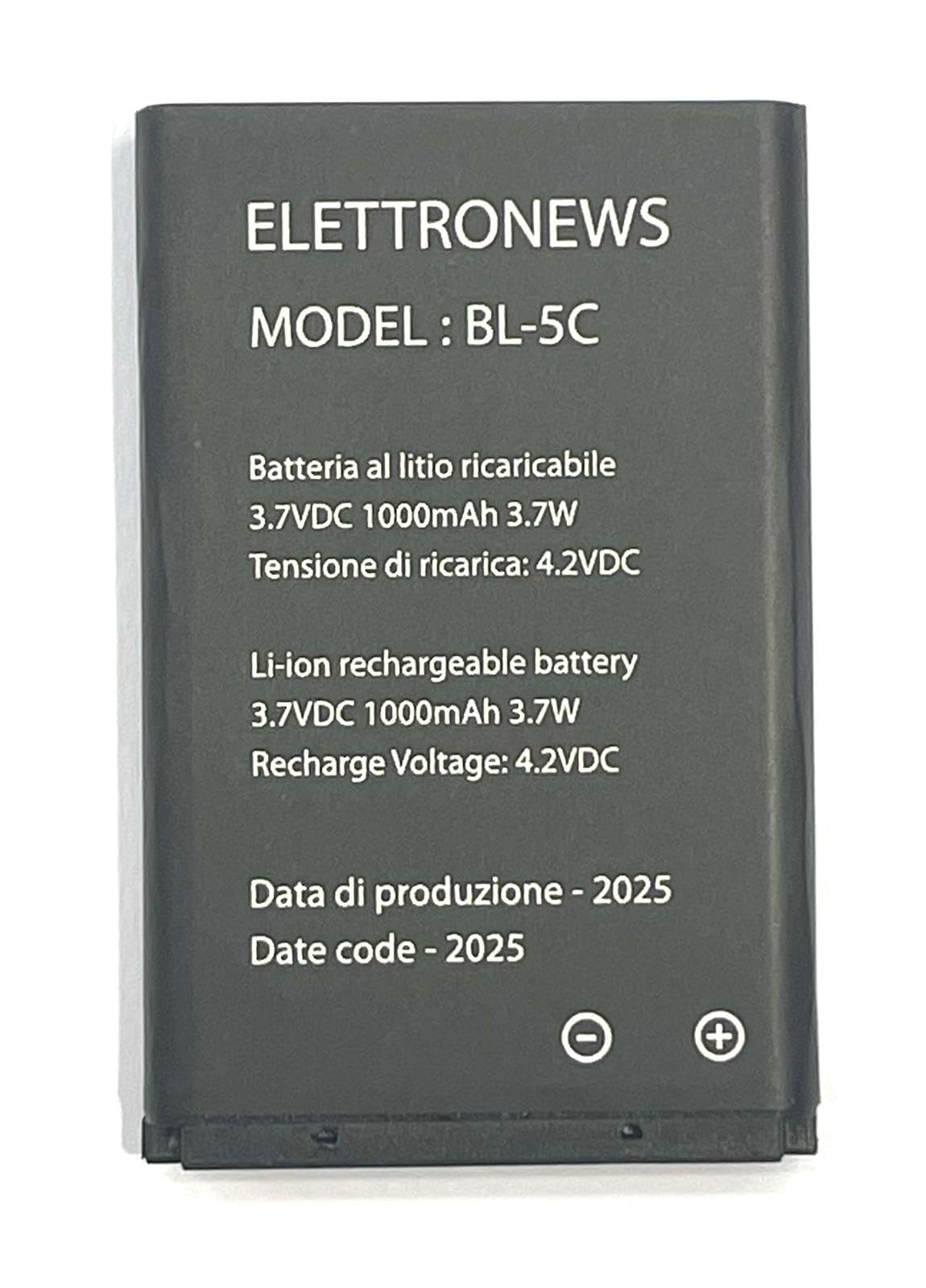

Front view of the BL-5C battery showing model number, voltage, and capacity.

Image 1: Front of the BL-5C battery displaying "Elettronews", "MODEL: BL-5C", "3.7VDC 1000mAh 3.7W", and "Recharge Voltage: 4.2VDC".

3. Safety Information and Warnings

To prevent damage, injury, or fire, observe the following safety precautions:

  • Do not heat the battery or place it near heat sources.
  • Do not expose the battery to fire.
  • Do not short-circuit the battery terminals with metal objects.
  • Charging Temperature: Ensure charging occurs within 0°C to 40°C (32°F to 104°F).
  • Do not disassemble, puncture, or deform the battery.
  • Do not immerse the battery in water or other liquids.
  • Use only compatible chargers designed for BL-5C type batteries.
  • Avoid overcharging or deep discharging the battery. Unplug the charger once the battery is full.
  • Do not leave the battery unattended during charging.
  • If the battery appears swollen, damaged, or leaks, discontinue use immediately and dispose of it properly.
  • Keep out of reach of children.
Back view of the BL-5C battery showing safety warnings in Italian and English.

Image 2: Back of the BL-5C battery with safety warnings including "Do not Heat or near the fire source", "Charging temperature: 0-40°C", and "Do not exposure to metal or short-circuit electrode".

4. Installation

  1. Power Off Device: Ensure your mobile phone is completely powered off before attempting battery installation.
  2. Remove Old Battery (if applicable): Open the battery compartment cover of your phone and carefully remove the existing battery.
  3. Insert New Battery: Align the metal contacts of the BL-5C battery with the corresponding contacts in the phone's battery compartment. Gently press the battery into place until it sits securely.
  4. Close Cover: Replace the battery compartment cover.
  5. Initial Charge: For optimal performance, fully charge the new battery before its first use.

5. Charging and Usage

  • First Use: It is recommended to fully charge the battery before its initial use.
  • Charging: Connect your phone to a compatible charger. The battery typically takes approximately 2.5 hours to fully charge.
  • Optimal Charging: Avoid charging in extreme temperatures. The ideal charging temperature range is 0°C to 40°C.
  • Regular Use: For best battery longevity, avoid completely draining the battery frequently. Partial discharges and charges are generally better for Li-ion batteries.

6. Maintenance and Storage

  • Cleaning: If necessary, gently clean the battery terminals with a dry, soft cloth.
  • Long-Term Storage: If storing the battery for an extended period, charge it to approximately 40-60% capacity. Store it in a cool, dry place, away from direct sunlight and extreme temperatures.
  • Avoid Extreme Temperatures: Do not expose the battery to very high or very low temperatures, as this can degrade performance and shorten its lifespan.

7. Troubleshooting

  • Battery Not Charging:
    • Ensure the charger is properly connected to both the phone and a power source.
    • Verify that the charger is compatible and functional.
    • Check for any debris or damage to the charging port or battery terminals.
    • If the battery is severely depleted, it might take a few minutes for the charging indicator to appear.
  • Short Battery Life:
    • Ensure the battery has been fully charged.
    • Reduce background applications and screen brightness on your phone.
    • Extreme temperatures can affect battery performance.
    • If the battery is old, its capacity may naturally decrease over time.
  • Battery Swelling: If the battery appears swollen, discontinue use immediately and dispose of it safely according to local regulations. Do not attempt to charge or use a swollen battery.

8. Disposal

This product contains a Lithium-ion battery. Do not dispose of the battery with household waste. Proper disposal is essential to protect the environment and human health. Please recycle the battery at an authorized collection point for electronic waste or batteries. Consult your local authorities for information on recycling centers.

Cardboard shipping box with UN3480 hazardous material label.

Image 3: Shipping box indicating UN3480 classification for lithium batteries, highlighting proper handling for transport.

Close-up of UN3480 hazardous material label for lithium batteries.

Image 4: Detailed view of the UN3480 label, which signifies that the package contains lithium-ion batteries and requires specific handling during shipping.

9. Warranty and Support

For warranty information, technical support, or any inquiries regarding your BL-5C battery, please contact the manufacturer, Elettronews, using the details below:

Certificate of Conformity for the battery.

Image 5: Certificate of Conformity, indicating that the product meets relevant safety and quality standards.
