Introduction
Thank you for choosing the Avera MHWM Ice Maker. This appliance is designed to provide you with a convenient and efficient way to produce bullet-shaped ice for various uses, including beverages, cocktails, and smoothies. Please read this manual carefully before operating the ice maker to ensure safe and optimal performance.

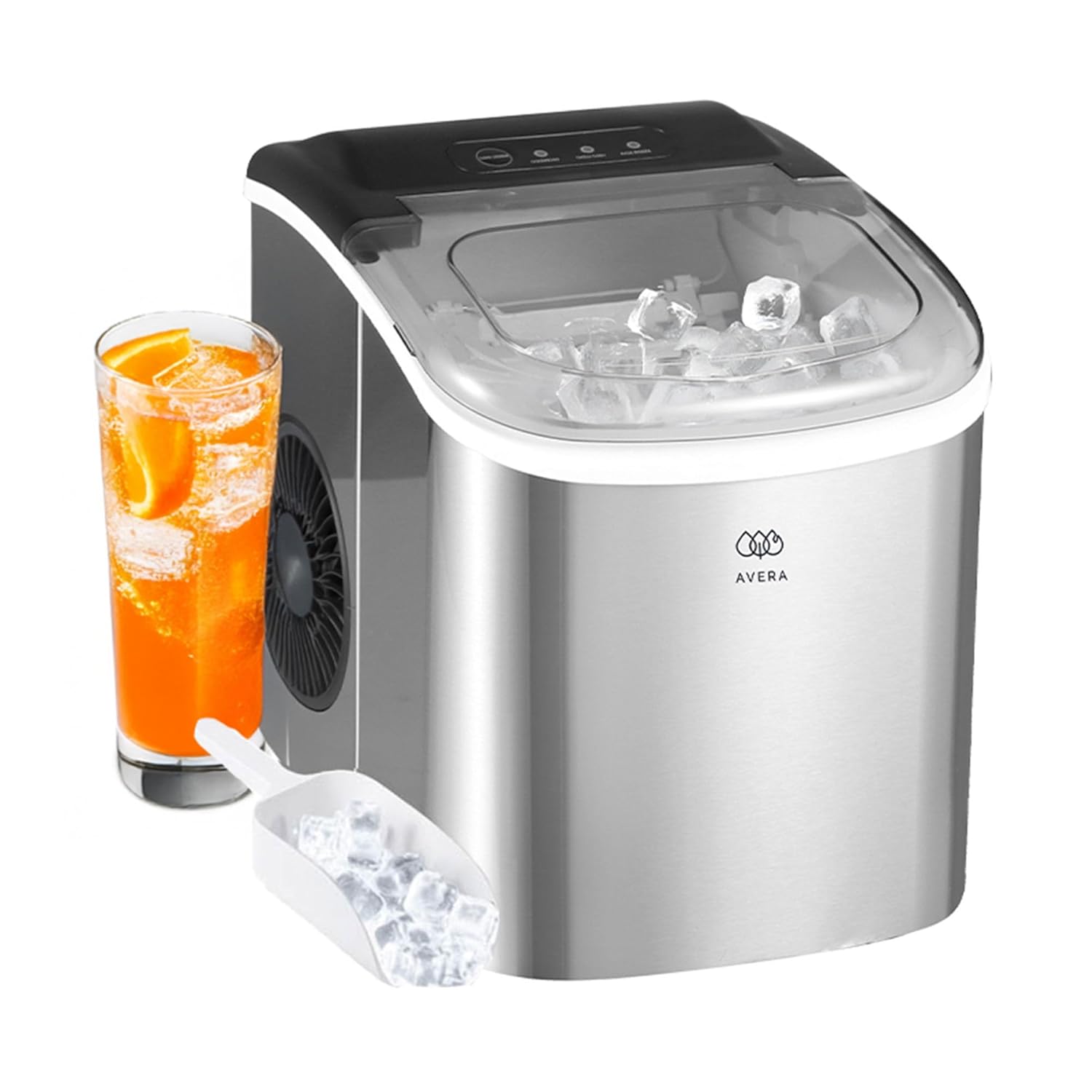

Image: The Avera MHWM Ice Maker in stainless steel finish, shown with a glass of orange drink and a white ice scoop filled with bullet ice.
Product Features
- Rapid Ice Production: Produces bullet-type ice quickly, up to 12 kg per day.
- Efficient Cycle: Generates 9 ice cubes per cycle.
- Large Water Tank: Features an internal water tank with a capacity of 1.2 Liters.
- Self-Cleaning Function: Includes an automatic self-cleaning mode for easy maintenance.
- Low Noise Operation: Designed for quiet performance, suitable for various environments.
- Compact and Portable: Its elegant design and size make it easy to move and store without complicated installation.
Image: A diagram highlighting the ice maker's features, including 12 kg daily production, 9 cubes per cycle, self-cleaning function, and a 0.6 kg ice basket.
Image: A diagram illustrating more features, such as the 1.2 L internal water tank, low noise level, and 1-year warranty.
Setup
- Unpacking: Carefully remove the ice maker from its packaging. Retain all packaging materials for future storage or transport.
- Placement: Place the ice maker on a stable, level surface away from direct sunlight and heat sources. Ensure there is adequate ventilation around the unit.
- Initial Cleaning: Before first use, clean the interior of the ice maker. Refer to the 'Maintenance' section for detailed cleaning instructions.
- Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the specifications of the appliance.
Image: The Avera MHWM Ice Maker shown with its removable ice basket and a white ice scoop, ready for setup.
Operating Instructions
- Fill Water Tank: Open the lid and fill the internal water tank with clean, potable water up to the MAX fill line. The tank capacity is 1.2 Liters. For best results and larger ice cubes, use cold water.
- Start Ice Production: Close the lid and press the 'ON/OFF' button. The ice maker will begin the ice-making cycle.
- Ice Collection: The first batch of ice will typically be ready in approximately 9 minutes. Ice will be dispensed into the ice basket.
- Add Water Indicator: If the water level is too low, the 'Add Water' indicator light will illuminate. Refill the water tank to continue ice production.
- Ice Full Indicator: When the ice basket is full, the 'Ice Full' indicator light will illuminate, and the machine will pause. Remove ice from the basket to resume production.
- Stop Operation: To stop the ice maker at any time, press the 'ON/OFF' button.
Image: A front-angle view of the Avera MHWM Ice Maker, showcasing its control panel and the clear lid, with an ice scoop in the foreground.
Maintenance
Regular cleaning and maintenance will ensure the longevity and hygienic operation of your Avera MHWM Ice Maker.
Self-Cleaning Function
- Ensure the ice maker is empty of ice and water.
- Fill the water tank with clean water and a small amount of mild detergent or a vinegar solution (follow manufacturer's recommendations for cleaning solutions).
- Press and hold the 'CLEAN' button (or refer to your specific model's button for self-cleaning) for a few seconds to activate the self-cleaning cycle.
- The machine will run through a cleaning process. Once complete, drain the water from the unit.
- Rinse the water tank and interior thoroughly with clean water to remove any cleaning solution residue.
General Cleaning
- Exterior: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Interior: Periodically clean the water tank and ice basket with a mild soap solution and rinse thoroughly.
- Air Vents: Keep the air vents on the sides and back of the unit clear of dust and obstructions to ensure proper ventilation.
Image: A side view of the Avera MHWM Ice Maker, highlighting the fan vent on the left side, important for proper air circulation.
Image: Another side view of the Avera MHWM Ice Maker, showing the exhaust vent on the right side, crucial for heat dissipation.
Troubleshooting
If you encounter issues with your ice maker, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Ice maker not producing ice. | No water in tank; power issue; ambient temperature too high. | Fill water tank; check power connection; ensure proper ventilation and cooler environment. |
| Ice cubes are too small or soft. | Water temperature too warm; ambient temperature too high. | Use colder water; ensure proper ventilation and cooler environment. |
| 'Add Water' indicator is on. | Water tank is empty or low. | Refill the water tank with clean water. |
| 'Ice Full' indicator is on. | Ice basket is full. | Remove ice from the basket. |
| Unusual noise during operation. | Unit not level; fan obstruction. | Ensure the unit is on a level surface; check for obstructions around the fan vents. |
Specifications
| Attribute | Detail |
|---|---|
| Brand | AVERA |
| Model Name | MHWM |
| Product Model Number | MHWM |
| Capacity | 1.2 Liters (Water Tank) |
| Material | Plastic, Stainless Steel |
| Product Dimensions (L x W x H) | 29.4 x 22.2 x 29 cm |
| Product Weight | 6.8 kg |
| Manufacturer | AVERA |
Image: A technical drawing illustrating the precise dimensions of the Avera MHWM Ice Maker: 22.2 cm length, 29.4 cm depth, and 29 cm height.
Warranty and Support
Warranty Information
The Avera MHWM Ice Maker comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact AVERA customer support. You can visit the official AVERA store on Amazon for more information and contact details:
The seller of this product is AVERA.
