Product Overview
The AM.PM II12709, CPA1900SC, II90151 kit provides a comprehensive solution for a modern bathroom, combining a wall-hung WC with a soft-close seat, a robust wall-mounted frame, and a stylish chrome flush plate. This system is designed for minimalist aesthetics, hygiene, and efficient water usage.
Image: Complete AM.PM wall-hung WC kit including the toilet bowl, wall frame, and flush plate.
The kit is delivered in two separate packages for convenience. Please note that the toilet seat is designed to cover the bowl and is not intended for use as a standalone seat.
Key Features
Rimless Wall-Hung WC (CPA1900SC)
This rimless toilet bowl design minimizes dirt, germs, and bacteria accumulation, ensuring quick and easy cleaning. It represents a new generation of FlashClean rimless toilets, constructed entirely without plastic components for enhanced hygiene.
- Hygienic Design: Rimless bowl for superior cleanliness.
- Dimensions: Approximately 370 x 370 x 485 mm.
- Material: 100% plastic-free construction.
Image: The wall-hung WC showcasing its classic and modern design, designed by AM.PM Design, Germany.
Image: Close-up of the AquaSpin flushing system, illustrating how water jets create a vortex for thorough bowl cleaning and up to 50% water savings.
Wall-Mounted Element (II12709)
The robust wall-mounted frame is designed for high durability and stability, suitable for all toilet bowls. Its slim profile makes it ideal for small bathrooms or guest toilets.
- High Load Capacity: WC hanging bars can support up to 400 kg.
- Space-Saving Design: Flat tank with a depth of 120 mm.
- Silent Operation: Features a silent fill valve (Class II according to EN 14124).
- Enhanced Durability: Increased profile thickness, reinforced water supply pipe, double drainage, and seals for water inlet.
- Connection: Water connection from the back, at the top.
Image: The wall-mounted frame highlighting its high strength and durability, capable of supporting up to 400 kg.
Image: The wall-mounted frame demonstrating its space-saving design due to the narrow 120 mm deep tank and silent fill valve.
Image: The wall-mounted frame illustrating its water-saving and environmentally friendly features, with a 4 to 5-liter flush volume.
Round Chrome Dual-Flush Plate (II90151)
The included actuation plate offers dual-flush functionality for water conservation.
- Flush Modes: 3 L (small flush) and 6 L (full flush).
- Material: Made of durable plastic with a chrome finish.
- Dimensions: 240 x 160 mm.
- Compatibility: Exclusively compatible with AM.PM II12709 Prime Fit front panels.
Soft-Close Toilet Seat
The toilet seat features a soft-close mechanism for quiet and gentle closing, preventing slamming. It also includes a quick-release mechanism for easy removal and cleaning.
- Soft-Close: Automatic gentle lowering system.
- Quick-Fix: Easy installation and removal.
- Material: Duroplast.

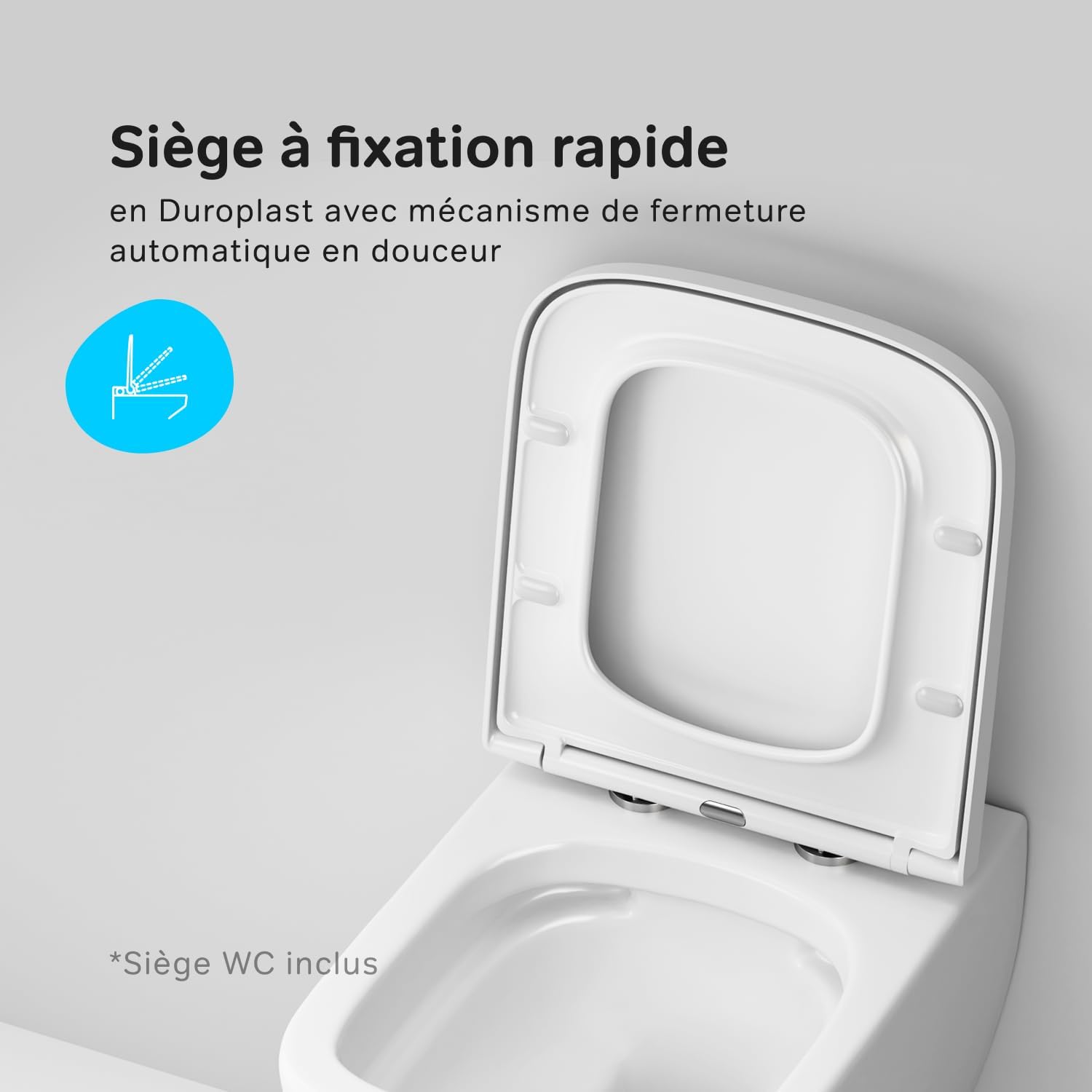

Image: The toilet seat highlighting its quick-fix attachment and soft-close automatic lowering mechanism.
Image: Close-up of the modern sandwich seat with its quick-release mechanism, activated by a simple button.
Setup and Installation
Installation of the AM.PM wall-hung WC kit requires professional plumbing knowledge. It is recommended to consult a qualified installer for proper setup to ensure optimal performance and compliance with local building codes.
Components Included:
- 1 x Rimless Wall-Hung WC (CPA1900SC)
- 1 x Soft-Close Toilet Seat
- 1 x Wall Element (II12709)
- 1 x Round Chrome Dual-Flush Plate (II90151)
- Necessary fixings, pipes, and sound insulation gasket.
Image: The complete delivery kit, including all necessary fixings, pipes, and the sound insulation gasket for installation.
Dimensional Drawings:
Refer to the following technical drawings for precise dimensions and installation requirements of the WC and the wall element.
Image: Technical drawing detailing the dimensions of the wall-hung WC bowl and seat.

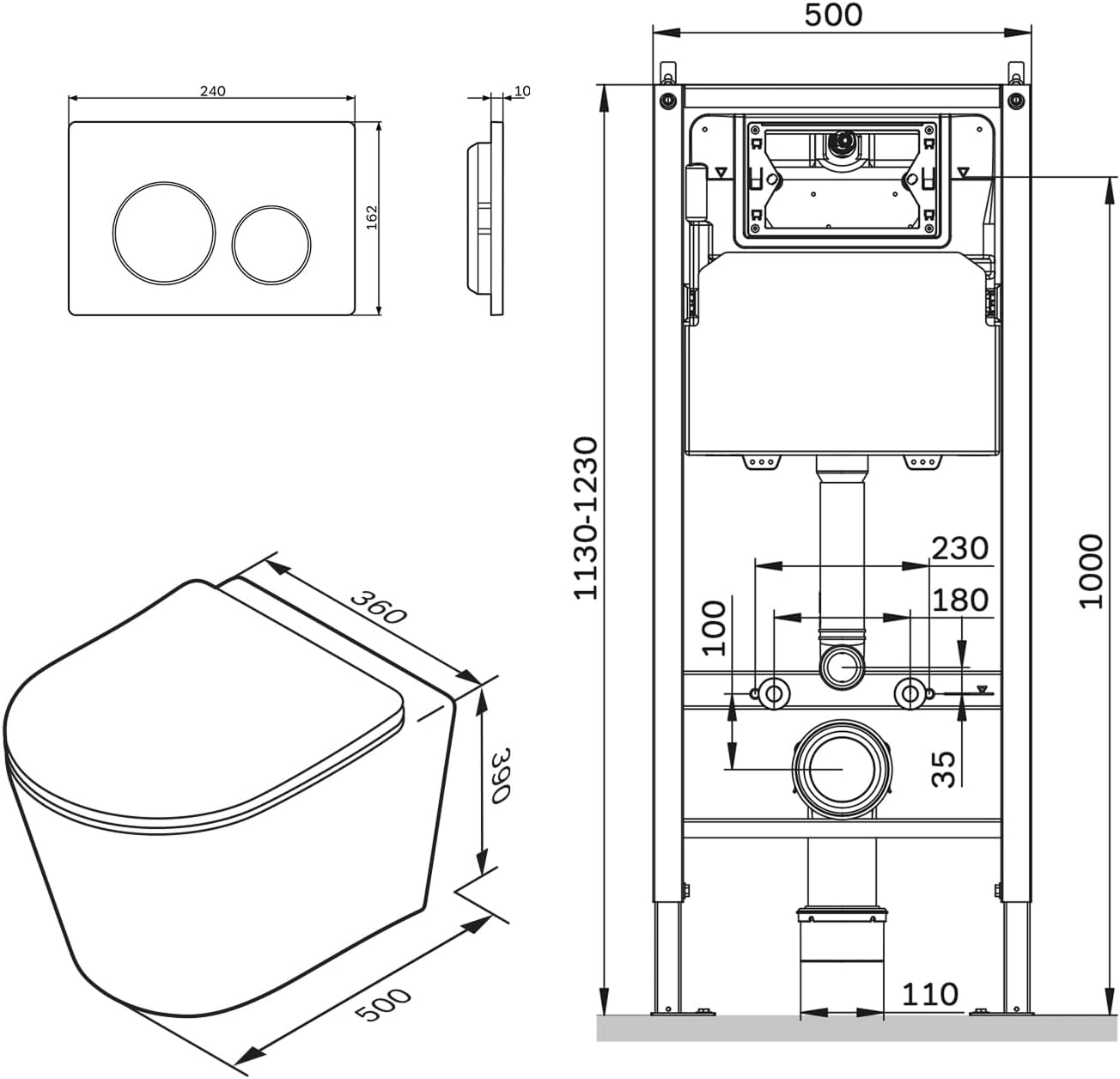

Image: Technical drawing illustrating the overall dimensions of the wall element, flush plate, and the installed WC.
Operating Instructions
The dual-flush plate allows for efficient water usage based on your needs.
- Small Flush (3 L): Press the smaller button on the flush plate for liquid waste.
- Full Flush (6 L): Press the larger button on the flush plate for solid waste.
The soft-close toilet seat will lower gently on its own. Avoid forcing it down, as this can damage the mechanism.
Maintenance and Care
The glazed porcelain material of the WC is highly hygienic and resistant to humidity, making it incredibly easy to maintain.
Image: Illustrates the easy-to-maintain features of the WC, including perfect glazing even in non-visible areas, and resistance to stains and odors.
- Cleaning the WC Bowl: Use mild, non-abrasive cleaners and a soft cloth or sponge. Avoid harsh chemicals, abrasive pads, or strong acids, as these can damage the porcelain glaze.
- Cleaning the Toilet Seat: Clean the Duroplast seat with mild soap and water. The quick-release mechanism allows for easy removal of the seat for thorough cleaning of both the seat and the bowl area.
- Cleaning the Flush Plate: Wipe the chrome flush plate with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
- General Care: Regularly check for any leaks or unusual noises from the wall element. Contact a professional if any issues arise.
Troubleshooting
This section provides general guidance for common issues. For complex problems, it is recommended to contact a qualified plumber or the manufacturer's support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Weak Flush | Low water pressure, partial blockage, or incorrect flush plate setting. | Check water supply valve. Ensure correct flush button is pressed. Inspect for blockages (professional assistance may be required). |
| Continuous Water Flow into Bowl | Faulty fill valve or flush valve seal. | Inspect the fill valve and flush valve for debris or wear. Replacement of parts may be necessary (professional assistance recommended). |
| Toilet Seat Does Not Soft-Close | Damaged soft-close mechanism or hinges. | Check hinges for damage. Ensure proper installation. If mechanism is faulty, replacement may be needed. |
| Unusual Noises from Wall Element | Water pressure issues, loose pipes, or internal component malfunction. | Contact a qualified plumber to diagnose and resolve the issue. |
Specifications
| Feature | Detail |
|---|---|
| Brand | AM.PM |
| Model Numbers | II12709 (Wall Element), CPA1900SC (WC), II90151 (Flush Plate) |
| Material (WC) | Porcelain |
| Material (Toilet Seat) | Duroplast |
| Installation Type | Wall Mount |
| WC Dimensions (L x W x H) | Approx. 500 x 360 x 390 mm |
| Wall Element Depth | 120 mm (flat tank) |
| Wall Element Load Capacity | Up to 400 kg |
| Flush Plate Dimensions (W x H) | 240 x 160 mm |
| Flush Volumes | 3 L / 6 L (dual flush) |
| Fill Valve | Silent, Class II (EN 14124) |
Warranty and Support
AM.PM products are backed by manufacturer warranties to ensure your peace of mind.
- WC Bowl and Wall Frame: 5-year manufacturer's warranty.
- Soft-Close Toilet Seat: 5-year manufacturer's warranty.
- Actuation Plate: 2-year manufacturer's warranty.
For warranty claims, technical support, or spare parts inquiries, please contact AM.PM customer service or visit their official website. Keep your purchase receipt as proof of purchase.
