1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your ATOTOZONE CA-AEC122DL Compact Car Amplifier. The CA-AEC122DL is a 4-channel Class D amplifier designed to enhance your car audio system with powerful and clear sound. Please read this manual thoroughly before use to ensure optimal performance and safety.
2. Safety Information
- Always disconnect the vehicle's battery negative terminal before starting any electrical work.
- Ensure all wiring is properly insulated to prevent short circuits.
- Mount the amplifier securely in a location that does not obstruct driving or vehicle safety systems.
- Avoid installing the amplifier in areas exposed to direct sunlight, excessive heat, moisture, or dust.
- If you are unsure about any installation steps, consult a qualified professional car audio installer.
- Do not attempt to open or modify the amplifier. This will void the warranty and may cause damage or injury.
3. Package Contents
Verify that all items are present in the package:
- ATOTOZONE CA-AEC122DL Amplifier
- 6.5ft/2m Power Cable
- Wire Harness
- 16Pin-to-20Pin Adapter Cable (if applicable for your head unit)
Figure 3.1: Package Contents. This image displays the amplifier unit, the included 6.5ft/2m power cable, the main wire harness, and an adapter cable for specific head unit connections.
4. Product Overview and Features
4.1 Compact Design and Power Output
The CA-AEC122DL amplifier features an ultra-compact design for easy installation in various vehicle spaces, such as under seats or in glove compartments. It delivers significant power output for its size.
- RMS Power Output: 60W x 4 channels at 4Ω (1% THD+N)
- Peak Power Output: 125W x 4 channels at 2Ω (1% THD+N)
- Dimensions: Approximately 12.4 cm (4.88 inches) length, 10.31 cm (4.06 inches) width, 4.09 cm (1.61 inches) height.

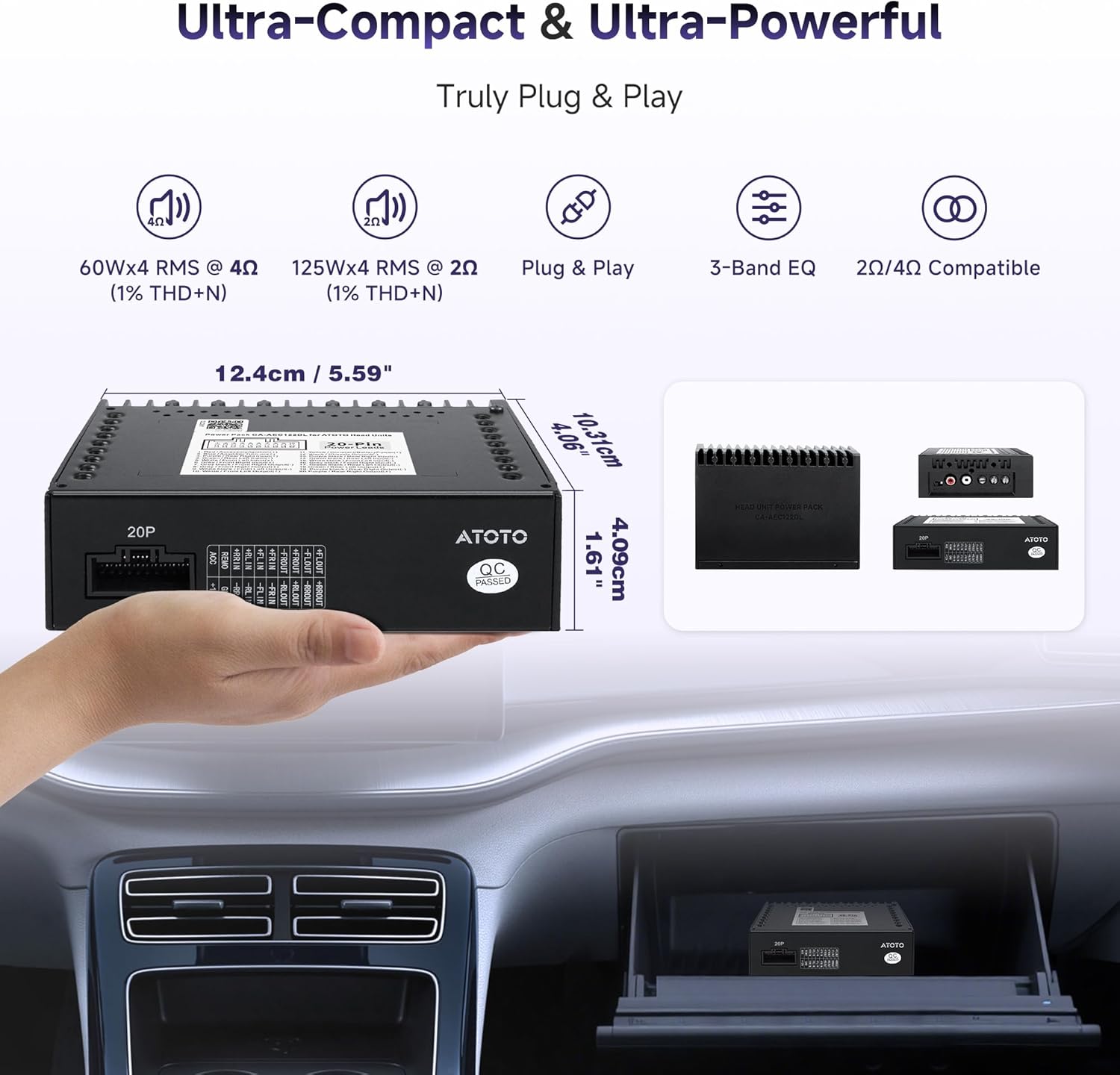

Figure 4.1: Amplifier Dimensions and Power Output. The image highlights the compact size of the amplifier, showing its length, width, and height, along with its RMS and peak power ratings.
4.2 Sound Quality Features
The amplifier is designed to provide clean and high-fidelity audio reproduction.
- Signal-to-Noise Ratio (S/N): >108dB, indicating a very low noise floor.
- Frequency Response: 20Hz-20kHz, covering the full audible spectrum.
Figure 4.2: Sound Quality Specifications. This image visually represents the amplifier's high signal-to-noise ratio and wide frequency response, contributing to clear sound.
4.3 Customizable Equalization (EQ)
The amplifier allows for customization of sound output with a 3-band EQ, enabling adjustment of Bass, Mid, and High frequencies to suit personal preferences.
- Gain Options: 18dB, 24dB, 30dB, 34dB for each band.
Figure 4.3: Equalization Settings. The image shows the adjustable gain levels for Bass, Mid, and High frequencies, allowing users to fine-tune their audio experience.
4.4 Built-in Protections
The amplifier incorporates multiple protection circuits to ensure reliable operation and prevent damage to the unit and connected components.
- Over Voltage Protection: Safeguards against excessive input voltage.
- Under Voltage Protection: Protects the amplifier from insufficient power supply.
- Short-circuit Protection: Prevents damage from shorted speaker wires.
- Overheating Protection: Monitors internal temperature to prevent thermal damage.
- Dual 15A Fuse Design: Provides robust current protection.

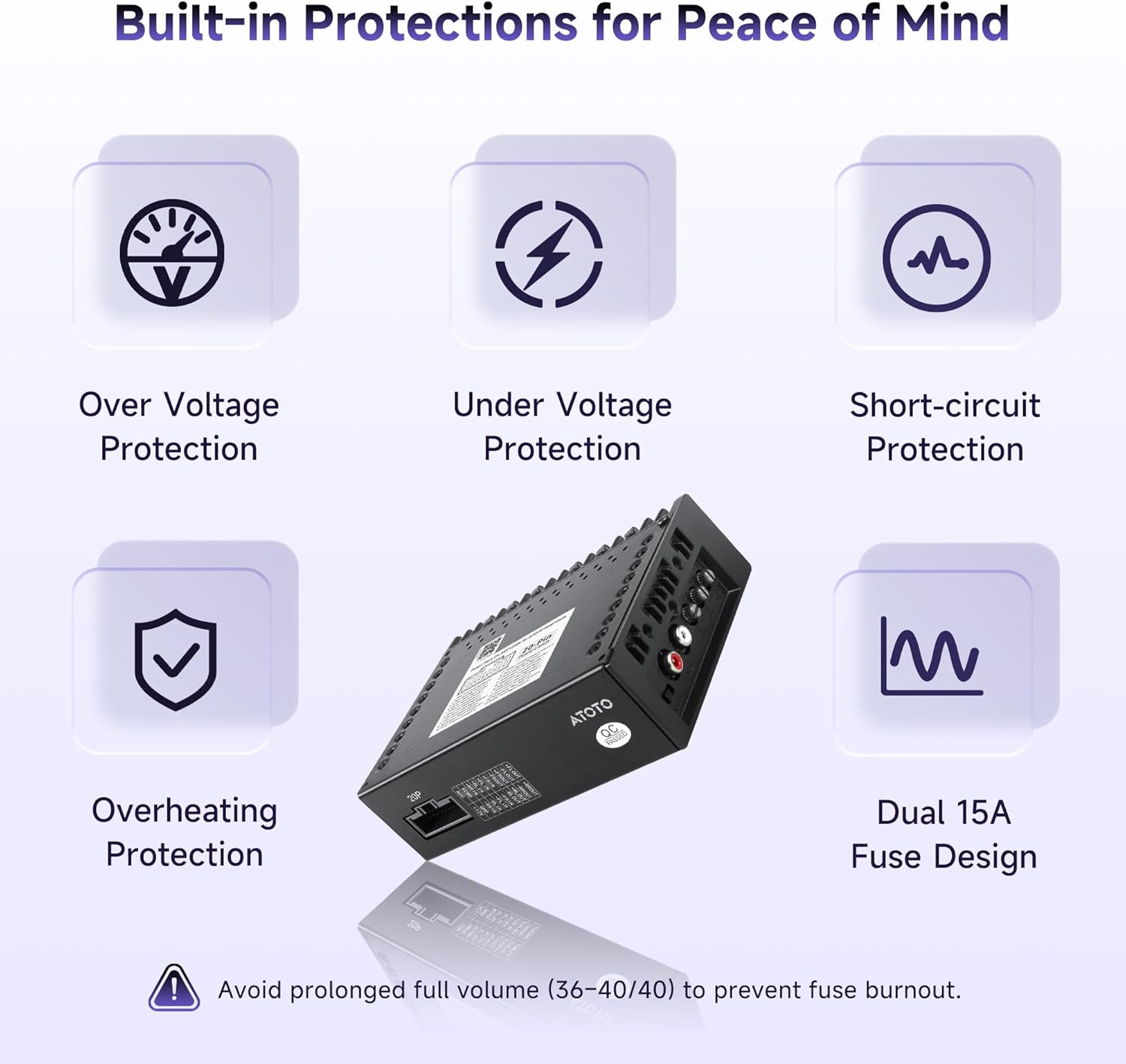

Figure 4.4: Protection Features. This image visually lists the various safety mechanisms integrated into the amplifier to ensure its longevity and safe operation.
5. Setup and Installation
Follow these steps for proper installation of your ATOTOZONE CA-AEC122DL amplifier. It is compatible with select ATOTOZONE car stereos.
- Step 1: Connect Power Cable to Amplifier
Connect the 20-pin end of the 6.5ft/2m Power Cable to the corresponding port on the amplifier. Ensure a secure connection. - Step 2: Plug Wire Harness to Vehicle Interfaces
Plug the Wire Harness into port ① on the power cable, then connect the loose ends of the wire harness to your vehicle's original audio interfaces. - Step 3: Connect to ATOTOZONE Car Stereo
- For ATOTOZONE Car Stereos with 16-PIN Power Socket: Insert port ② of the power cable into the 16-pin power port of your ATOTO car stereo.
- For ATOTOZONE Car Stereos with 20-PIN Power Socket: Connect port ② of the power cable to the 16-pin end of the 16Pin-to-20Pin Adapter Cable. Then, plug the adapter's 20-pin end into your ATOTO car stereo.
- Step 4: Secure the Amplifier
Securely mount the amplifier in a suitable location, such as the glove compartment or under a seat. Ensure it is not exposed to excessive heat or moisture and has adequate ventilation.
Figure 5.1: Installation Guide. This image provides a visual walkthrough of the four installation steps, from connecting cables to securing the amplifier in the vehicle.
5.1 Compatible Head Units
The CA-AEC122DL amplifier is designed for compatibility with various ATOTOZONE car stereo series, including F7, S8, A6, A5L, and X10 Series.

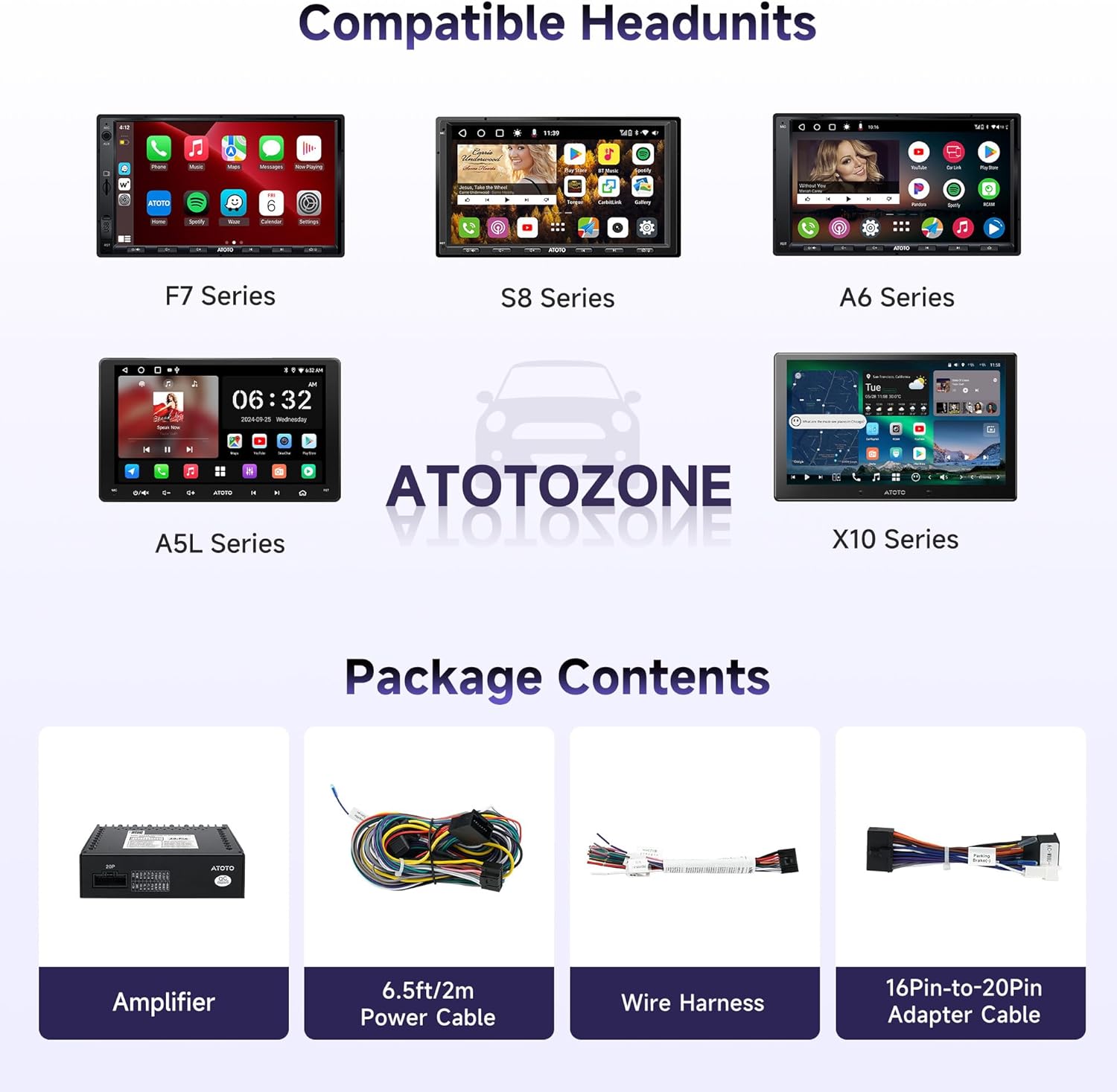

Figure 5.2: Compatible ATOTOZONE Head Units. The image shows examples of ATOTOZONE car stereos that can be paired with this amplifier for enhanced audio performance.
6. Operating Instructions
Once installed, the amplifier operates in conjunction with your ATOTOZONE car stereo. The primary controls for audio playback, volume, and basic equalization will be managed through your head unit.
- Power On/Off: The amplifier powers on and off automatically with your car stereo.
- Volume Control: Adjust the master volume through your car stereo's controls.
- Equalization: Utilize the 3-band EQ feature (Bass, Mid, High gain) as described in Section 4.3 to fine-tune your sound. These settings are typically adjusted via the amplifier's internal controls or a connected ATOTOZONE head unit's audio settings, if supported.
- Speaker Compatibility: The amplifier is compatible with 2Ω and 4Ω speakers. For optimal performance, ensure your speakers match the amplifier's output capabilities.
Figure 6.1: Amplifier-Speaker Connection. This image depicts the amplifier's connection to car speakers, emphasizing its compatibility with various speaker impedances and its role in delivering amplified audio.
Note: It is recommended to adjust the volume to 10-20 (peak 40) for the best sound quality. Avoid prolonged full volume (36-40/40) to prevent fuse burnout and potential damage to components.
7. Maintenance
- Cleaning: Use a soft, dry cloth to clean the amplifier's exterior. Do not use harsh chemicals or abrasive cleaners.
- Inspection: Periodically check all wiring connections to ensure they are secure and free from corrosion or damage.
- Ventilation: Ensure the amplifier's mounting location allows for adequate airflow to prevent overheating. Do not block ventilation openings.
8. Troubleshooting
If you experience issues with your amplifier, refer to the following common problems and solutions. If the problem persists, contact ATOTOZONE customer support or a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power |
|
|
| No Sound Output |
|
|
| Distorted Sound |
|
|
9. Specifications
| Feature | Specification |
|---|---|
| Brand | ATOTOZONE |
| Model | CAAEC122DL |
| Number of Channels | 4 |
| RMS Output Power (4Ω) | 4 x 60W (1% THD+N) |
| Peak Output Power (2Ω) | 4 x 125W (1% THD+N) |
| Signal-to-Noise Ratio | >108dB |
| Frequency Response | 20Hz-20kHz |
| Voltage | 12 Volts (DC) |
| Mounting Type | Freestanding |
| Parcel Dimensions | 22.5 x 13.89 x 10.9 cm |
| Item Weight | 1.11 kg |
| Manufacturer | Shenzhen Yufengzhixing Electronics Tech Co Ltd |
10. Warranty and Support
ATOTOZONE products are designed and manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official ATOTOZONE website. Keep your purchase receipt as proof of purchase.
