Treasure Garden AKZ PLUS Cantilever Umbrella User Manual

Product Overview

The Treasure Garden AKZ PLUS Cantilever Umbrella is designed to provide extensive shade and enhance your outdoor living space. Featuring a durable Sunbrella canopy and a robust powder-coated aluminum frame, this umbrella offers superior performance and longevity. Its advanced mechanisms allow for flexible positioning to maximize shade throughout the day.

Figure 1: The Treasure Garden AKZ PLUS Cantilever Umbrella, featuring a rectangular Sunbrella Spectrum Indigo canopy and a black frame with a stationary base.

Key Features

• Sunbrella Canopy: Offers superior fade resistance, UV protection, and long-term durability.
• Durable Frame: Constructed with powder-coated aluminum and a 100% Kevlar mesh lift cord for reliable strength and stability.
• Large Shade Coverage: The 10'x13' rectangular canopy provides 130 square feet of shade, ideal for large outdoor spaces.
• 360° Rotation: Features a foot pedal for effortless 360-degree rotation, allowing for continuous shade adjustment.
• Multi-Angle Tilt: Provides infinite front-to-back and left-to-right tilting up to 54 degrees for customizable shade.
• Stationary Base: Includes an AKZ13 Stationary Base with add-on weights and a foot pedal for secure placement (sand not included for filling base).

Figure 2: Sunbrella canopy features, including UV resistance, durability, easy cleaning, and fade resistance.

Setup and Assembly

Carefully unpack all components and ensure all parts are present before beginning assembly. It is recommended to have at least two people for safe and efficient setup.

1. Base Placement: Position the stationary base in your desired outdoor location. Ensure the surface is level and stable.
2. Fill Base (if applicable): If using the add-on weights for the stationary base, fill them with sand as per the instructions provided with the base. This adds stability and prevents tipping. (Note: Sand is not included and must be purchased separately.)
3. Attach Pole: Securely attach the main pole of the umbrella to the stationary base. Follow the specific fastening instructions provided in the separate assembly guide for the AKZ PLUS system.
4. Canopy Attachment: Carefully attach the canopy to the umbrella frame. Ensure all arms and supports are correctly aligned and locked into place.
5. Final Checks: Before first use, verify that all connections are tight and the umbrella is stable.

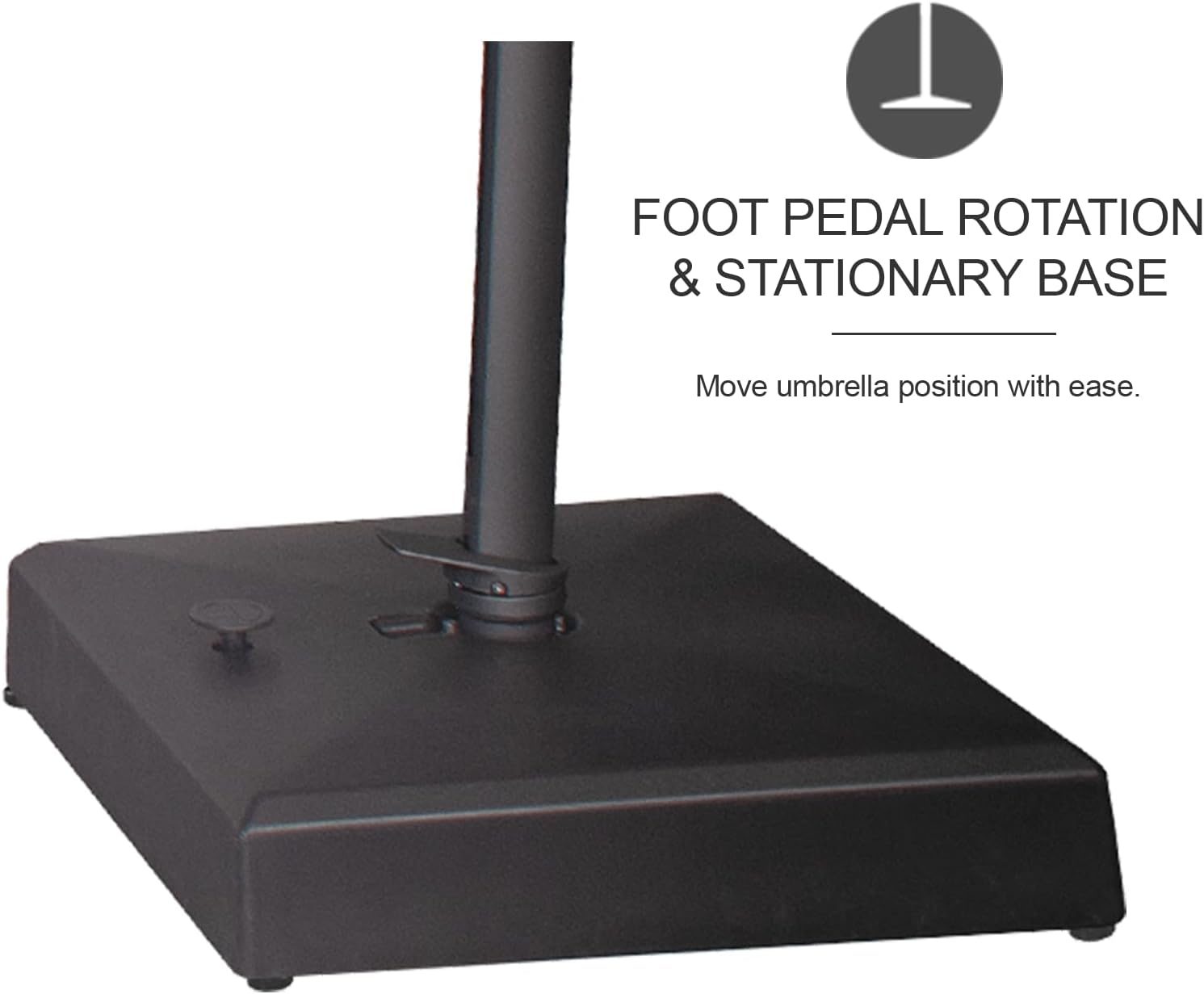

Figure 3: The stationary base with foot pedal for rotation.

Operating Instructions

The AKZ PLUS Cantilever Umbrella offers intuitive controls for adjusting shade as needed throughout the day.

Opening and Closing the Canopy

• To open the canopy, locate the crank handle on the main pole. Turn the handle clockwise until the canopy is fully extended and taut.
• To close the canopy, turn the crank handle counter-clockwise until the canopy is fully retracted. Secure any ties or straps to keep the canopy neatly folded when not in use.

360° Rotation

• To rotate the umbrella, locate the foot pedal at the base of the main pole.
• Press down on the foot pedal to disengage the locking mechanism.
• Gently rotate the umbrella to the desired position.
• Release the foot pedal to lock the umbrella in place.

Figure 4: Visual representation of the umbrella's 360-degree rotation.

Multi-Angle Tilting

• The umbrella features a tilting mechanism located on the arm.
• Adjust the tilt by manipulating the designated lever or button (refer to specific mechanism on your model) to achieve the desired angle.
• The umbrella can tilt infinitely front-to-back and left-to-right up to 54 degrees to block low-angle sun.

Figure 5: Demonstrating the multi-angle tilting feature for optimal shade.

Maintenance and Care

Regular maintenance will extend the life and appearance of your Treasure Garden umbrella.

Canopy Care (Sunbrella Fabric)

• General Cleaning: Brush off loose dirt. Spray with a mild cleaning solution (e.g., 1/4 cup mild soap per gallon of lukewarm water). Use a soft brush to clean. Rinse thoroughly until all soap residue is removed. Air dry.
• Deep Cleaning: For stubborn stains, a bleach solution (1 cup bleach per gallon of water) can be used on Sunbrella fabrics. Test in an inconspicuous area first. Rinse thoroughly.
• Mold/Mildew: For mold or mildew, prepare a solution of 1 cup bleach and 1/4 cup mild soap per gallon of water. Apply to the fabric, allow to soak for 15 minutes, then clean with a soft brush and rinse thoroughly.
• Storage: Always ensure the canopy is completely dry before folding and storing to prevent mildew.

Frame Care (Powder-Coated Aluminum)

• Cleaning: Wipe the frame with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots.
• Inspection: Periodically inspect all bolts and connections to ensure they are tight. Tighten as necessary.
• Winter Storage: In colder climates or during extended periods of non-use, it is recommended to store the umbrella indoors or cover it with a protective cover to prevent damage from harsh weather.

Figure 6: The durable powder-coated aluminum frame.

Troubleshooting

This section addresses common issues you might encounter with your cantilever umbrella.

Specifications

• Model: AKZ PLUS Cantilever Umbrella
• Canopy Dimensions: 10 feet x 13 feet Rectangular
• Canopy Material: Sunbrella Spectrum Indigo Fabric
• Frame Material: Powder-Coated Aluminum
• Lift System: Crank Handle with 100% Kevlar Mesh Lift Cord
• Rotation: 360° with Foot Pedal
• Tilt: Multi-angle, infinite front-to-back and left-to-right up to 54°
• Base: AKZ13 Stationary Base (requires sand for filling, not included)
• Item Weight: 104 Pounds
• Manufacturer: Treasure Garden
• ASIN: B0F4CQHL3T

Warranty and Support

For detailed warranty information and customer support, please refer to the official Treasure Garden website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Manufacturer: Treasure Garden

Website: www.treasuregarden.com

Contact: Refer to the website for current contact information (phone, email, support forms).
