Magene PES P505/P515 Power Meter Crankset User Manual

1. Introduction

The Magene PES P505/P515 Power Meter Crankset is a high-precision cycling power measurement device designed to provide accurate and reliable data for cyclists. This manual provides essential information on setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your power meter.

Image: The Magene PES P505/P515 Power Meter Crankset, showcasing its sleek design and integrated power meter spider.

2. Key Features

• Unmatched Precision: Achieve 11% power accuracy with advanced strain gauges, acceleration sensors, and intelligent temperature compensation.
• Lightweight & Durable: Weighing only 625g (99g spider), crafted from 7075 aircraft-grade aluminum with a triple hollow crank design.
• Long-Lasting Battery: Up to 240 hours of ride time with an energy-efficient circuit design.
• Comprehensive Compatibility: Features 110BCD four-bolt design and supports Bluetooth/ANT+ for seamless connection to bike computers and apps.
• All-Weather Reliability: IPX7 waterproof rating ensures consistent performance in rain or shine.
• Advanced Data Insights: Tracks four key cycling metrics: power, cadence, left-right balance, and torque effectiveness.
• Easy Installation & Setup: Pre-assembled crankset with a 24mm steel spindle ensures compatibility with most road bike frames.

Image: Visual representation of the 11% power accuracy, highlighting the precision sensors.

Image: Illustration of the 625g lightweight design and the triple hollow crank structure made from 7075 aircraft-grade aluminum.

3. Setup

3.1 Unpacking and Inspection

Carefully unpack all components. Verify that all parts listed in the Quick Start Guide are present and undamaged. The package includes the Power Meter Cycling unit, Bilateral Crank, and Quick Start Guide.

3.2 Installation

The Magene PES P505/P515 crankset comes pre-assembled for ease of installation. It features a 24mm steel spindle, ensuring wide compatibility with most standard road bike bottom brackets (68mm-86.5mm). Shimano users can typically install it directly without replacing their existing bottom bracket.

Follow these general steps for installation:

1. Ensure your bike's bottom bracket is clean and compatible with a 24mm spindle.
2. Carefully insert the crankset spindle through the bottom bracket.
3. Attach the non-drive side crank arm, ensuring proper alignment.
4. Secure all bolts to the manufacturer's recommended torque specifications. It is advisable to re-check torque after approximately 100 miles of initial use.
5. Install your chainrings (110BCD four-bolt design) and pedals.

Image: Close-up view of the 24mm steel spindle, illustrating its compatibility with various bike frames.

4. Operating

4.1 Connectivity

The Magene PES P505/P515 Power Meter supports both ANT+ and Bluetooth protocols, allowing seamless connection to a wide range of devices:

• Bike Computers: Magene, Garmin, Bryton, and other major brands.
• Training Applications: Strava, Zwift, TrainingPeaks, TrainerRoad, OneLapFit, and more.

Refer to your bike computer or app's instructions for pairing new sensors. The power meter will typically appear as a power and cadence sensor.

4.2 Data Insights

The power meter provides comprehensive data to analyze your pedaling efficiency and performance:

• Power: Real-time power output in watts.
• Cadence: Pedaling revolutions per minute (RPM).
• Left-Right Balance: Percentage of power contributed by each leg.
• Torque Effectiveness: Measures how effectively you are applying torque throughout the pedal stroke.

Image: Graphic illustrating the four essential cycling data metrics tracked by the power meter.

4.3 Calibration

For optimal accuracy, it is recommended to perform a zero-offset calibration before each ride or if you notice inconsistent readings. This can typically be done through your connected bike computer or the Magene utility app. Consult your device's manual for specific calibration procedures.

5. Maintenance

5.1 Battery Charging

The power meter features a long-lasting rechargeable battery, providing up to 240 hours of ride time. When the battery level is low, connect the power meter to a USB-C charging cable (standard, not included) to recharge. The charging port is typically located on the power meter spider.

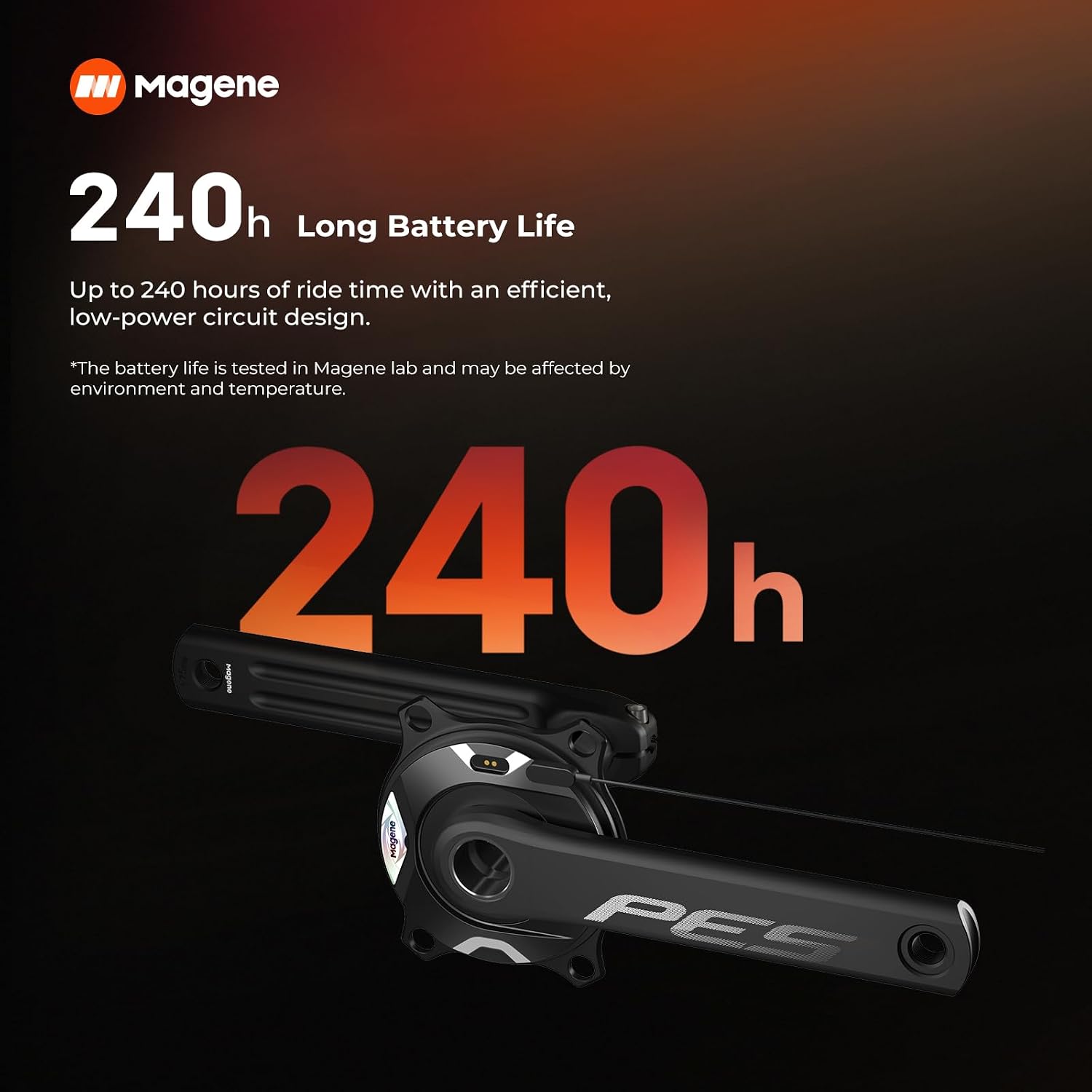

Image: Depiction of the 240-hour long battery life of the Magene power meter.

5.2 Cleaning and Care

The Magene PES P505/P515 Power Meter has an IPX7 waterproof rating, meaning it can withstand immersion in water up to 1 meter for 30 minutes. This ensures reliable performance in various weather conditions. After riding in wet or dirty conditions, wipe down the crankset with a damp cloth to remove dirt and debris. Avoid using high-pressure washers directly on the power meter unit.

6. Troubleshooting

6.1 No Power Reading

• Ensure the power meter is charged.
• Verify that the power meter is properly paired with your bike computer or app.
• Perform a zero-offset calibration.
• Check for any physical damage to the unit.

6.2 Inconsistent Readings

• Perform a zero-offset calibration.
• Ensure the crankset is securely installed and all bolts are torqued correctly.
• Check for any interference from other electronic devices.

6.3 Connectivity Issues

• Ensure Bluetooth/ANT+ is enabled on your receiving device.
• Move the receiving device closer to the power meter.
• Try unpairing and re-pairing the device.
• Check for firmware updates for both the power meter and your receiving device.

7. Specifications

8. Warranty

The Magene PES P505/P515 Power Meter Crankset comes with a 2 Year Manufacturer Warranty. For specific details regarding warranty claims and coverage, please refer to the official Magene warranty policy or contact Magene customer support.

Additionally, the product is subject to a 30-day refund/replacement return policy from the date of purchase.

9. Support

For further assistance, product registration, or to explore other Magene products, please visit the official Magene Store:

Visit the Magene Store on Amazon

You may also find helpful resources and FAQs on the Magene website or by contacting their customer service directly.
