Introduction
This manual provides instructions for the installation, operation, and maintenance of your SERBNOPG Metal Front and Rear Bumper Upgrade Kit. These bumpers are designed to enhance the durability and appearance of your HB Toys ZP1001, ZP1002, ZP1003, ZP1004, ZP1005, ZP1006, ZP1007, ZP1008, ZP1009, and ZP1010 1/10 scale RC cars. Please read this manual thoroughly before installation to ensure proper fit and function.
Setup and Installation
The SERBNOPG metal bumpers are designed for straightforward installation. They are constructed from durable metal, ensuring a strong and wear-resistant upgrade for your RC vehicle.
Installation Steps:
- Prepare Your RC Car: Ensure your RC car is powered off and stable. Remove the body shell to access the chassis.
- Remove Existing Bumpers: Carefully unfasten the screws holding the original plastic front and rear bumpers in place. Keep the screws organized as some may be reused.
- Identify New Bumpers: Distinguish between the new metal front bumper (typically longer with a more pronounced forward angle) and the rear bumper.
- Install Front Bumper: Align the new metal front bumper with the mounting points on the front of your RC car chassis. Secure it using the appropriate screws. Ensure a snug fit without overtightening.
- Install Rear Bumper: Similarly, align and attach the new metal rear bumper to the rear mounting points of the chassis. Secure with screws.
- Final Check: Once both bumpers are installed, gently test their stability. Ensure all screws are tightened and the bumpers are securely attached. Reattach the RC car body shell.

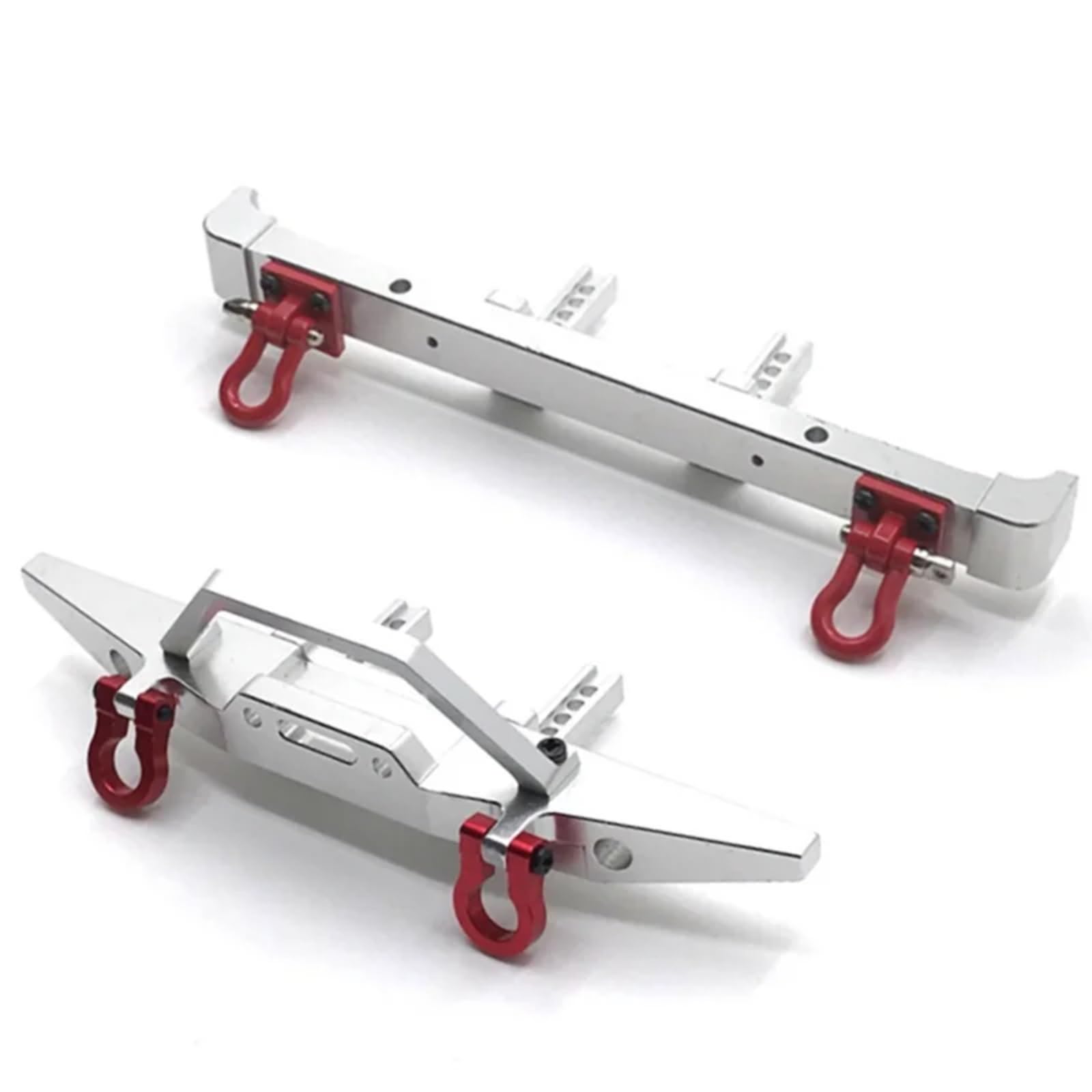

Image 1: SERBNOPG Metal Front and Rear RC Car Bumpers in Silver. This image displays the two silver metal bumpers, showing their design and attachment points, ready for installation on an RC car chassis.
Image 2: SERBNOPG Metal RC Car Bumpers in various colors. This image showcases the front and rear bumper sets available in red, yellow, silver, and black, highlighting the different color options for customization.
Operating Considerations
Once installed, these metal bumpers provide enhanced protection for your RC car during operation. They are designed to absorb impacts and protect critical components during collisions or rollovers. While the bumpers offer significant durability, responsible operation of your RC car is still recommended to prevent excessive damage to the vehicle or its surroundings.
Maintenance
To ensure the longevity and optimal performance of your SERBNOPG metal bumpers, follow these simple maintenance guidelines:
- Regular Cleaning: After use, especially in dusty or muddy conditions, clean the bumpers with a soft brush or cloth to remove dirt and debris. A damp cloth can be used for stubborn grime, followed by drying.
- Inspect for Damage: Periodically inspect the bumpers for any signs of bending, cracks, or loose screws. Address any issues promptly to prevent further damage.
- Check Fasteners: Ensure all mounting screws remain tight. Vibrations during RC car operation can sometimes loosen fasteners.
Troubleshooting
If you encounter issues with your SERBNOPG metal bumpers, consider the following:
- Bumper Does Not Fit: Double-check that you have the correct bumper for the front/rear and that your RC car model (HB Toys ZP1001-ZP1010) is compatible. Ensure no debris is obstructing the mounting points.
- Loose Bumper: Re-tighten all mounting screws. If screws repeatedly loosen, consider using a thread-locking compound (e.g., blue Loctite) sparingly on the screw threads.
- Visible Damage: While durable, extreme impacts can cause damage. If a bumper is significantly bent or broken, replacement may be necessary.
Specifications
| Feature | Detail |
|---|---|
| Material | Metal |
| Quantity | 2 pieces (1 Front Bumper, 1 Rear Bumper) |
| Front Bumper Weight | 66g |
| Rear Bumper Weight | 55g |
| Front Bumper Length | 135mm |
| Rear Bumper Length | 141mm |
| Compatibility | HB Toys ZP1001, ZP1002, ZP1003, ZP1004, ZP1005, ZP1006, ZP1007, ZP1008, ZP1009, ZP1010 1/10 Scale RC Cars |
| Item Weight (Package) | 7.1 ounces |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
Warranty Information
Specific warranty details for this product are not provided in this manual. For information regarding warranty coverage, please refer to the product listing on the retailer's website or contact the seller directly.
Customer Support
If you have any questions, concerns, or require assistance with your SERBNOPG Metal Front and Rear Bumper Upgrade Kit, please contact the seller through the platform where you purchased the product. They will be able to provide further support and guidance.
