tectake Paviljoen 3x3m - Instruction Manual

1. Introduction

This manual provides essential information for the safe and correct assembly, operation, and maintenance of your tectake 3x3 meter gazebo. Designed for outdoor use, this pavilion offers reliable protection from various weather conditions, making it ideal for garden parties, camping, picnics, and other outdoor events. Please read these instructions carefully before use and retain them for future reference.

2. Safety Instructions

Your safety is paramount. Adhere to the following guidelines to prevent injury or damage to the product:

• Anchoring: Always anchor the pavilion firmly and securely to the ground using the provided guy ropes and pegs to prevent overturning, especially in windy conditions.
• Sharp Edges: Exercise caution during assembly and disassembly to avoid contact with any sharp edges or points on the frame components.
• Weather Conditions: While the gazebo is weather-resistant, it is not designed for extreme weather conditions such as heavy storms, strong winds, or significant snowfall. Disassemble the pavilion in such conditions to prevent damage.
• Fire Safety: Keep all heat sources and open flames away from the pavilion's fabric. The material is not fireproof.
• Supervision: Do not leave children unattended near the pavilion.
• Level Ground: Assemble the pavilion on a flat, level surface to ensure stability.

Image: Secure anchoring of the gazebo footplate with a peg and guy rope.

3. Package Contents

Before assembly, ensure all components are present and undamaged:

• Pavilion frame (powder-coated steel)
• Roof canopy (waterproof and UV-resistant polyethylene)
• 3 removable side panels with windows
• 4 guy ropes
• 8 pegs
• Instruction Manual

Image: Diagram illustrating the gazebo's dimensions and included components.

4. Setup Instructions

The tectake pavilion features a simple click system for quick and tool-free assembly. Follow these steps:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
2. Assemble Frame: Connect the powder-coated steel poles using the integrated click system. Ensure all connections are secure and fully engaged.
3. Attach Roof Canopy: Drape the roof canopy over the assembled frame. Secure it to the frame structure according to the manual's diagrams, ensuring it is taut and evenly distributed.
4. Install Side Panels (Optional): If desired, attach the three removable side panels using the Velcro fasteners. The large windows provide ample light.
5. Secure Anchoring: Position the gazebo in your desired location. Use the provided guy ropes and pegs to firmly anchor each leg and corner to the ground. This is crucial for stability.

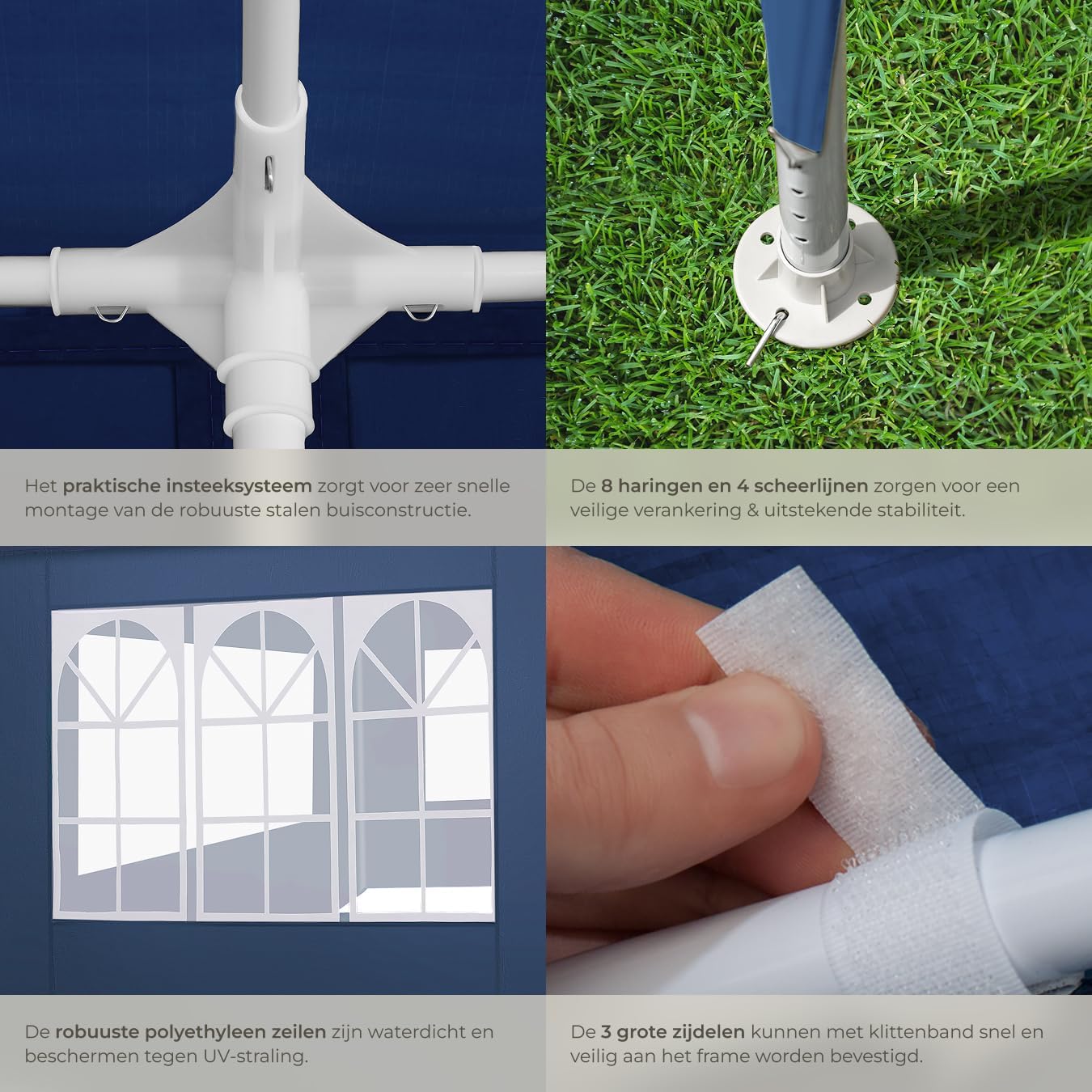

Image: Detail of the frame's plug-in connection system.

Image: Attaching a side panel with Velcro fasteners.

5. Operating Instructions

The tectake pavilion is designed for versatile use in your outdoor space:

• Flexible Configuration: The three removable side panels allow you to adapt the pavilion to your needs. Keep them open for an airy feel or attach them for increased privacy and protection from wind or light rain.
• Weather Protection: The waterproof and UV-resistant canopy provides shade from the sun (UV protection 30+) and shelter from light rain.
• Ventilation: The large windows on the side panels ensure a bright and inviting atmosphere while allowing for natural light.

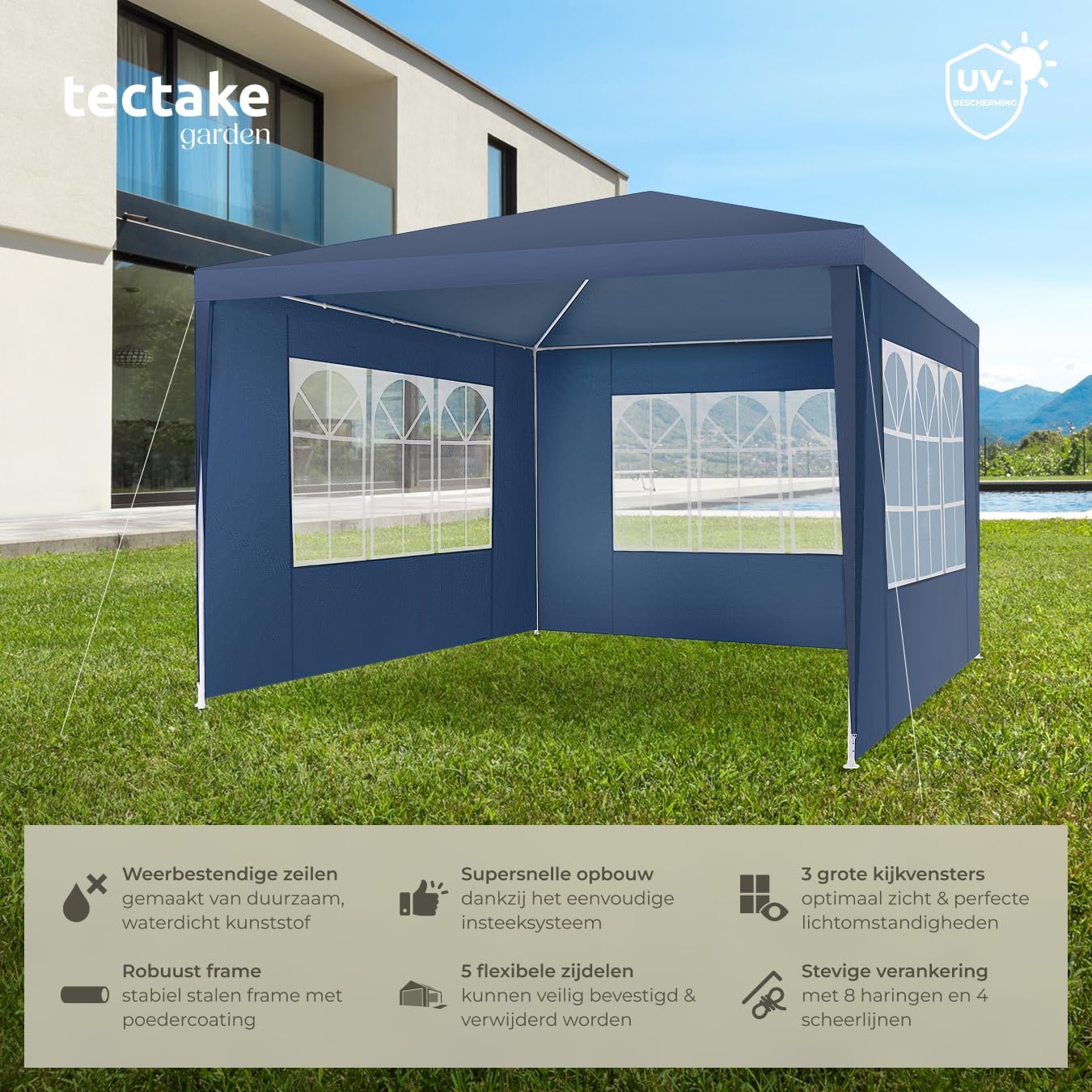

Image: Fully assembled tectake gazebo with side panels.

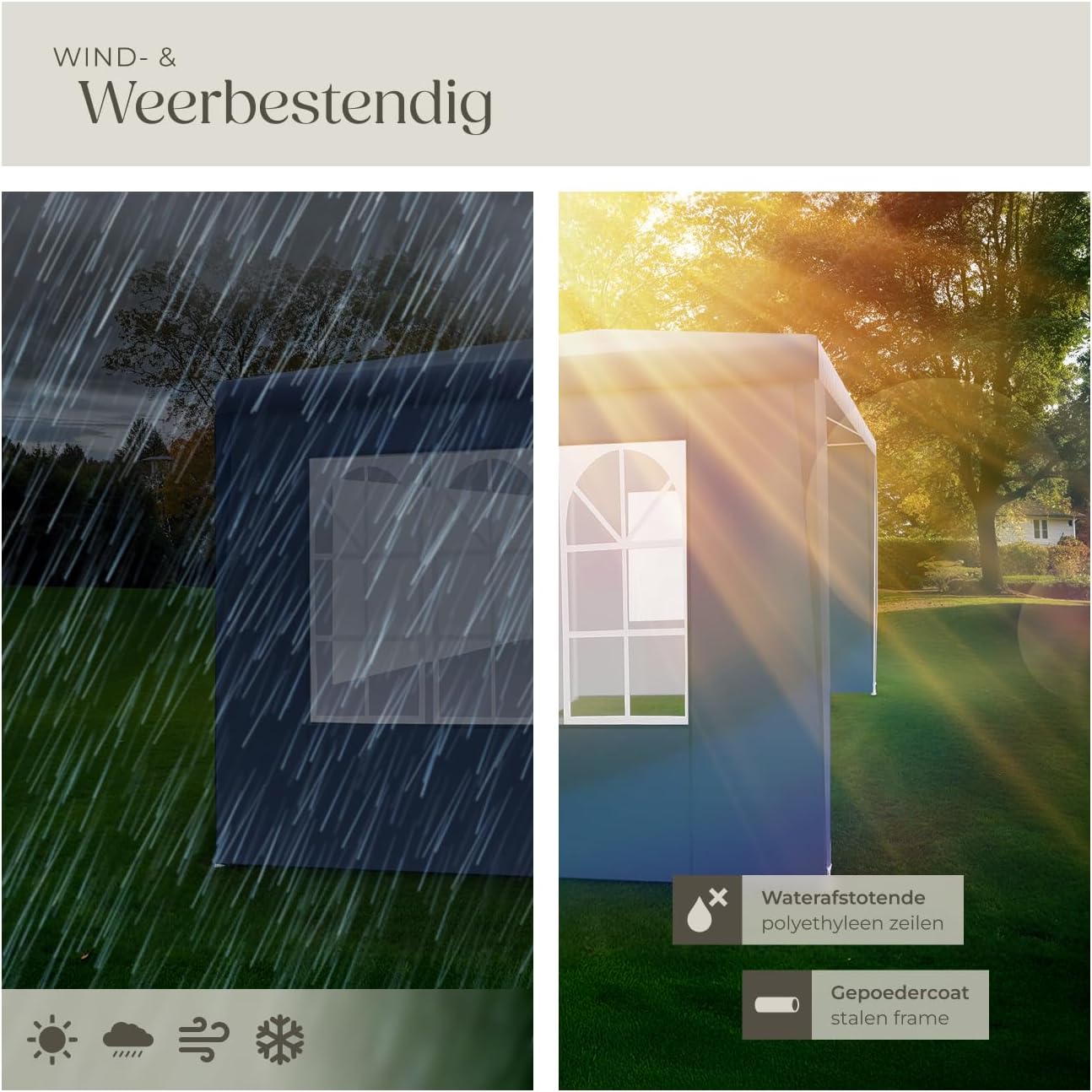

Image: Gazebo providing protection from rain and sun.

6. Maintenance

To ensure the longevity of your tectake pavilion, follow these maintenance tips:

• Cleaning: Clean the canopy and side panels with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners, as these can damage the fabric's waterproof and UV-resistant coating.
• Drying: Ensure all fabric parts are completely dry before storing to prevent mold and mildew growth.
• Frame Care: Inspect the steel frame periodically for any signs of rust or damage. Clean and dry any affected areas.
• Storage: When not in use for extended periods, disassemble the pavilion and store it in a dry, protected area to prolong its lifespan.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Instability: If the pavilion feels unstable, ensure all frame connections are fully engaged and that the guy ropes and pegs are securely anchored to the ground. Re-tension guy ropes if necessary.
• Water Pooling on Roof: Ensure the roof canopy is stretched tightly and evenly over the frame to prevent water from pooling, which can cause damage. Adjust frame connections or canopy tension if needed.
• Difficulty Assembling Frame: Check that you are connecting the correct poles as per the instructions. Do not force connections; if a part doesn't fit, re-check the orientation.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact tectake customer service directly. Keep your proof of purchase handy when contacting support.
