1. Introduction
This user manual provides essential information for the safe operation, maintenance, and troubleshooting of your Toursor X5-52V Adult Electric Scooter. Please read this manual thoroughly before your first ride to ensure proper use and to maximize the lifespan of your scooter.
The Toursor X5-52V is designed for both commuter and off-road use, featuring powerful dual motors and robust construction for a reliable and exhilarating riding experience.
2. Safety Information
WARNING: Riding an electric scooter can be a dangerous activity. Always wear a helmet and appropriate safety gear. Adhere to all local laws and regulations regarding electric scooter use.
- Always wear a certified helmet and protective gear (knee pads, elbow pads, wrist guards).
- Do not ride under the influence of alcohol or drugs.
- Ensure all bolts and fasteners are tightened before each ride.
- Do not exceed the maximum weight limit of 150 kg (330 lbs).
- Avoid riding in heavy rain, snow, or icy conditions. The scooter has an IP55 waterproof rating, but it is not designed for submersion.
- Be aware of your surroundings and other road users.
- Familiarize yourself with the controls before riding at speed.
- Children should not operate this scooter. It is designed for adults.
3. Package Contents and Initial Setup
Upon unboxing, verify that all components are present. The package typically includes:
- Toursor X5-52V Electric Scooter
- Seat assembly (optional, if included with your model)
- Two chargers
- Toolkit
- Keys
- User Manual (this document)
Figure 3.1: Toursor X5-52V Electric Scooter and included accessories.
3.1 Unfolding the Scooter
The scooter features a double-folding lock design for compact storage. To unfold:
- Locate the folding mechanism at the base of the handlebar stem.
- Release the safety lock and lift the handlebar stem until it clicks into place.
- Secure the main locking lever to ensure the stem is firmly upright.
- Ensure the handlebars are securely fastened and aligned.
Figure 3.2: Scooter folding mechanism and dimensions (50.39 inches length, 23.63 inches height folded, 51.18 inches height unfolded).
3.2 Attaching the Seat (if applicable)
If your model includes a seat, follow the instructions provided with the seat assembly to securely attach it to the scooter's deck.
3.3 Initial Charge
Before first use, fully charge the scooter's battery. Connect both chargers to the charging ports on the scooter and then to a power outlet. A full charge typically takes 6-8 hours with dual charging.
4. Operating Instructions
The Toursor X5-52V is equipped with advanced features for performance and safety.
4.1 Controls and Display
Familiarize yourself with the handlebar controls and the LCD display before riding.

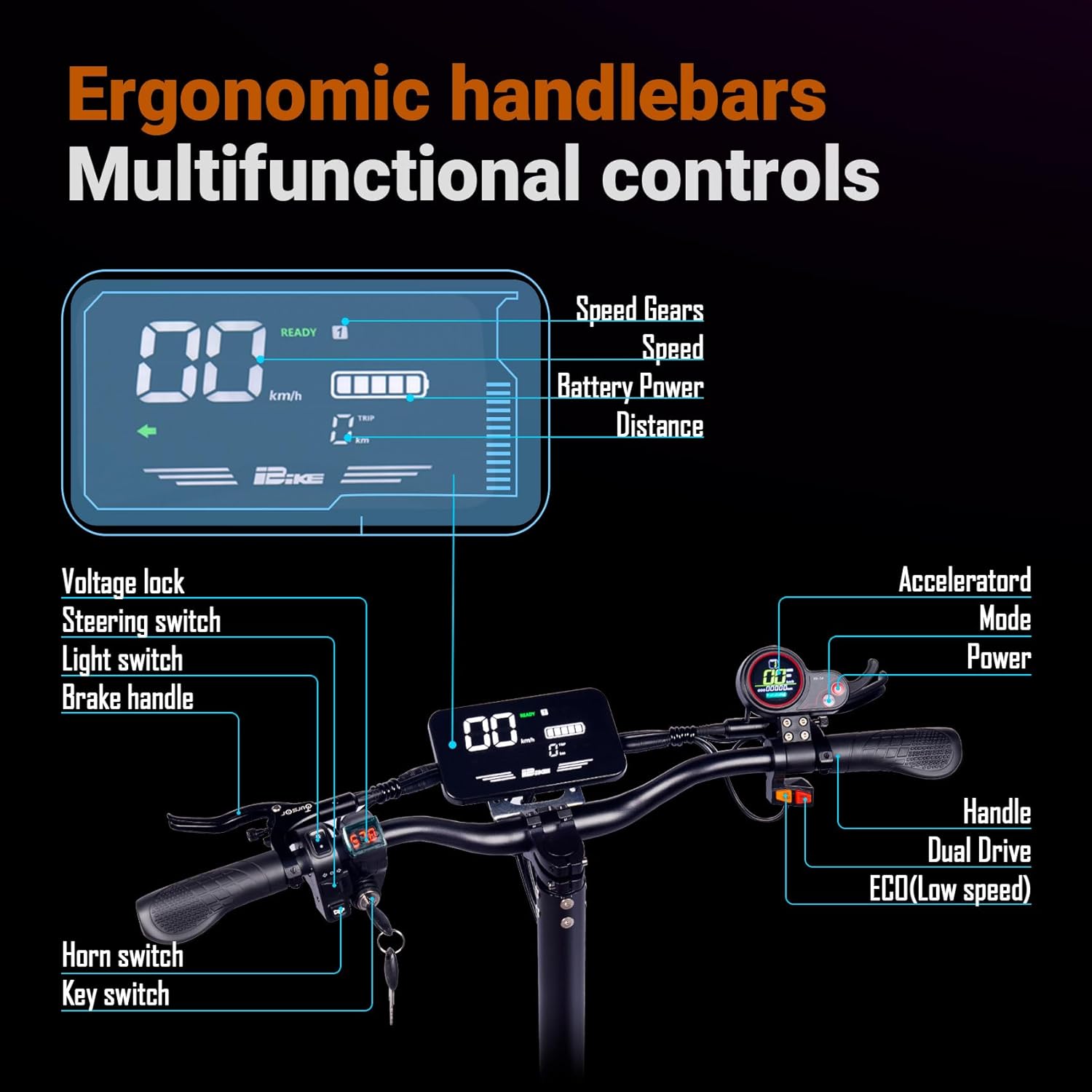

Figure 4.1: Ergonomic handlebars and multifunctional controls.
- LCD Display: Shows Speed Gears, Current Speed, Battery Power, and Distance traveled.
- Key Switch: Turns the scooter on/off.
- Voltage Lock: For security.
- Light Switch: Controls the dual LED headlights and taillights.
- Horn Switch: Activates the horn.
- Brake Handles: Activates the hydraulic disc brakes.
- Accelerator: Controls speed.
- Mode/Power Button: Switches riding modes (e.g., ECO for low speed) and power settings.
- Dual Drive Button: Engages/disengages the dual motor system.
4.2 Riding Modes and Performance
The scooter is powered by dual 2500W brushless hub motors, totaling 5000W, providing a top speed of 40 MPH and a 30° climbing ability. The 52V 25Ah lithium battery offers a range of up to 50 miles (approximately 49 miles or 80 km under standard conditions).
Figure 4.2: Key performance features of the Toursor X5-52V.
Figure 4.3: High-capacity lithium battery for extended range.
4.3 Braking System
The scooter is equipped with a hydraulic disc brake system for effective and quick stopping power. Always apply brakes smoothly to avoid skidding.
4.4 Lighting and Visibility
Dual LED headlights, taillights, turn signals, and brake lights are integrated for enhanced visibility, especially during night riding.
Figure 4.4: Integrated safety and protection features.
4.5 Suspension System
Dual hydraulic shock absorbers and a C-type independent suspension system provide a smooth and comfortable ride across various terrains, absorbing impacts effectively.
Figure 4.5: Advanced shock absorption system.
5. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your Toursor X5-52V scooter.
5.1 Battery Care
- Charge the battery fully after each use, especially if it will be stored for an extended period.
- Avoid completely draining the battery before recharging.
- Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures.
- Use only the original chargers provided.
5.2 Tire and Brake Inspection
- Regularly check tire pressure. Refer to the tire sidewall for recommended PSI.
- Inspect tires for wear, punctures, or damage before each ride.
- Check brake levers for proper tension and ensure the hydraulic disc brakes engage effectively. Adjust or replace brake pads as needed.
5.3 General Cleaning and Inspection
- Clean the scooter with a damp cloth. Do not use high-pressure water jets.
- Periodically check all bolts, screws, and connections for tightness.
- Lubricate moving parts as recommended by a professional if necessary.
6. Troubleshooting
This section addresses common issues you might encounter with your scooter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not turn on. | Battery is low or dead; Key switch not engaged. | Charge the battery; Ensure key is fully inserted and turned. |
| Reduced range or power. | Battery not fully charged; Old battery; Riding conditions (hills, heavy load). | Fully charge battery; Consider battery replacement if old; Adjust riding style. |
| Brakes feel loose or ineffective. | Brake pads worn; Brake cable loose; Hydraulic fluid low. | Inspect and replace brake pads; Adjust brake cable tension; Consult service for hydraulic issues. |
| Unusual noises during operation. | Loose components; Motor issue; Bearing wear. | Check all fasteners; Contact customer support for motor/bearing issues. |
If you encounter issues not listed here or require further assistance, please contact Toursor customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Toursor |
| Model Name | X5-52V |
| Motor Power | Dual 2500W Brushless Hub Motors (Total 5000W) |
| Battery | 52V 25Ah Lithium Battery (21700 cells) |
| Max Speed | 40 MPH |
| Max Range | Up to 50 miles (approx. 49 miles / 80 km) |
| Climbing Ability | 30° |
| Weight Limit | 150 Kilograms (330 lbs) |
| Tires | 11" Off-Road Rubber Tires |
| Suspension Type | Dual Hydraulic Shock Absorbers, C-type Independent Suspension |
| Brake System | Hydraulic Disc Brake |
| Product Dimensions (Unfolded) | 52"L x 12"W x 23.6"H (approx. 50.39"L x 51.18"H) |
| Material | High-intensity Aluminum Alloy |
| Waterproof Rating | IP55 |
| Charging Time | 6-8 hours (with dual charging) |
8. Warranty and Support
Toursor is committed to providing reliable products and excellent customer service.
8.1 Customer Support
For technical assistance, questions, or concerns, Toursor offers 24/7 customer support. Please refer to your purchase documentation or the official Toursor website for contact information.
8.2 Returns Policy
To avoid unnecessary losses, please pay attention to the product size when ordering. Returns for non-quality problems are generally not accepted. For quality-related issues, please contact customer support.
For more information, visit the official Toursor Store: Toursor Store on Amazon
