CUSHYBITE RY40HPST01K-RYPRN 40V HP Brushless Cordless String Trimmer & Pole Saw Combo Kit User Manual

1. Introduction

Product Overview

The CUSHYBITE RY40HPST01K-RYPRN 40V HP Brushless 16-inch Cordless String Trimmer and Pole Saw Combo Kit is designed to provide versatile and efficient solutions for various yard maintenance tasks. This kit features a high-performance brushless motor, ensuring increased efficiency, extended runtime, and a longer motor life. The 16-inch cutting swath of the string trimmer allows for quick clearing of thick grass and weeds, while its attachment-capable design offers flexibility to integrate other compatible tools. The pole saw attachment includes a 10-inch bar and chain, ideal for safely trimming overhead branches. Powered by a 40V 4.0 Ah battery and accompanied by a rapid charger, this combo kit is an all-in-one solution for heavy-duty yard work and is fully compatible with all tools within the 40V battery system.

Key Features

• Versatile Combo: Includes a powerful 16-inch string trimmer and a pole saw with a 10-inch bar, designed for tackling thick grass, weeds, and high branches.
• Brushless Motor Technology: Enhances power, extends runtime, and reduces maintenance requirements for reliable and efficient cutting performance.
• Attachment-Capable Trimmer: Allows for expansion of tool utility with other compatible attachments for tasks such as edging or sweeping.
• 40V Battery System: Powered by a 4.0 Ah battery and rapid charger, ensuring extended use and compatibility with all 40V system tools.

2. Safety Information

General Safety Guidelines

Always read and understand this entire manual before operating the tool. Failure to follow all instructions may result in electric shock, fire, and/or serious injury. Keep this manual for future reference.

• Personal Protective Equipment (PPE): Always wear eye protection (safety glasses), hearing protection, heavy-duty gloves, long pants, and sturdy, non-slip footwear when operating the tool.
• Work Area Safety: Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders at a safe distance.
• Tool Inspection: Before each use, inspect the tool for damaged parts, loose fasteners, or any other condition that may affect its safe operation. Do not use if damaged.
• Battery Safety: Use only the specified battery pack and charger. Do not charge the battery in damp or wet locations. Do not incinerate the battery pack, even if it is severely damaged.
• Proper Handling: Hold the tool firmly with both hands. Maintain proper footing and balance at all times. Avoid overreaching.
• Avoid Unintentional Starting: Ensure the switch is in the off-position before connecting to a battery pack, picking up or carrying the tool.

3. Package Contents

What's Included

Verify that all items listed below are present and in good condition upon unpacking. If any parts are missing or damaged, please contact customer support.

• 40V HP Brushless 16-inch Cordless String Trimmer
• Pole Saw Attachment (with 10-inch bar and chain)
• 4.0 Ah Lithium-Ion Battery
• Rapid Charger
• Operator's Manual (this document)

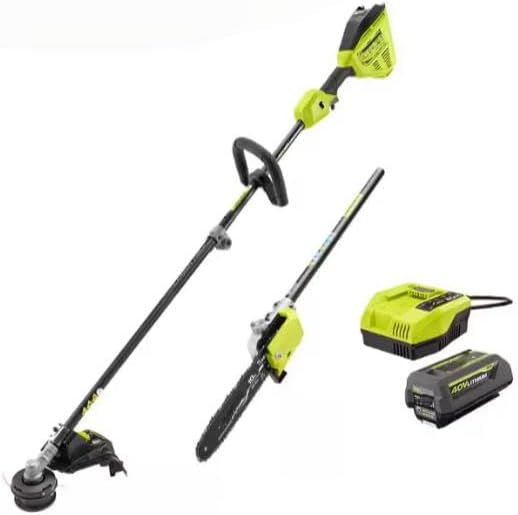

Image: The complete CUSHYBITE 40V HP Brushless Cordless String Trimmer and Pole Saw Combo Kit, including the main trimmer unit, the pole saw attachment, a 4.0 Ah battery, and its charger.

4. Setup

Assembly

1. Unpack Components: Carefully remove all items from the packaging.
2. Handle Assembly (String Trimmer): Attach the auxiliary handle to the string trimmer shaft. Ensure it is securely fastened at a comfortable operating position.
3. Guard Installation (String Trimmer): Securely attach the debris guard to the trimmer head using the provided hardware.
4. Attachment Connection: To connect the pole saw attachment, align the arrow on the trimmer power head with the arrow on the pole saw attachment. Push the attachment onto the power head until it clicks into place. Tighten the coupling knob securely.

Battery Charging and Installation

1. Charge Battery: Connect the rapid charger to a standard power outlet. Insert the 4.0 Ah battery pack into the charger. The indicator light on the charger will show the charging status. Allow the battery to fully charge before first use.
2. Install Battery: Once charged, remove the battery from the charger. Align the battery pack with the battery port on the string trimmer power head or pole saw attachment. Slide the battery into the port until it locks securely into place.
3. Remove Battery: To remove the battery, press the release latch and slide the battery out of the tool.

5. Operating Instructions

String Trimmer Operation

1. Pre-Operation Check: Ensure the battery is fully charged and securely installed. Check that the trimmer head and guard are properly attached.
2. Starting the Trimmer: Hold the trimmer firmly with both hands. Press and hold the safety lock-out button, then squeeze the trigger switch to start the motor.
3. Trimming Technique: Use a sweeping motion, moving the trimmer from side to side. Keep the trimmer head slightly above the ground. Avoid hitting hard objects like rocks, fences, or concrete.
4. Stopping the Trimmer: Release the trigger switch to stop the motor.

Image: A person demonstrating the use of the CUSHYBITE 40V HP Brushless Cordless String Trimmer, highlighting its ergonomic design and effective grass trimming capability.

Pole Saw Operation

1. Pre-Operation Check: Ensure the pole saw attachment is securely connected and the battery is fully charged. Check the chain tension and ensure the chain is properly lubricated.
2. Starting the Pole Saw: Hold the pole saw firmly with both hands. Press and hold the safety lock-out button, then squeeze the trigger switch to start the motor.
3. Cutting Technique: Position the pole saw to cut branches from the underside first to prevent pinching, then complete the cut from the top. Always maintain a safe distance from the cutting area. Avoid cutting branches that are too thick for the 10-inch bar.
4. Stopping the Pole Saw: Release the trigger switch to stop the motor.

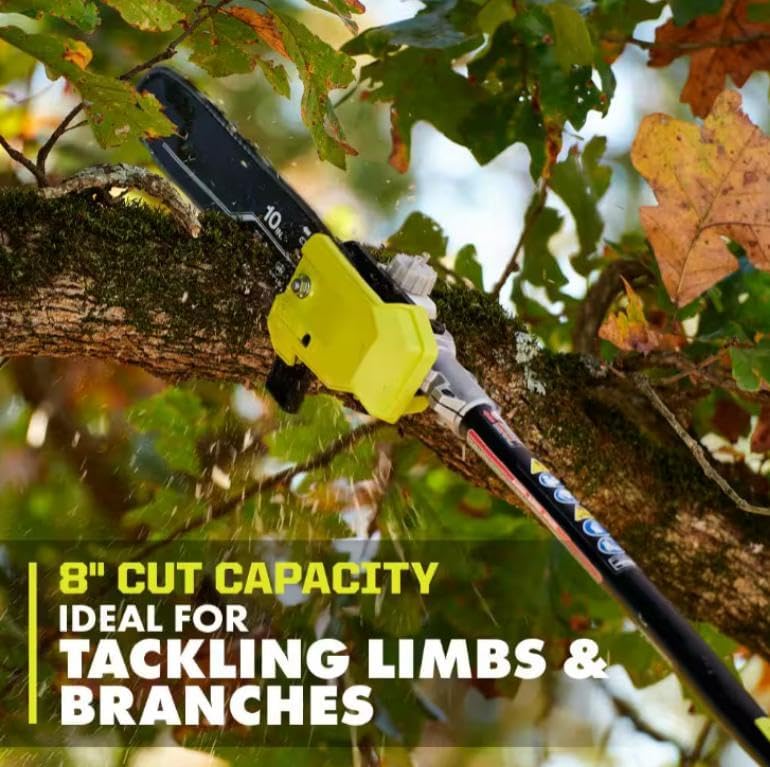

Image: The CUSHYBITE 40V HP Brushless Cordless Pole Saw attachment in action, demonstrating its 8-inch cut capacity on a tree branch, ideal for tackling limbs and branches.

6. Maintenance

General Maintenance

• Cleaning: After each use, disconnect the battery and clean the tool with a damp cloth. Remove any debris, grass, or sawdust from vents and moving parts. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the tool, battery, and charger in a cool, dry, and well-ventilated area, away from direct sunlight and moisture. Keep out of reach of children.
• Inspection: Regularly inspect all fasteners, guards, and cutting attachments for wear or damage. Replace worn or damaged parts immediately.

String Trimmer Head Maintenance

• Line Replacement: Refer to the specific instructions for your trimmer head model for replacing the cutting line. Always use the recommended line diameter.
• Head Cleaning: Keep the trimmer head free of tangled grass and debris to ensure proper line feeding.

Pole Saw Chain Maintenance

• Chain Lubrication: Ensure the chain oil reservoir is filled with appropriate bar and chain oil before each use. The pole saw features an automatic oiler.
• Chain Tension: Check chain tension regularly. The chain should be snug but still able to be pulled freely around the bar by hand. Adjust as needed according to the pole saw's specific instructions.
• Chain Sharpening: A dull chain can cause poor cutting performance and increased kickback risk. Sharpen the chain regularly or replace it when necessary.

7. Troubleshooting

Common Issues and Solutions

• Tool Does Not Start:
  • Ensure the battery is fully charged and securely inserted.
  • Check that the safety lock-out button is pressed before squeezing the trigger.
  • Inspect the battery terminals and tool contacts for debris or damage.
• Reduced Power or Runtime:
  • The battery may not be fully charged; recharge it.
  • The cutting line or chain may be dull or tangled; replace/sharpen or clear debris.
  • Operating in very thick material can reduce runtime; adjust cutting technique.
• String Trimmer Line Not Advancing:
  • Check for tangled grass or debris in the trimmer head.
  • The line may be too short or improperly wound; replace or re-spool.
  • Ensure the correct diameter line is being used.
• Pole Saw Chain Not Cutting Effectively:
  • The chain may be dull; sharpen or replace it.
  • Check chain tension; adjust if too loose or too tight.
  • Ensure the chain oil reservoir is filled.

If you encounter issues not covered here or if solutions do not resolve the problem, please contact customer support.

8. Specifications

Technical Data

9. Warranty and Support

Warranty Information

This CUSHYBITE product is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the documentation included with your purchase or contact CUSHYBITE customer support.

Customer Support

For technical assistance, replacement parts, or any questions regarding the operation or maintenance of your CUSHYBITE 40V HP Brushless Cordless String Trimmer & Pole Saw Combo Kit, please contact CUSHYBITE customer support. Contact information can typically be found on the product packaging or the manufacturer's official website.
