KUARBARR 3 Tier Stainless Steel Table (18 x 24 Inch) Instruction Manual

1. Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your KUARBARR 3 Tier Stainless Steel Table. Please read these instructions thoroughly before assembly and retain them for future reference. This table is designed for versatile use in commercial kitchens, garages, warehouses, and other demanding environments.

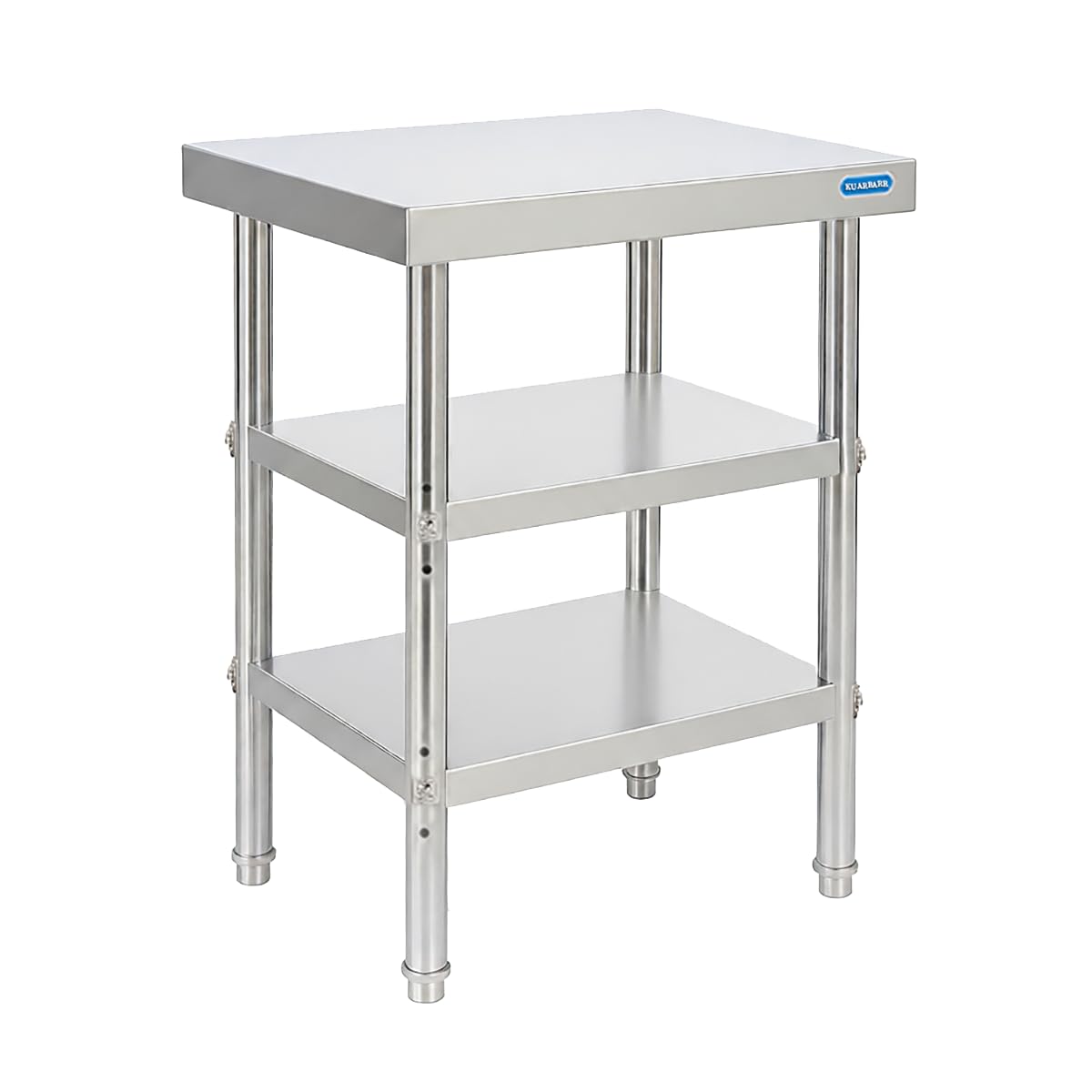

Image 1.1: KUARBARR 3 Tier Stainless Steel Table (18x24 inches).

2. Safety Information

Safety Warning: This product requires self-assembly. It is recommended that two people perform the assembly. Take precautions when assembling the product.

• Always ensure the table is placed on a stable, level surface to prevent tipping.
• Do not exceed the maximum weight capacities: 350 lbs for the top shelf and 250 lbs for each undershelf.
• Keep hands and fingers clear of moving parts during assembly and adjustment.
• Wear appropriate safety gear, such as gloves, during assembly to avoid cuts from sharp edges.
• Ensure all fasteners are securely tightened before using the table.

3. Package Contents

Verify that all components are present before beginning assembly:

• Stainless Steel Tabletop (1)
• Stainless Steel Undershelves (2)
• Legs (4)
• Adjustable Feet (4)
• Assembly Guide (1)
• Installation Tool (1)
• Fasteners (bolts, screws, washers - quantity as per assembly guide)

4. Assembly Instructions

The product requires assembly. Follow the provided assembly guide and use the included installation tool. It is recommended that two people perform the assembly for ease and safety.

1. Unpack Components: Carefully remove all parts from the packaging. Inspect for any damage. Remove the white protective film from each shelf prior to assembly.
2. Attach Legs to Tabletop: Securely attach the four legs to the underside of the tabletop using the provided fasteners. Do not fully tighten yet.
3. Install Undershelves: Slide the two undershelves onto the legs. The undershelves feature three height settings for optimal space utilization. Position them at your desired height.
4. Secure Undershelves: Fasten the undershelves to the legs using the remaining hardware. Ensure they are level.
5. Attach Adjustable Feet: Screw the adjustable feet into the bottom of each leg.
6. Final Tightening: Once all components are in place and aligned, fully tighten all fasteners.
7. Level the Table: Adjust the feet to stabilize the table on uneven floors, ensuring it is level and does not wobble.

Image 4.1: Illustration of adjustable undershelf and easy installation.

Image 4.2: Detailed view of the three-level adjustable lower shelf.

Assembly Video

Video 4.1: Official product video demonstrating the features and assembly of the KUARBARR Stainless Steel Table.

5. Product Features

• Commercial-Grade Stainless Steel: Constructed from NSF #201 stainless steel, offering corrosion resistance, high strength, and long-term durability.
• Adjustable Undershelves: Features two adjustable undershelves with three height settings to maximize vertical storage flexibility.
• Heavy-Duty Weight Support: The top shelf supports up to 350 lbs, and each undershelf supports up to 250 lbs.
• Adjustable Feet: 0-0.8 inch height adjustable feet provide stability on uneven surfaces.
• Easy to Clean: The smooth stainless steel surface simplifies cleaning and maintenance.

Image 5.1: Features including NSF certification, corrosion resistance, and easy cleaning.

6. Usage Guidelines

This stainless steel table is designed for versatile applications:

• Commercial Kitchens: Ideal for food preparation, ingredient storage, and holding kitchen equipment.
• Garages & Warehouses: Suitable as a workbench for tool repairs, storage, or organizing supplies.
• Bars & Outdoor Spaces: Can serve as a sturdy surface for serving, mixing, or outdoor cooking prep.
• Laundry Rooms: Provides a durable surface for folding clothes or storing laundry supplies.

Image 6.1: Examples of multi-purpose use in various environments.

7. Care and Maintenance

To ensure the longevity and appearance of your stainless steel table, follow these care instructions:

• Regular Cleaning: Wipe down surfaces with a soft cloth and mild soap and water. For stubborn stains, use a stainless steel cleaner.
• Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or steel wool, as these can scratch the surface.
• Prevent Water Spots: Dry the table thoroughly after cleaning to prevent water spots, especially in hard water areas.
• Inspect Fasteners: Periodically check all bolts and screws to ensure they remain tight. Retighten if necessary.
• Corrosion Resistance: While the table is corrosion-resistant, prolonged exposure to harsh chemicals or saltwater environments should be avoided.

8. Specifications

Image 8.1: Product specifications including dimensions and load capacities.

9. Troubleshooting

• Table Wobbles After Assembly: Ensure all fasteners are fully tightened. Adjust the individual feet at the bottom of each leg to compensate for uneven floor surfaces until the table is stable.
• Difficulty Assembling: Refer to the assembly guide and ensure all parts are correctly oriented. It is recommended to have two people for assembly. Do not force components together.
• Scratches on Surface: Minor scratches can occur with heavy use. For deeper scratches, professional stainless steel repair kits may be considered, but prevention through careful handling and cleaning is best.

10. Contact and Support

For further assistance, questions, or to report any issues with your KUARBARR Stainless Steel Table, please contact KUARBARR customer support through the retailer where the product was purchased. Please have your model number (3TST1824T) and purchase date available.
