1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your new replacement dishwasher drain pump. This pump is designed to restore proper drainage function to your dishwasher and is compatible with a wide range of Bosch and Thermador models, including those listed in the specifications section. Please read these instructions carefully before proceeding with installation or maintenance.
2. Safety Information
Before attempting any installation or maintenance, ensure the dishwasher's power supply is completely disconnected at the circuit breaker. Failure to do so can result in electric shock or serious injury. Always wear appropriate personal protective equipment, such as gloves and eye protection. If you are unsure about any step, it is recommended to consult a qualified appliance technician.
- Always disconnect power before servicing the appliance.
- Shut off the water supply to the dishwasher.
- Wear protective gloves and eyewear.
- Handle sharp edges with caution.
- Ensure all connections are secure and watertight after installation.
- Keep children and pets away from the work area.
3. Product Overview
This replacement drain pump is a critical component responsible for expelling water from your dishwasher tub during and after wash cycles. It features a durable motor and impeller assembly designed for efficient water removal. The pump is engineered to meet or exceed the specifications of the original part, ensuring reliable performance.
Figure 1: Overall view of the replacement dishwasher drain pump, highlighting its compact design and primary components.
Included Components
- One (1) Replacement Dishwasher Drain Pump
4. Setup and Installation
Replacing a dishwasher drain pump typically involves accessing the pump assembly located at the bottom of the dishwasher. This process may vary slightly depending on your specific dishwasher model. Always refer to your dishwasher's service manual for detailed, model-specific instructions. Professional installation is recommended.

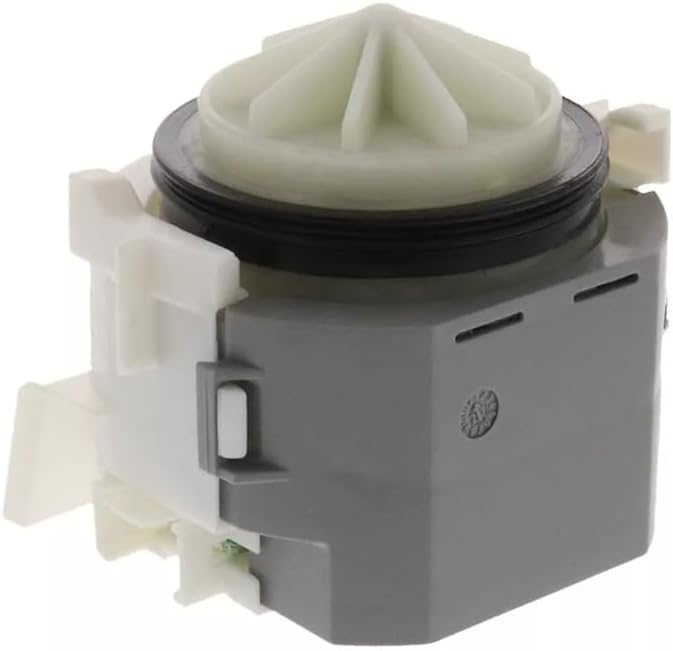

Figure 2: Side view of the drain pump, illustrating its connection points and mounting tabs.
General Installation Steps (Consult your dishwasher's service manual for specifics):
- Disconnect Power: Turn off the circuit breaker supplying power to the dishwasher.
- Shut Off Water: Close the water supply valve to the dishwasher.
- Access Pump: Carefully pull the dishwasher out from its cabinet and remove the lower access panel.
- Locate Old Pump: Identify the existing drain pump assembly.
- Disconnect Connections: Disconnect the electrical wiring harness and drain hoses from the old pump. Be prepared for residual water.
- Remove Old Pump: Release any clips or screws securing the old pump and remove it.
- Install New Pump: Position the new drain pump, ensuring it seats correctly. Secure it with clips or screws.
- Reconnect Connections: Attach the electrical wiring harness and drain hoses to the new pump. Ensure all hose clamps are tight to prevent leaks.
- Replace Panel: Reinstall the lower access panel and slide the dishwasher back into place.
- Test: Restore water and power. Run a short cycle to check for proper drainage and any leaks.
Figure 3: Bottom view of the drain pump, showing the impeller housing and drainage port.
5. Operation
The drain pump operates automatically as part of your dishwasher's wash cycle. When activated, the pump's motor spins the impeller, creating suction to draw water from the dishwasher tub and push it through the drain hose to your household plumbing. Proper operation ensures that dirty water is removed, allowing for clean rinse cycles and preventing standing water in the tub. The pump will engage multiple times throughout a wash cycle, typically after the main wash and rinse phases.
6. Maintenance
To ensure the longevity and efficient operation of your drain pump, periodic inspection is recommended. Check the drain hose for kinks or blockages. Occasionally, food debris or foreign objects may accumulate in the pump's filter or impeller area, which can impede drainage. If accessible, clear any obstructions after disconnecting power to the dishwasher. Do not use harsh chemicals to clean the pump or its surrounding components, as this may cause damage.
Figure 4: Top view of the drain pump, showing the impeller assembly.
7. Troubleshooting
Refer to the table below for common issues related to dishwasher drainage and potential solutions. Always disconnect power before attempting any troubleshooting steps that require accessing internal components.
| Issue | Possible Cause | Solution |
|---|---|---|
| Dishwasher not draining | Clogged drain hose or air gap | Inspect and clear drain hose/air gap. |
| Clogged pump filter/impeller | Disconnect power, access pump, clear debris. | |
| Faulty drain pump | Replace the drain pump. | |
| Unusual noise during drain cycle | Debris in pump impeller | Disconnect power, access pump, remove debris. |
| Worn pump motor/bearings | Replace the drain pump. | |
| Water leaks from pump area | Loose hose connections | Tighten hose clamps. |
| Damaged pump housing/seal | Replace the drain pump. |
Figure 5: Rear view of the drain pump, showing the motor housing.
8. Specifications
Technical details for the replacement dishwasher drain pump:
| Feature | Detail |
|---|---|
| Brand | Generic |
| Model Number | SHP878WD6N/01 |
| Power Source | Corded Electric |
| Included Components | Drain Pump |
| Manufacturer | generic |
| Package Dimensions | 1 x 1 x 1 inches |
| ASIN | B0F3W6CWHZ |
| Date First Available | April 6, 2025 |
9. Warranty Information
This replacement drain pump is covered by the manufacturer's standard warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation provided with your purchase or contact the seller directly.
10. Customer Support
For technical assistance, troubleshooting guidance, or inquiries regarding this product, please contact the seller or manufacturer through the platform where the purchase was made. When contacting support, please have your product model number (SHP878WD6N/01) and purchase details readily available.
