1. Introduction
This instruction manual provides essential information for the safe assembly, operation, and maintenance of your CUSHYBITE RY40PH01K-RYPRN 40V Expand-It Cordless Powerhead Kit with Pole Saw Attachment. This system offers a versatile solution for various yard work tasks, combining the convenience of a battery-powered tool with the performance required for demanding applications. Please read this manual thoroughly before first use and keep it for future reference.

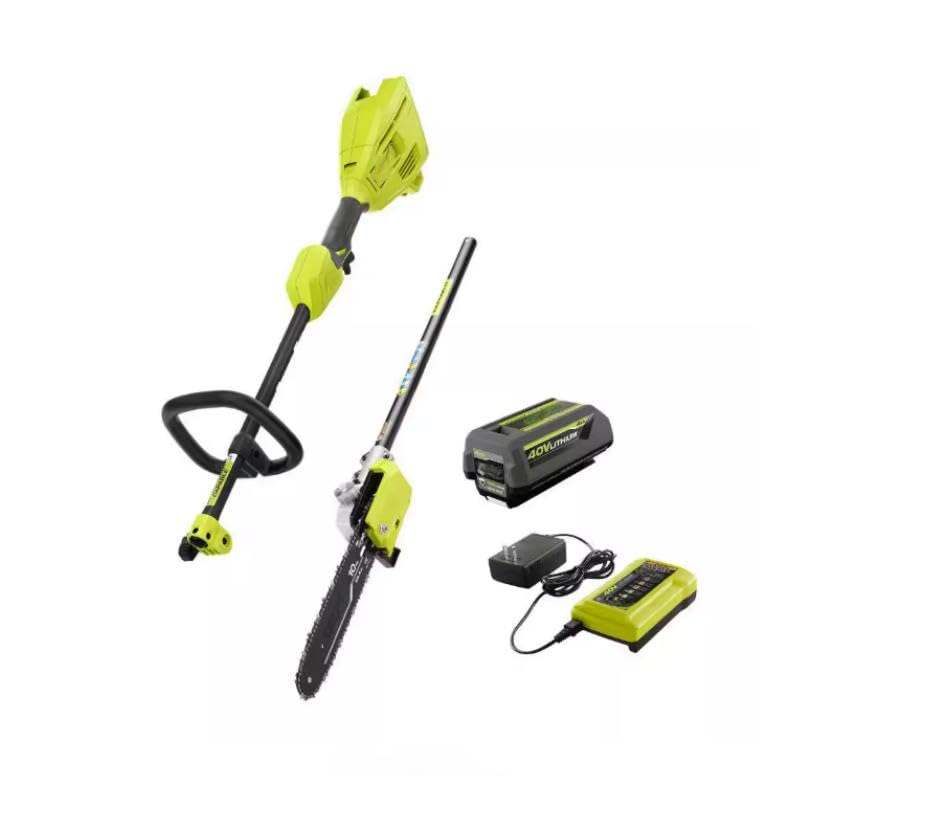

Image 1.1: The CUSHYBITE 40V Expand-It Powerhead Kit, including the powerhead, pole saw attachment, 4.0 Ah battery, and charger.
2. Safety Information
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating power tools. Keep this manual for future reference.
- Read all instructions: Familiarize yourself with the controls and proper use of the tool.
- Wear appropriate personal protective equipment (PPE): Always wear safety glasses, hearing protection, gloves, and sturdy footwear.
- Maintain a safe working area: Keep the area clear of bystanders, children, and pets. Ensure good footing and balance.
- Avoid dangerous environments: Do not use the tool in wet or damp conditions, or where flammable liquids or gases are present.
- Inspect the tool before use: Check for damaged parts, loose fasteners, or any other condition that may affect safe operation.
- Use the correct tool for the job: Do not force the tool or use it for purposes not intended.
- Disconnect power: Always remove the battery pack before making adjustments, changing accessories, or storing the tool.
- Store idle tools: When not in use, store tools in a dry, secure place out of reach of children.
3. Package Contents
Verify that all items listed below are included in your package. If any parts are missing or damaged, contact customer support.
- 40V Cordless Powerhead
- Pole Saw Attachment (10-inch bar)
- 4.0 Ah Lithium-Ion Battery
- Battery Charger
- Operator's Manual
4. Setup
4.1 Charging the Battery
- Connect the charger to a standard 120V AC outlet.
- Slide the 4.0 Ah battery pack onto the charger. Ensure it is fully seated.
- The charger indicator light will show the charging status. Refer to the charger's specific instructions for light patterns.
- Once fully charged, remove the battery from the charger. Do not leave batteries on the charger for extended periods after full charge.
4.2 Attaching the Pole Saw
The Expand-It system allows for quick attachment changes.
- Ensure the powerhead is turned off and the battery pack is removed.
- Align the shaft of the pole saw attachment with the coupling on the powerhead.
- Push the attachment into the powerhead until it clicks into place.
- Tighten the coupling knob securely to prevent the attachment from rotating during use.
Image 4.2: A user demonstrating the attachment of an accessory to the Expand-It powerhead, highlighting its versatile design.
4.3 Installing the Battery
- Align the ribs on the battery pack with the grooves in the powerhead's battery port.
- Slide the battery pack into the powerhead until it locks securely in place.
- To remove, press the battery release button and slide the battery out.
5. Operating Instructions
5.1 General Operation
The powerhead features a variable speed trigger for precise control.
- Starting: Press the lock-out button (if present) and then squeeze the variable speed trigger.
- Stopping: Release the trigger.
- Variable Speed: Apply more pressure to the trigger for higher speeds and less pressure for lower speeds.
Image 5.1: A user operating the powerhead with a trimmer attachment, demonstrating its ergonomic design and ease of use.
5.2 Using the Pole Saw Attachment
The 10-inch pole saw attachment is designed for trimming tree limbs and branches.
- Chain Oiling: Ensure the chain oil reservoir is filled with appropriate bar and chain oil before each use. The pole saw features an automatic oiler.
- Cutting Technique: Support the pole saw firmly with both hands. Position the saw to cut on the underside of the branch first to prevent pinching, then complete the cut from the top.
- Reach: The pole saw extends up to 12 feet, allowing access to high branches. Maintain balance and control at all times.
- Cutting Capacity: This pole saw can cut branches up to 8 inches in diameter. Do not attempt to cut larger branches.
Image 5.2: The pole saw attachment in action, demonstrating its 8-inch cutting capacity on a tree limb.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your tool.
- Cleaning: After each use, clean the tool with a damp cloth. Remove any debris from vents and moving parts. Do not use harsh chemicals.
- Chain Maintenance (Pole Saw): Regularly check the chain tension. The chain should be snug but still able to be pulled around the bar by hand. Keep the chain sharp for efficient cutting. Refer to the pole saw attachment's specific manual for sharpening instructions.
- Bar Maintenance (Pole Saw): Periodically remove the bar and clean the guide groove. Flip the bar over regularly to ensure even wear.
- Storage: Store the tool, battery, and charger in a cool, dry place, away from direct sunlight and moisture. Remove the battery pack from the tool before storage.
7. Troubleshooting
If you encounter issues, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | Battery not charged or improperly installed; Lock-out button not pressed. | Charge battery; Reinstall battery securely; Press lock-out button before trigger. |
| Reduced power or runtime | Battery charge low; Battery nearing end of life. | Recharge battery; Consider replacing battery if performance does not improve. |
| Pole saw chain not cutting efficiently | Chain dull or loose; Insufficient chain oil. | Sharpen or replace chain; Adjust chain tension; Fill chain oil reservoir. |
| Attachment not secure | Coupling knob loose; Attachment not fully engaged. | Tighten coupling knob; Ensure attachment clicks into place. |
If problems persist after attempting these solutions, contact customer support.
8. Specifications
| Specification | Detail |
|---|---|
| Brand Name | CUSHYBITE |
| Model Number | RY40PH01K-RYPRN |
| UPC | 670329599709 |
| ASIN | B0F3T7CCTS |
| Power Source | 40V Lithium-Ion Battery |
| Pole Saw Bar Length | 10 inches |
| Pole Saw Cutting Capacity | Up to 8 inches |
| Battery Capacity | 4.0 Ah |
9. Warranty Information
This product is covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the warranty card included with your product or contact CUSHYBITE customer support.
10. Customer Support
For technical assistance, replacement parts, or any questions regarding your CUSHYBITE RY40PH01K-RYPRN, please contact our customer support team. Contact information can typically be found on the product packaging or our official website.
Online Support: Visit the CUSHYBITE official website for FAQs, product registration, and support resources.
Telephone Support: Refer to your product documentation for the customer service phone number.
