1. Product Overview
The CUSHYBITE RY401170 40V HP Brushless 20-inch Cordless Walk-Behind Push Lawn Mower is designed for efficient lawn maintenance. It features a powerful brushless motor, a 20-inch cutting deck, and a 3-in-1 functionality for mulching, bagging, or side discharge. This mower operates on a 40V battery system, providing cordless convenience and reduced noise compared to gas-powered alternatives.
Key features include:
- 40V HP Brushless Motor: Delivers performance suitable for medium to large yards.
- 20-inch Durable Deck: Provides wide cutting coverage.
- Single-Point Height Adjustment: Easily adjust cutting height from 1.5 inches to 4 inches.
- 3-in-1 Functionality: Mulch, bag, or side discharge clippings.
- Compact Vertical Storage: Saves space when not in use.
- 6.0 Ah Battery and Charger: Included for extended runtime and quick charging.

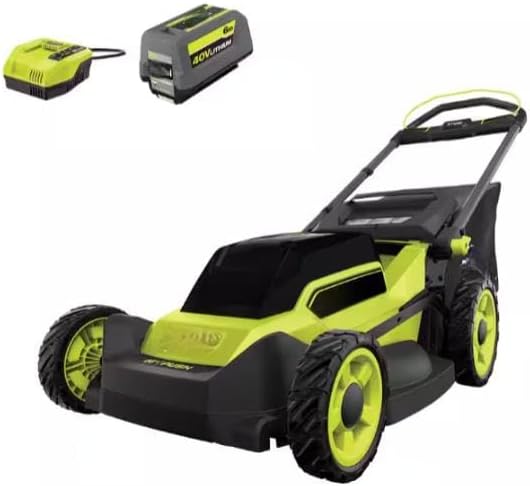

Image 1.1: The CUSHYBITE RY401170 lawn mower, accompanied by its 40V battery and charger.
2. General Safety Information
Read and understand all safety warnings and instructions before operating this lawn mower. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
2.1 Personal Safety
- Always wear eye protection, long pants, and sturdy footwear when operating the mower.
- Do not operate the mower when barefoot or wearing open sandals.
- Keep children, bystanders, and pets at a safe distance (at least 50 feet) from the mowing area.
- Never allow children to operate the mower.
- Do not operate the mower under the influence of alcohol, drugs, or medication.
2.2 Mower Operation Safety
- Inspect the area where the mower is to be used and remove all objects such as rocks, sticks, wires, bones, and toys.
- Do not operate the mower in wet grass.
- Mow only in daylight or good artificial light.
- Never pull the mower towards you while operating.
- Turn off the mower and remove the battery pack before clearing blockages, performing maintenance, or leaving the mower unattended.
- Avoid sudden starts and stops.
2.3 Battery Safety
- Use only the specified battery pack and charger.
- Do not charge the battery pack in damp or wet locations.
- Do not incinerate the battery pack, even if it is severely damaged or completely worn out.
- Protect the battery pack from heat and fire.
3. Setup and Assembly
3.1 Unpacking
Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present. Retain packaging materials until you are satisfied with the product's operation.
3.2 Handle Assembly
- Unfold the upper handle and lower handle sections.
- Align the holes and secure the handle sections using the provided knobs and bolts. Ensure the cables are not pinched.
- Adjust the handle height to a comfortable operating position if adjustable.
3.3 Grass Bag Assembly (if applicable)
Assemble the grass bag frame and attach the fabric bag. Refer to the diagrams in your specific product manual for detailed steps.
3.4 Battery Charging
- Connect the charger to a standard power outlet.
- Insert the 40V battery pack into the charger.
- Allow the battery to charge fully before first use. The charger indicator light will typically change color when charging is complete.
3.5 Cutting Height Adjustment
The mower features a single-point height adjustment lever. This lever allows you to quickly change the cutting height for different lawn conditions.
- Ensure the mower is turned off and the battery is removed.
- Locate the height adjustment lever on the side of the mower deck.
- Pull the lever outwards and move it forward or backward to select the desired cutting height (ranging from 1.5 inches to 4 inches).
- Release the lever to lock it into position.
Image 3.1: The single-point lever for adjusting the cutting height of the mower.
4. Operating Instructions
4.1 Before Starting
- Ensure the battery is fully charged and securely inserted into the mower's battery compartment.
- Check that the cutting height is set appropriately for your lawn.
- Clear the mowing area of any debris or obstacles.
4.2 Starting and Stopping the Mower
- To Start: Press and hold the safety button, then pull the bail lever towards the handle. The motor will start.
- To Stop: Release the bail lever. The motor will stop.
4.3 Mowing Techniques
For best results, mow in straight, overlapping lines. Avoid cutting more than one-third of the grass blade length at a time. If the grass is very tall, make two passes, raising the cutting height for the first pass.
Image 4.1: A user demonstrating proper mowing technique with the CUSHYBITE lawn mower.
4.4 3-in-1 Functionality
- Mulching: The mower is designed to finely cut and redistribute grass clippings back onto the lawn as natural fertilizer. Ensure the side discharge chute and grass bag are removed, and the mulching plug (if included) is installed.
- Bagging: For collecting clippings, attach the grass bag securely to the rear discharge opening. Remove the mulching plug if installed.
- Side Discharge: For discharging clippings out the side, attach the side discharge chute. Ensure the grass bag is removed and the mulching plug (if installed) is removed.
The 6.0 Ah battery provides approximately 45 minutes of runtime, suitable for lawns up to 1/2 acre or less, depending on grass conditions and cutting height.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your lawn mower. Always remove the battery pack before performing any maintenance.
5.1 Cleaning the Mower
- After each use, clean the underside of the mower deck to prevent grass buildup. Use a brush or scraper.
- Wipe down the exterior surfaces with a damp cloth. Do not use water jets or pressure washers directly on the mower.
- Ensure all vents are clear of debris.
5.2 Blade Care
- Periodically inspect the blade for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn.
- If the blade is dull or damaged, it should be sharpened or replaced. Contact qualified service personnel for blade replacement.
- Always wear heavy gloves when handling the blade.
5.3 Battery and Charger Care
- Store the battery pack in a cool, dry place away from direct sunlight and moisture.
- Do not store the battery pack in a discharged state for extended periods.
- Keep the charger clean and free of debris.
5.4 Storage
This mower features compact vertical storage. Clean the mower thoroughly before storing. Fold the handle down and store the mower in a dry, secure location, out of reach of children. Remove the battery pack before storing for extended periods.
6. Troubleshooting
This section addresses common issues you might encounter with your lawn mower. If you experience a problem not listed here, or if the suggested solutions do not resolve the issue, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Mower does not start |
|
|
| Poor cutting performance |
|
|
| Excessive vibration |
|
|
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | RY401170 |
| Brand | CUSHYBITE |
| Motor Type | 40V HP Brushless |
| Cutting Deck Size | 20 inches |
| Cutting Height Range | 1.5 inches - 4 inches |
| Height Adjustment | Single-point |
| Functions | Mulching, Bagging, Side Discharge |
| Battery Included | 6.0 Ah 40V Battery |
| Charger Included | Yes |
8. Warranty and Support
For warranty information or technical support, please contact CUSHYBITE customer service. Keep your purchase receipt as proof of purchase for any warranty claims.
Manufacturer: CUSHYBITE
Specific warranty terms and conditions may vary. Refer to the documentation included with your product or visit the manufacturer's official website for the most current warranty details and contact information.
